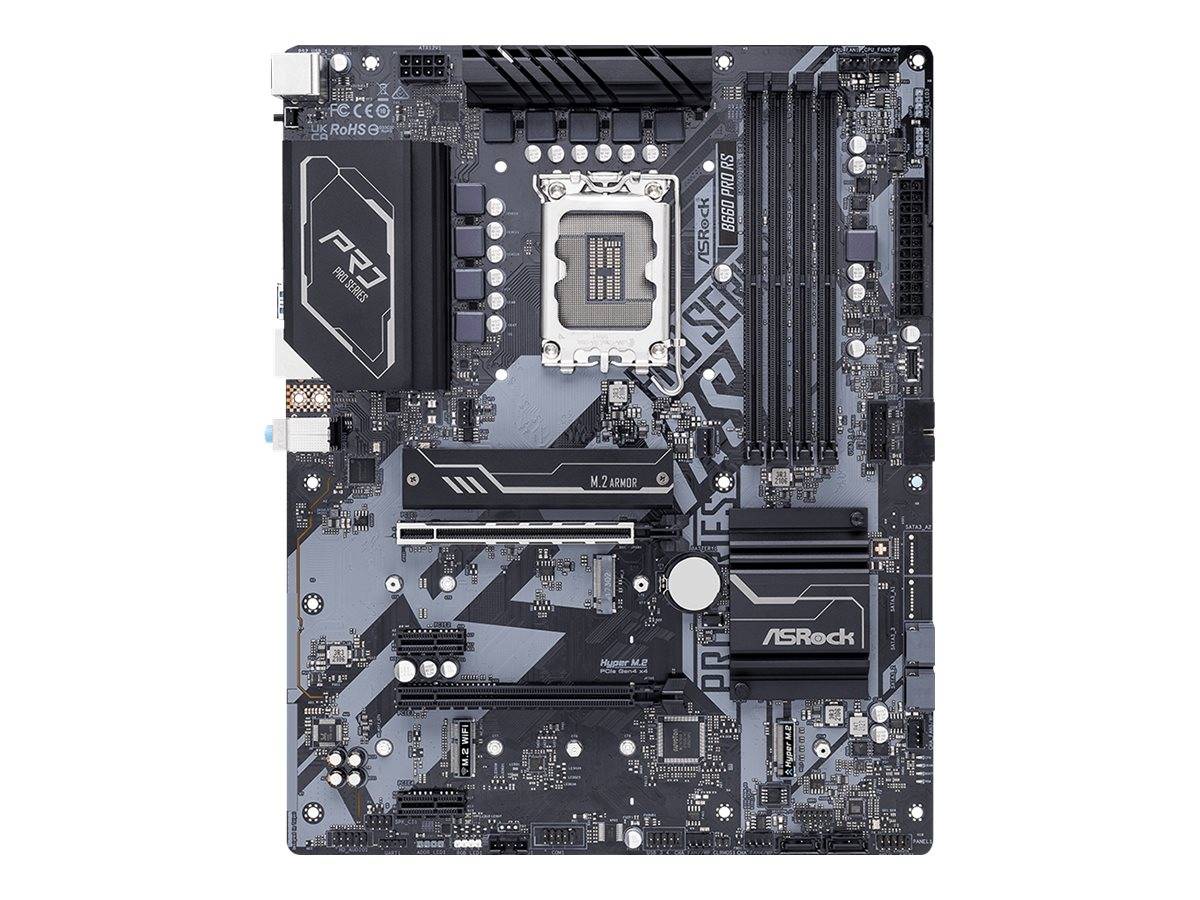

ASRock B660 Pro RS / Motherboard / ATX / LGA1700 Socket / B660 Chipset / USB-C Gen1, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBHV0-A0UAYZ

90-MXBHV0-A0UAYZ
142.58
154.98
(169.67 inc. VAT) You save: 12.40
Out of stock
Find similar
Delivery
Payment options
Product Code07:125253 EAN Code4710483936616 ManufacturerAsrock CPU SocketSocket 1700

Product Features

  • 8 power phase design
    Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
  • Nahimic Audio
    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Polychrome RGB
    In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
  • Reinforced Steel Slot [PCIe 4.0 Version]
    The reinforced steel slot is capable of supporting PCI Express 4.0 standard.
  • High Speed M.2 solution
    This motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning-fast data transferring experience.
  • Intel Gigabit LAN
    Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
  • M.2 (Key E) for Wi-Fi
    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Special Features

  • 8 power phase design
  • Nahimic Audio
  • Polychrome RGB
  • Reinforced Steel Slot [PCIe 4.0 Version]
  • High Speed M.2 solution
  • Intel Gigabit LAN
  • M.2 (Key E) for Wi-Fi

Product Specification

Product Type Motherboard - ATX
Chipset Type Intel B660
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th Generation Intel Core)
Supported RAM Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 4800 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Intel I219V
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort
Internal Interfaces 1 x serial - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 2 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features 8 Phase Power Design, ASRock Instant Flash, HDCP compliant, AMD CrossFireX technology support, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, Intel Hybrid Technology
Miscellaneous Miscellaneous
Included Accessories I/O back plate, 4 x M.2 screws, standoff for M.2 socket
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC
Compliant Standards FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Width 30.5 cm
Depth 24.4 cm
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years

Features - Asrock - 90-MXBHV0-A0UAYZ

CPU Socket
  • Socket 1700
More Details
Product Code
07:125253
EAN Code
4710483936616
Manufacturer
Asrock
