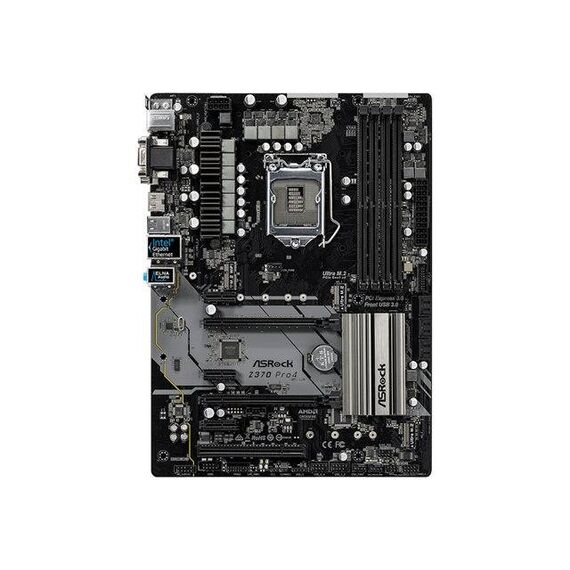

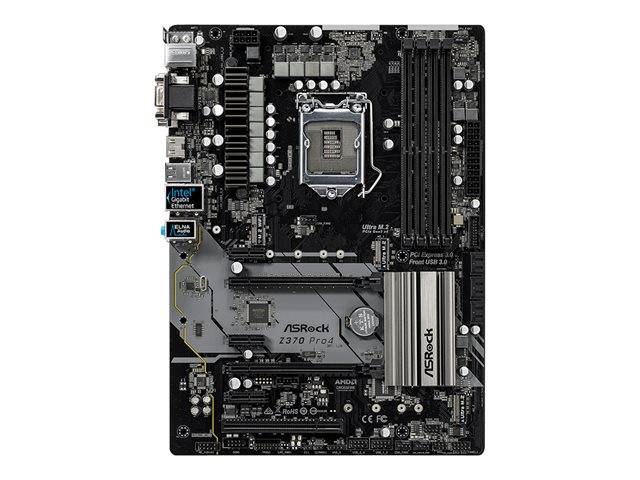

ASRock Z370 Pro4 / Motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB5X0-A0UAYZ
ASRock Z370 Pro4 / Motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB5X0-A0UAYZ
Description Prepare yourself well to enjoy the impressive world of virtual reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR ready motherboards are definitely the one you're looking for. The sturdy components and rock-solid performance make you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. The reversible USB Type-C design fits the connector either way. POOL technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance. LAN provides great throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z370 |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.) |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
Max Allocated RAM Size | 1 GB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC892 |
Compliant Standards | High Definition Audio, Premium Blu-ray audio support |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1 ¦ 1 x PCI ¦ 1 x M.2 socket (Key E) |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 |
RAID Features | Intel Rapid Storage Technology |
Interfaces | 1 x HDMI ¦ 5 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x USB-C Gen1 ¦ 1 x VGA ¦ 1 x PS/2 keyboard / mouse |
Internal Interfaces | 5 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | Chassis intrusion detection, ASRock Instant Flash, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock BCLK, ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, 10 Phase Power Design, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 45A Power Choke, Premium Memory Alloy Choke, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology |
Included Accessories | I/O back cover, 3 x M.2 screws |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
Compliant Standards | FCC, EuP Ready, ErP Ready |
Width | 30.5 cm |
Depth | 22.4 cm |
Service & Support | Limited warranty - 3 years |
