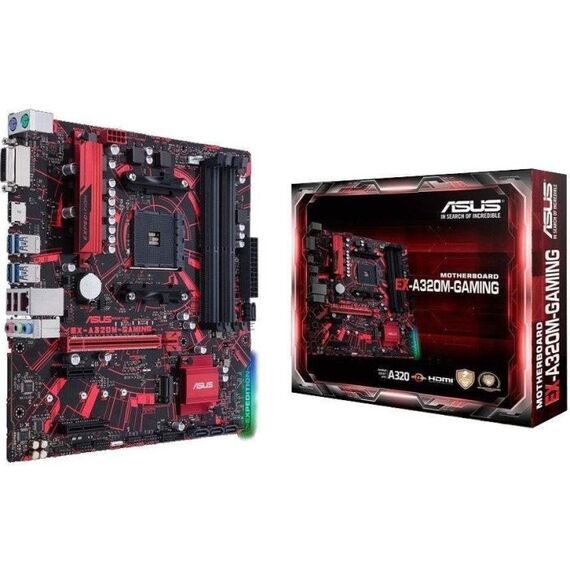

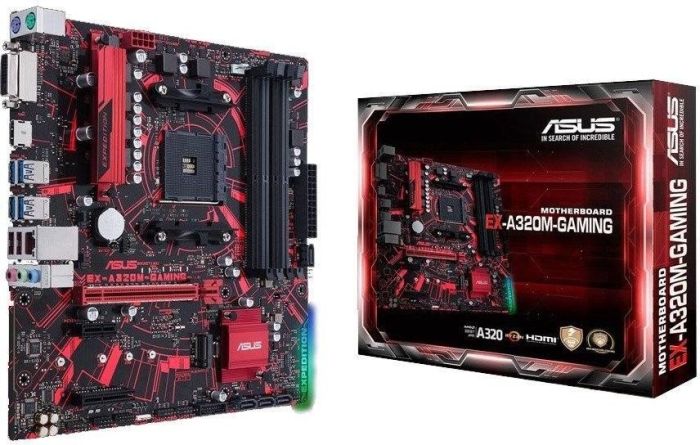

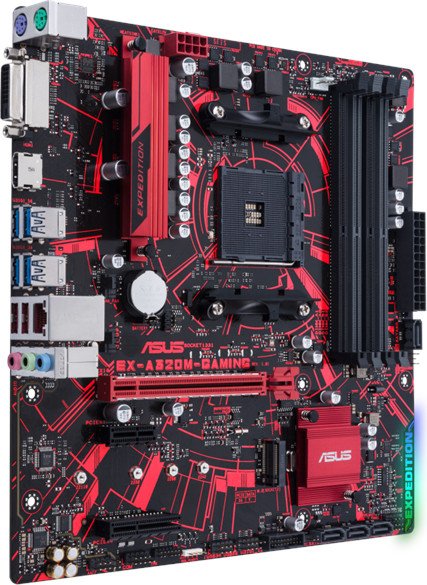

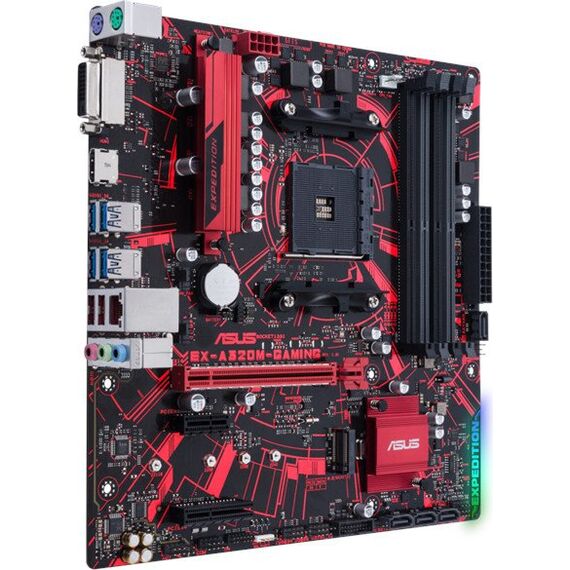

ASUS EX-A320M-GAMING / Motherboard / micro ATX / Socket AM4 / AMD A320 / USB 3.0 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0VG0-M0EAYM
ASUS EX-A320M-GAMING / Motherboard / micro ATX / Socket AM4 / AMD A320 / USB 3.0 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0VG0-M0EAYM
Description ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages - for immense longevity. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance - and amazing stability, reliability, and value for you! ASUS EX-A320M-GAMING / Motherboard | 90MB0VG0-M0EAYMSpecial Features
Product features
|
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | AMD A320 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check | Non-ECC, ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture |
Max Allocated RAM Size | 2 GB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x4 (x2 mode) ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

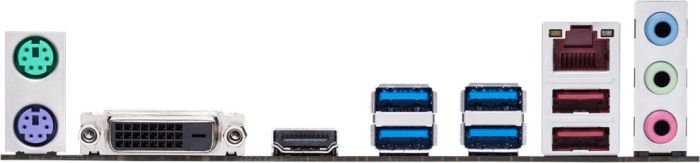

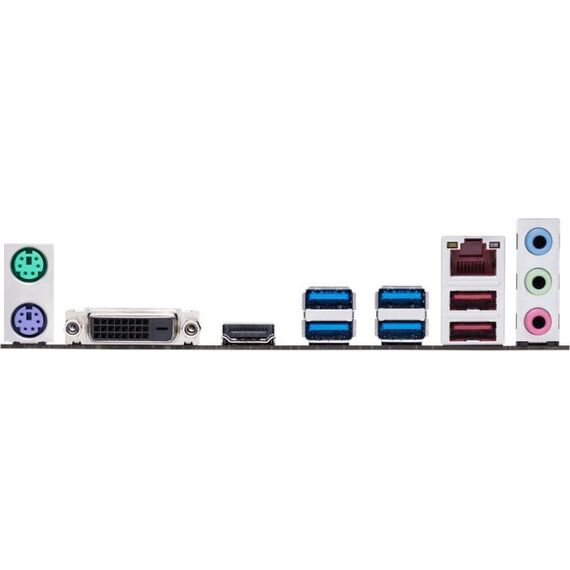

Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 1 x HDMI |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.1 support |
Hardware Features | ASUS Q-Design, Q-DIMM, Q-Slot, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, anti-pop function, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS iCafe Labs Certified, USBGuard, AURA RGB Lighting Control, Moistureproof PCB, ASUS 5X Protection III, ASUS SafeSlot Core |
Included Accessories | 1 x M.2 screw, I/O back cover |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities |
Compliant Standards | Plug and Play |
Width | 24.4 cm |
Depth | 24.4 cm |
Service & Support | Limited warranty - 3 years |
