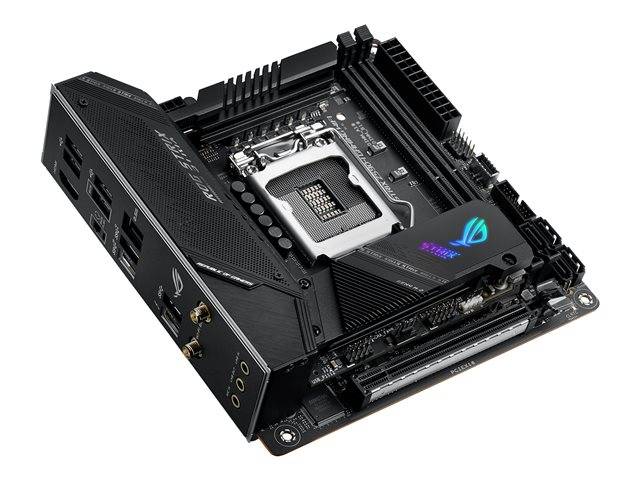

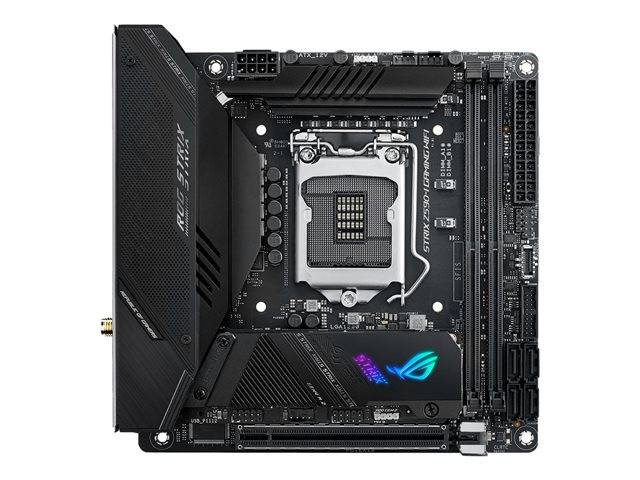

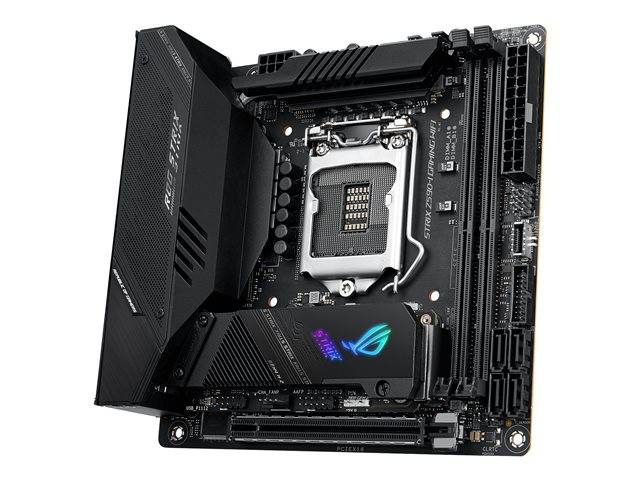

ASUS ROG STRIX Z590-I GAMING WIFI / Motherboard / mini ITX / LGA1200 Socket / Z590 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1680-M0EAY0
Please sign in so that we can notify you about a reply
ASUS ROG STRIX Z590-I GAMING WIFI / Motherboard / mini ITX / LGA1200 Socket / Z590 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1680-M0EAY0
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel Z590 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Controller | Intel I225-V / Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

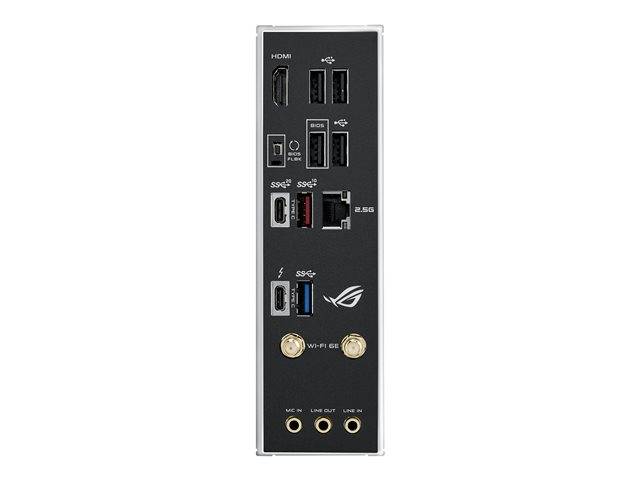

| Interfaces | 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x Thunderbolt 4/USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 2 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x speaker - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey button, ASUS ProCool II, GameFirst VI, Savitech SV3H712 amplifier |
| Included Accessories | Cable ties, ROG fan stickers, 2 x M.2 screws, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Overwolf, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), MemTest86 |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asus - 90MB1680-M0EAY0
CPU Socket
- Socket 1200
More Details
Product Code
04:359271
EAN Code
4711081097952
Manufacturer
Asus
