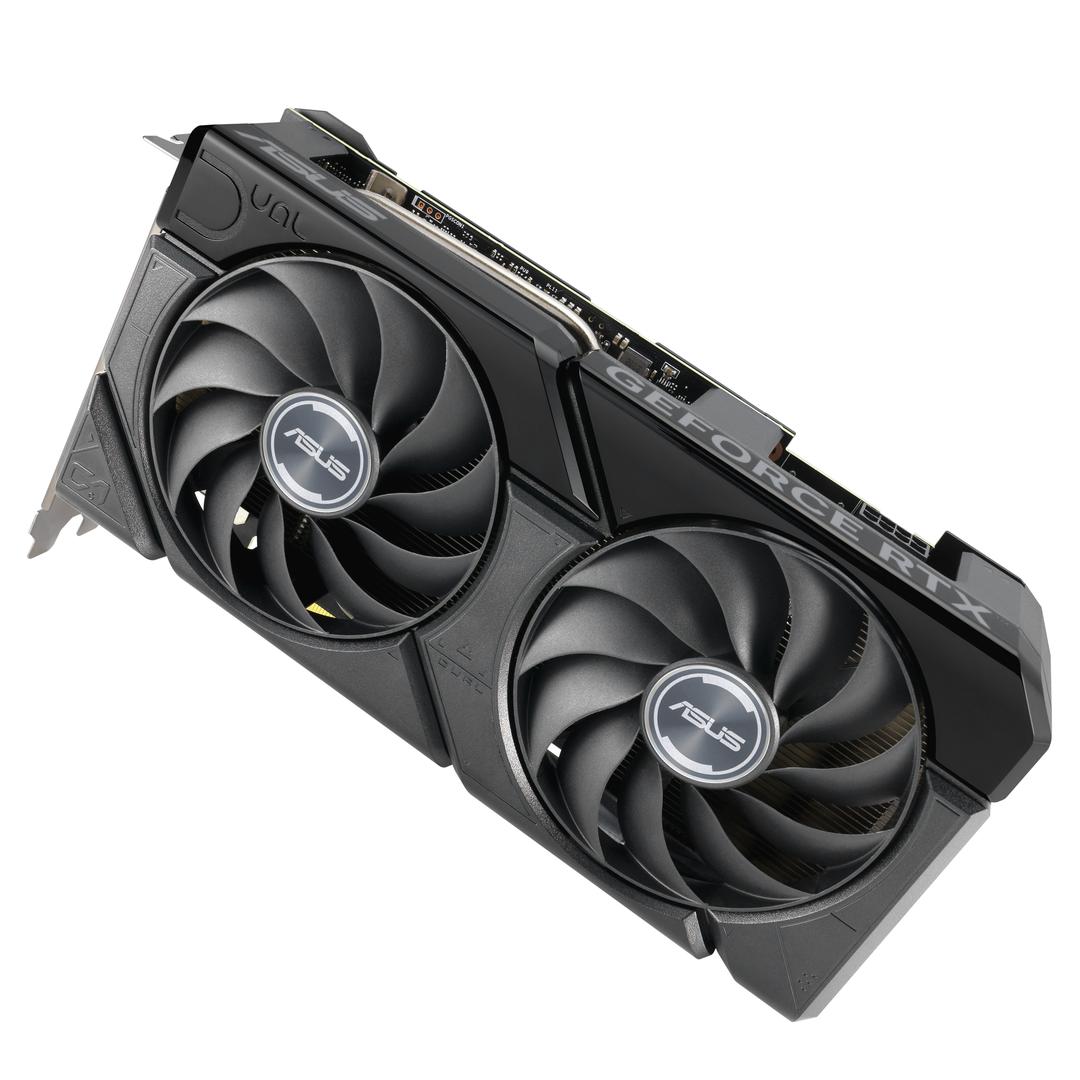

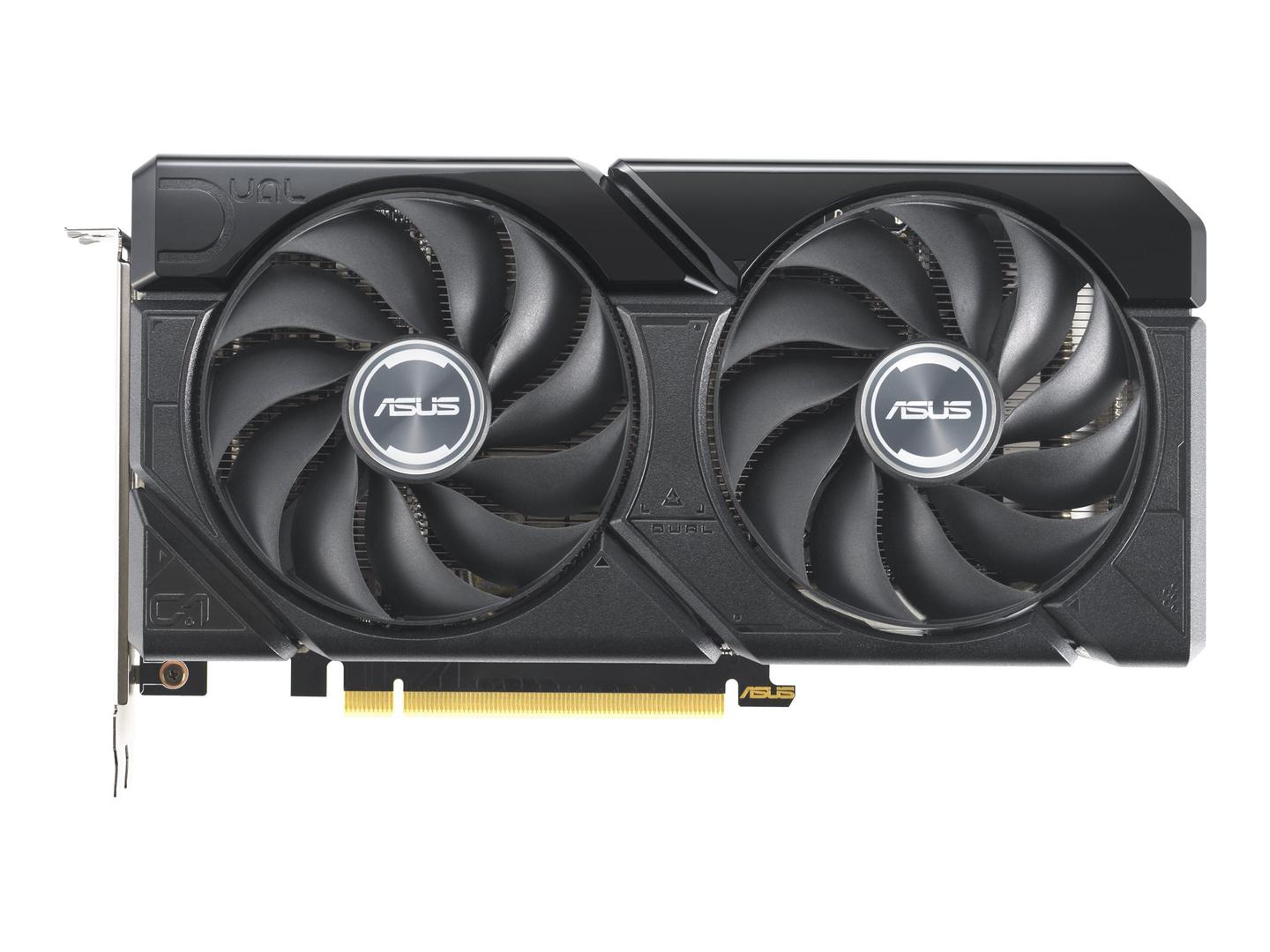

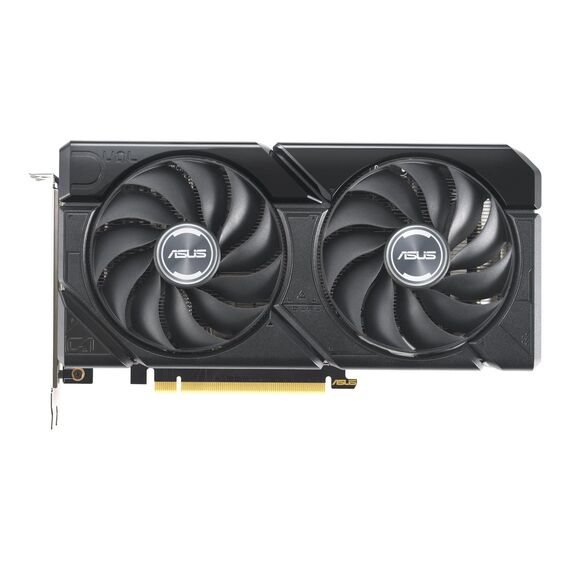

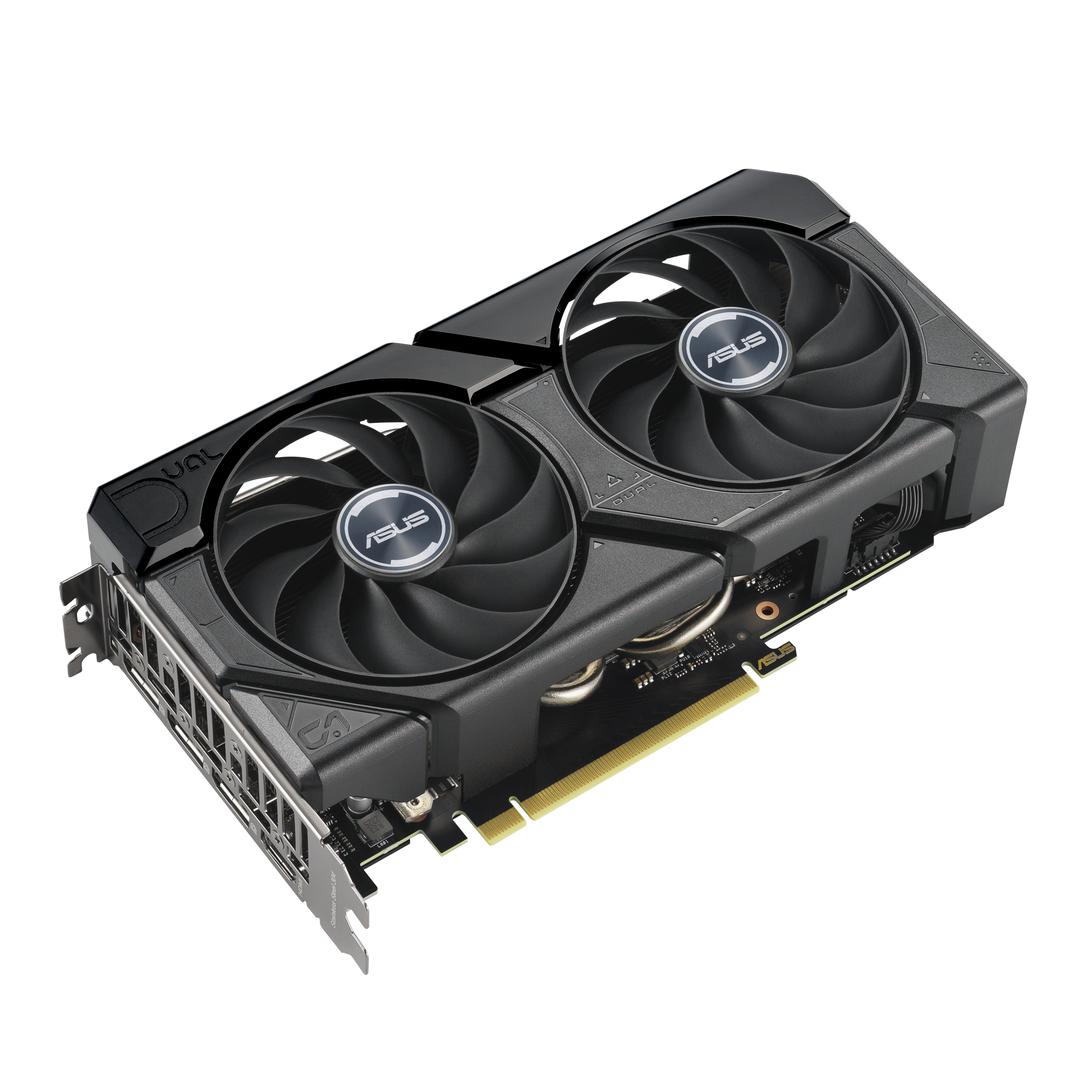

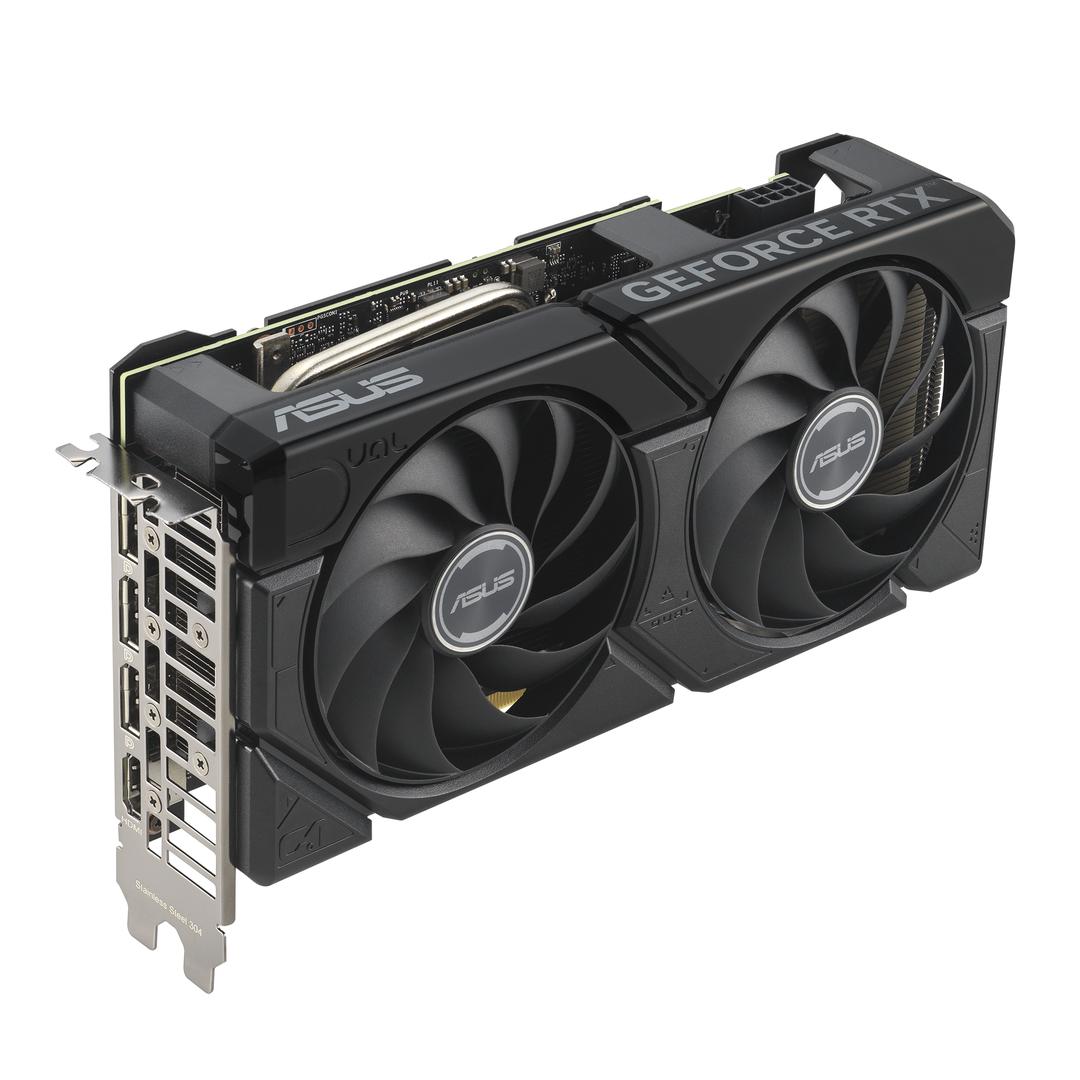

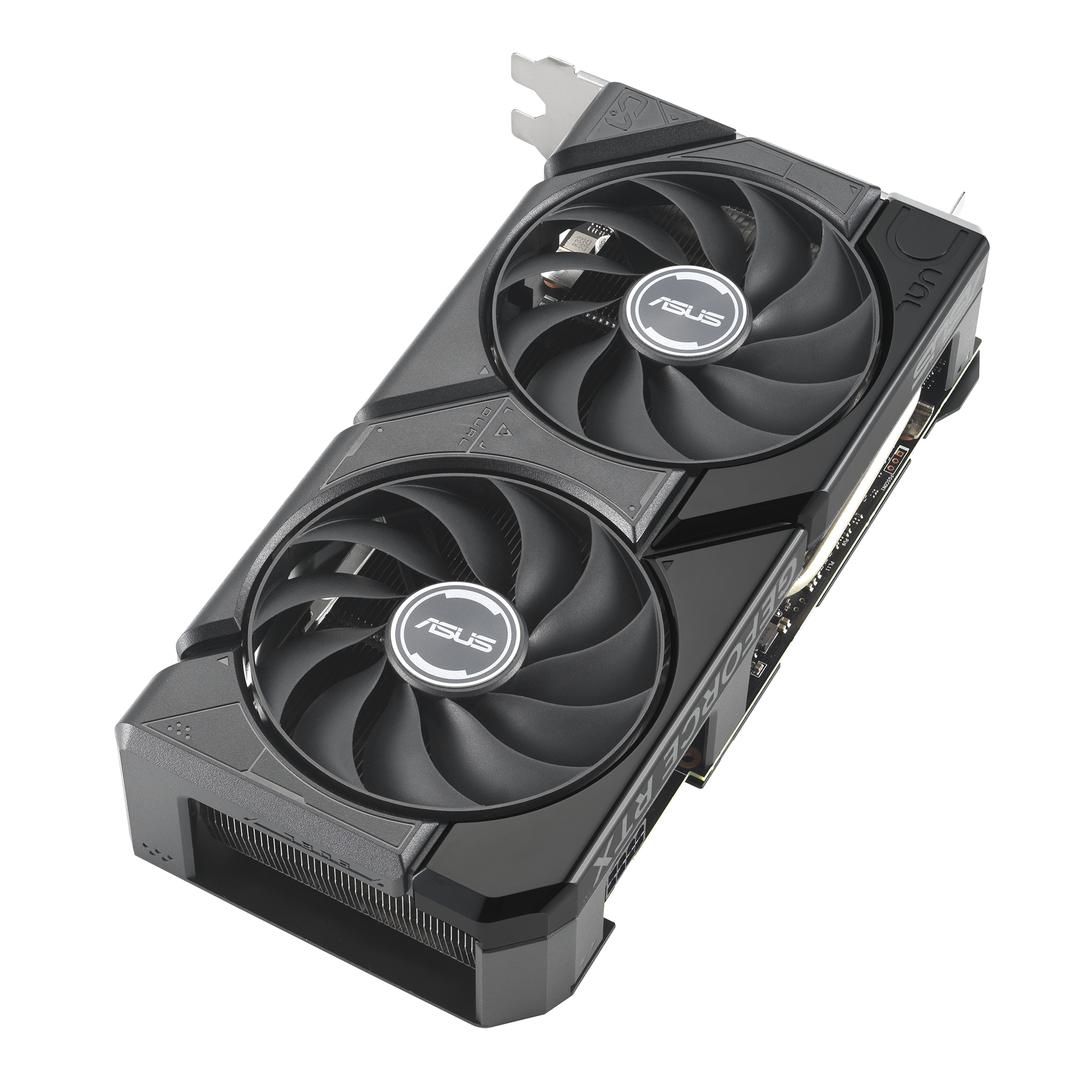

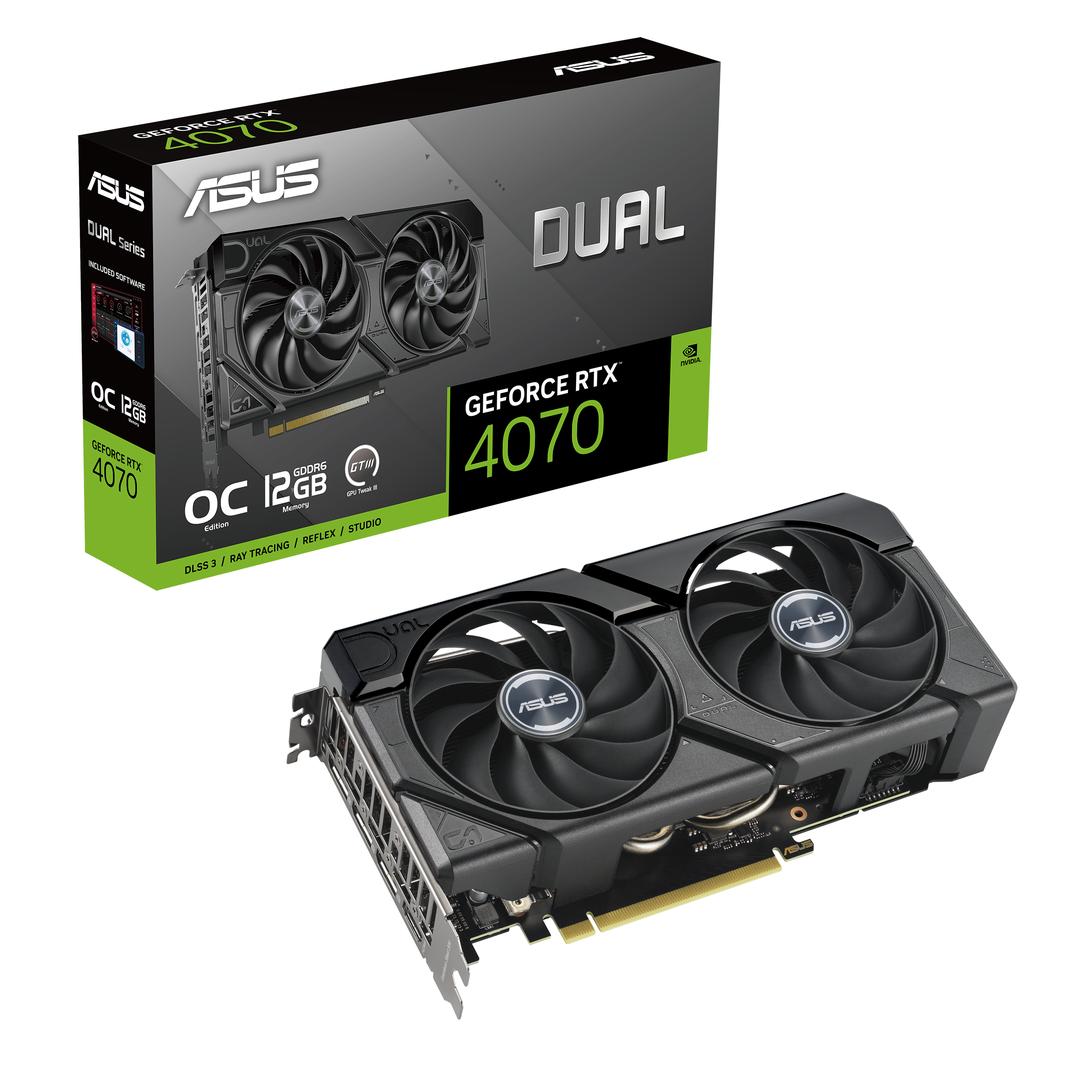

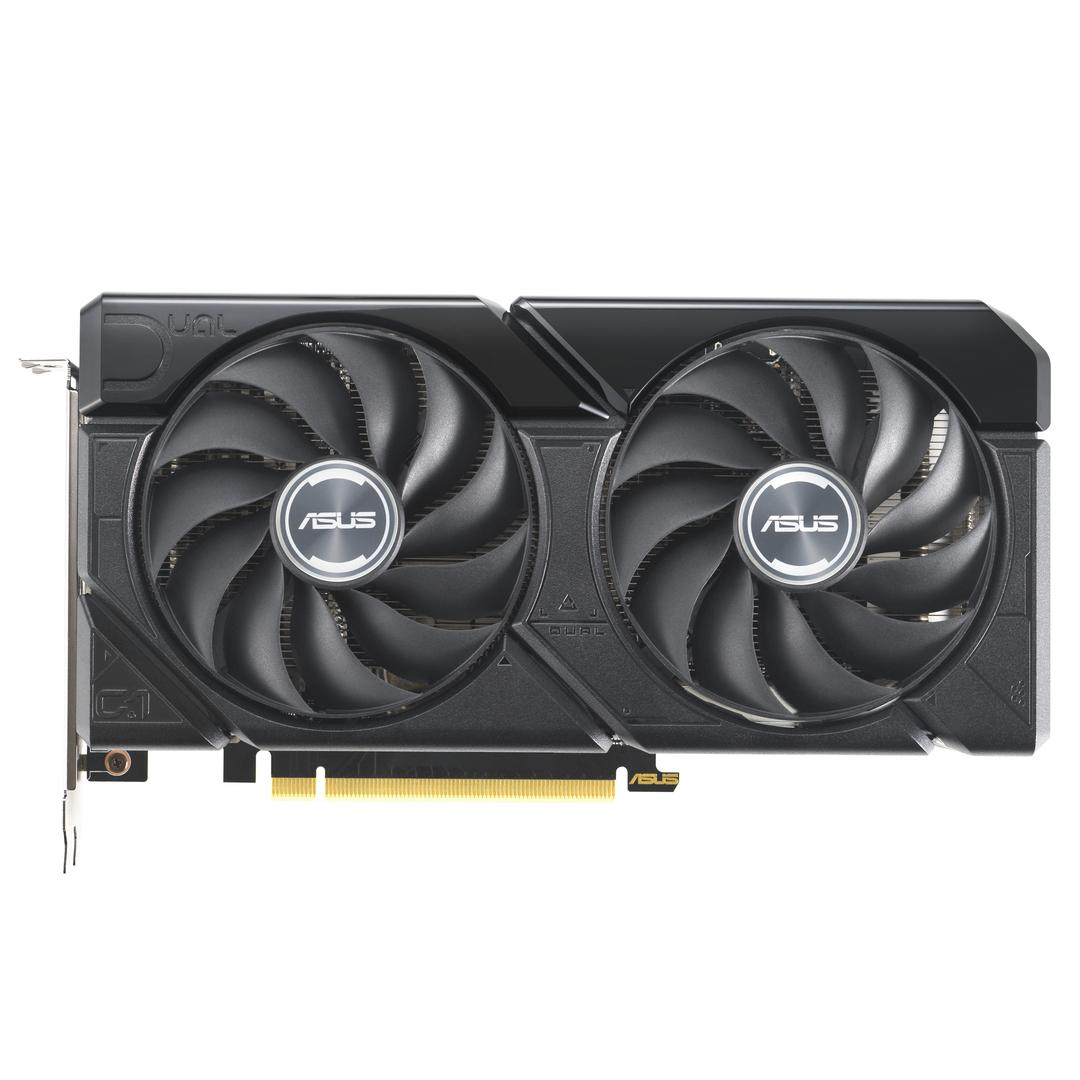

ASUS Dual GeForce RTX 4070 EVO 12GB - OC Edition - graphics card - GeForce RTX 4070 - 12 GB GDDR6X - PCIe 4.0 - HDMI, 3 x DisplayPort | 90YV0LM0-M0NA00
Please sign in so that we can notify you about a reply
Product Features
- Better, faster, stronger

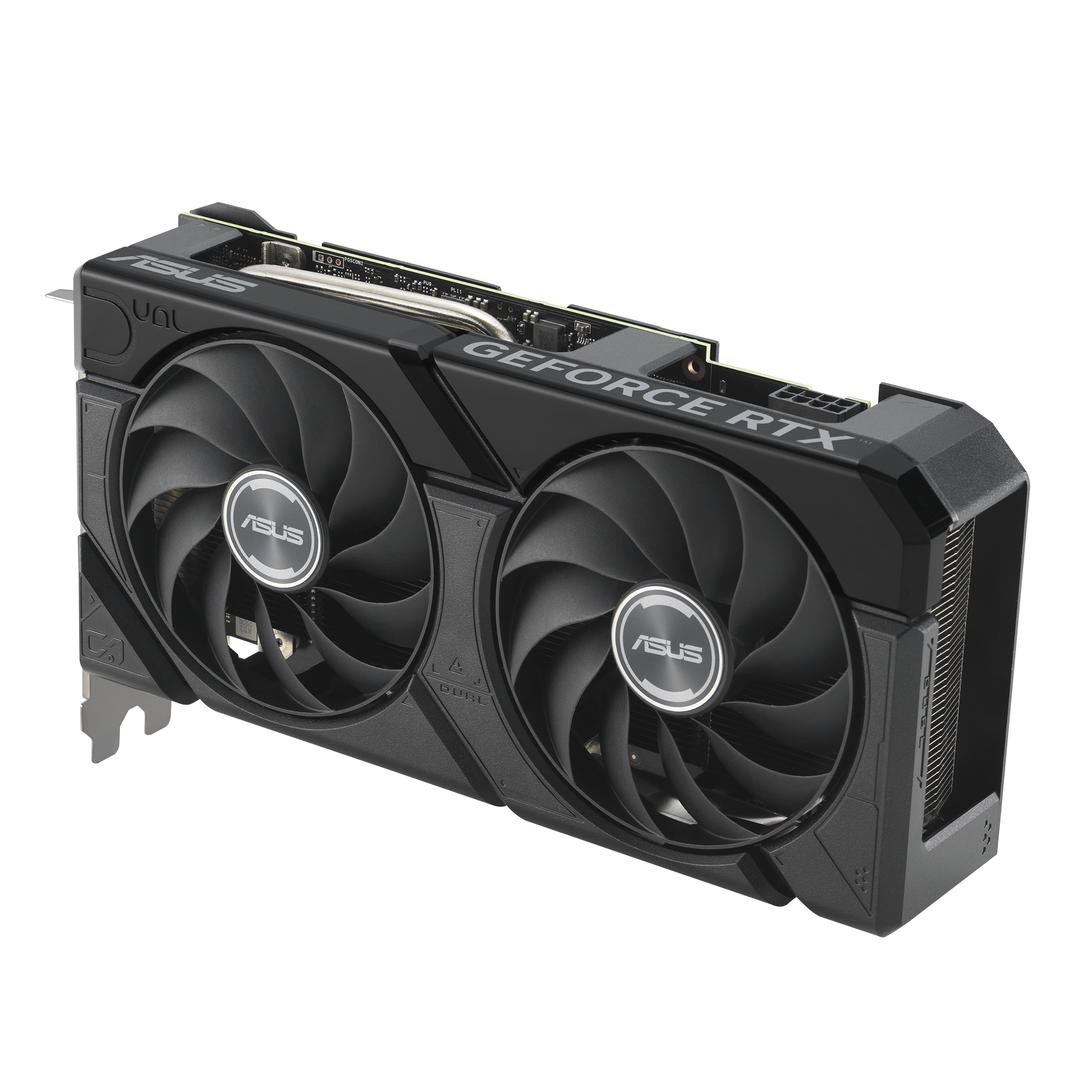

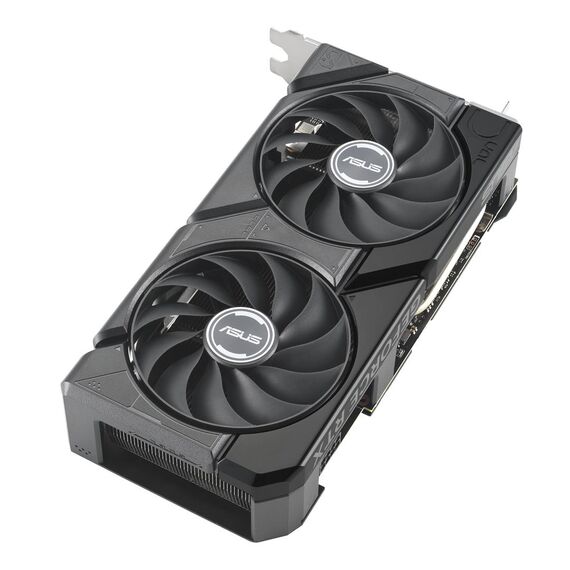

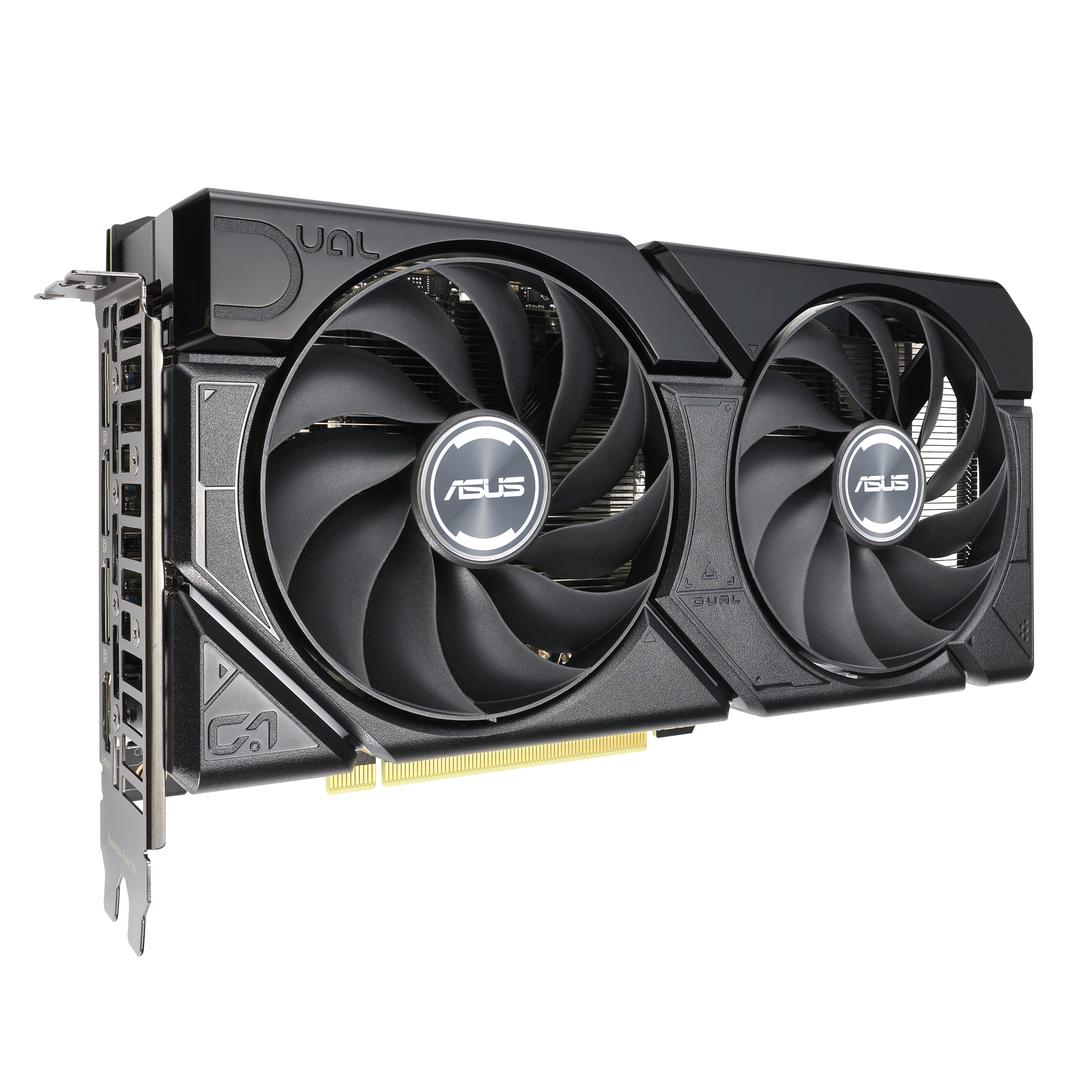

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. - Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 55 degrees and power consumption is low. - Longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs. - Sink your heat into this

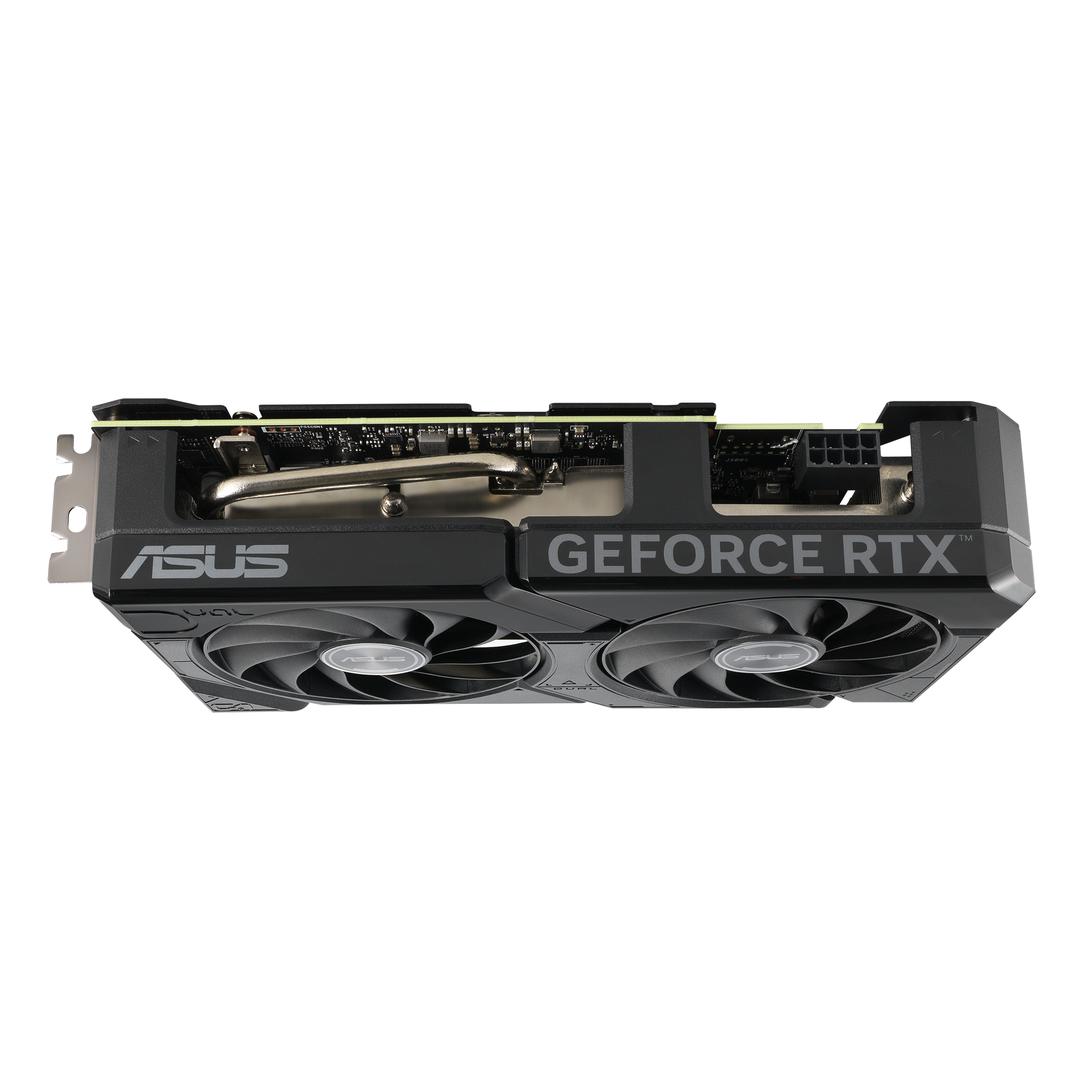

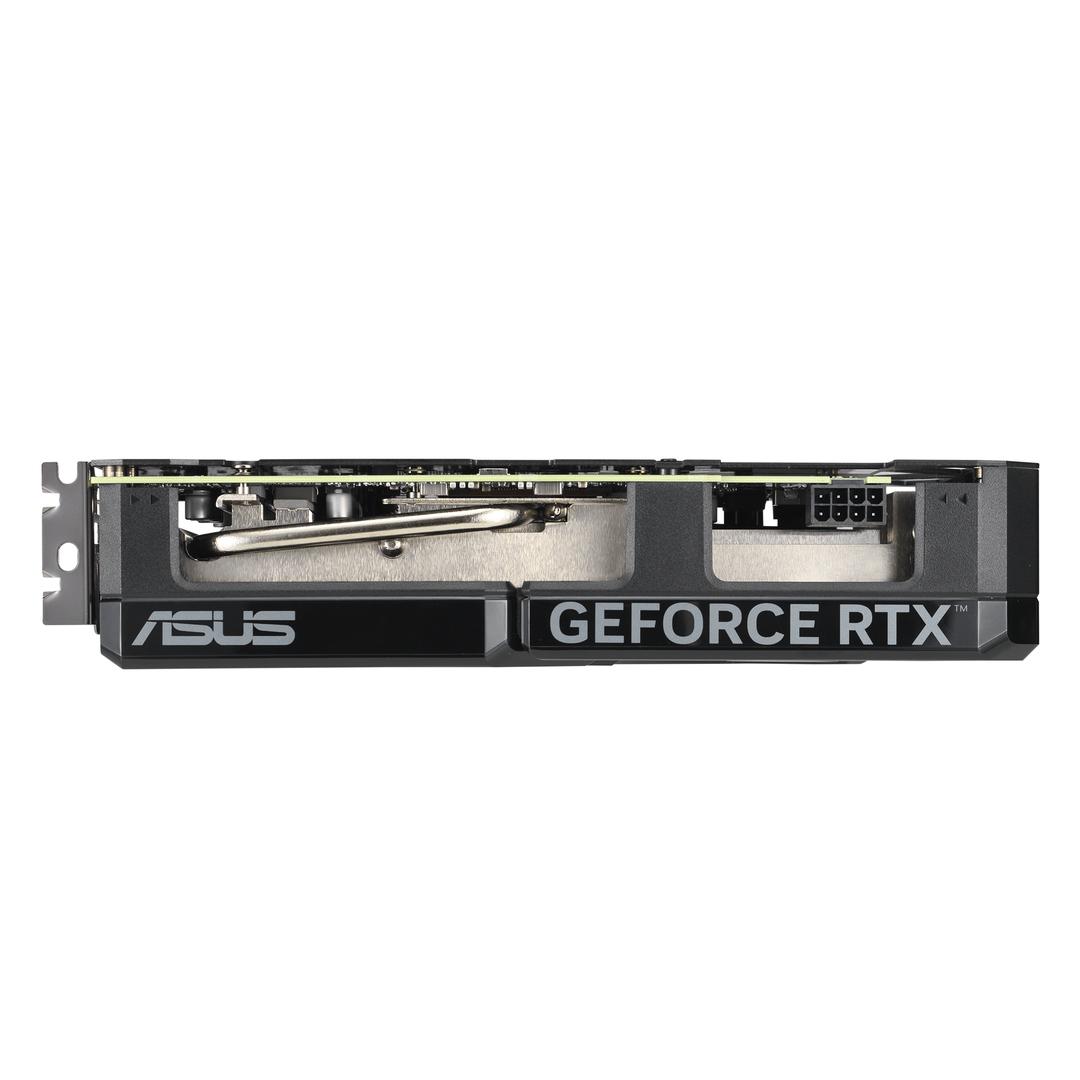

A carefully designed shroud, heatsink, and heat pipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card's size. - Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. - Protective backplate

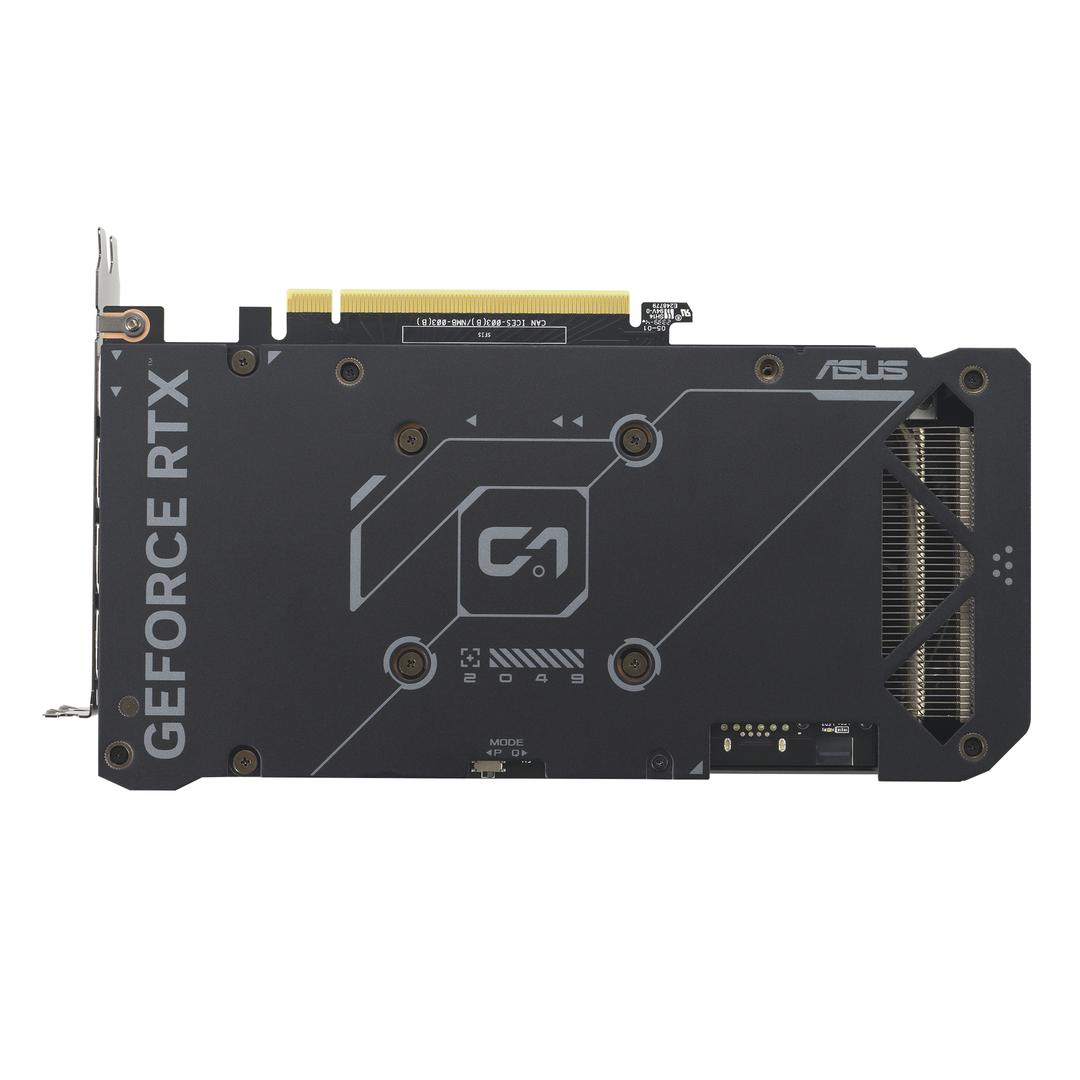

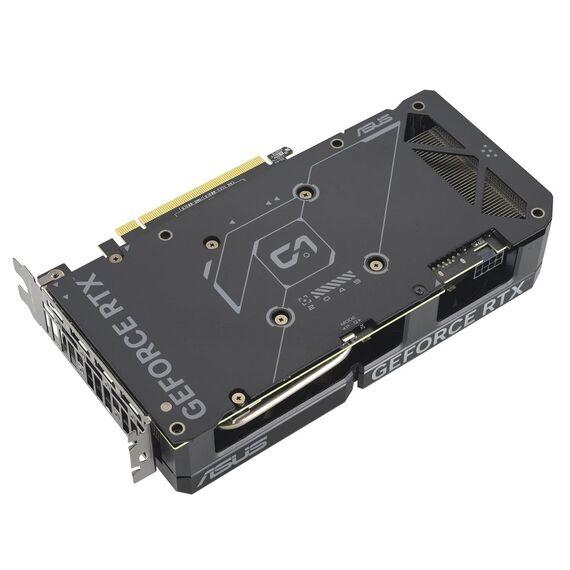

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.
Special Fetures
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arches, and full ray tracing
- 4th Generation Tensor Cores: up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: up to 2x ray tracing performance
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
- 0dB technology lets you enjoy light gaming in relative silence
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
Product Specification
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | NVIDIA GeForce RTX 4070 |
| Boost Clock | 2520 MHz |
| Boost Clock (OC) | 2550 MHz |
| CUDA Cores | 5888 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

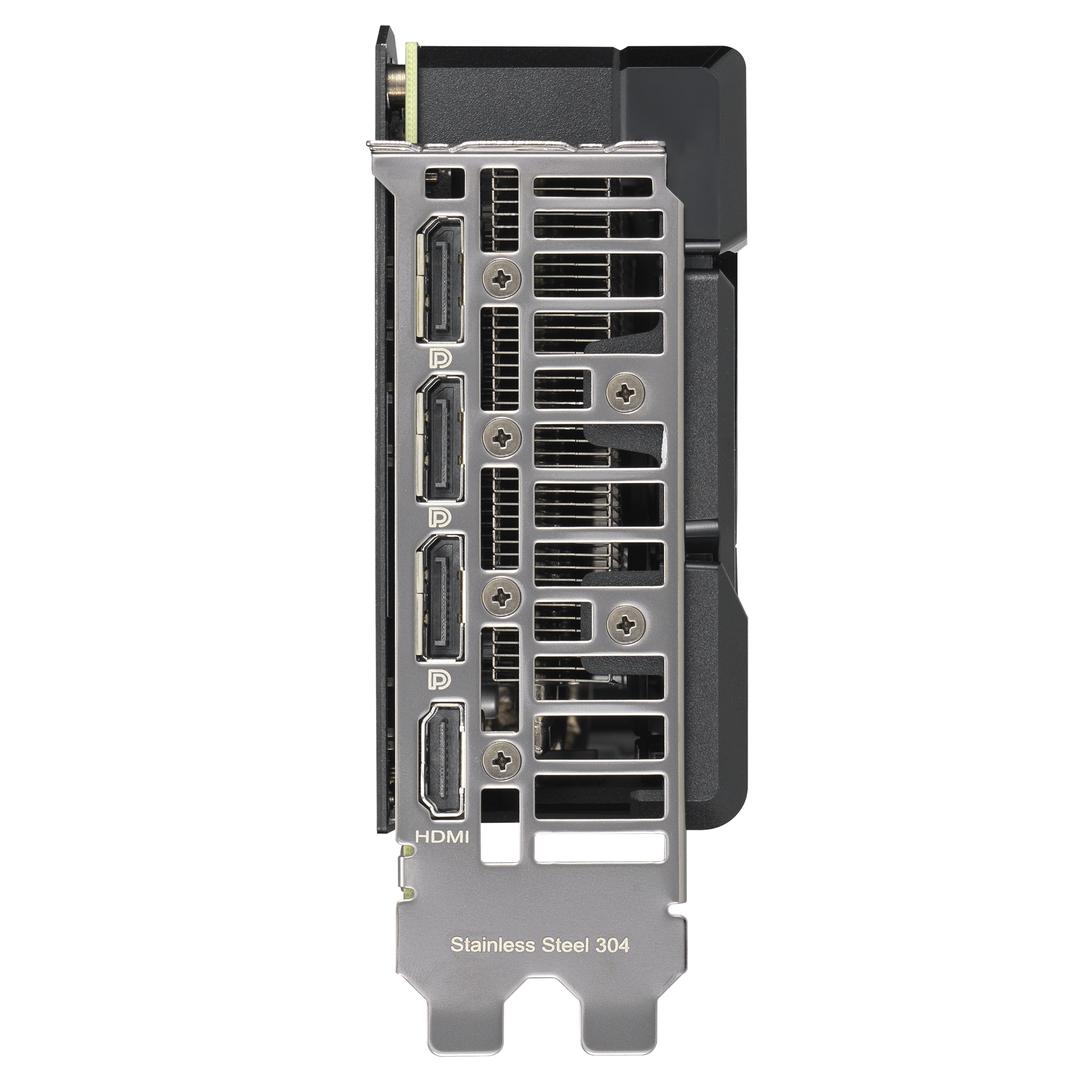

| Interfaces Details | HDMI <br /> 3 x DisplayPort |
| API Supported | OpenGL 4.6 |
| Features | 2.5-slot Fan Cooler, NVIDIA G-Sync ready, AUTO-EXTREME technology, NVIDIA Ansel, Axial-tech Fan Design, 0dB Technology, Nvidia Studio, NVIDIA Reflex, Dual ball Bearing Fans, Nvidia Broadcast, 144-hour Validation Programme, Resizable BAR, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, NVIDIA DLSS 3, aluminium backplate, HDCP |
| Memory | |
| Size | 12 GB |
| Technology | GDDR6X SDRAM |
| Bus Width | 192-bit |
| System Requirements | |
| Required Power Supply | 650 W |
| Additional Requirements | 8 pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories | Thank you card |
| Software Included | ASUS Quantumcloud, ASUS GPU Tweak III, Adobe Creative Cloud (1 month membership) |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Width | 4.96 cm |
| Depth | 22.72 cm |
| Height | 12.324 cm |
Features - Asus - 90YV0LM0-M0NA00
GPU
GeForce RTX 4070
More Details
Product Code
03:252931
EAN Code
4711387760314
Manufacturer
Asus
