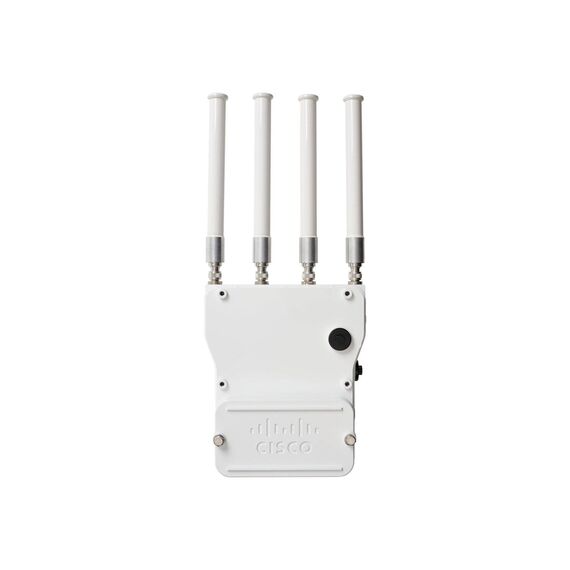

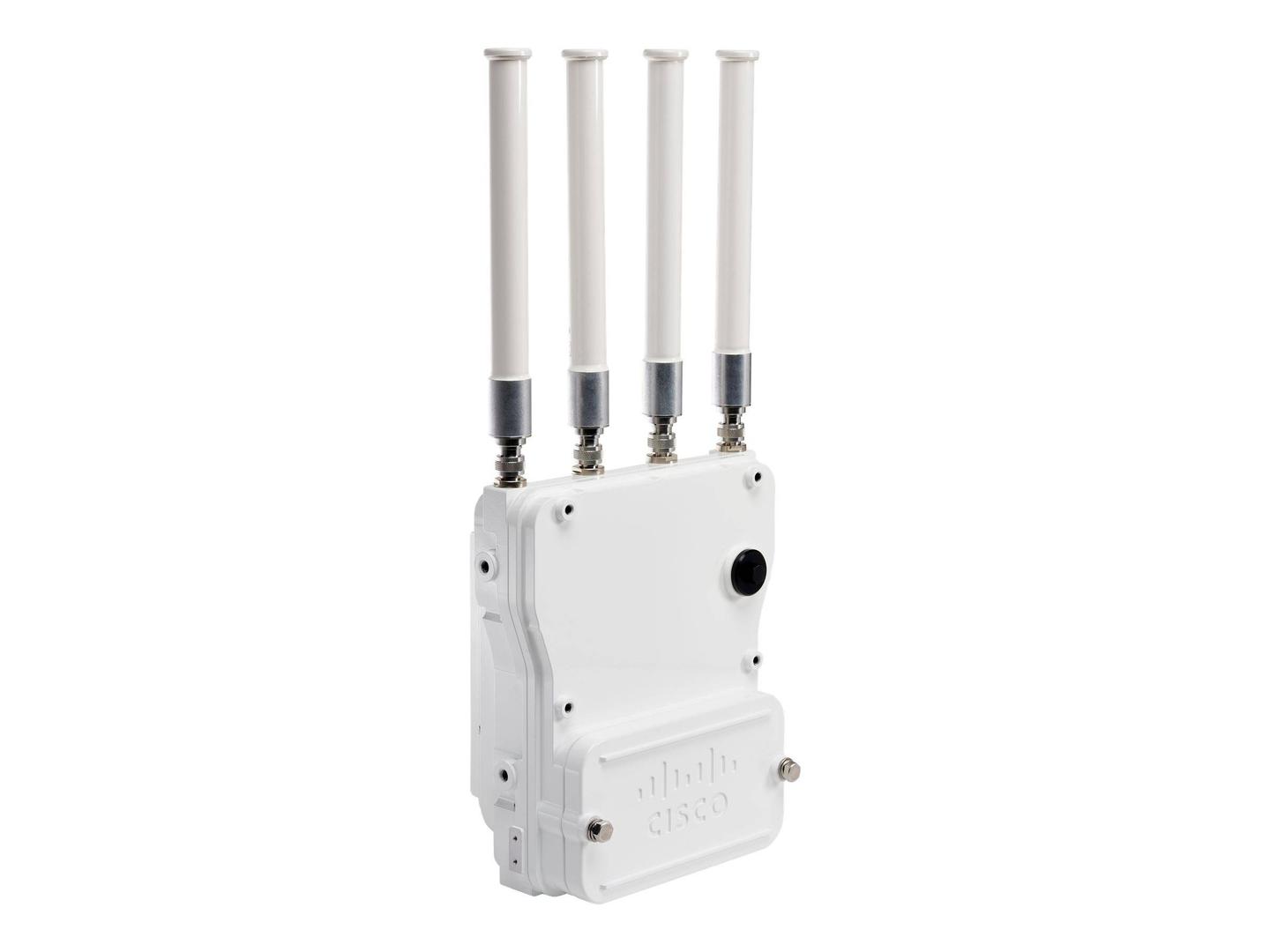

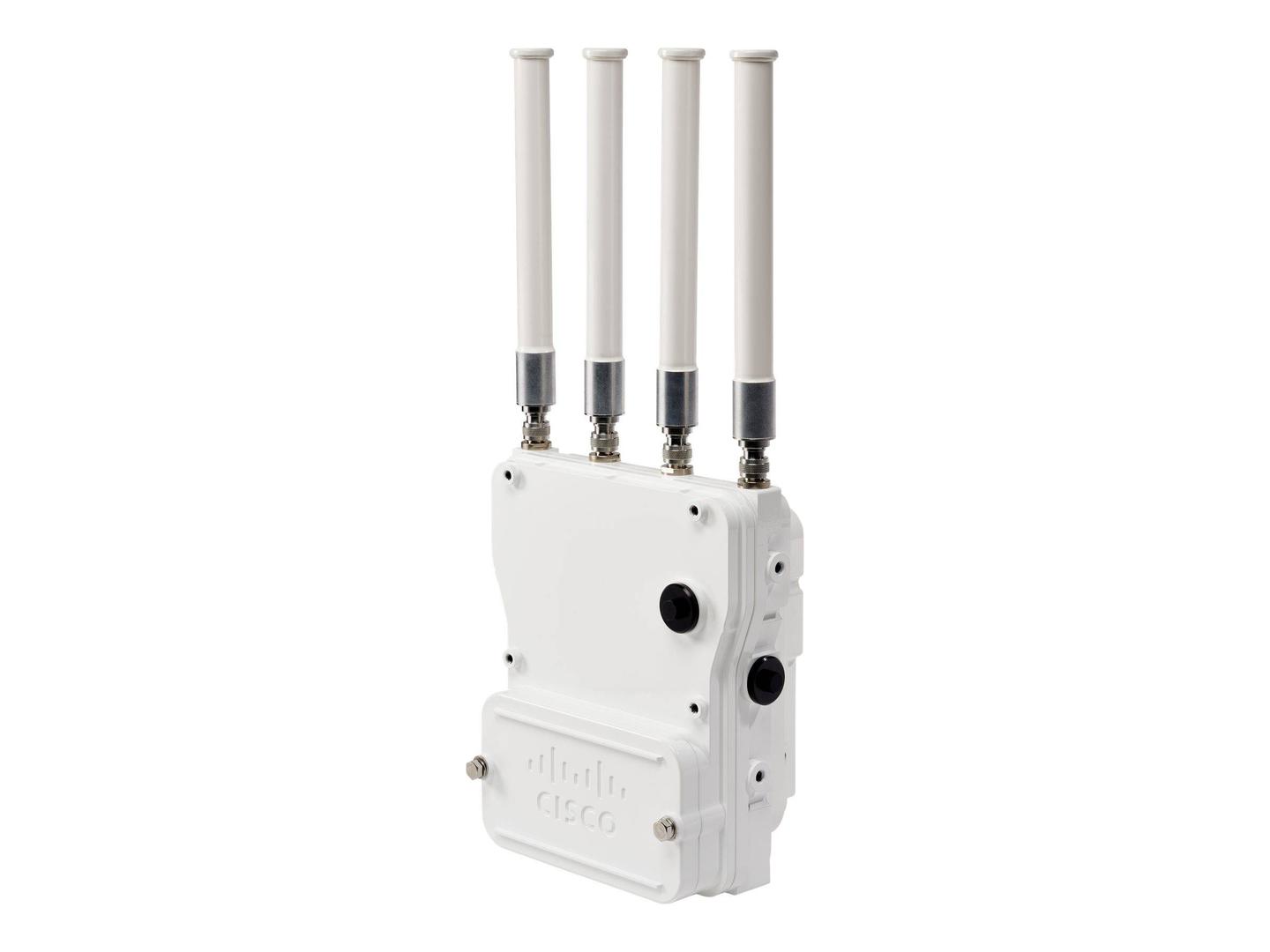

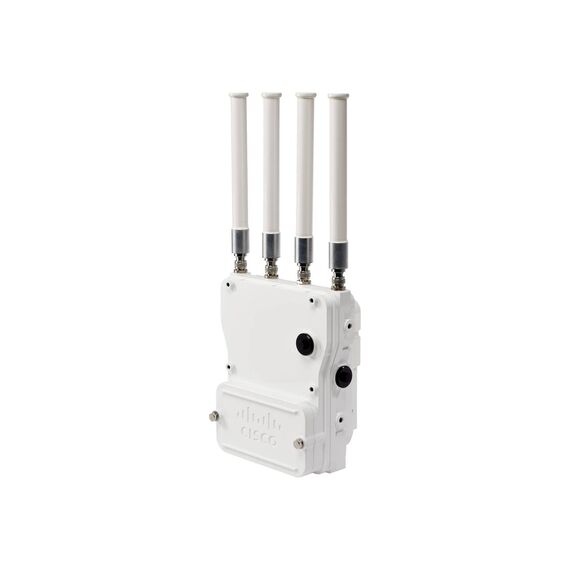

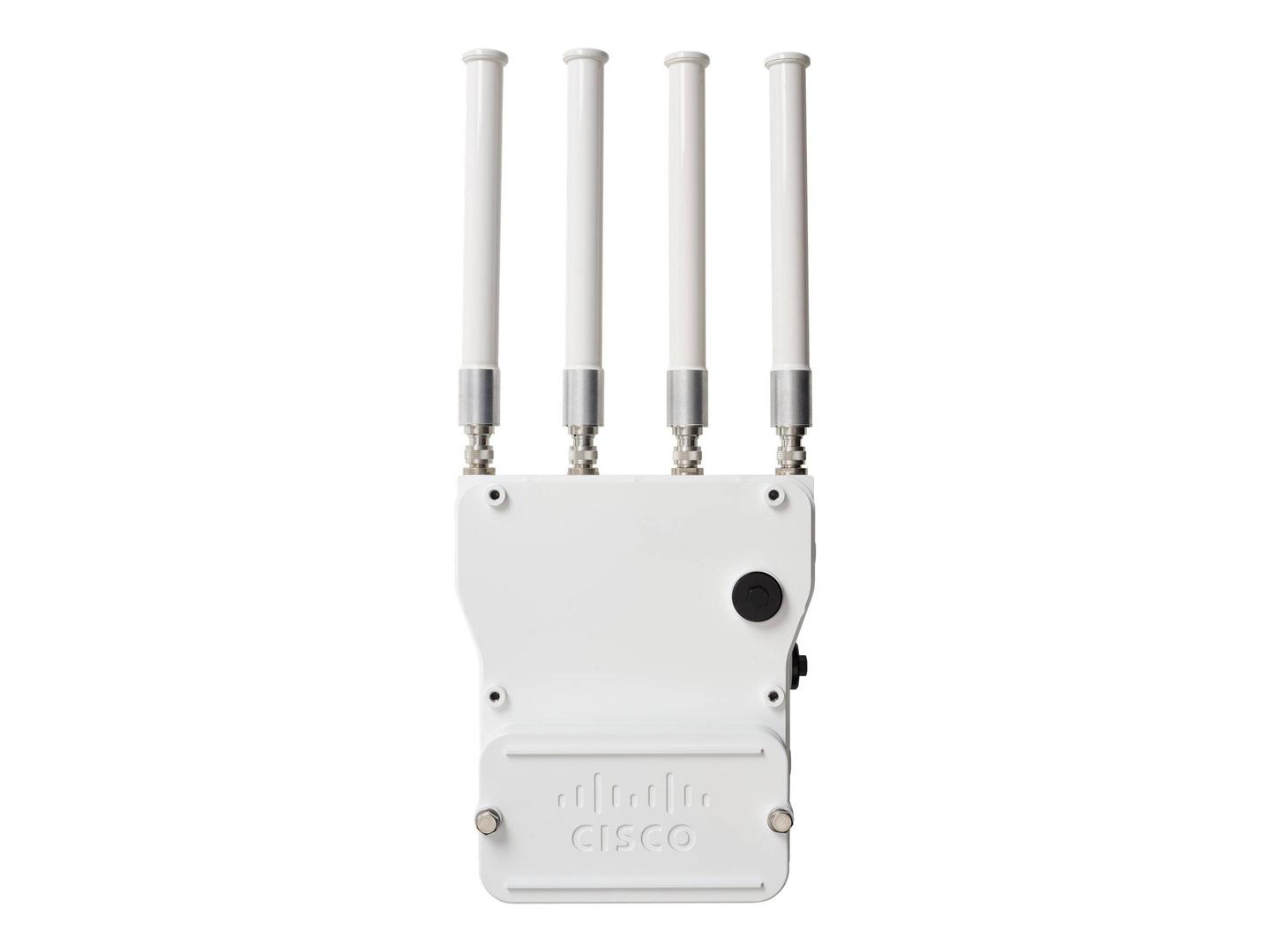

Cisco Catalyst IW6300 Heavy Duty / Radio access point / Wi-Fi 5 / 2.4 GHz, 5 GHz | IW-6300H-AC-E-K9
IW-6300H-AC-E-K9
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Deploy wireless connectivity anywhere, and stay online during the most extreme weather, in consistently hazardous areas, or during dangerous industrial events
- Send power to, and backhaul data directly from, local IoT assets such as IP cameras, sensors, or tracking systems
- Add capabilities, including GPS or Zigbee, or unique partner- or customer-built modules directly to the chassis
- Extend the network to remote, difficult-to-access sites using Wireless Bridging
Product Specification
| Device Type | Radio access point |
| Width | 24.6 cm |
| Depth | 27.9 cm |
| Height | 14.2 cm |
| Weight | 6.03 kg |
| Localisation | Belgium, Jordan, Lebanon, Oman, Albania, Bulgaria, Cameroon, Czech Republic, Estonia, Lithuania, Mongolia, South Africa, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Kenya, Nigeria, Tanzania, Trinidad, Jamaica, Algeria, Gabon, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Croatia, Kazakhstan, Macedonia, Slovakia, Slovenia, Latvia, Libya, Burundi, Mauritius, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Turkey, Ireland, Bahamas, Serbia, Montenegro, Bosnia and Herzegovina |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | L2TP, IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | MAC address filtering, Maximum Ratio Combining (MRC), cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), 2x2 MIMO technology, Transit Beamforming |
| Encryption Algorithm | LEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, EAP-SIM |
| Authentication Method | Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, IEEE 802.11i, IEEE 802.3at, IEEE 802.11ac Wave 2 |
| Aerial | Aerial |
| Antenna | External detachable |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 2 x 1000Base-T (PoE output) - RJ-45 ¦ 1 x - SFP (mini-GBIC) ¦ 1 x management - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Miscellaneous | Miscellaneous |
| Compliant Standards | ETSI, CISPR 24, ICES-003, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, EN 61000-3-3, CISPR 22, FCC Part 15 B, FCC Part 15.247, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, FCC, EN 61000-4-11, EN 61000-4-8, FCC Part 15.107, KCC, FCC Part 15.407, TELEC, IP67, IEC 61010-1, EN 62311, IEC 60950-22, UL 60950-22, UL 50E, HAZLOC, LP0002, RSS-247, IEC EN60529, KN32, KN35, UL/CSA60950-1, EN 62368-1, IEC 62368-1, CISPR 32, EN 55032, IEC/EN 60950-1, EN 300 328 V2.1.1, UL 62368-1, IEC 60079-0, EN 60079-0, CISPR 35, EN 301 489-17, UL 121201, CSA C22.2 No. 213, CSA C22.2 60079-0, CSA 62368-1, EN 301 893 V2.1.1, KN 301 489-17, AS/NZS 4268:2017 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | UPOE / PoE+ |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -50 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - IW-6300H-AC-E-K9
More Details
Product Code
677TT87
EAN Code
0889728237109
Manufacturer
Cisco
