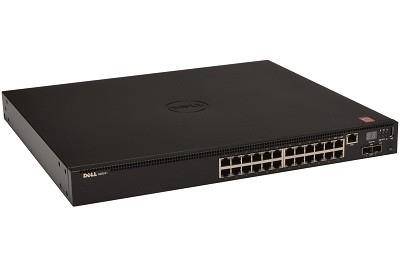

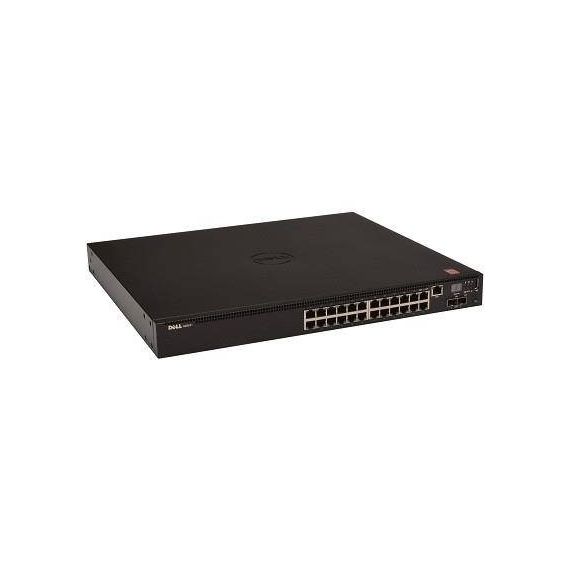

Dell Networking N2024 / Switch / L2+ / Managed / 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ / rack-mountable | 210-ABNV
Dell Networking N2024 / Switch / L2+ / Managed / 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ / rack-mountable | 210-ABNV
Description N-series is a family of energy-efficient and cost-effective 1GbE and 10GbE switches designed for modernizing and scaling network infrastructure. Built to help keep operating costs down, the N2000 series can operate at temperatures up to 122 °F (50 °C) to help reduce cooling costs. Special Features
Product features
|
Product Specification
Device Type | Switch - 24 ports - L2+ - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
Performance | Switching fabric bandwidth: 172 Gbps ¦ Forwarding performance: 128 Mpps ¦ Stacking bandwidth: 84 Gbps |
Capacity | Virtual interfaces (VLANs): 4096 ¦ ARP entries: 1024 ¦ NDP entries: 400 ¦ Priority queues per port: 8 ¦ IPv4 routes (static): 256 ¦ IPv6 routes (static): 128 ¦ IPv4 routes (dynamic): 256 ¦ VLAN routing interfaces: 256 ¦ ACL: 100 ¦ Max ACL rules system-wide: 2048 ¦ Maximum rules per ACL: 1023 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1024 ¦ Maximum ACL rules per interface (IPv4) egress rules: 512 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 512 ¦ Maximum ACL rules per interface (IPv6) egress rules: 256 ¦ Maximum VLAN interfaces with ACLs applied: 24 ¦ Maximum aggregation groups: 128 ¦ Maximum dynamic ports per switch stack: 144 ¦ Maximum member ports per LAG: 8 |
MAC Address Table Size | 8192 entries |
Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing |
Remote Management Protocol | Telnet, TFTP |
Encryption Algorithm | MD5, AES, SSL, TLS |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Flow control, auto-negotiation, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Access Control List (ACL) support, front to back airflow, IPv4 support, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), redundant fans |
RAM | 1 GB |
Flash Memory | 256 MB |
Interfaces | 24 x Gigabit LAN - RJ-45 ¦ 2 x 10Gbit LAN - SFP+ ¦ 1 x serial (RS-232) - RJ-45 - management ¦ 1 x USB - Type A ¦ 2 x network stack device |
Power Device | Internal power supply |
Installed Qty | 1 |
Power Provided | 100 Watt |
Power Consumption Operational | 42.9 Watt |
Features | Redundant Power System (RPS) connector |
Rack Mounting Kit | Included |
Compliant Standards | FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, VCCI Class A, EAC, CCC Class A |
Width | 44 cm |
Depth | 25.7 cm |
Height | 4.35 cm |
Weight | 3.69 kg |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 0 - 95% |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 65 °C |
Humidity Range Storage | 0 - 85% |
