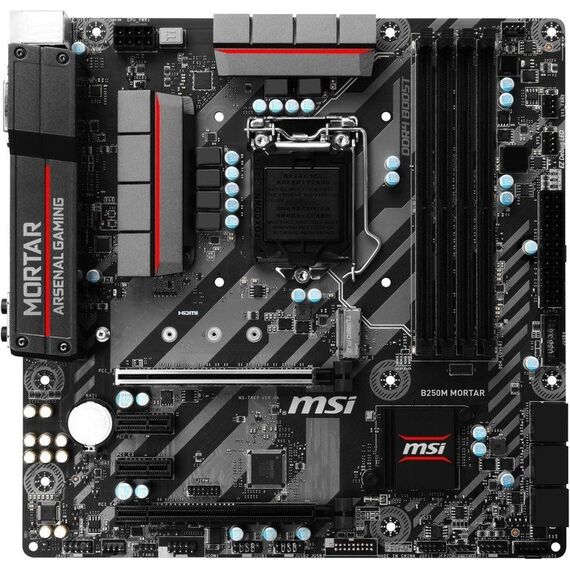

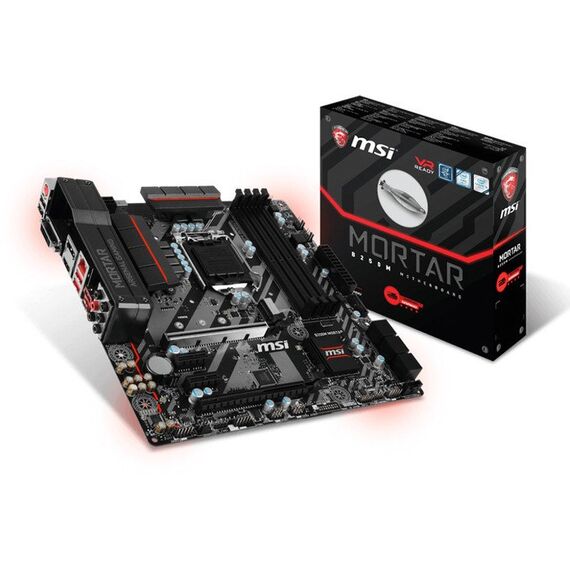

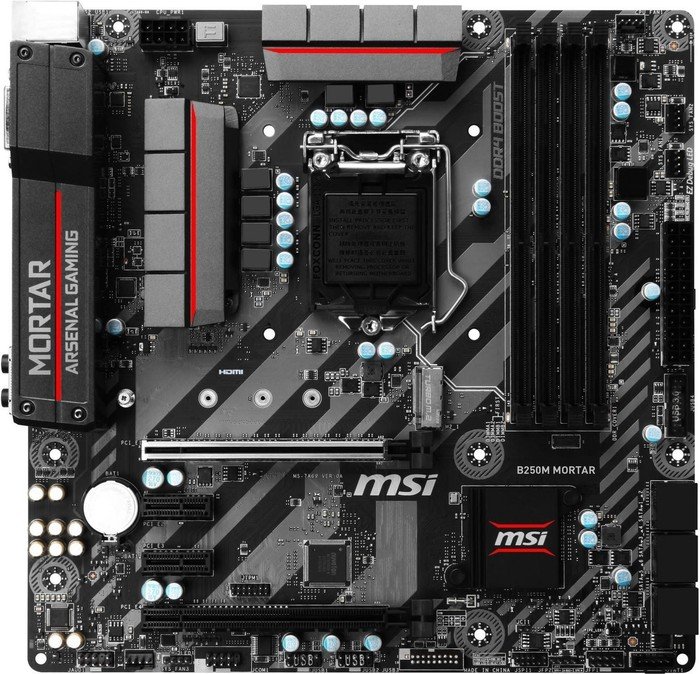

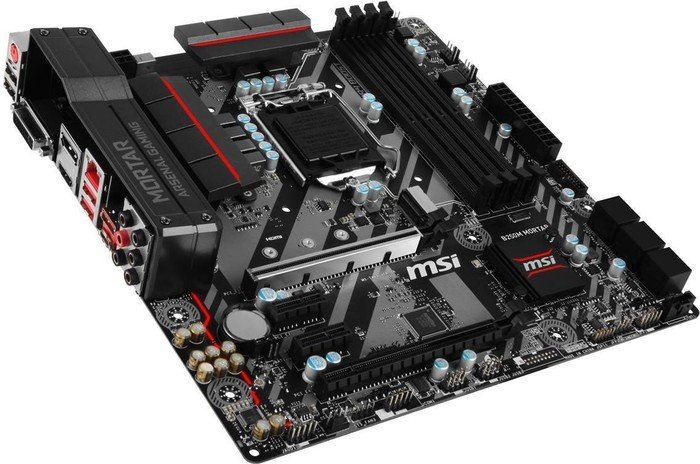

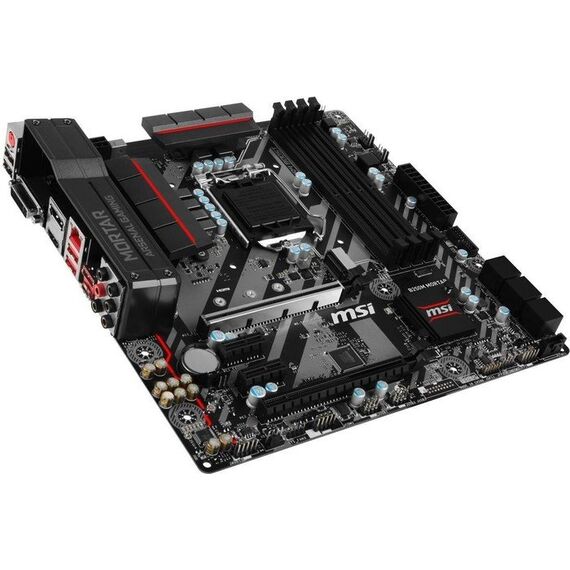

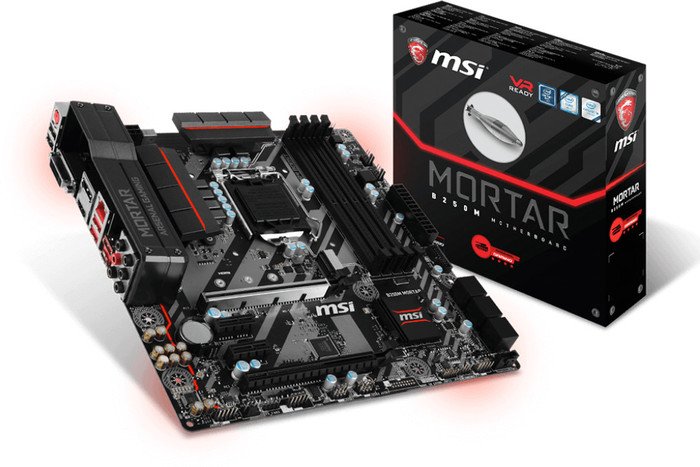

MSI B250M MORTAR / Motherboard / micro ATX / LGA1151 Socket / B250 / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A69-003R
MSI B250M MORTAR / Motherboard / micro ATX / LGA1151 Socket / B250 / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A69-003R
Description Outsmart and outperform your opponents in-game using an array of unique MSI gaming tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills. This MSI GAMING motherboard supports all the advanced storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies. Special Features
Product features
|
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel B250 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC892 |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x4 mode) ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

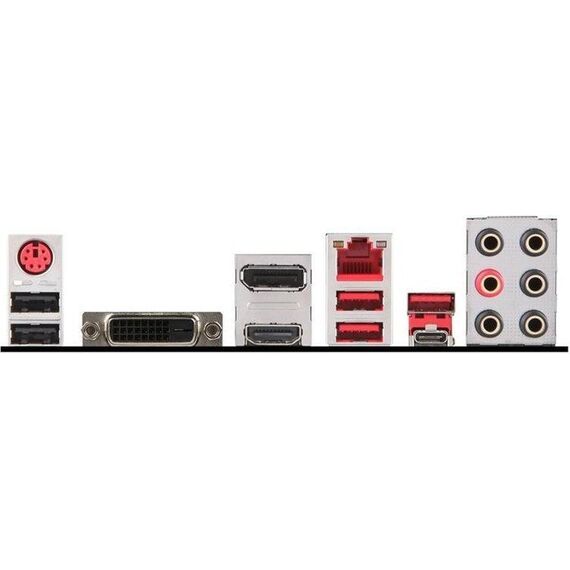

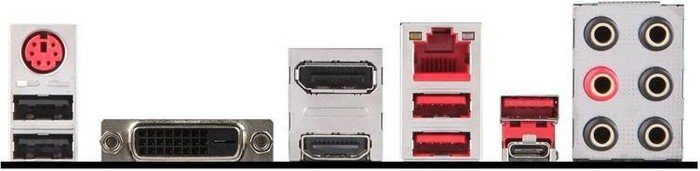

Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 3 x USB 3.1 Gen1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DVI-D ¦ 1 x USB-C Gen1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | Intel Extreme Memory Profile (XMP) support, AMD CrossFireX technology support, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, MSI Military Class V, LAN Protect, Intel Optane Memory Ready |
Software Included | MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z, MSI X-BOOST |
Width | 24.4 cm |
Depth | 24.4 cm |
