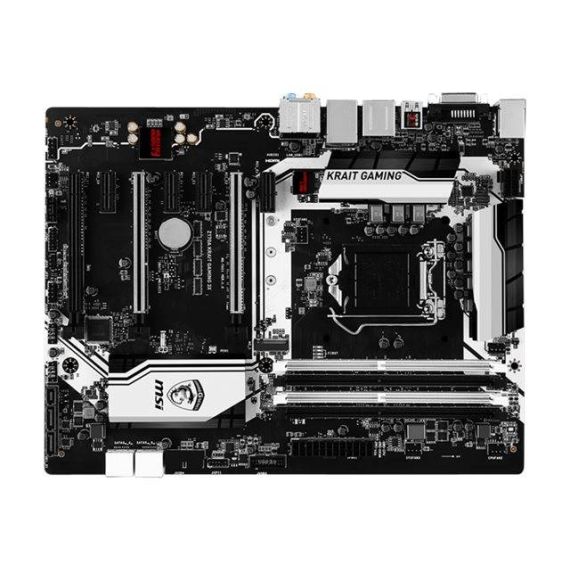

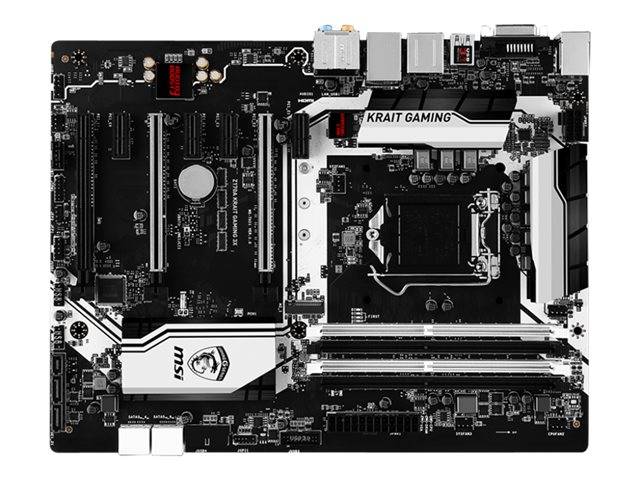

MSI Z170A KRAIT GAMING 3X / Motherboard / ATX / LGA1151 Socket / Z170 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A11-005R
MSI Z170A KRAIT GAMING 3X / Motherboard / ATX / LGA1151 Socket / Z170 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A11-005R
Description Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize and personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.White PCB highlights compliment a unique design, to display when GAMING meets class. Perfect for gamers and case modders who are looking for something different. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z170 |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.) |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1150 |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 ( x16, x0, x4 or x8, x8, x4 modes ) ¦ 4 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
RAID Features | Intel Smart Response Technology |
Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x DVI-D ¦ 2 x USB 3.1 Gen1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen2 ¦ 1 x USB-C Gen2 |
Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen1 - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | Multilingual BIOS, UEFI BIOS, ACPI 5.0 support, SMBIOS 2.8 support, MSI ClickBIOS 5 |
Hardware Features | Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, Nahimic Audio Enhacer, MSI Steel Armor, MSI Audio Boost 3, Game Boost, MSI Military Class V, LAN Protect, Double ESD Protection, SteelSeries Certified (SSC), overvoltage protection |
Software Included | RAMdisk, MSI Gaming App, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z, Open Broadcaster Software |
Compliant Standards | Plug and Play |
Width | 30.5 cm |
Depth | 23.5 cm |
Service & Support | Limited warranty - 3 years |
