Samsung OH55F / 55" Class / OHF Series LED display / digital signage / 1080p (Full HD) | LH55OHFPKBC/EN
Samsung OH55F / 55" Class / OHF Series LED display / digital signage / 1080p (Full HD) | LH55OHFPKBC/EN
Description Samsung's OHF Series comes complete with an advanced cooling system with heat exchanger, supported by advanced thermal control functionality. This enhances the overall efficiency in terms of both management and cost through its filter-less system. The system revolutionizes outdoor signage design, abandoning the thick enclosures to accommodate a full display package.OHF Series displays feature innovative Magic Glass, TUV Certified Image Quality and an Auto Brightness Sensor to optimize brightness in order to optimally convey messaging to virtually any viewer. These powerful displays also feature circular polarizing technology that eliminates display blindness caused by polarized sunglasses. OHF Series captivate viewers with superior messaging clarity delivered with high 2,500 nit brightness and 5,000:1 high contrast ratio in all inches above 24. Special Features
Product features
|
Product Specification
Product Type | LED-backlit LCD flat panel display |
Energy Class | Class D |
Power Consumption (On mode) | 292 W |
Energy Consumption per Year | 405 kWh |
Diagonal Class | 55" |
Commercial Use | Yes - digital signage |
Series | OHF Series |
TV Tuner | No tuner |
Sensors | Temperature sensor, brightness sensor |
Video Interface | HDMI |
HDMI Ports Qty | 2 ports |
Modes | Portrait mode, landscape mode |
Protection | Tempered glass protection |

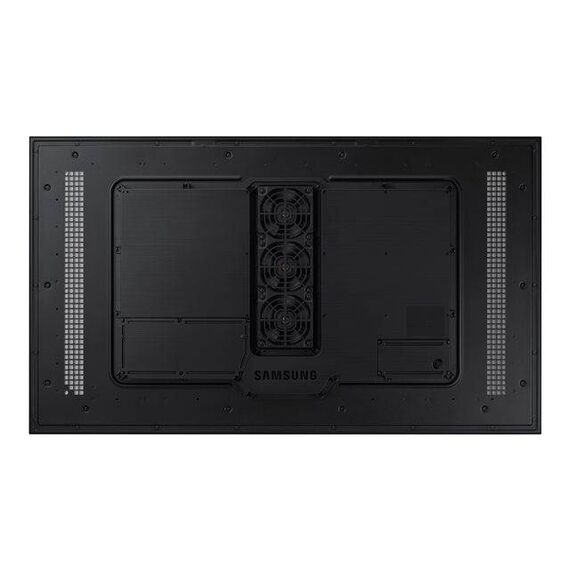

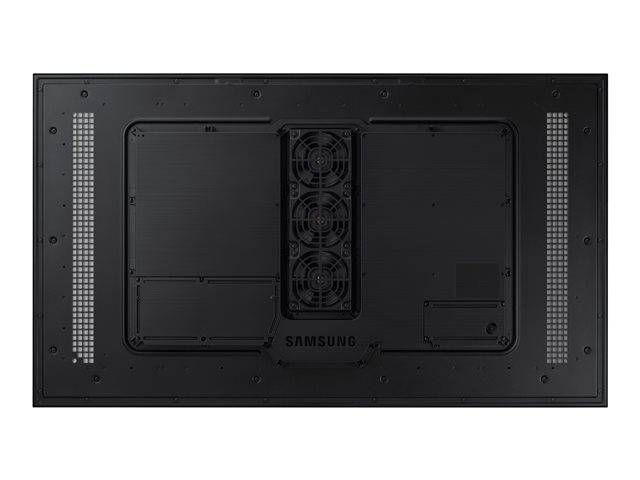

Cooling System | Fan |
Dimensions | Without stand |
Width | 126.06 cm |

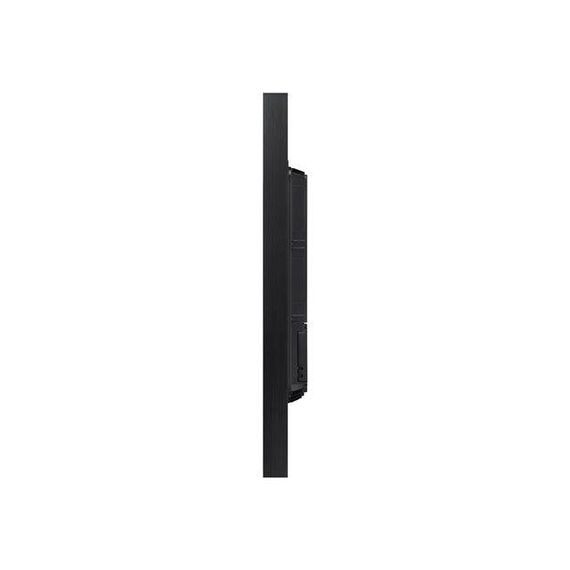

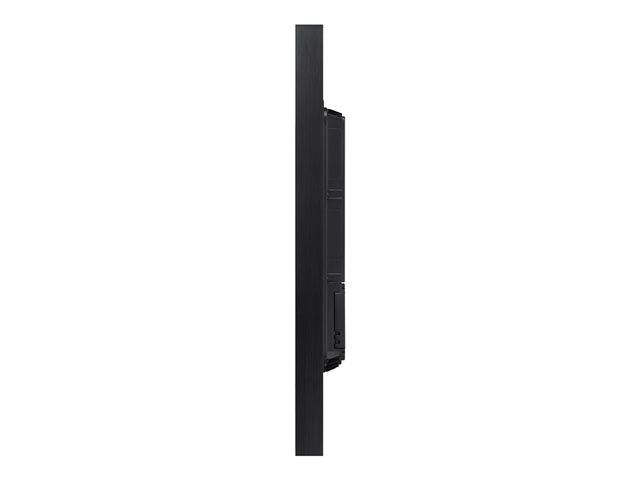

Depth | 8.5 cm |
Height | 73.14 cm |
Weight | 52.6 kg |
LCD Display Technology | S-VA |
Resolution | 1920 x 1080 |
Display Format | 1080p (Full HD) |
Image Aspect Ratio | 16:9 |
LCD Backlight Technology | LED backlight |
Coating | Anti-glare |
Image Contrast Ratio | 5000:1 |
Dynamic Contrast Ratio | 100000:1 |
Brightness | 2500 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Response Time | 6 ms |
Commercial Features | SMART Signage Platform, Auto Source Switching & Recovery, Lamp Error Detection, MagicInfo S4 Player |
Features | Multiple Display Control (MDC), Certified for 24/7 Continuous Operation, MagicInfo, security lock slot (cable lock sold separately), Quad-Core processor, Auto Brightness Control, SSSP 4.0 |
Flat Panel Mount Interface | 1186 x 560 |
USB Port | Yes |
USB Ports Qty | 1 |
PC Configuration | ARM Cortex-A12 Quad-Core / 1.3 GHz / 2.5 GB DDR3 / 8 GB Flash |
Operating System | Tizen OS |
Type | Standard remote |

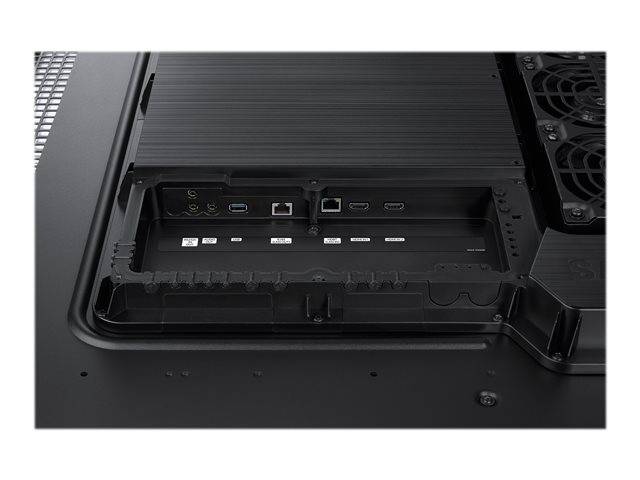

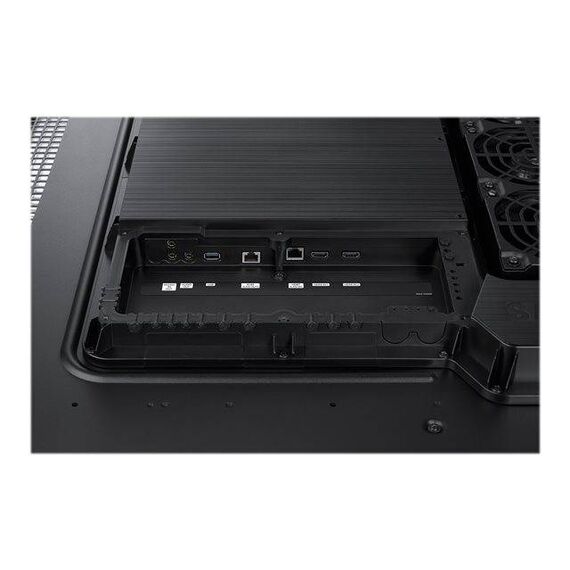

Connector Type | 2 x HDMI ¦ USB 2.0 ¦ Audio line-out ¦ 2 x HDBaseT ¦ Serial |
Included Accessories | Batteries |
Compliant Standards | UL, IEC 60950-1, EN 60950-1, IK10, FCC Part 15 B Class A, cUL No.60950-1, EN55024:1998 + A1:2001 + A2:2003, EN55022:2006 + A1:2007 |
Power Device | Power supply |
Nominal Voltage | AC 120/230 V (50/60 Hz) |
Power Consumption Stand by | 0.5 Watt |
Power Consumption Sleep | 0.5 Watt |
Power Consumption (Off Mode) | 0.5 Watt |
Width (Shipping) | 135.8 cm |
Depth (Shipping) | 23 cm |
Height (Shipping) | 84.5 cm |
Weight (Shipping) | 58.1 kg |
Min Operating Temperature | -30 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 80% (non-condensing) |
