StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext (PEXESAT322I)

StarTech.com V932087

Hover over an image to enlarge

46.34
(Including VAT)
45 item(s)
+
PEXESAT322I
Product Code:V932087
EAN Code:0065030848428
Manufacturer:StarTech.com

Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

StarTech.com PEXESAT322I StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext (PEXESAT322I)

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext (PEXESAT322I)

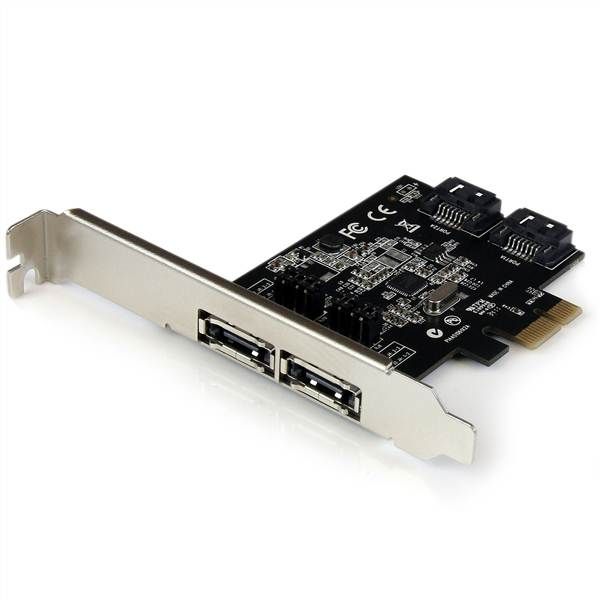

The PEXESAT322I PCI Express SATA III Controller Card 6 Gbps gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express x1 card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.

The SATA III card features Port Multiplier PM support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.

The card is fully compliant with the SATA revision 3.0 specification up to 6Gbps of data bandwidth, enabling you to utilize the speeds of high performance hard drives and Solid State Drives SSD, as well as SATA-based optical drives CD-ROM, DVD-ROM, Blu-Ray.

- This PCIe SATA controller card has two SATA channels that can be independently switched between the internal or external eSATA ports as needed.
- This versatile add-in card offers SATA III connectivity 6Gbps, while remaining backward compatible with SATA I 1.5Gbps and II 3Gbps device connections, which helps eliminate the expense of having to upgrade drives.
- Includes both a full and low profile/half-height bracket for installation into any size of desktop computer.

Feature list

Host interface: PCIe
Output interface: SATA
Internal: Y
CardBus PCMCIA slot type: N
eSATA ports quantity: 2
SATA revision: 3.0
Chipset: ASMEDIA ASM1061
Logical block addressing LBA support: 48 bit
Data transfer rate: 6 Gbit/s
Width: 67 mm
Depth: 121 mm
Height: 20 mm
Weight: 60 g
RoHS compliance: Y
Operating temperature range T-T: 0 - 50 °C
Storage temperature range T-T: -20 - 60 °C
Operating relative humidity range: 5 - 85 %
Package weight: 100 g
Mac compatibility: N
Compatible operating systems: Windows XP32/64-bit/ Server 200332/64-bit/ Server 2008 R2/ Vista32/64-bit/ 732/64-bit/ 8 32/64-bit
