AXIS 5024-201 T90C20 FIXED DOME IR-LED
T90C20 FIXED DOME IR-LED
- High intensity LEDs- Easy to install
- Long life
- Low power consumption
- Outdoor ready
Wall-mount illuminators for outdoor-ready fixed domes

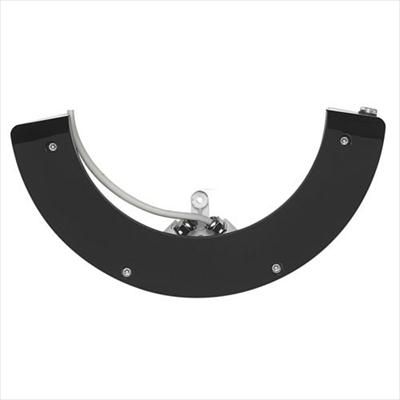

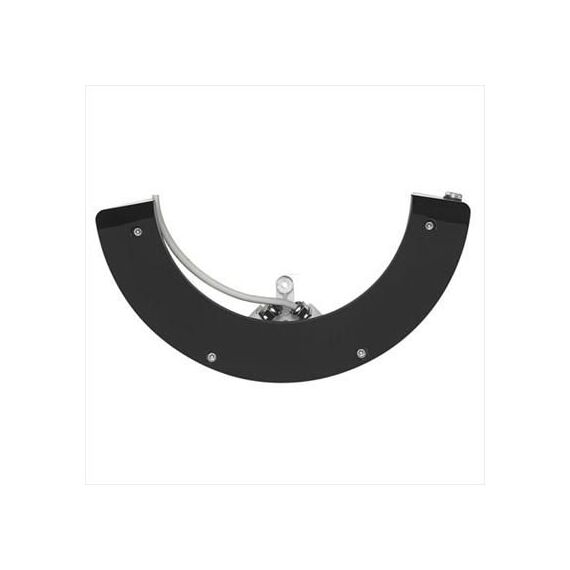

AXIS T90C Fixed Dome IR-LED is an infra-red, vandal-resistant illuminator for outdoor versions of AXIS P33 Network Cameras. It enables the cameras to deliver high quality images in complete darkness. No additional items are needed for the wall-mount installation.
High intensity LEDs
The infrared illuminator offers eight high-power IR-LEDs providing a wide angle light beam in the 850nm wavelength. It gives the fixed dome network camera a viewing range of 20-30 meters 6798 ft. depending on environment and installation
Outdoor-ready video surveillance at night
The illuminator has an IP66- and NEMA 4X-rated casing, which allows it to operate in outdoor conditions. It has low power consumption at less than 13W, is strong and requires no maintenance.
Applications:
- Low-light surveillance 24 hours/day: where light conditions are less than optimal
- Discreet surveillance: sleek and compact design
- Outdoor-ready: IP66- and NEMA 4X-rated casing for outdoor use
- Integrated IR illumination: where separate IR illuminators are not feasible or esthetically desirable
Feature list
| Lamp power: | - W |
| Lamp type: | 850 nm |
| Maximum operating distance: | 30 m |
| Angle: | 120 ° |
| Cable length: | 5 m |
| Colour of product: | Black |
| Dimensions WxDxH: | 130 x 256 x 47 mm |
| Weight: | 700 g |
| Operating temperature range T-T: | -40 - 55 °C |
| Certification: | EN 55022 B, EN 55024, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, EN 60950-1, EN 60950-22, UL 60950-1 & UL 60950-22 |
T90C20 FIXED DOME IR-LED
Features - AXIS - 5024-201
More Details
Product Code
B091124
EAN Code
7331021033900
Manufacturer
AXIS
