Yealink VC200 / Video conferencing device | VC200-WP
Yealink VC200 / Video conferencing device | VC200-WP
Description

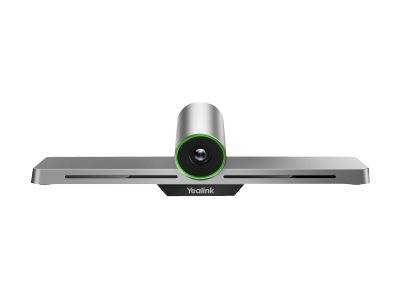

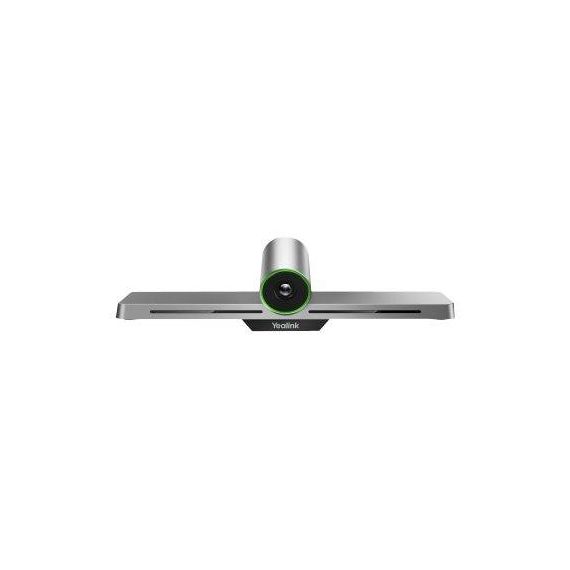

The Yealink VC200 is an entry-level smart video conferencing endpoint designed for small and huddle room. Its Ultra HD 4K camera and 103° super-wide angle lens deliver outstanding video quality and additional boost face-to-face collaboration. With 6 beamforming microphone arrays for direct voice pickup and Yealink Noise Proof Technology, VC200 brings excellent sound in small rooms and ensures that everyone can be heard as well as seen. For its compact six-in-one design, VC200 integrates a built-in camera, codec, microphone, Bluetooth, Wi-Fi and bracket, which provides you a turnkey solution that can be easily and consistently deployed with only two cables. The Yealink VC200 is an ideal communications choice to help ensure your teams can concentrate fully on effective collaboration.
Yealink VC200 / Video conferencing device | VC200-WP< | VC200-WP
Special Features
- All-in-one design, easy to mount on the TV
- 4K resolution ratio, 4x e-PTZ camera, and 103° wide-angle lens
- Built-in 6 beamforming microphone arrays with directed voice pickup
- Built-in Wi-Fi and Bluetooth
- Supports wireless content sharing
- H.265/HEVC video codec, resists up to 30% packet lost
Product features
- Ultra HD 4K camera and super-wide angle lens
The Ultra HD 4K camera supports 4x digital zoom and e-PTZ and is with super-wide 103° horizontal field of view, covering every seat at the table wholly without adjusting the camera. Featuring H.265/HEVC video codes, just with the minimum 512 Kbps, VC200 can realize 1080P HD video calls. Moreover, through Yealink anti-packet loss technology, VC200 can resist up to 30% video and audio packet loss which guarantees smooth video communication. - Clearer audio with six beamforming microphone arrays
The most advanced Beamforming technology, six built-in microphone arrays, directed voice pickup, intelligent voice identification and comparison - are definitely optimized for small and huddle conference rooms. Coupled with Yealink Smart Noise Proof technology, VC200 can automatically filter out unrelated noise, making video conferencing more concentrated. - Compact design for fast deployment
Six-in-one design, integrating codec, camera, microphone, Bluetooth, Wi-Fi and bracket, takes up less space and minimizing cable clutter, getting ready for a video conference with only two cables (network cable and HDMI cable). Meanwhile, VC200 fits easily and seamlessly on the TV with thickness from 6 mm to 50 mm so that you can mount it on the top of display directly. Based on Android OS and TV-styled interactive user interface, VC200 offers all features with one-touch operation but without any learning cost. - Wireless clutter-free meeting room
Built-in Bluetooth and dual-band Wi-Fi module provide you more connection options, that neither complex installation nor messy cables are required; VC200 greatly saves your effort of deployment.
Product Specification
Device Type | Video conferencing device |
VoIP Protocols | H.323, SIP, H.460 |
Voice Codecs | G.711, G.722.1, G.722.1c, Opus |
Video Codecs | H.263, H.264, H.265, H.239 |
Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
Security | H.235, 128 bit AES, TLS |
Network Protocols | HTTP, HTTPS, SRTP, Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED), SNTP |
Dimensions & Weight Details | Codec - Width 30 cm Depth 7 cm Height 8.66 cm ¦ Remote - Width 19 cm Depth 5.5 cm Height 2.4 cm |
Type | Wired |
Digital Signaling Protocol | H.323, H.281, SIP, H.225, H.239, H.241, H.460, H.245, H.224, BFCP, FECC |
Data Compression Protocol | G.711, H.263, H.264, G.722.1, G.722.1C, H.239, H.235 |
Features | Auto answer, auto gain control, virtual keyboard, group dial, YMS meeting control, mute, call waiting, call history |
Type | Digital video camera (colour) - integrated |
Digital Video Capture Resolution | 1920 x 1080 |
Type | Codec board - external |
Max External Resolution | 1920 x 1080 |
Supported Display Graphics | HDTV (1920x1080) |
Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
Type | 6 microphones - integrated |
Type | Remote control |
Connectivity Technology | Wireless |
Type | Network adapter |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Bluetooth, WiFi |
Network / Transport Protocol | DHCP |
Features | NAT support, power over Ethernet (PoE), VPN support, LDAP support, VLAN support, manageable, IPv6 support, firmware upgradable, SNTP support, wall mountable, reset button, bandwidth control, IPv4 support, Forward Error Correction (FEC), security lock slot (cable lock sold separately), automatic gain control (AGC), system log, Pan, Tilt, Zoom (PTZ) control signals transmission, acoustic echo cancellation, LLDP-MED, Yealink Noise Proof Technology, virtual remote control |
Compliant Standards | IEEE 802.1x, ITU-T H.460 |
Performance | Audio sampling rate: up to 48 kHz ¦ Audio bandwidth (G.722.1C): 14 kHz ¦ Audio bandwidth (G.722.1): 7 kHz ¦ Audio bandwidth (G.711 PCMA/PCMU): 3.4 kHz |
Capacity | Local directory entries: 500 |
Interfaces | 1 x audio / video - HDMI ¦ 1 x network / power - RJ-45 ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 1 x accessory - RJ-45 |
Compliant Standards | ISO 9001, FCC, RoHS, ANATEL, REACH |
Power Device | PoE splitter - external |
Voltage Required | AC 120/230 V |
Power Consumption Operational | 7 Watt |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 95% |
