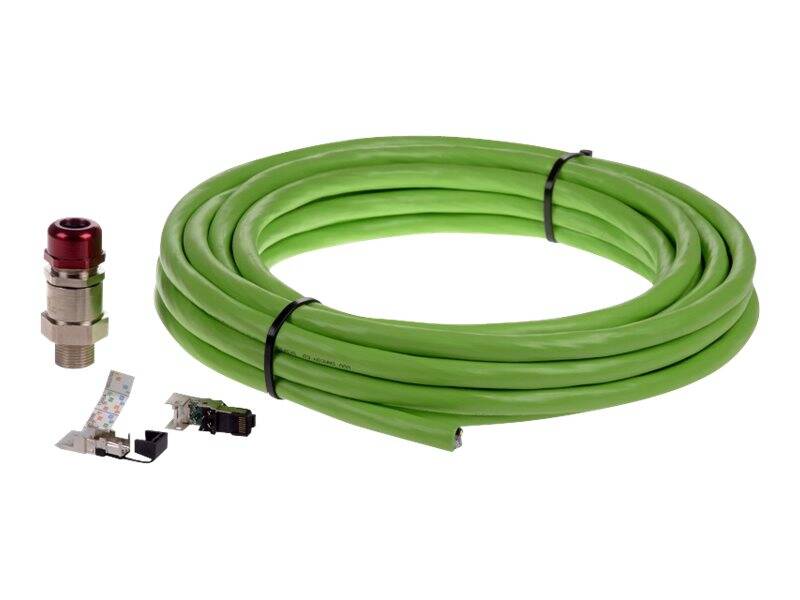

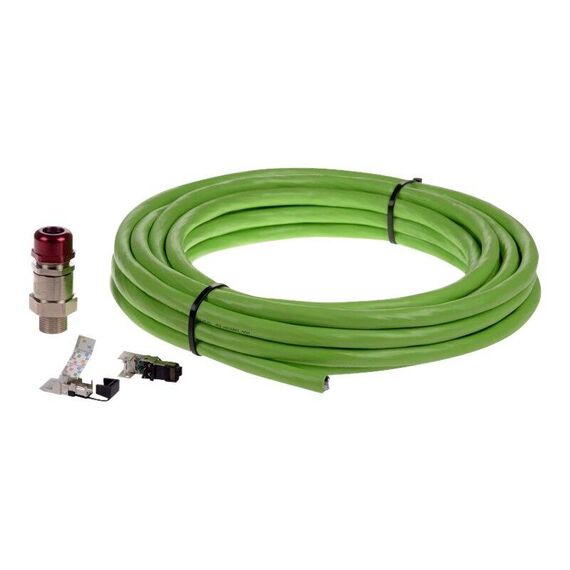

AXIS SKDP03-T - Bulk cable - RJ-45 (M) - 10 m - S/UTP - CAT 6 - RAL 6018 - for AXIS EXTB-3; ExCam XF P1377, XPT Q6055 Explosion-Protected PTZ Network Camera | 01540-001
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Bulk cable - CAT 6 |
| Technology | S/UTP |
| Shielding Material | Foil |
| American Wire Gauge (AWG) | 22/1 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Flame retardant, with gland |
| Length | 10 m |
| Colour | RAL 6018 |
| Connectivity | |
| Connector | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | IEC 60811-2-1, IEC 61156-5, IEC 60332-1-2, IEC 60754-2, EN 50288-10-1, RoHS 2011/65/EU, EN 50173, IEC 61156-5 Ed.2, ISO/IEC 11801 Ed. 2, EN 60332-1-2, UL AWM, EN 60079-14 |
| Environmental Parameters | |
| Min Operating Temperature | -60 °C |
| Max Operating Temperature | 80 °C |
| Compatibility Information | |
| Designed For | AXIS EXTB-3 ¦ AXIS ExCam XF P1377, XPT Q6055 Explosion-Protected PTZ Network Camera |
