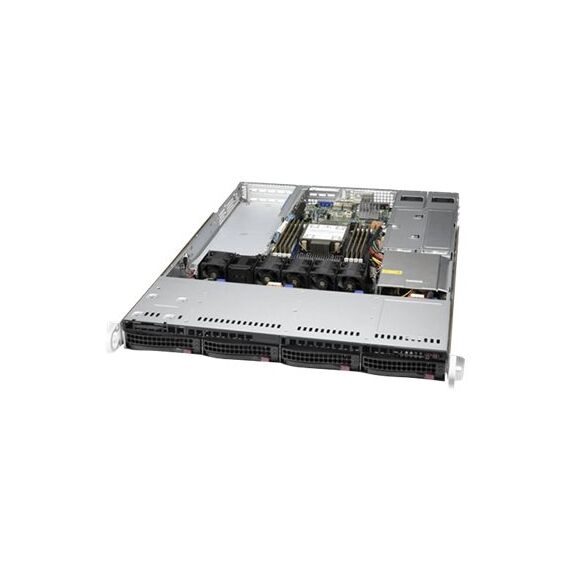

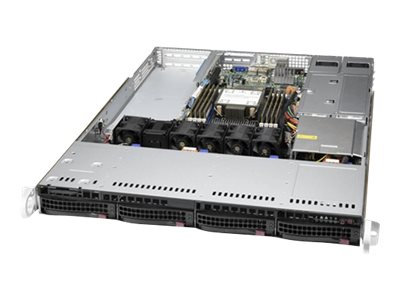

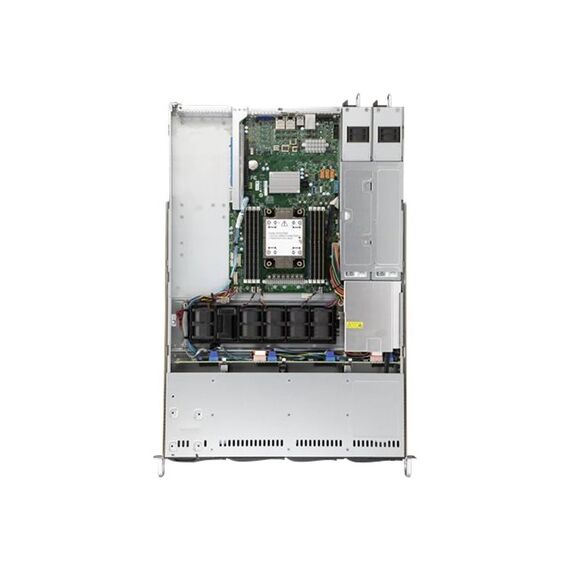

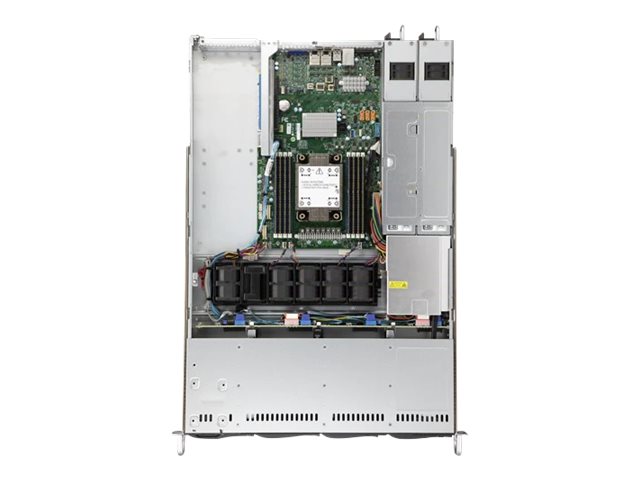

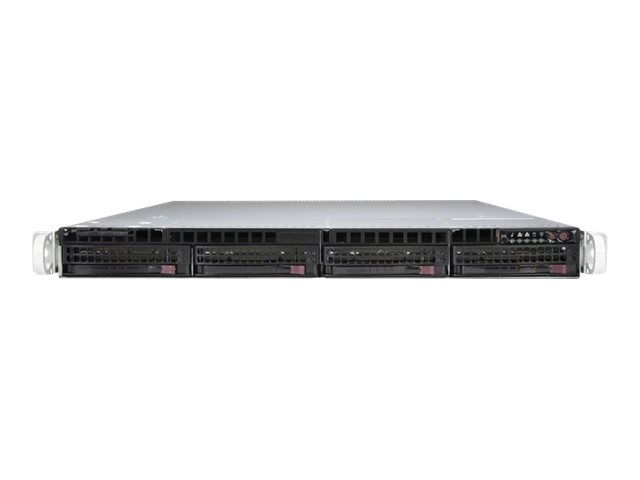

Server - rack-mountable - 1U - 1-way - no CPU up to - RAM 0 GB - SATA/PCI Express - hot-swap 3.5" bay(s) - no HDD - AST2600 - 10 Gigabit Ethernet - no OS - monitor: none - black | SYS-510P-WTR-EU
SYS-510P-WTR-EU
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Single Socket P (LGA 3647) supports 2nd Gen Intel Xeon Scalable processor
- 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot

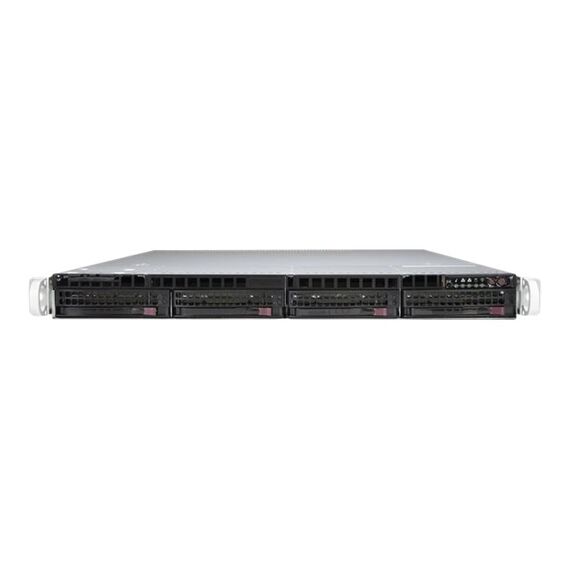

- 4 Hot-swap 3.5" SATA3 drive bays
- 2x 10GBase-T ports with Intel X722 + X557
- 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
- 2 SuperDOM (Disk on Module) ports
- 500W Redundant power supplies
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Colour | Black |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA4189 Socket |
| Chipset Type | Intel C621A |

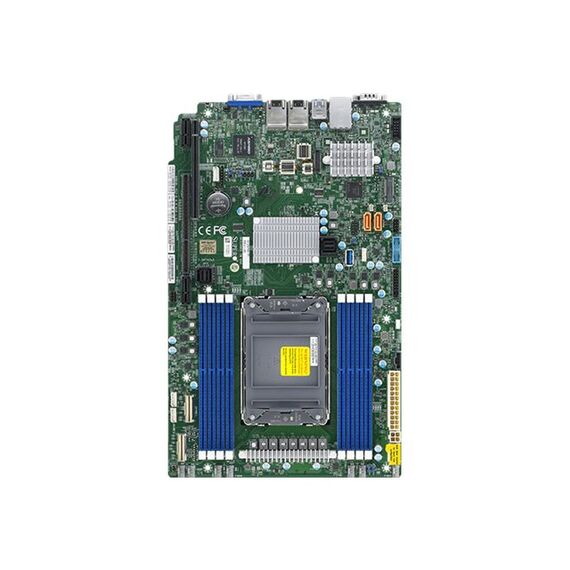

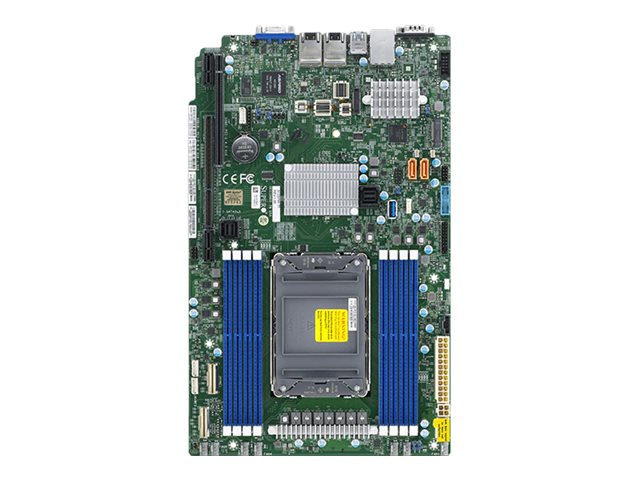

| Motherboard Name | Supermicro X12SPW-TF |
| RAM | |
| Installed Size | 0 GB (installed) / 2 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 8 (Total) / 8 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), supports Intel Optane DC Persistent Memory (DCPMM) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x NVMe |
| Controller Interface Type | PCI Express (NVMe) |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Storage Controller (2nd) | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X550 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | KVM over IP support |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" |
| Slots | 2 (total) / 2 (free) x PCIe 4.0 x16 (full-length, full-height) <br /> 1 (total) / 1 (free) x PCIe 4.0 x16 (low-profile) <br /> 1 (total) / 1 (free) x M.2 Card - 2280/22110 (Key M) |

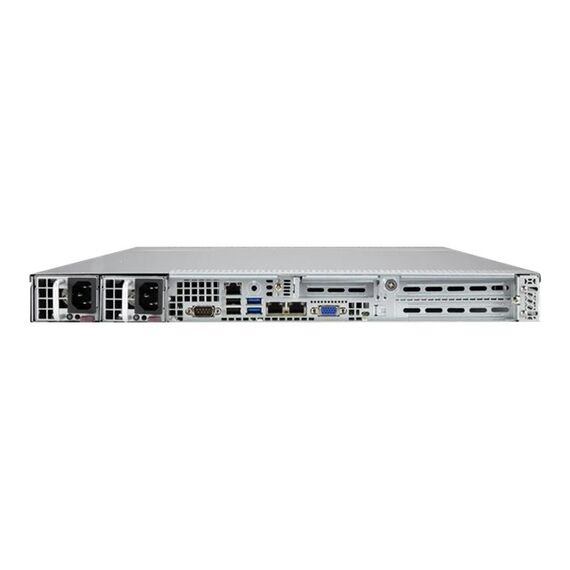

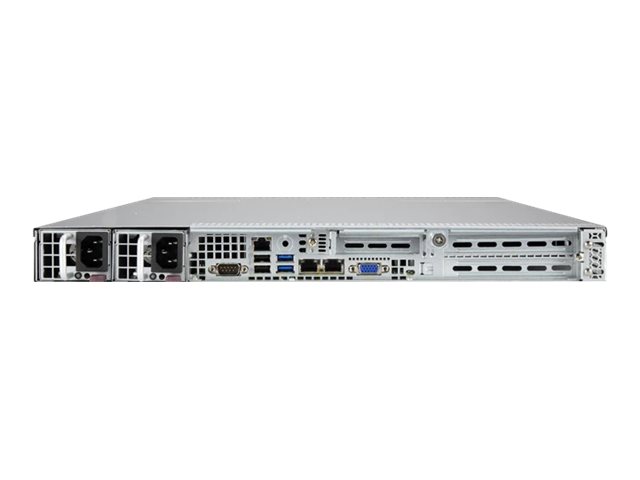

| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 <br /> 3 x USB 3.2 Gen 1 (1 internal) <br /> 1 x VGA <br /> 2 x USB 2.0 <br /> 1 x management (NIC) - RJ-45 <br /> 1 x serial |
| Miscellaneous | |
| Included Accessories | CPU Heatsink, air shroud |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | (50 - 60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided | No operating system |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 2 years <br /> Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 43.7 cm |
| Depth | 65 cm |
| Height | 4.3 cm |
| Weight | 10.89 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 60 cm |
| Shipping Depth | 85.6 cm |
| Shipping Height | 21.6 cm |
| Shipping Weight | 21.77 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - SYS-510P-WTR-EU
Capacity
2TB
More Details
Product Code
07:137040
EAN Code
0672042898459
Manufacturer
SUPERMICRO
