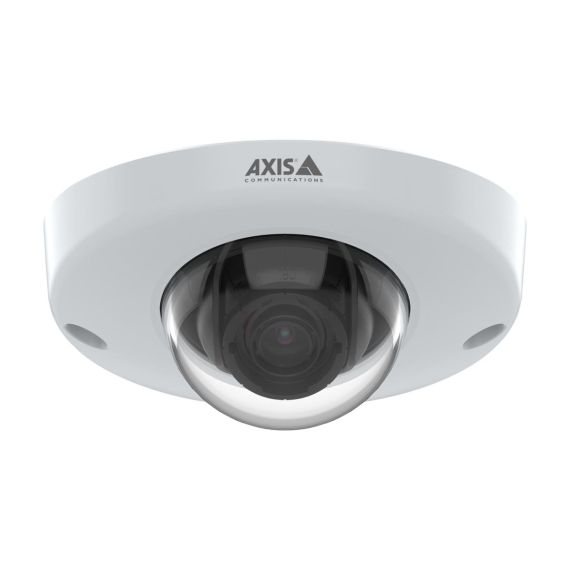

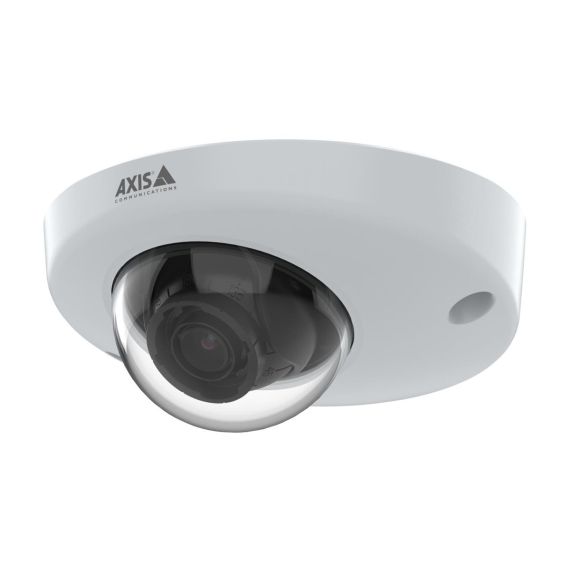

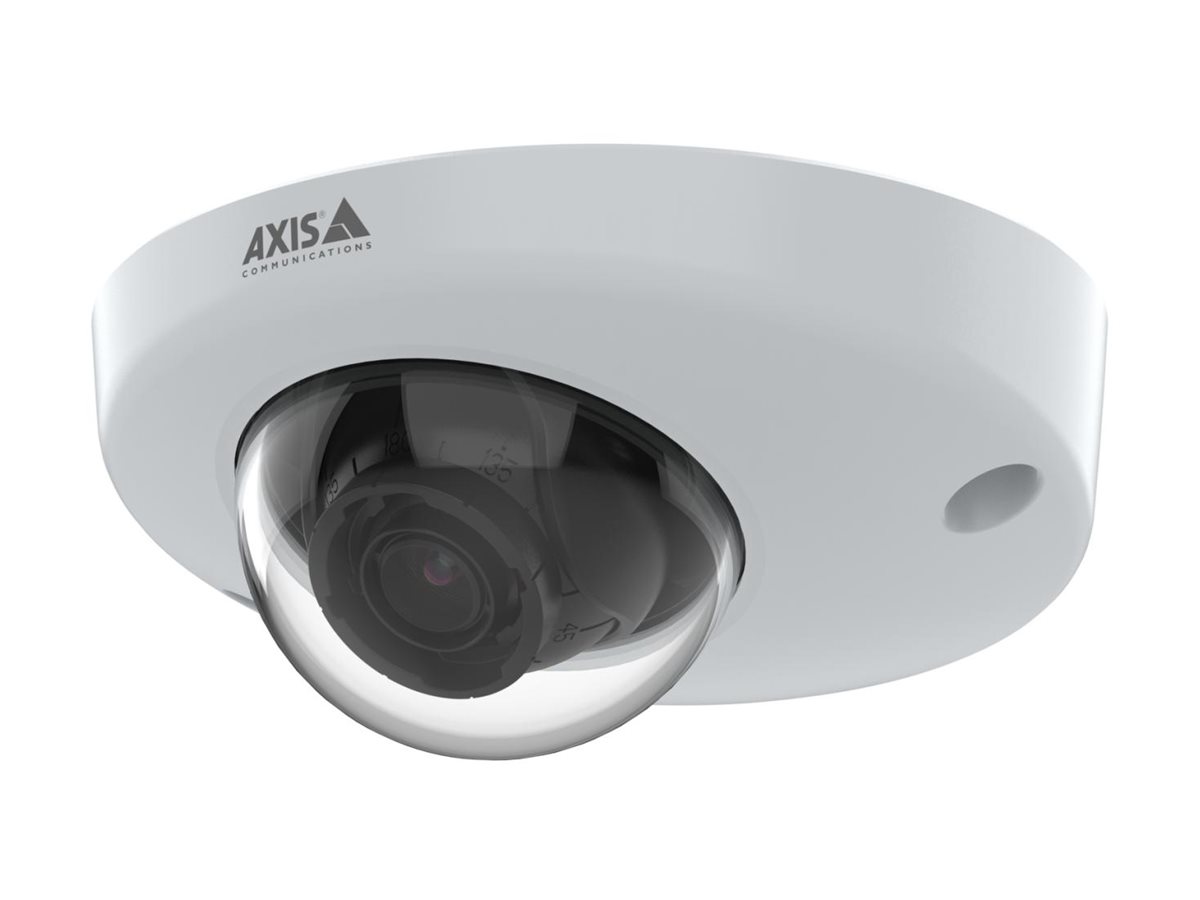

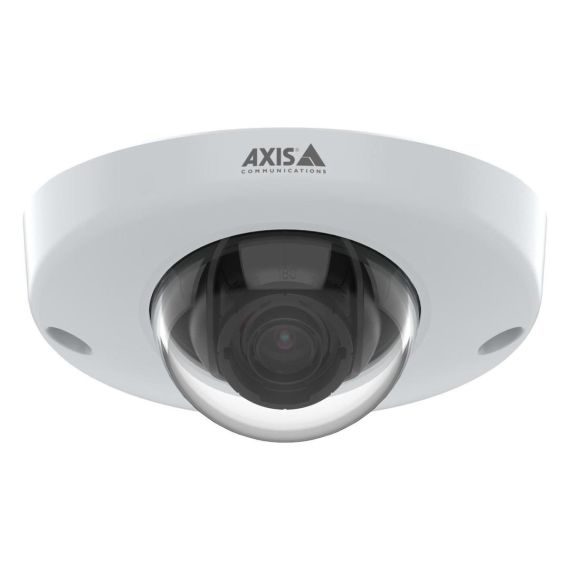

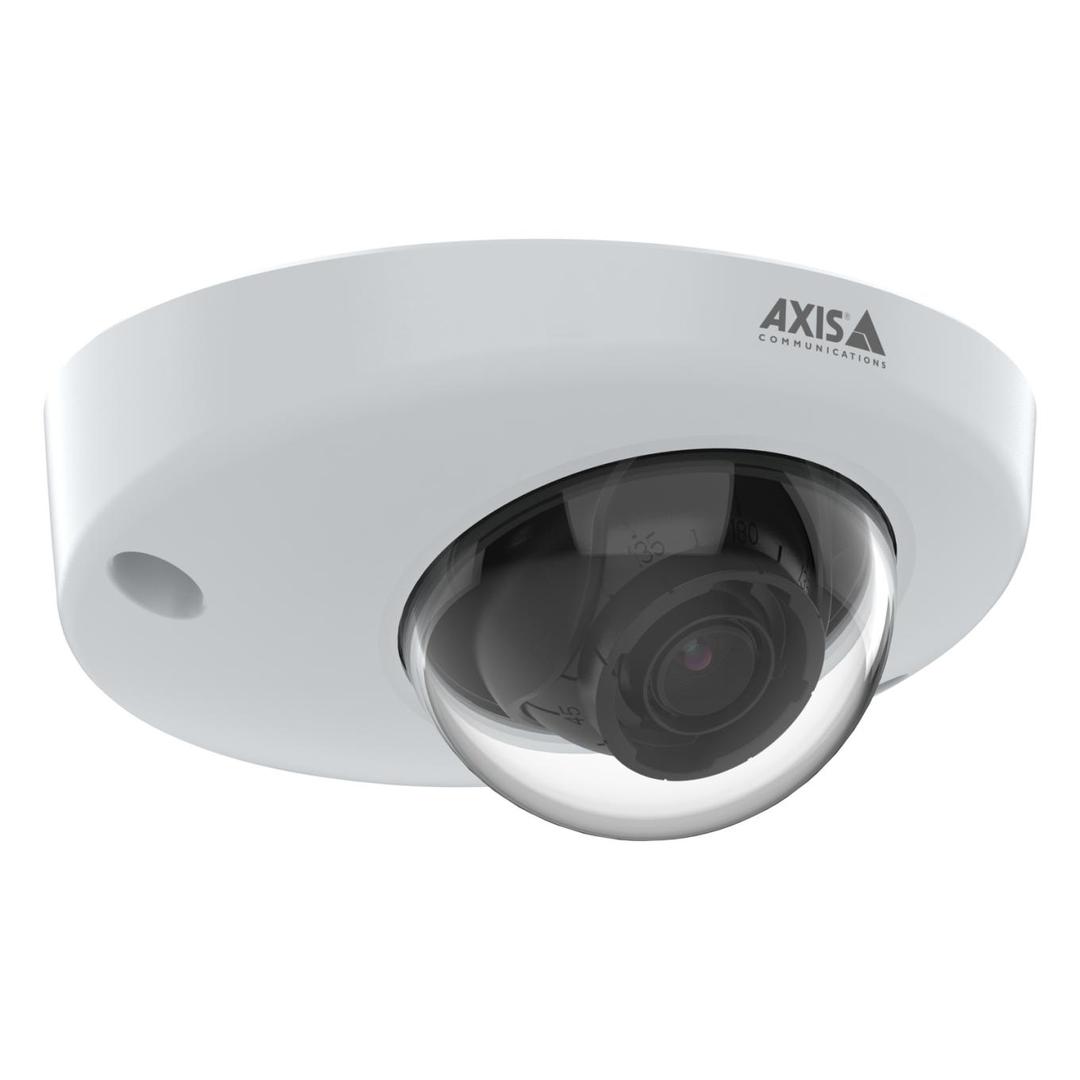

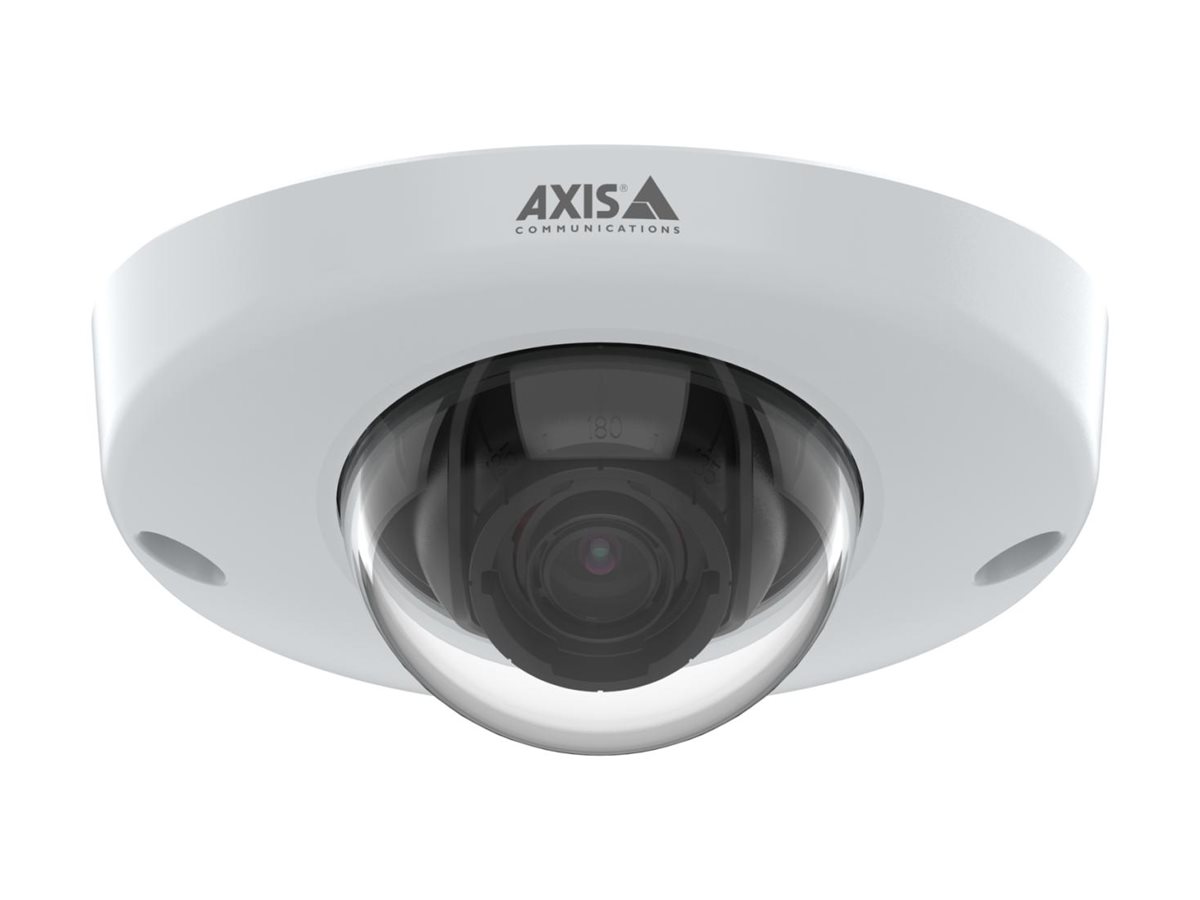

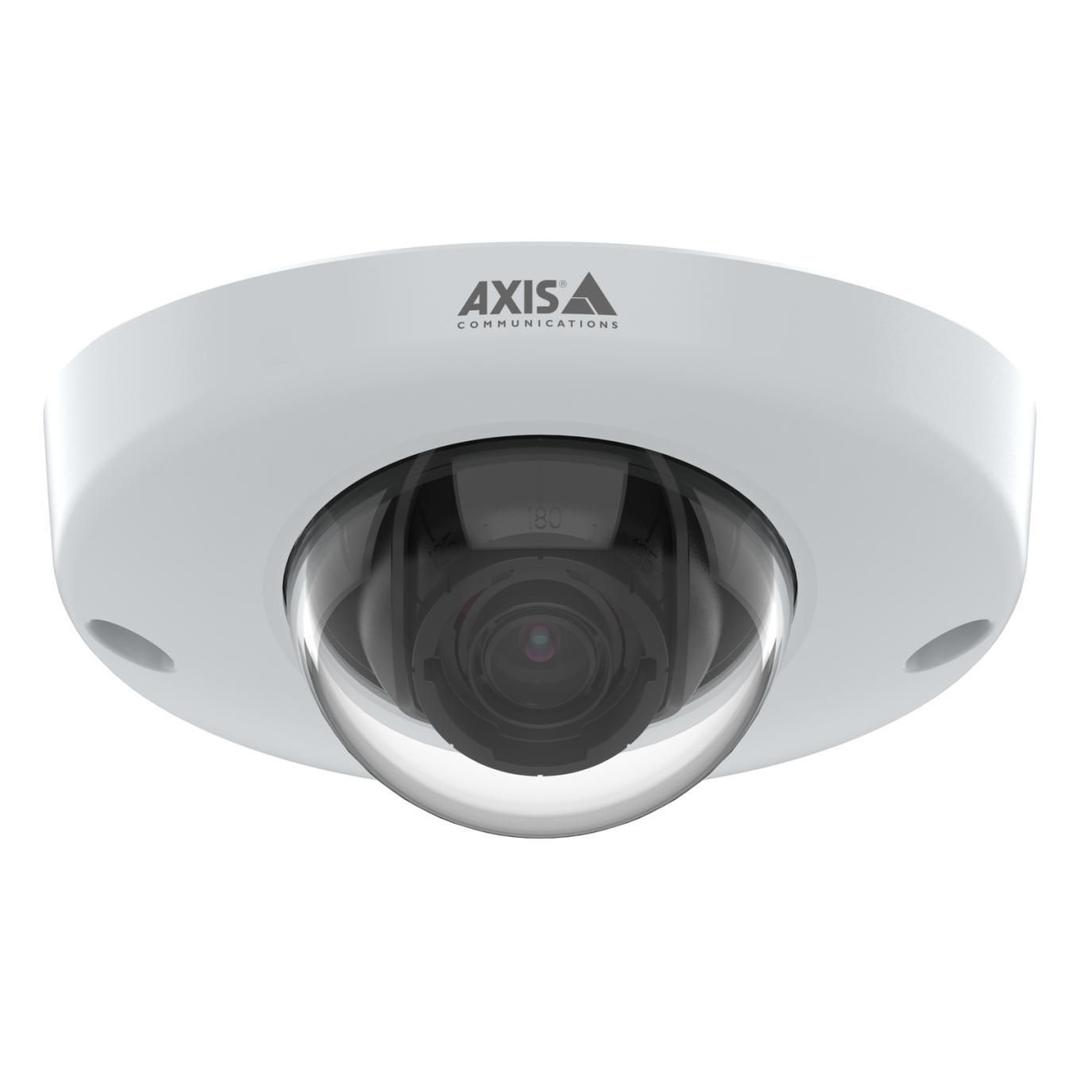

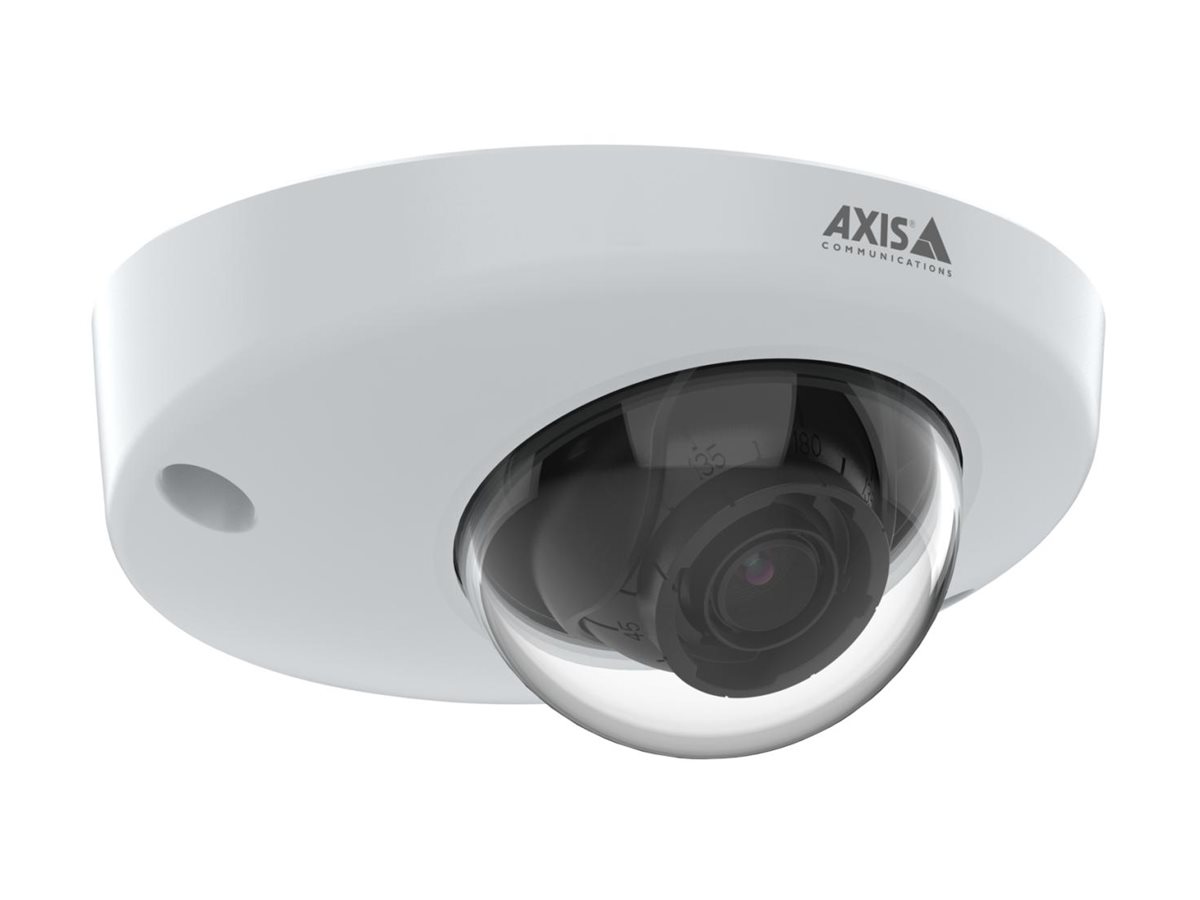

Network surveillance camera / dome / vibration / shockproof / colour / 2 MP / 1920 x 1080 / M12 mount / fixed iris / fixed focal / LAN 10/100 / H.264B, H.264M, H.264H, H.265, MJPEG / PoE Plus / TAA Compliant | 03117-001
Network surveillance camera / dome / vibration / shockproof / colour / 2 MP / 1920 x 1080 / M12 mount / fixed iris / fixed focal / LAN 10/100 / H.264B, H.264M, H.264H, H.265, MJPEG / PoE Plus / TAA Compliant | 03117-001
€627.4 inc. VAT
03117-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust design
Built to withstand harsh environments, the AXIS P3905-R Mk III is compliant with numerous standards including IEC/EN 60529 IP66 and IP67, ensuring protection against dust, water, and impacts with an IEC/EN 62262 IK10 rating. Its durable construction makes it ideal for both indoor and outdoor installations. - Advanced imaging
Featuring a 1/2.9" PS RGB CMOS sensor and Forensic WDR technology, this camera delivers clear, detailed images in various lighting conditions. Lightfinder technology enhances low-light performance, ensuring critical details are captured in color down to 0.04 lux. - Efficient operation
With support for H.264 and H.265 compression formats, the AXIS P3905-R Mk III optimizes bandwidth and storage without compromising video quality. Axis Zipstream technology further reduces the need for bandwidth and storage by dynamically adjusting the bitrate. - Enhanced security
This camera is equipped with advanced security features such as signed firmware and secure boot, ensuring the integrity of its operating system. Additionally, it offers brute force delay protection and a secure keystore for safeguarding cryptographic keys.
Special Fetures
- Compliant with a wide range of standards for environmental durability including IP66, IP67, and IK10
- Equipped with Lightfinder and Forensic WDR for exceptional image clarity in varied lighting conditions
- Supports H.264 and H.265 compression to efficiently manage bandwidth and storage
- Incorporates advanced security features like signed firmware and secure boot
- Designed for easy integration with Ethernet 10Base-T/100Base-TX networking and PoE Plus for simplified installation
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 11 cm |
| Depth | 11 cm |
| Height | 5 cm |
| Weight | 241 g |
| Localisation | Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States |
| Camera | |
| Type | Colour - fixed - vibration / shockproof |
| Digital Video Format | H.264B, H.264M, H.264H, H.265, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/19000 sec |
| Minimum Illumination | 0.02 lux - colour - F1.2 - 30 IRE <br /> 0.07 lux - colour - F1.2 - 50 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 640 x 360, 1280 x 800, 640 x 400, 1280 x 960, 320 x 240 |
| Frame Rate (max) | 45 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | 16:9 aspect ratio, 16:10 aspect ratio, 4:3 aspect ratio, 4 video streams, Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, dynamic text overlay, polygon privacy mask, image mirror, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, Lightfinder technology, digital PTZ function, guard tour, control queue, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, Network Time Security (NTS), -175° / +175° rotation, aluminium housing |
| Image Sensor | |
| Type | 2 MP PS RGB CMOS 1/2.9" |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.2 fixed iris |
| Min Focus Distance | 0.3 m |
| Horizontal Field of View (degree) | 107 |
| Vertical Field of View (degree) | 56 |
| Panning | |
| Range (degree) | -30 to +30 |
| Tilting | |
| Range (degree) | 15 to 90 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
| Miscellaneous | |
| Included Accessories | Lens tool |
| TAA Compliant | Yes |
| Compliant Standards | KC, RCM, UL/cUL, UKCA, WEEE, NDAA, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 Rev.06, EN 50498, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC/EN/UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IS 13252, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60068-2-14, NIST SP500-267, ETSI EN 303 645, IEEE 802.1x, IEEE 802.1ae, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 |
| Power | |
| Power Requirements | PoE Plus |
| Power Device | 2.2 Watt |
| Software / System Requirements | |
| Software Included | AXIS Video Motion Detection, Windows decoder 1-user licence |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 03117-001
More Details
Product Code
CL60960
EAN Code
7331021089426
Manufacturer
AXIS
