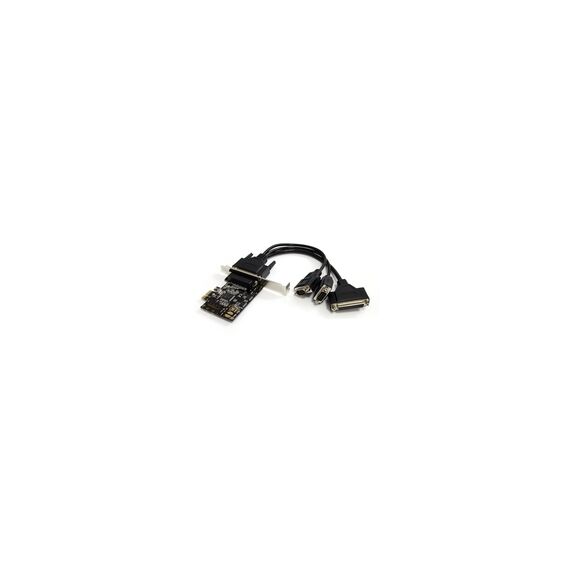

StarTech.com PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout CableAdd a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot
The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express PCIe slot.
Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE 32/64 bit, Linux and Mac OS X.
The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional bridge chip cards.
This product is a replacement for our PEX2S1P552B card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Break-out cable design with low and standard profile brackets offers a versatile, single slot solution for adding 3 additional ports 2 serial, 1 parallel to almost any system, including space-sensitive embedded applications
- Native single-chip design reduces CPU load for improved performance and reliability
- Broad Operating System support, including 64-bit Windows systems, for easy integration into mixed environments
|Output interface:||Parallel, Serial|
|PCI Card form factor:||Half-height low-profile|
|FIFO First In, First Out:||256 B|
|Logical block addressing LBA support:||8 bit|
|Supports EPP and ECP:||Y|
|Colour of product:||Black, Silver|
|Operating temperature T-T:||0 - 70 °C|
|Storage temperature T-T:||-40 - 150 °C|
|Operating relative humidity H-H:||5 - 85 %|
|Package width:||143 mm|
|Package depth:||174 mm|
|Package height:||38 mm|
|Package weight:||300 g|
|Data transfer rate:||0.250 Mbit/s|
|Compatible operating systems:||DOS, Windows 95/ 98SE/ 2000/ XP32/64bit/ Server 200332/64bit/ Vista32/64bit/ 732/64bit/ Server 2008 R2, Linux, Mac OS 10.4.x, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0|
