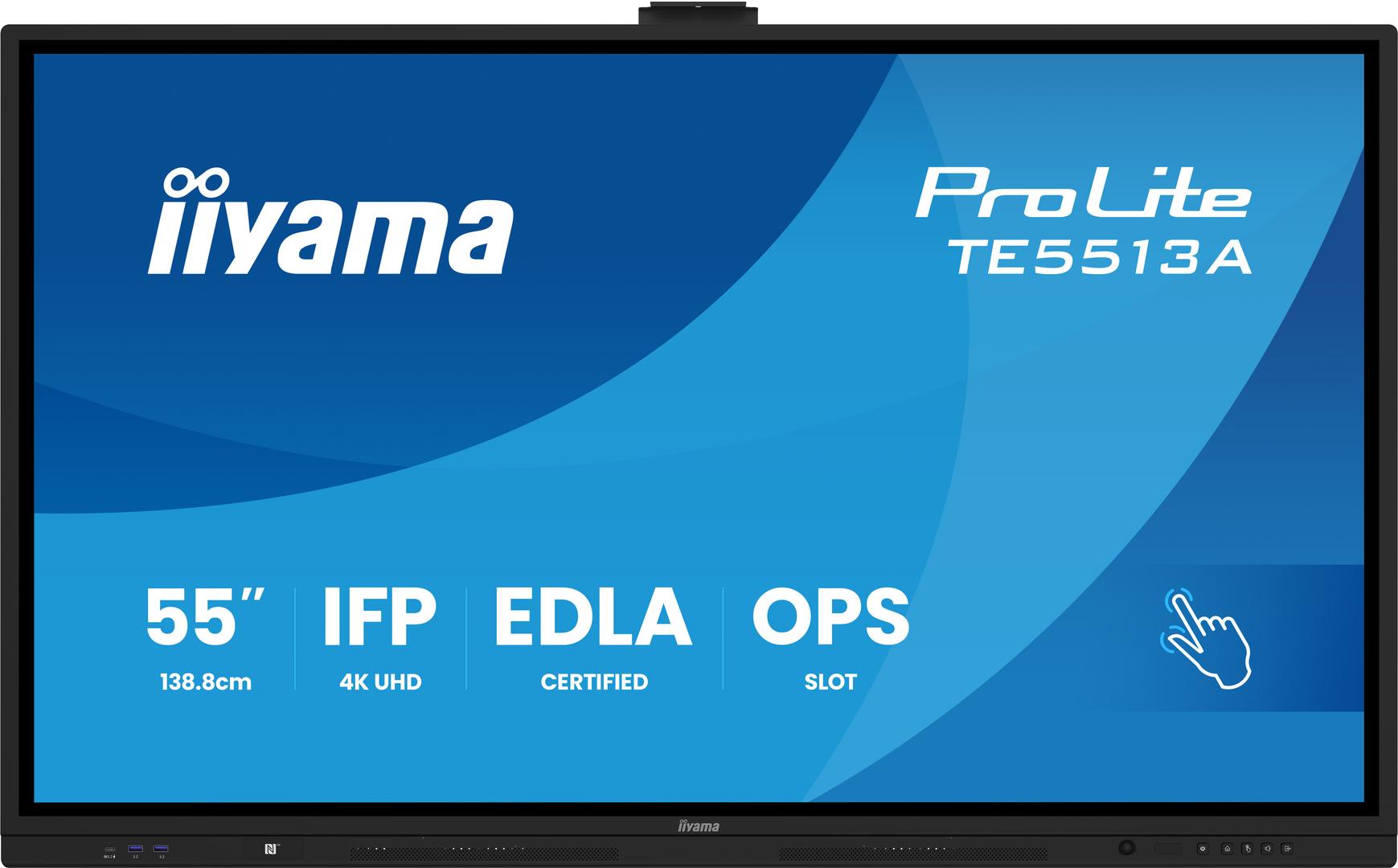

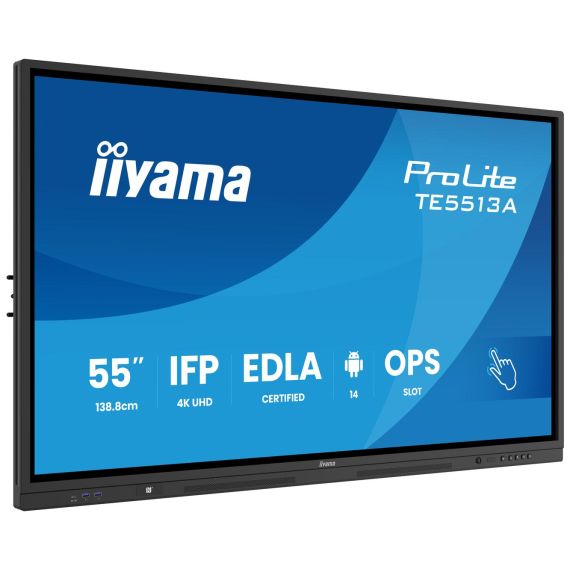

interactive digital signage / with touchscreen (multi touch) / optional slot-in PC capability / 4K UHD (2160p) 3840 x 2160 / black bezel with matte finish | TE9813A-B1AG
interactive digital signage / with touchscreen (multi touch) / optional slot-in PC capability / 4K UHD (2160p) 3840 x 2160 / black bezel with matte finish | TE9813A-B1AG
€6096.95 inc. VAT
TE9813A-B1AG
Sales 10%
Promotion details
Sales 10% at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | LED-backlit LCD flat panel display |
| Energy Class | Class G |
| Power Consumption Operational | 303 Watt |
| Power Consumption SDR (On mode) | 303 kWh/1000h |
| Diagonal Class | 98" |
| Diagonal Size | 97.5" |
| Commercial Use | Yes - interactive digital signage |
| Combined With | Touchscreen (multi touch) / optional slot-in PC capability |
| Operating System | Android OS 14 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), NFC sensor, PIR motion sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort, USB-C 3.2 |
| Modes | Landscape mode, kiosk mode |
| Design | Metal frame |
| Cooling System | Fanless |
| Dimensions | Without stand |
| Width | 223.54 cm |
| Depth | 10.3 cm |
| Height | 132.6 cm |
| Weight | 109.6 kg |
| Enclosure Colour | Black bezel with matte finish |
| Display | |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.562 mm |
| Colour Support | 1070000000 colours |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 4 mm glass, 7H Hard |
| Image Contrast Ratio | 1200:1 |
| Brightness | 450 cd/m² |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Response Time | 8 ms |
| Display Menu Language | English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Slovenian, Finnish, Danish |
| Features | PureTouch-IR+ technology, 88% light transmittance, zero air-gap, 8-bit support, Frame Rate Control (FRC), Open Pluggable Specification slot, OSD key lock, MTBF 50000 hours, blue light reduction, integrated iiWare 21E software, iiyama Device management System (DMS), +/- 1mm touch accuracy, 200 Hz scan rate, Palm Rejection |
| Stands & Mounts | |

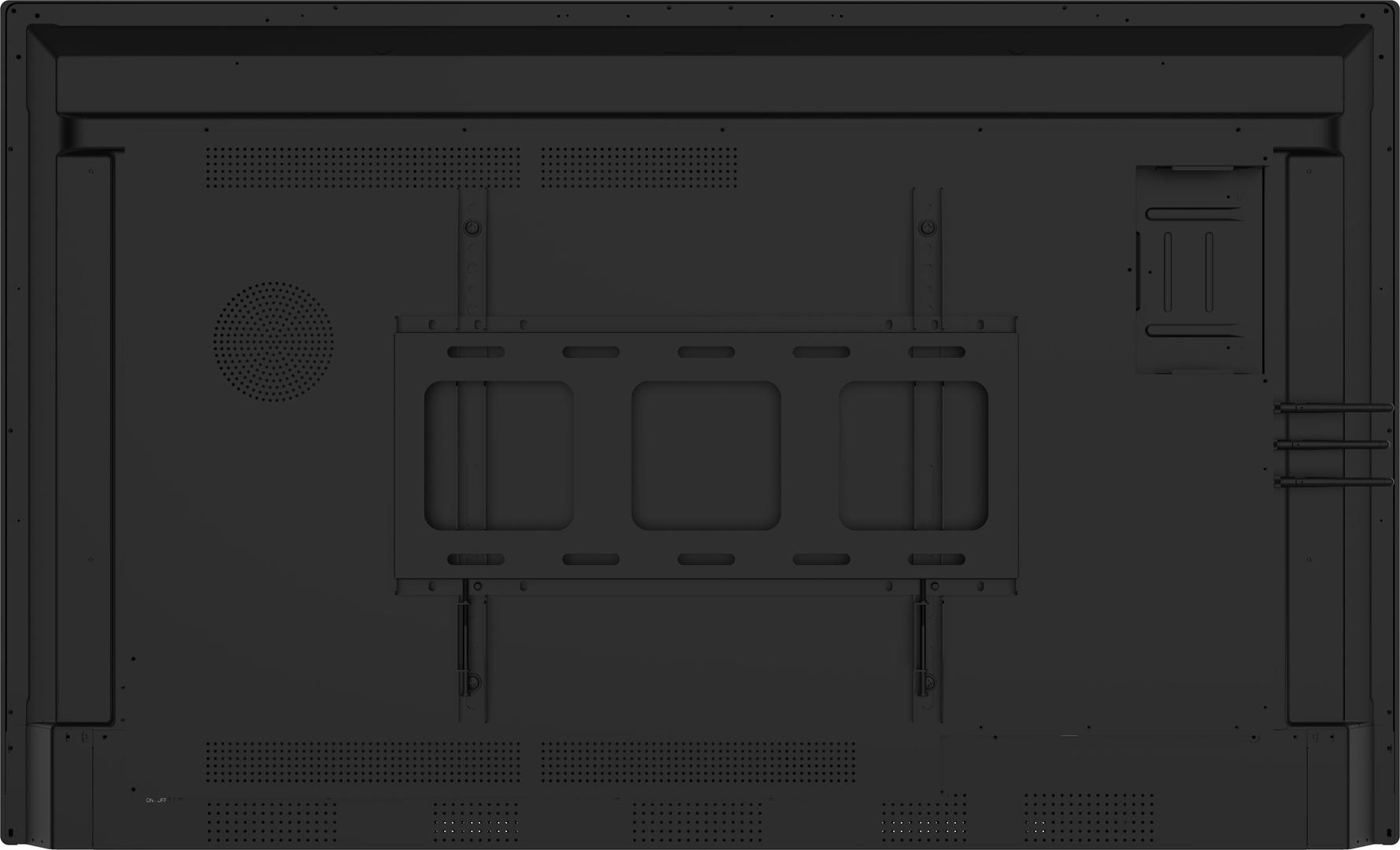

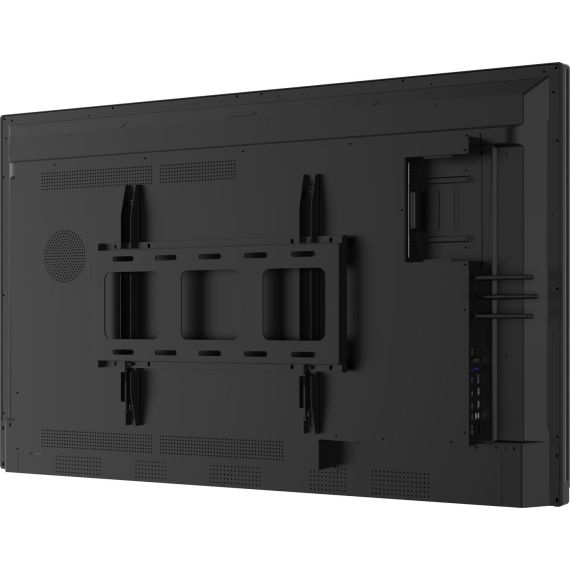

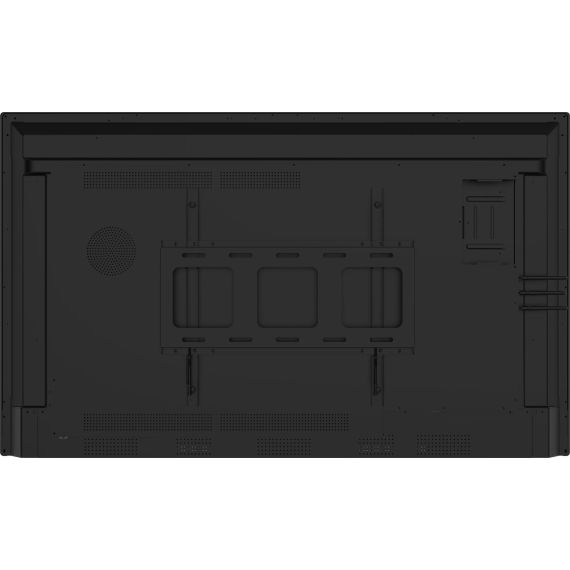

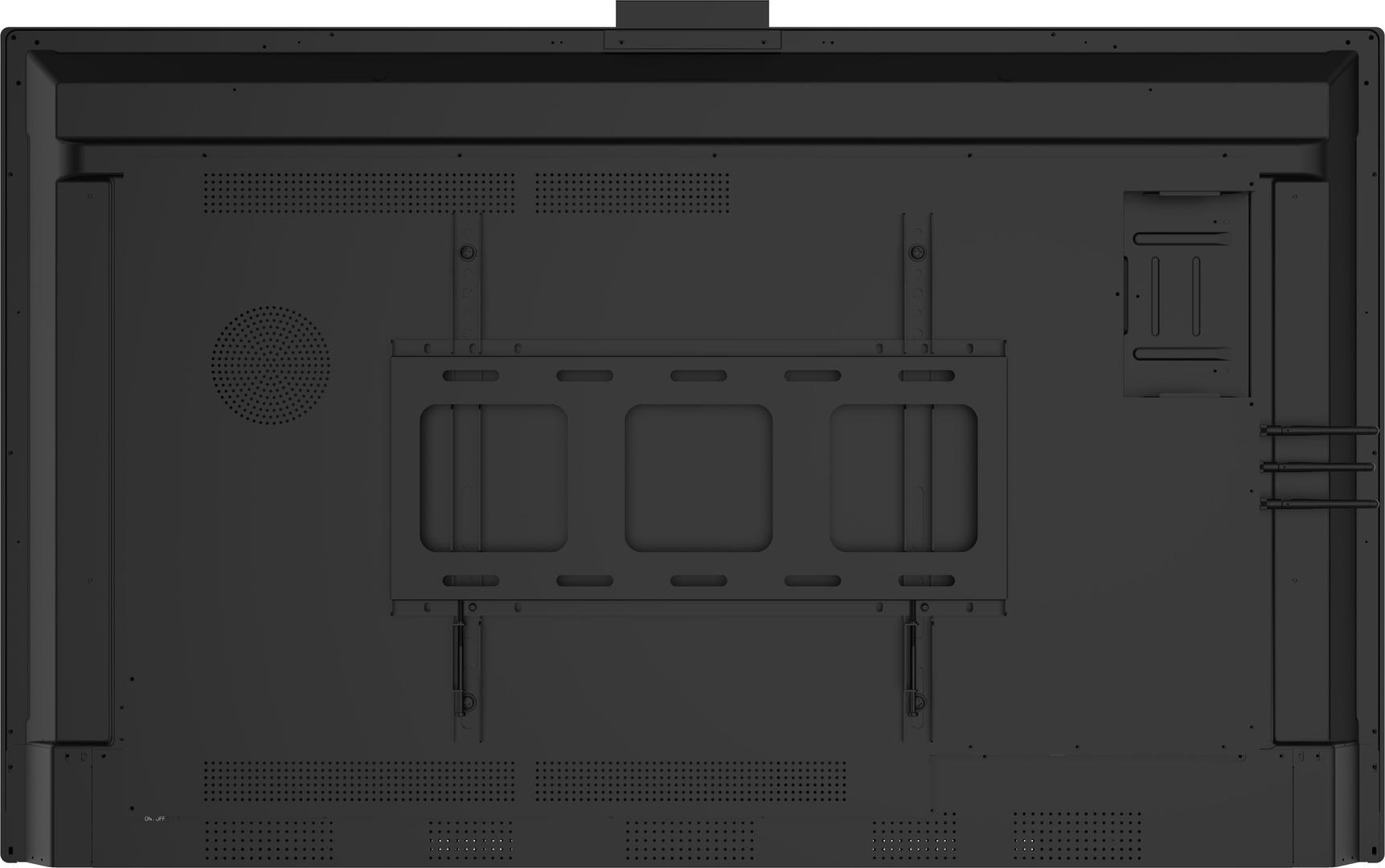

| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| Configuration | ARM Cortex-A73 Quad-Core ( 1.4 GHz ) - 8 GB - 128 GB - Mali G52 MC1 |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers, subwoofer |
| Output Power / Total | 20 Watt |
| Speakers | 2 x main channel speaker - 10 Watt <br /> 1 x subwoofer - 20 Watt |
| Network & Internet Multimedia | |
| Functionality | Digital video playback, cloud storage playback, Internet video playback, WEB browsing |
| Connectivity | LAN, Wi-Fi, Bluetooth |
| LAN Protocol | Fast Ethernet |
| Wi-Fi Protocol | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Bluetooth Version | Bluetooth 5.0 |
| Connect & Share | Iiyama Share |
| Connections | |
| Connector Type | 2 x HDMI input <br /> DisplayPort input <br /> 2 x USB-C 3.2 Gen 1 with DisplayPort 1.2, Ethernet 100M, 100W Power Delivery <br /> Audio input <br /> RS-232C input <br /> LAN input <br /> Intel SDM (Smart Display Module) slot <br /> HDMI output <br /> SPDIF output <br /> Audio output <br /> 2 x USB 3.2 Gen 1 - front <br /> USB-C 3.2 Gen 1 with 100W Power Delivery - front <br /> USB-C 3.2 Gen 1 with 100W Power Delivery - side <br /> LAN output |
| Miscellaneous | |

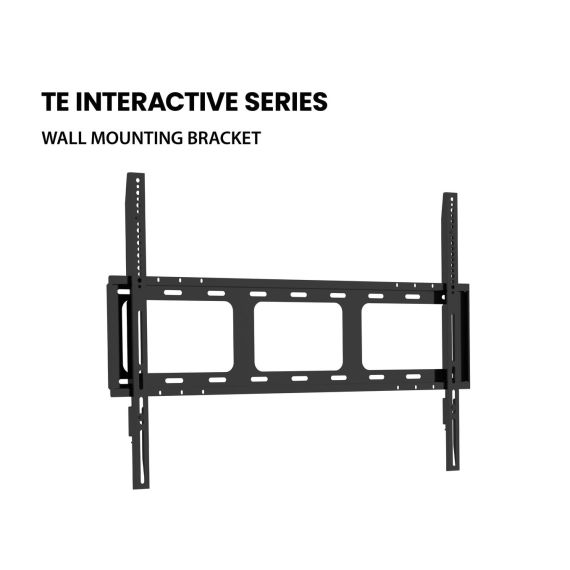

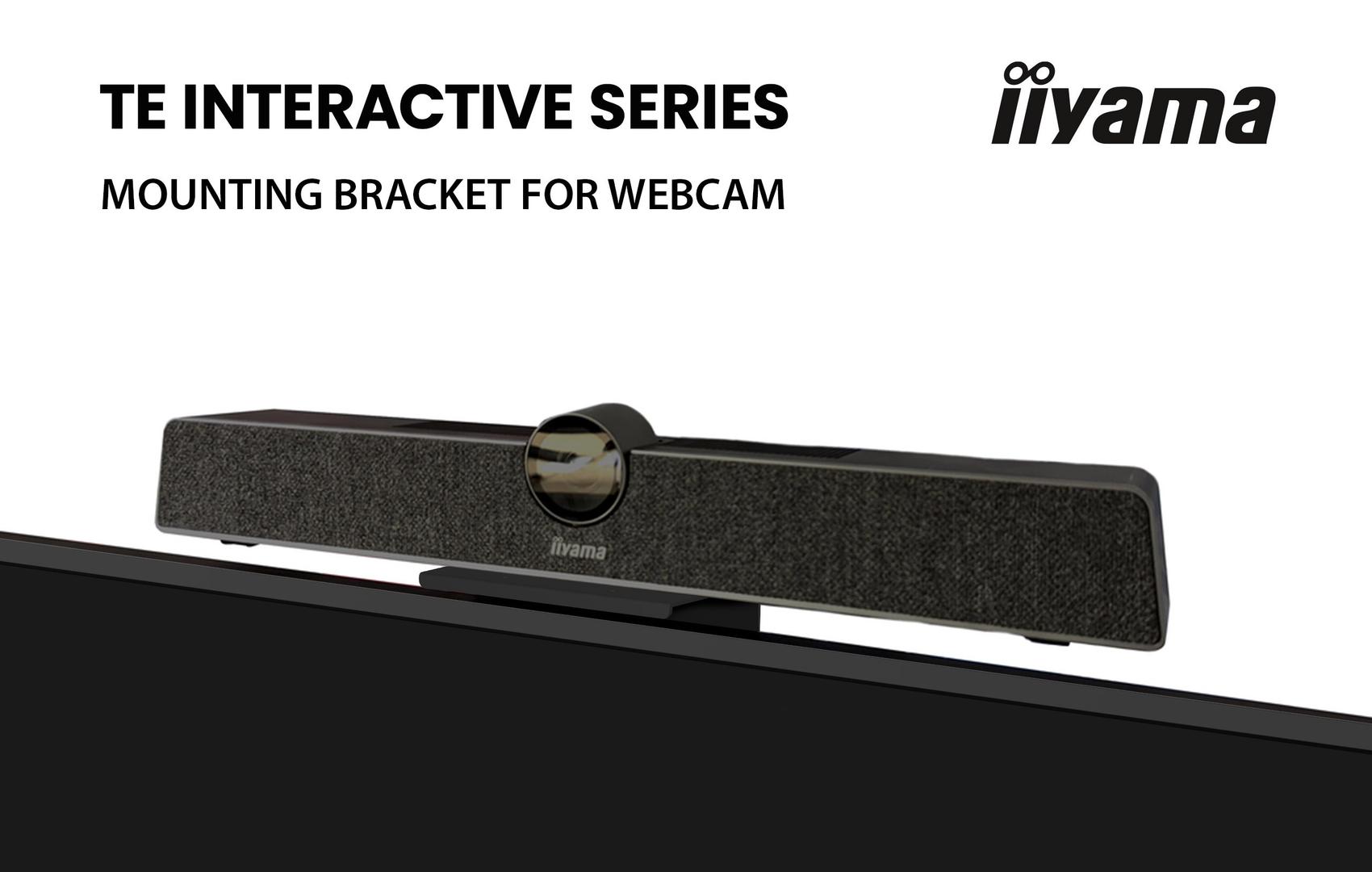

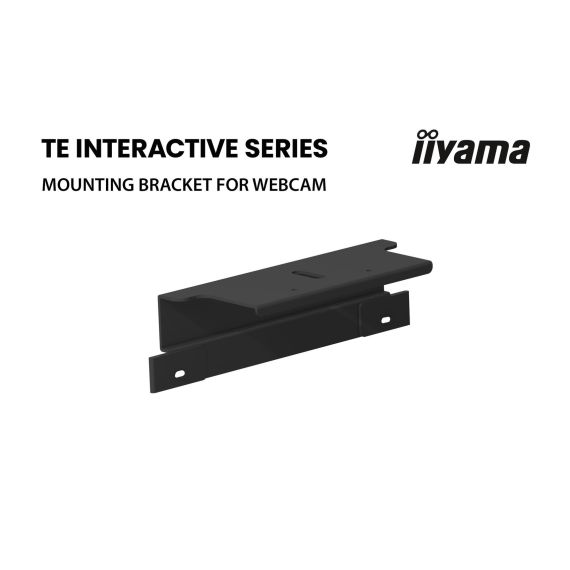

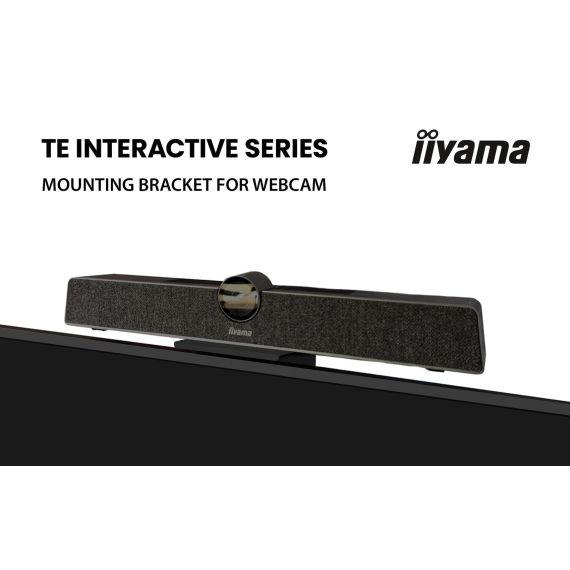

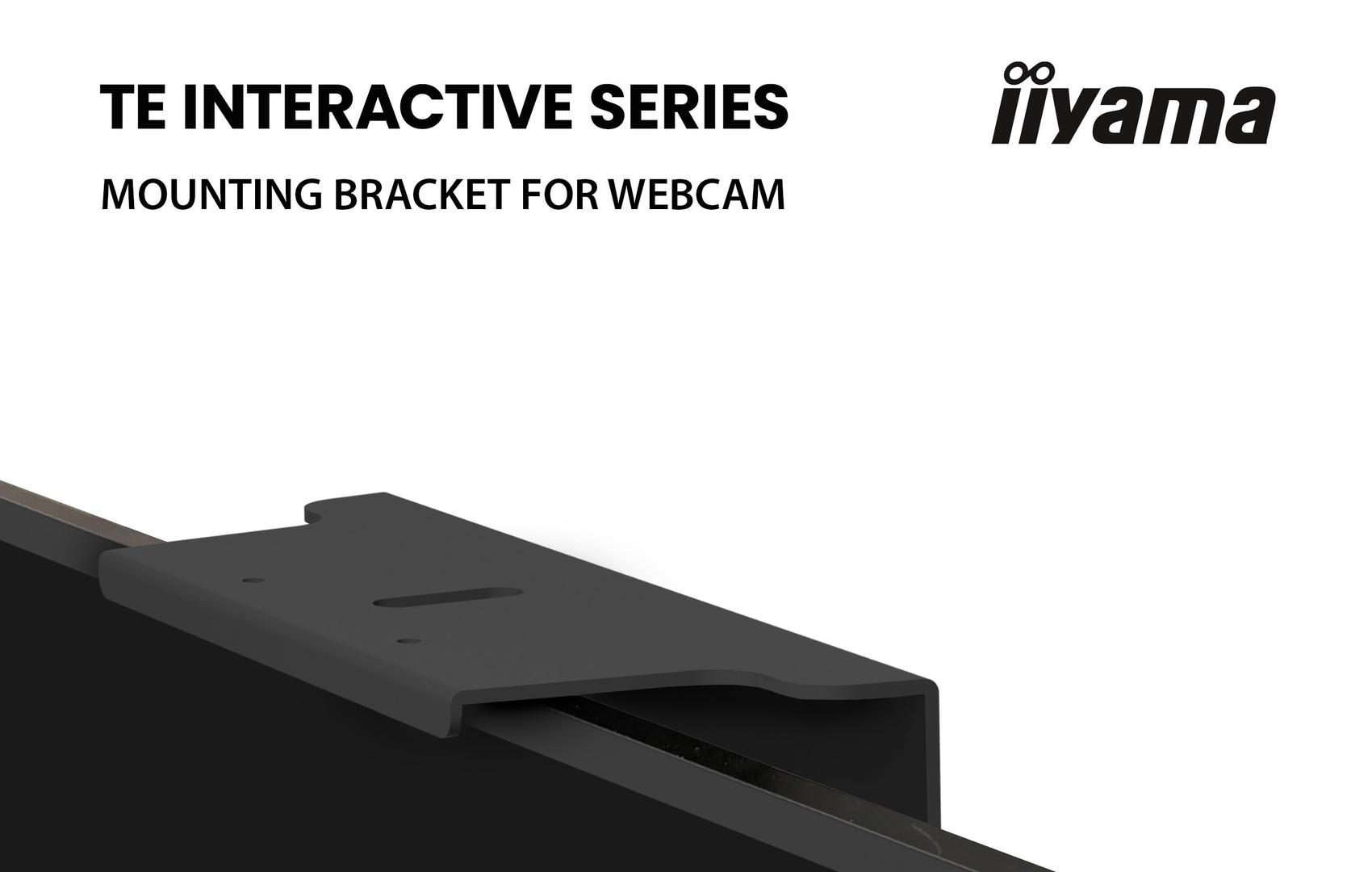

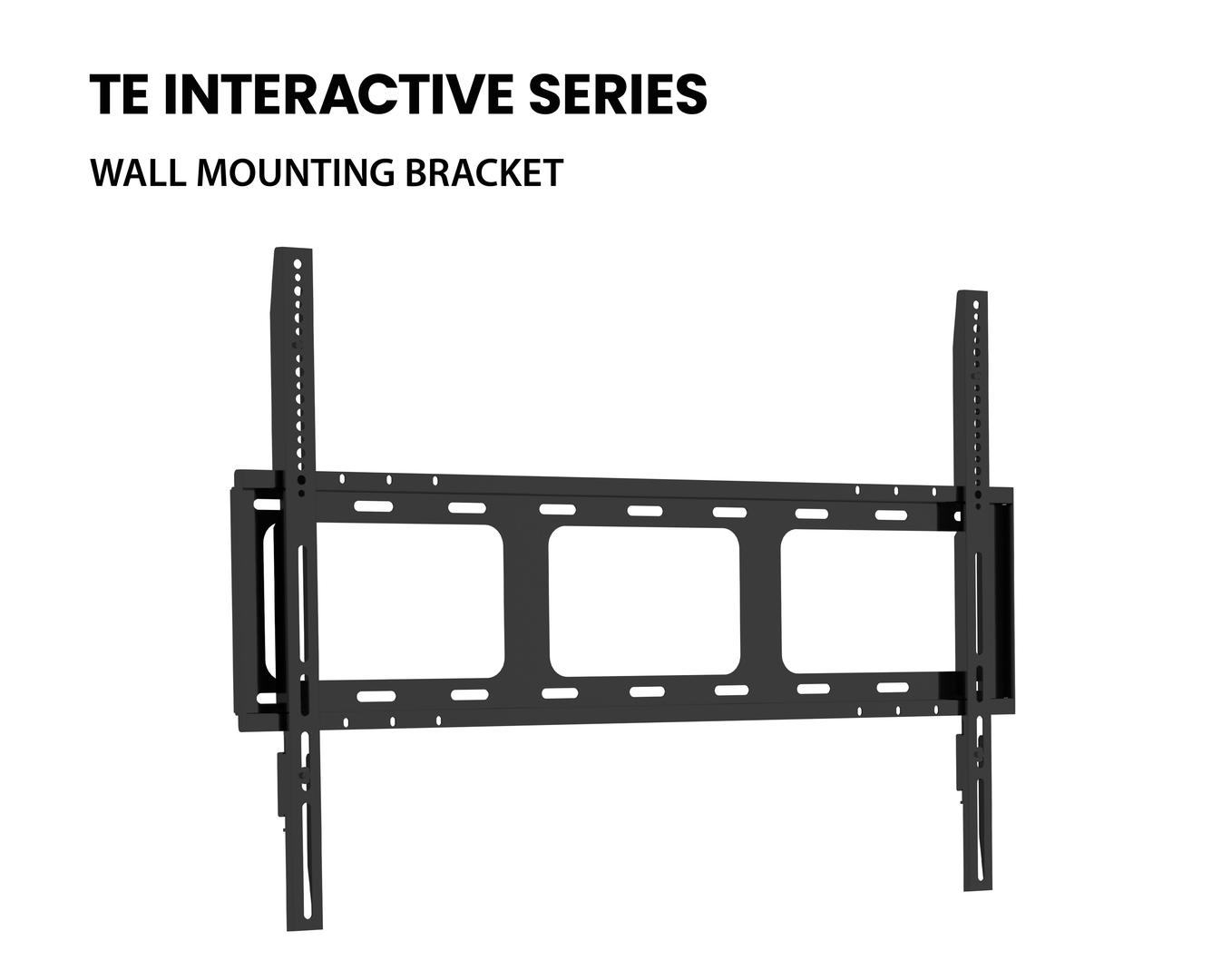

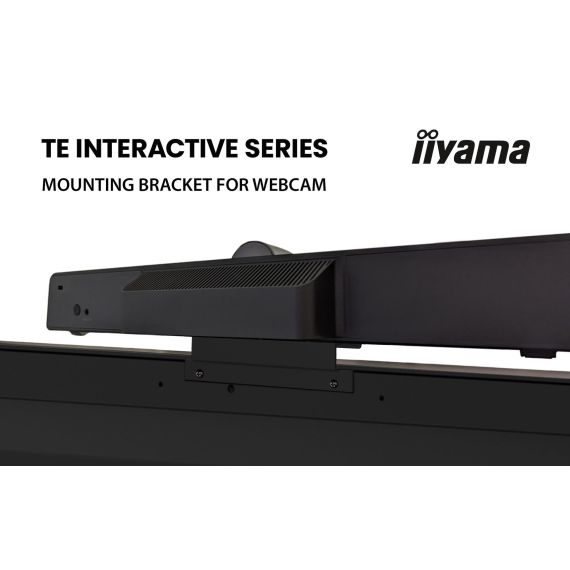

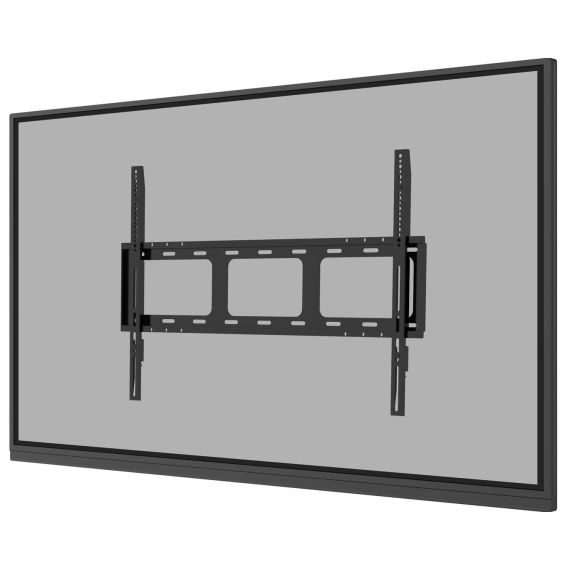

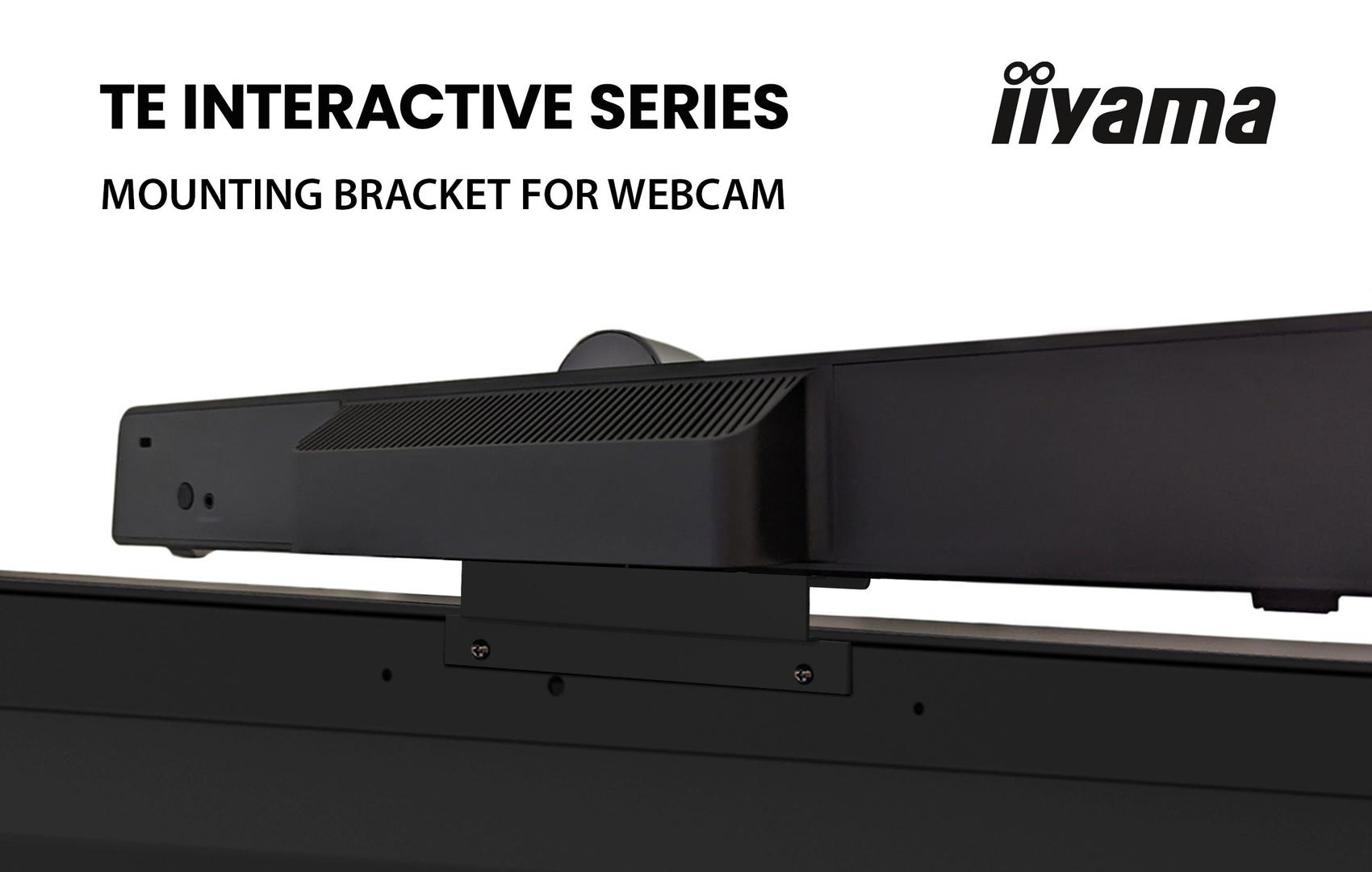

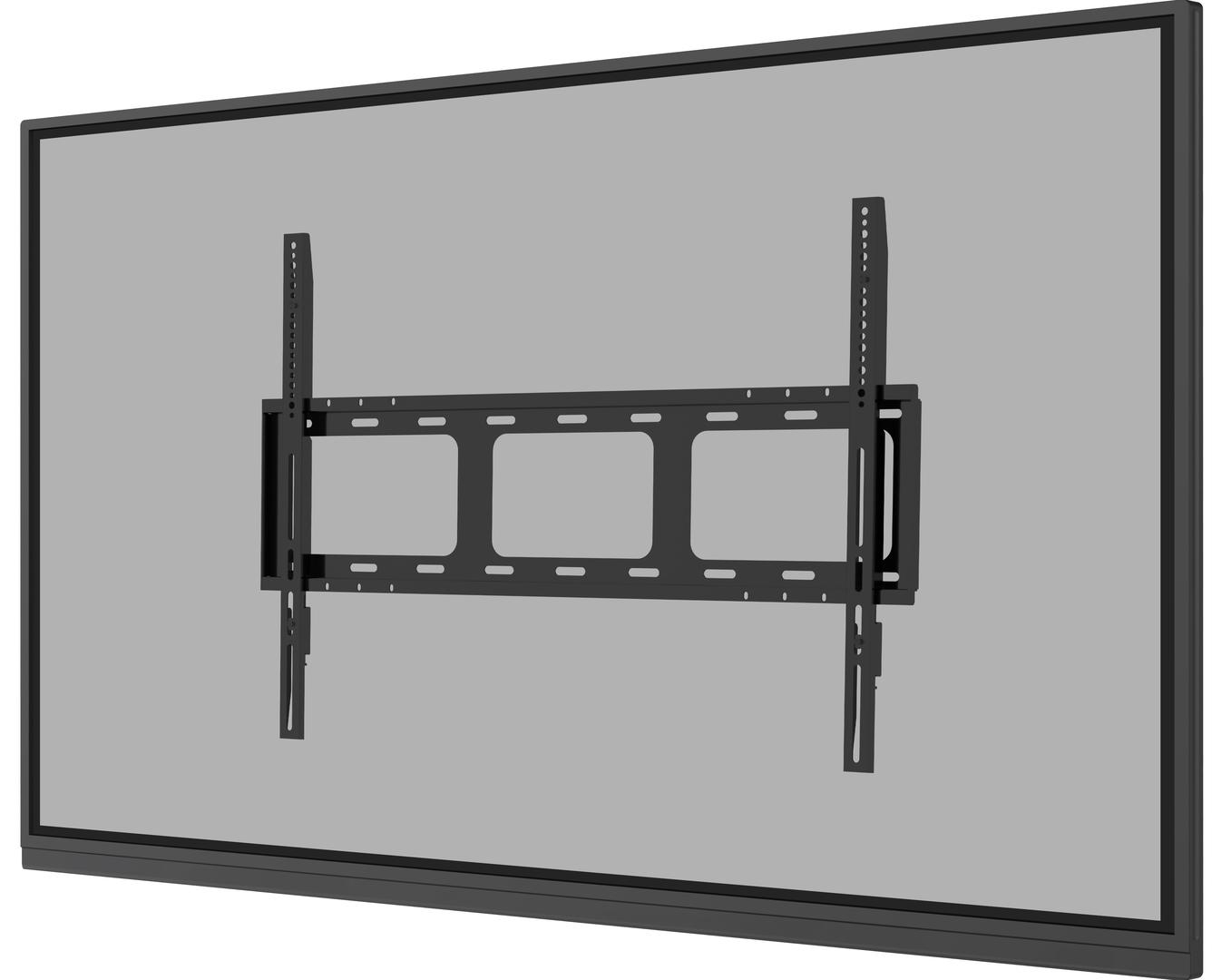

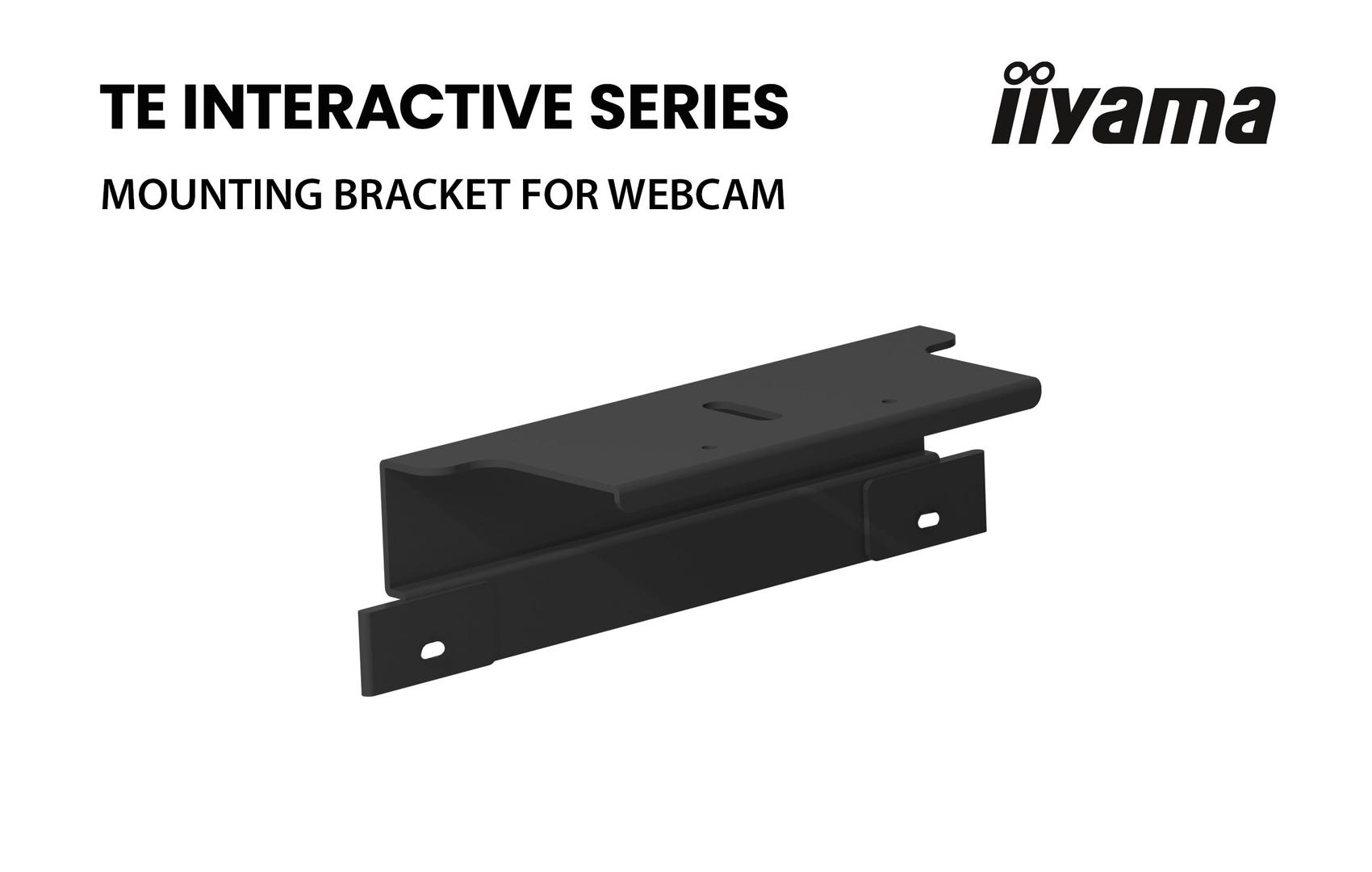

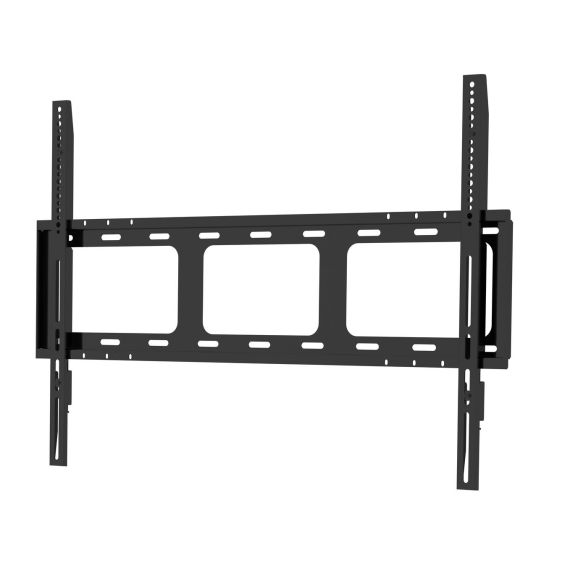

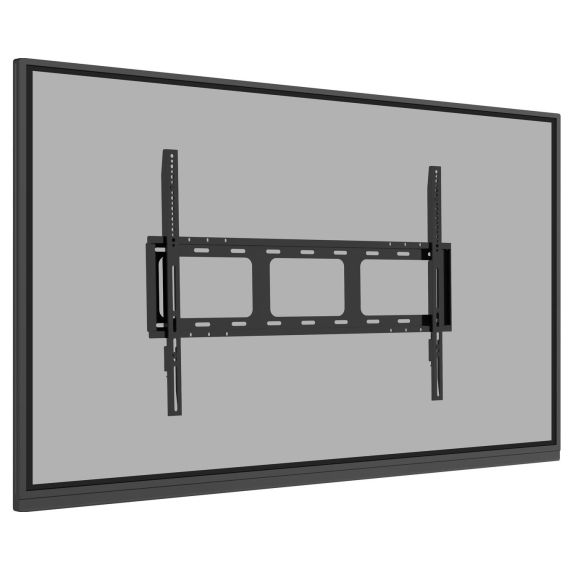

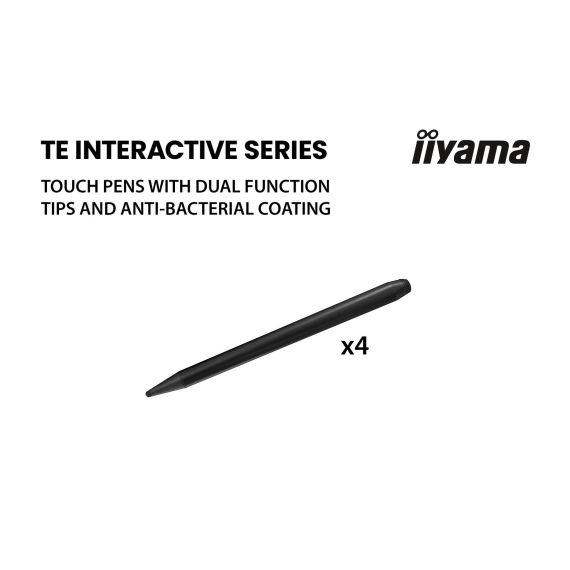

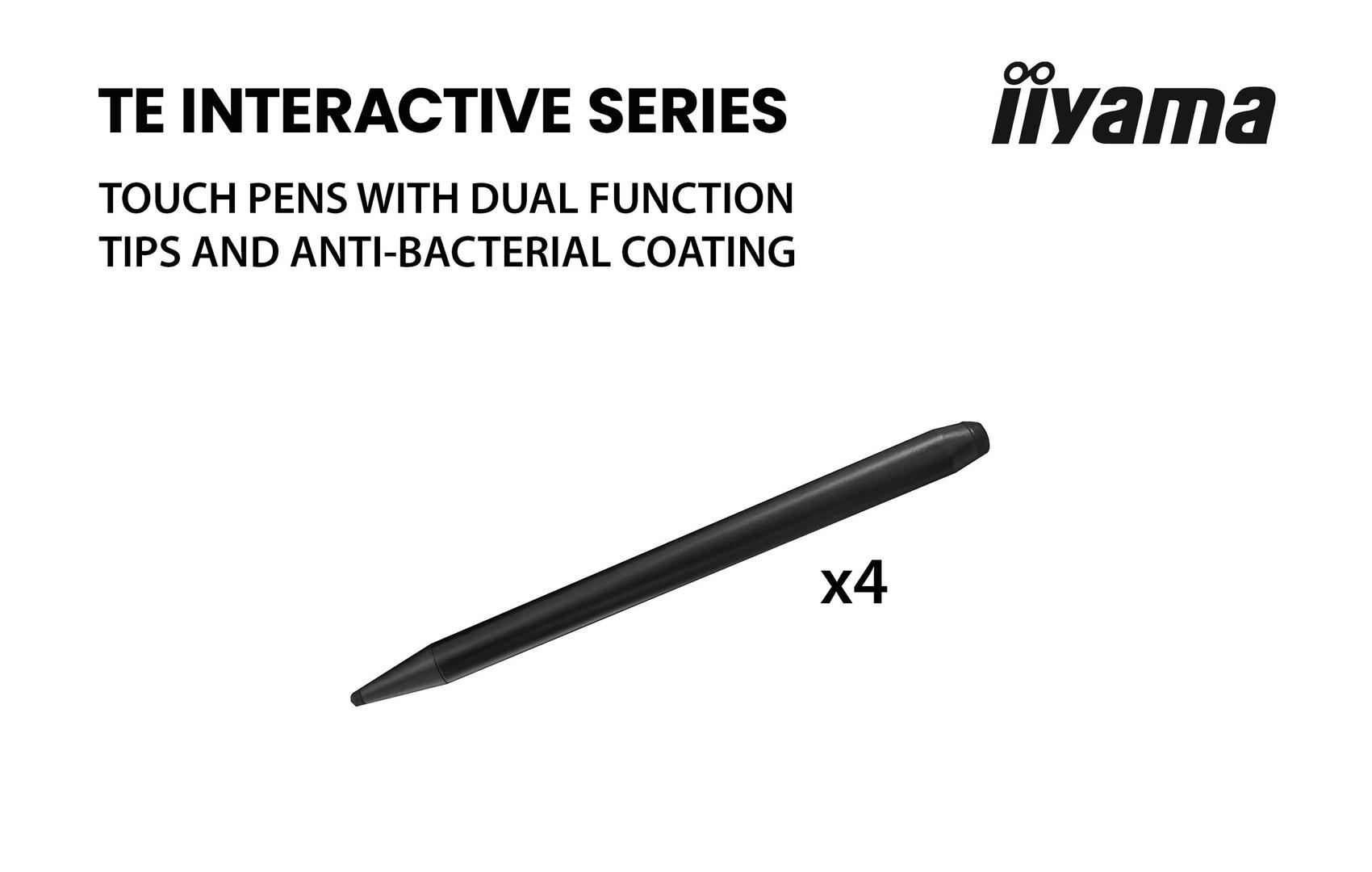

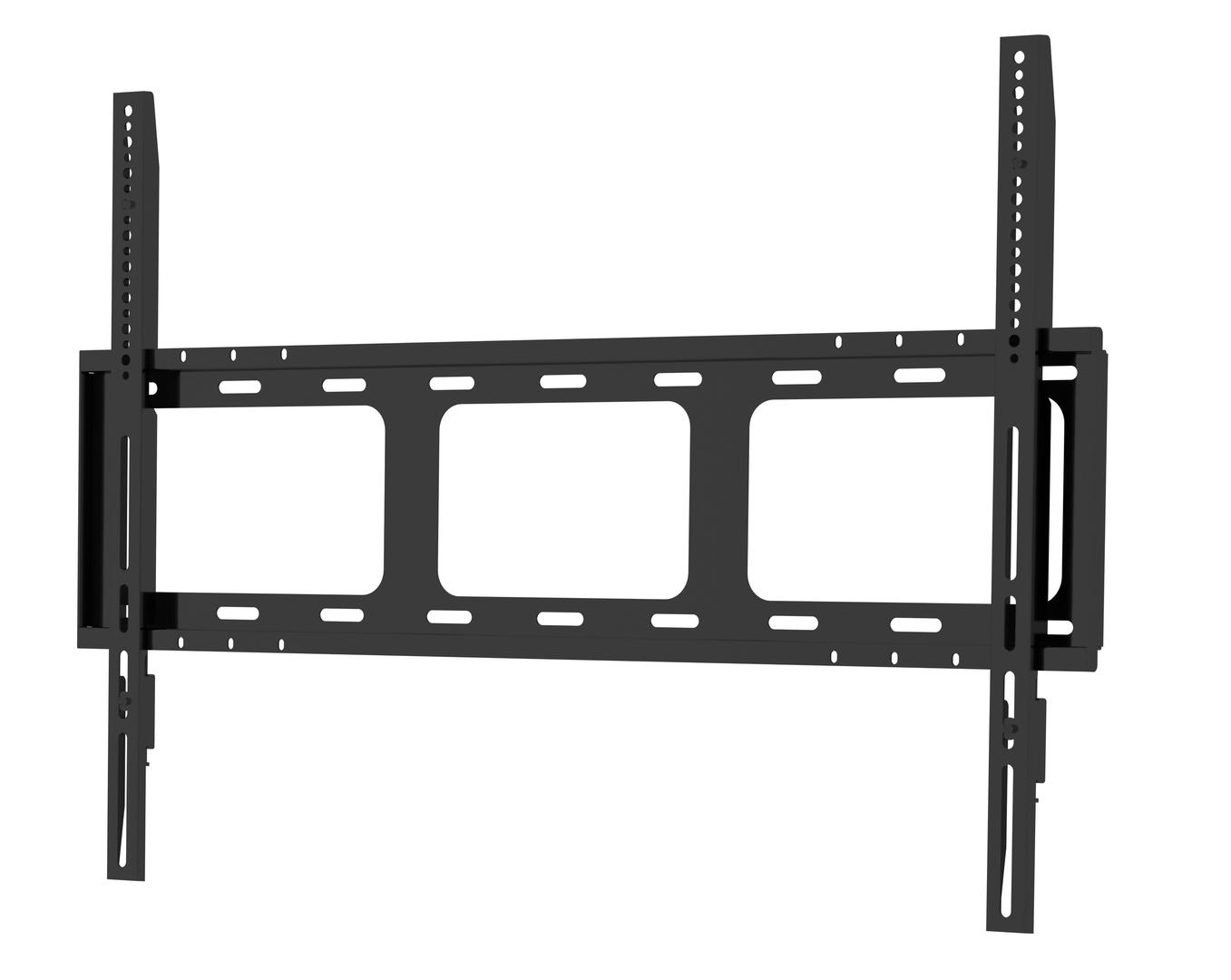

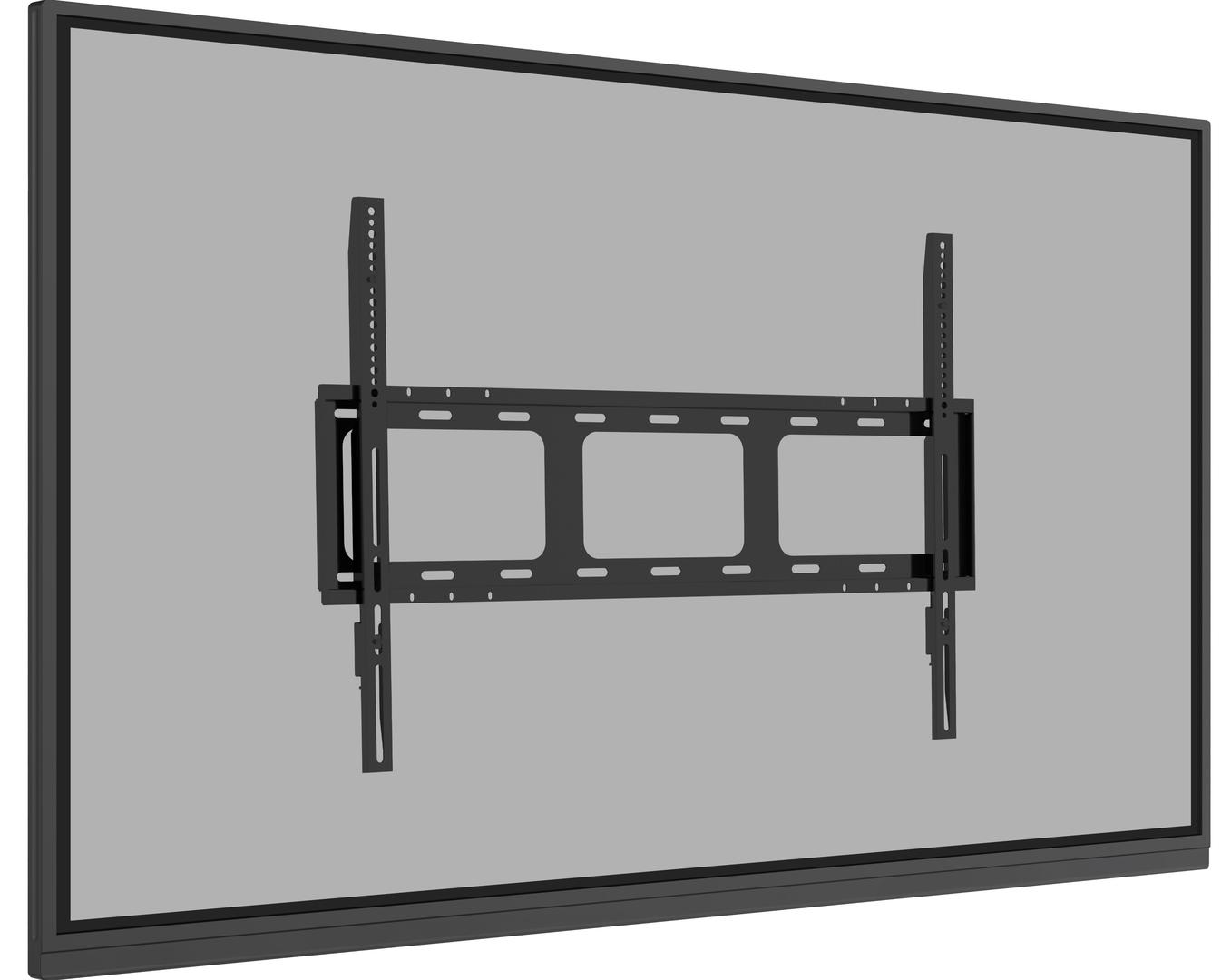

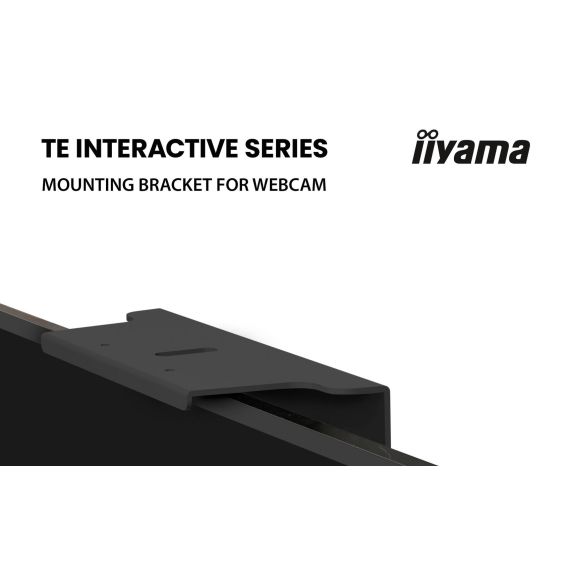

| Included Accessories | 4 touch pens, wall mounting bracket, webcam mounting bracket |
| Cables Included | HDMI cable - 3 m <br /> USB cable - 3 m |
| Compliant Standards | Plug and Play, CB, TUV Bauart, EAC, REACH SvHC, RoHS, ERP, WEEE, REACH, HDCP 2.3, DDC-2B, Google EDLA |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 236 cm |
| Depth (Shipping) | 28 cm |
| Height (Shipping) | 144.5 cm |
| Weight (Shipping) | 132.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Iiyama - TE9813A-B1AG
Resolution
3840 x XXXX
More Details
Product Code
04:527752
EAN Code
4948570124831
Manufacturer
Iiyama
