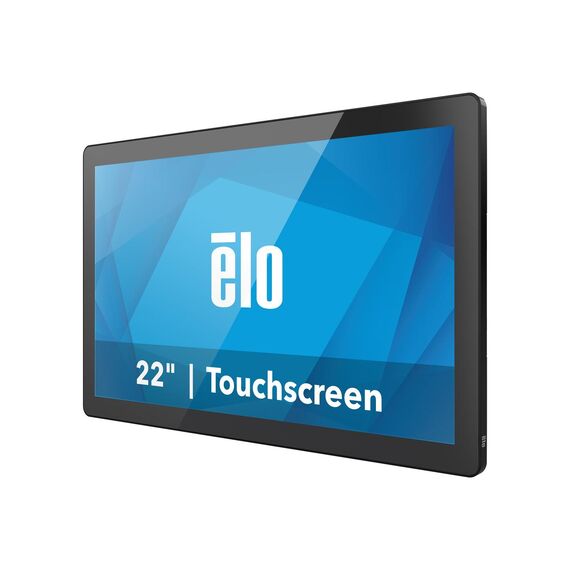

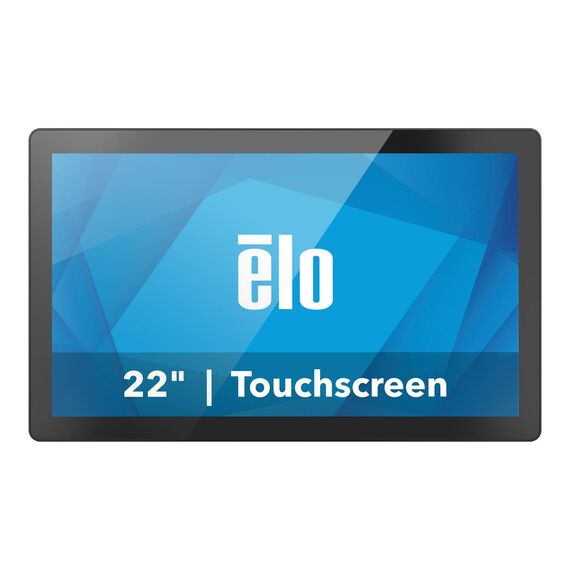

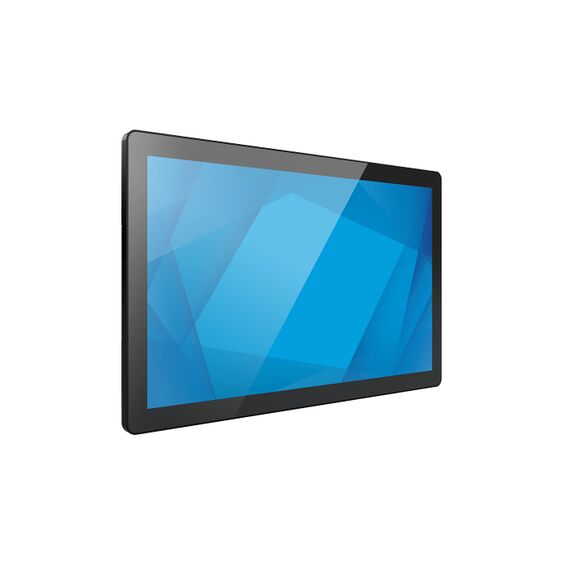

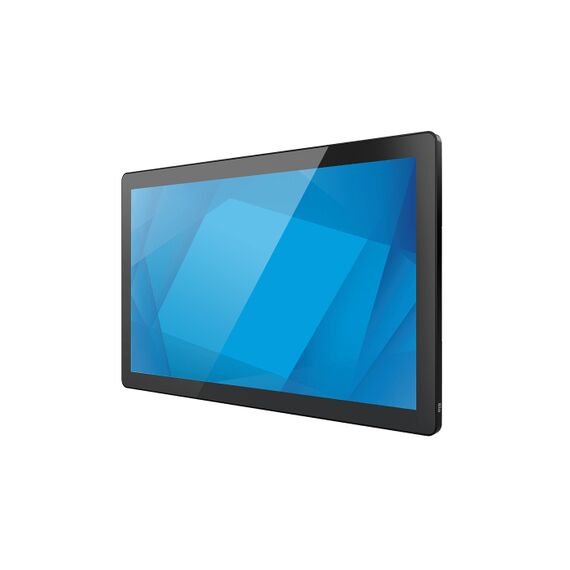

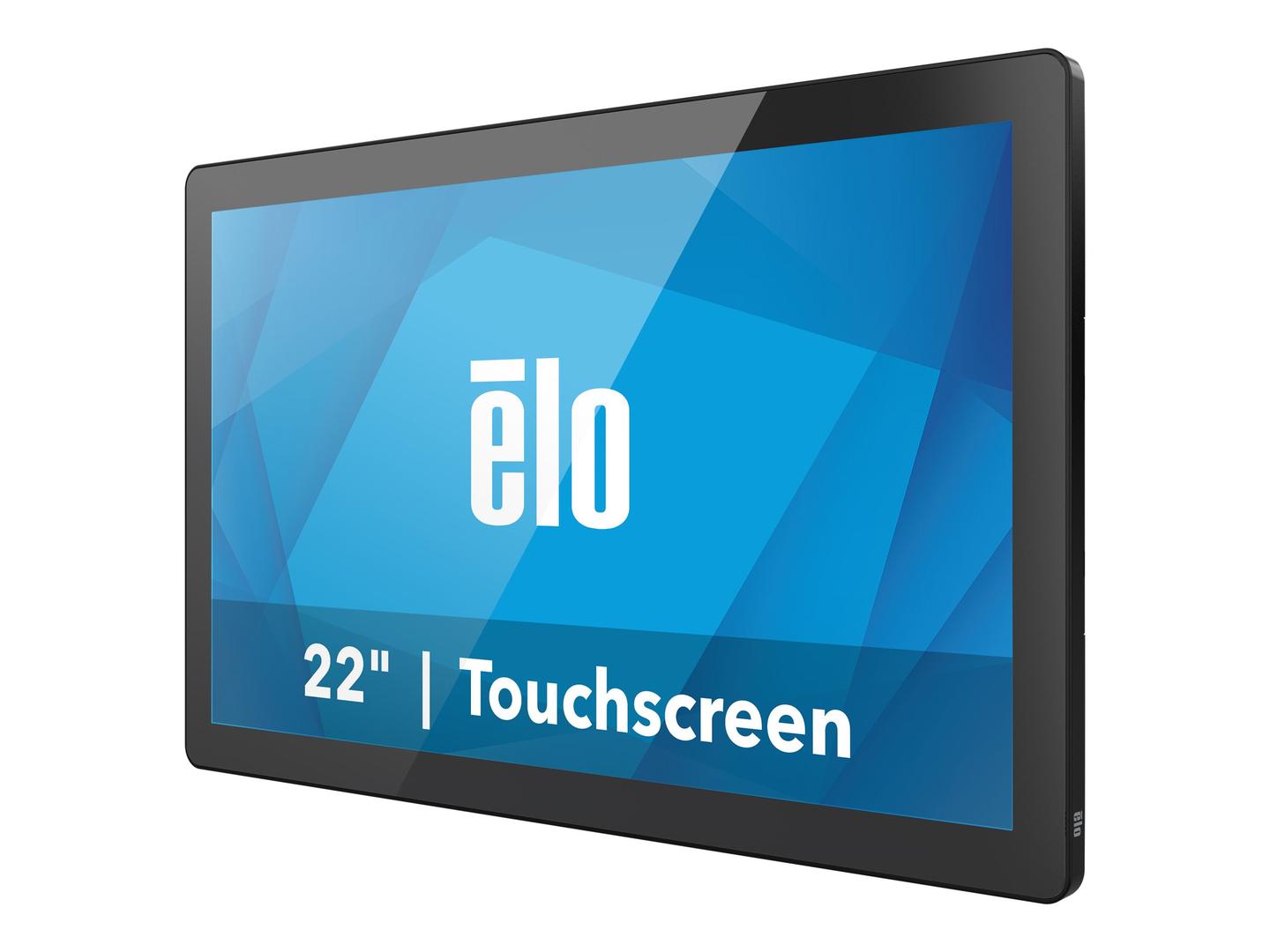

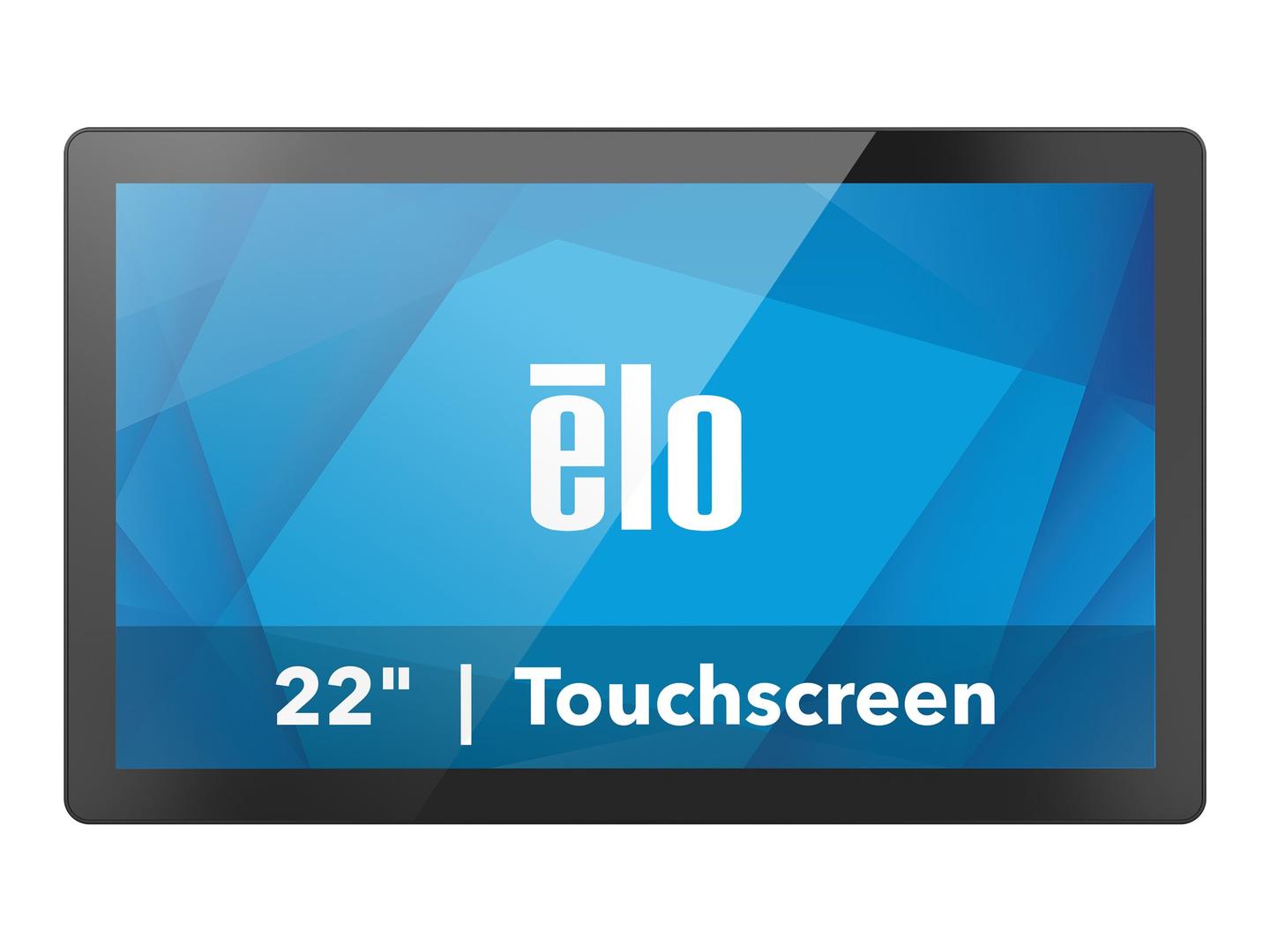

RAM 8 GB - SSD 128 GB - NVMe - Intel Iris Xe Graphics - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - Win 10 IoT Enterprise 2021 LTSC - monitor: LED 21.5" 1920 x 1080 (Full HD) @ 60 Hz touchscreen - black | E607709
Please sign in so that we can notify you about a reply
Product Features
- Advanced connectivity
With a variety of interface options including LAN (Gigabit Ethernet), USB 3.0, PoweredUSB, serial, and DisplayPort/USB-C 3.0, this all-in-one solution caters to a range of business needs, ensuring seamless integration and enhanced operational efficiency. - High-performance processing
Powered by a 10-core Intel Core i5 processor with speeds up to 4.4 GHz and supported by Intel Turbo Boost Technology 2, this device delivers robust performance for demanding applications, making it suitable for business environments. - Innovative touch technology

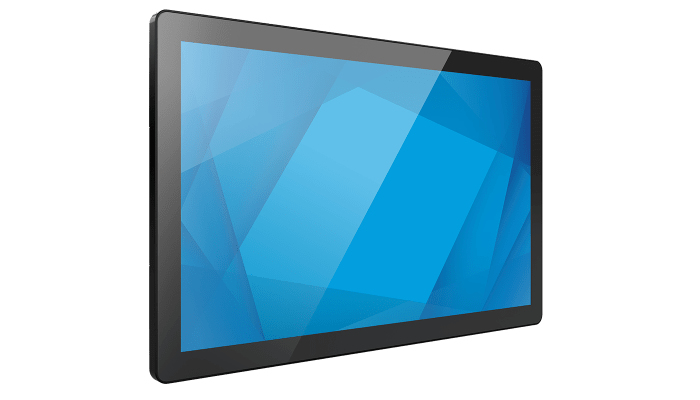

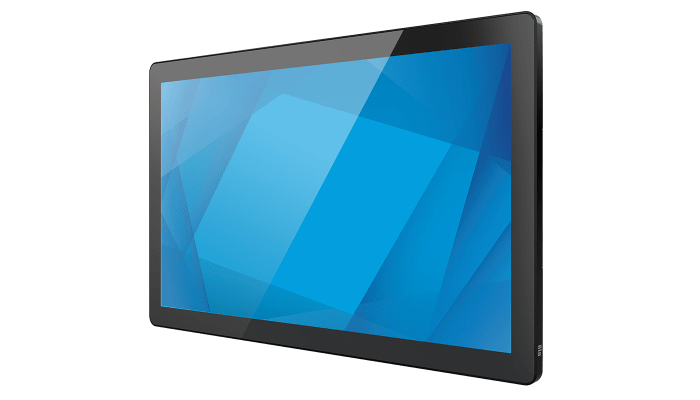

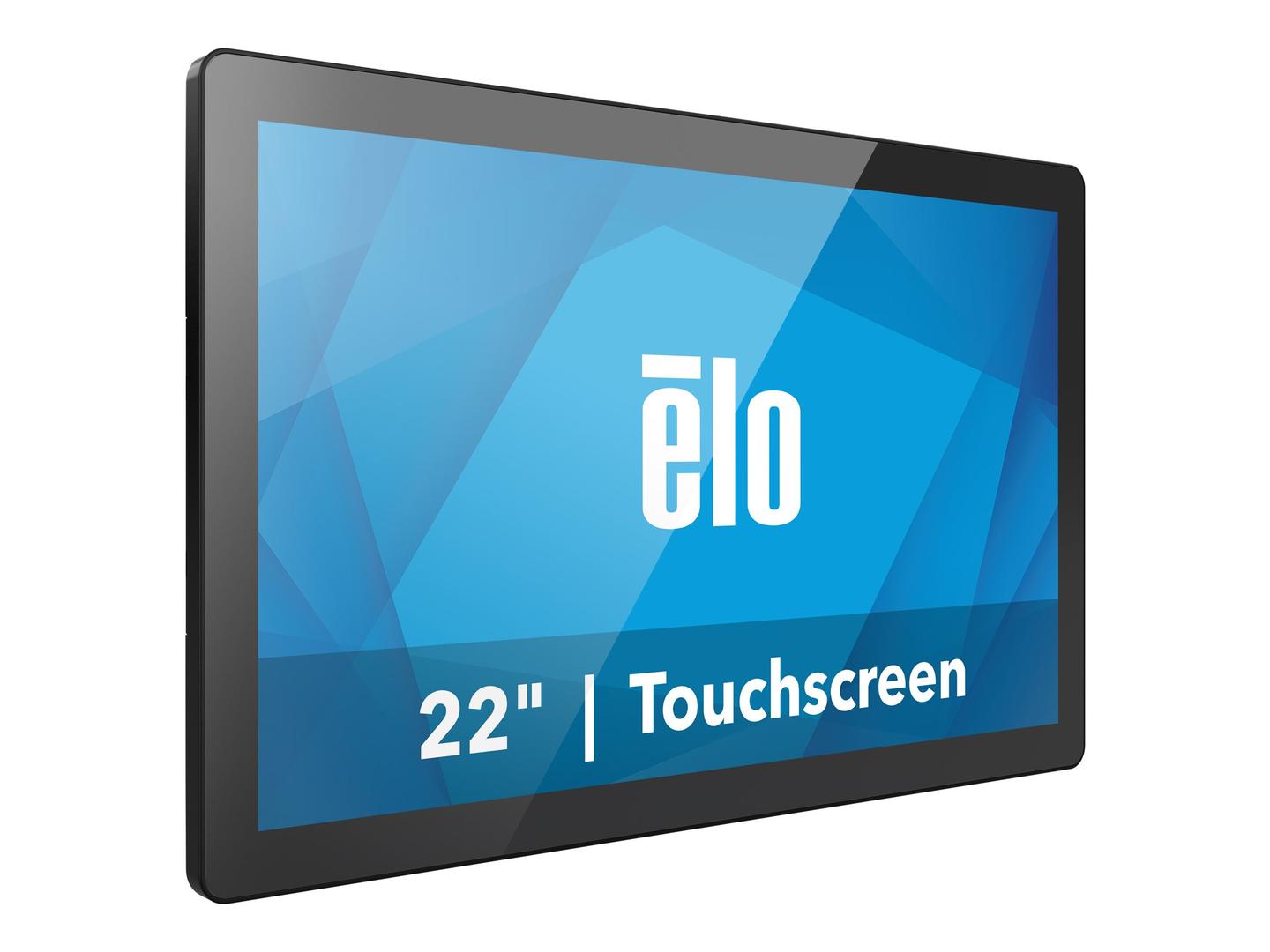

Featuring TouchPro Pro Projected Capacitive (PCAP) technology, the Elo I-Series 3 offers a 10-point multi-touch LED display, providing an intuitive and responsive user experience for interactive applications. - Secure and reliable
Equipped with Trusted Platform Module (TPM 2.0) security chip and ENERGY STAR 8.0 certification, this device ensures data security and energy efficiency, making it a trustworthy choice for businesses concerned with data protection and sustainability. - Versatile design
The all-in-one form factor with VESA mount interface and Kensington security slot offers flexible installation options and secure placement, making it suitable for various business settings, from retail to hospitality.
Special Fetures
- 10-core Intel Core i5 processor for high-speed performance
- TouchPro Pro Projected Capacitive (PCAP) technology for an interactive experience
- Comprehensive connectivity with LAN, USB 3.0, and more for versatile use
- Trusted Platform Module (TPM 2.0) for enhanced data security
- ENERGY STAR 8.0 certified for energy efficiency
Product Specification
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Localisation | Region: Worldwide |
| Processor / Chipset | |
| CPU | Intel Core i5 (12th Gen) i5-1245UL |
| Clock Speed | 1.6 GHz |
| Max Turbo Speed | 4.4 GHz (P-core) / 2.5 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Interface Type | PCI Express |
| SSD Endurance | 80 TB |
| Features | NVM Express (NVMe) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Response Time | 14 ms |
| Image Brightness | 250 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology, 16.7 million colour depth |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features | Intel Active Management Technology (AMT) |
| Expansion / Connectivity | |
| Interfaces | 1 x headphones/microphone <br /> 1 x LAN (Gigabit Ethernet) <br /> 4 x USB 3.0 <br /> 4 x USB 2.0 - micro-USB <br /> 1 x PoweredUSB (24 V) <br /> 2 x PoweredUSB (12 V) <br /> 1 x serial - RJ-50 (powered) <br /> 1 x cash drawer (12V/24 V) <br /> 1 x DisplayPort/USB-C 3.0 (27 Watt charging) |
| Miscellaneous | |
| Included Accessories | Mount screw, cable tie |
| Cables Included | RJ-50 to DB-9 cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |

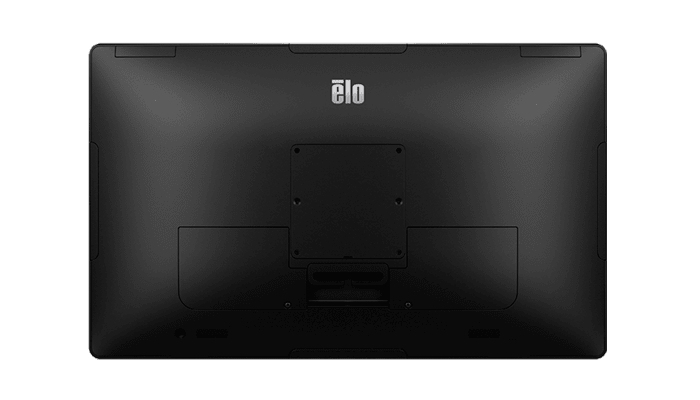

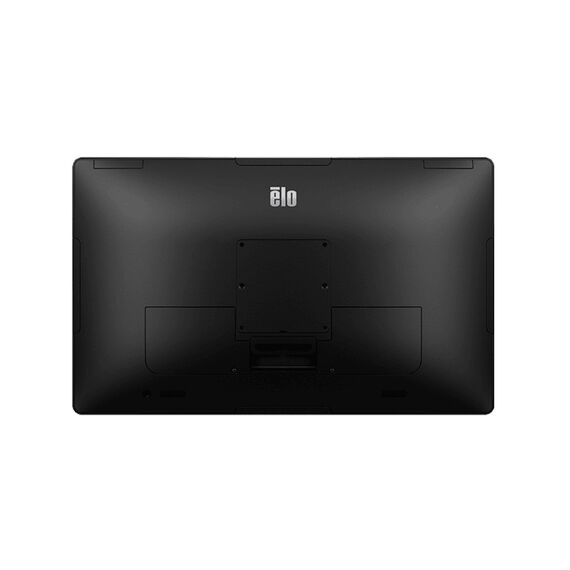

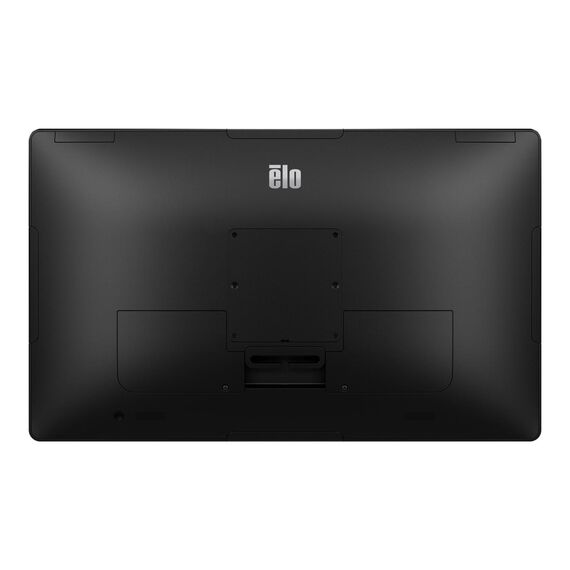

| VESA Mounting Interface | 100 x 100 mm, VESA |
| Compliant Standards | UL, TUV, VCCI, cUL, CB, MIC, ANATEL, RCM, CoC, Mexico NOM, UKCA, Argentina S-Mark |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100/240 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 45 Watt |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 52.58 cm |

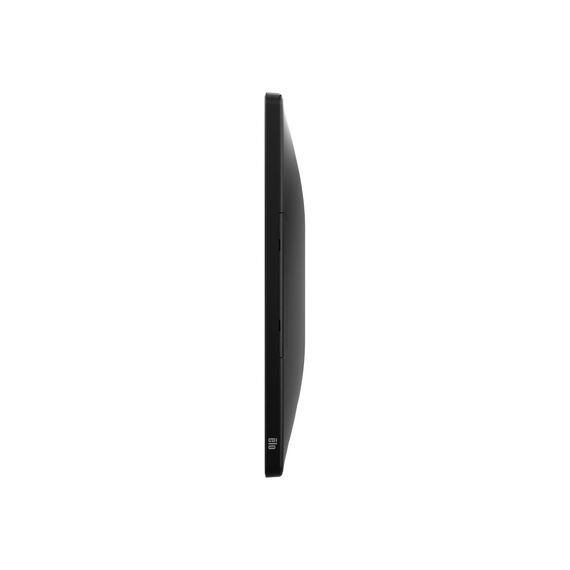

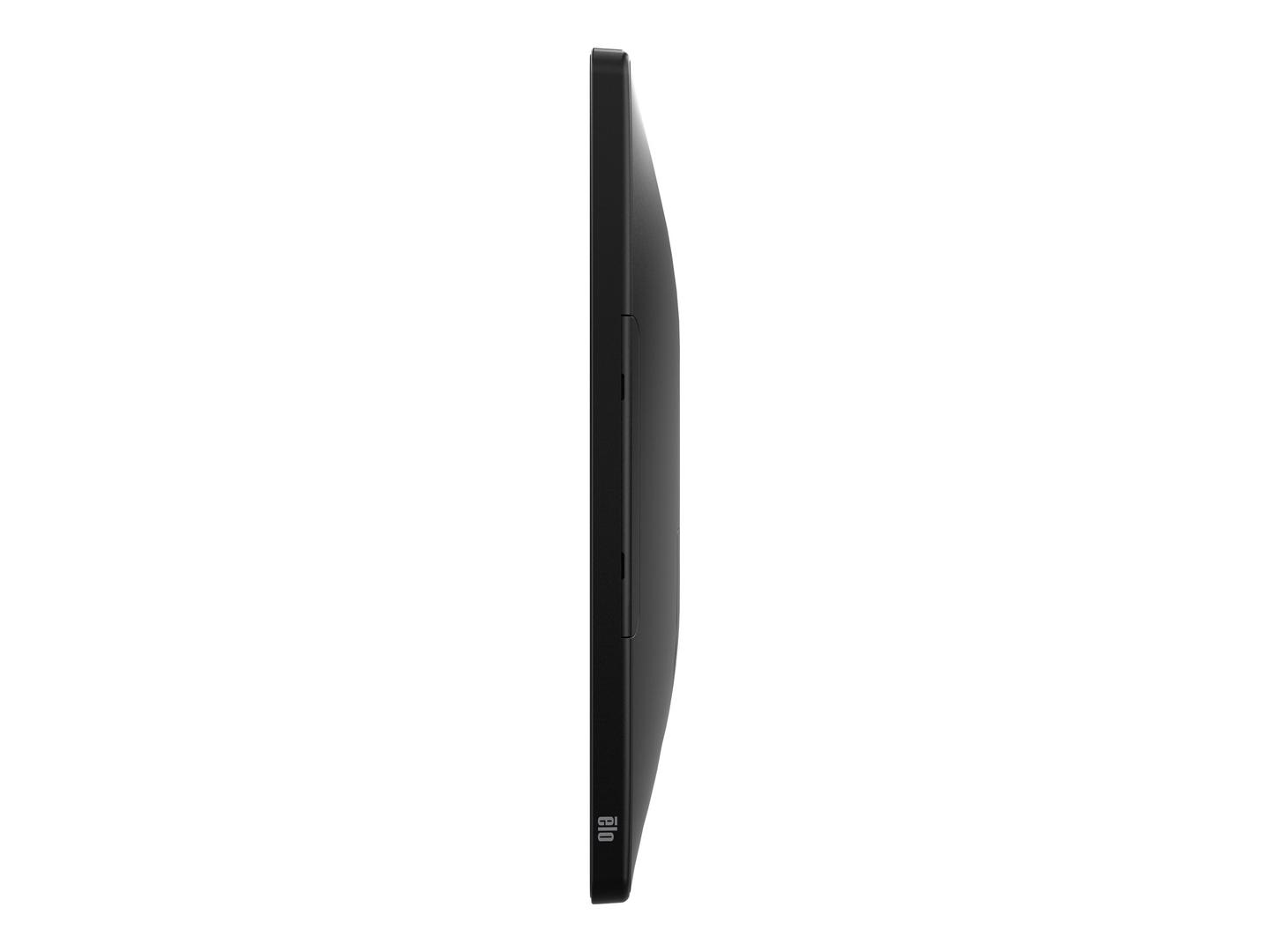

| Depth | 3.96 cm |
| Height | 32.11 cm |
| Weight | 6.1 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 64.3 cm |
| Shipping Depth | 21.4 cm |
| Shipping Height | 43.9 cm |
| Shipping Weight | 7.6 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E607709
Resolution
1920 x XXXX
More Details
Product Code
CJ76372
EAN Code
0843173153339
Manufacturer
Elo
