ABUS TVVR36422T / NVR + camera(s) / wired (LAN 10/100) / 4 channels / 1 x 1 TB / 2 camera(s) / PS CMOS | TVVR36422T
Please sign in so that we can notify you about a reply
Product Specification
| System | NVR + camera(s) - wired |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Features | Auto white balance, HTTPS encryption |

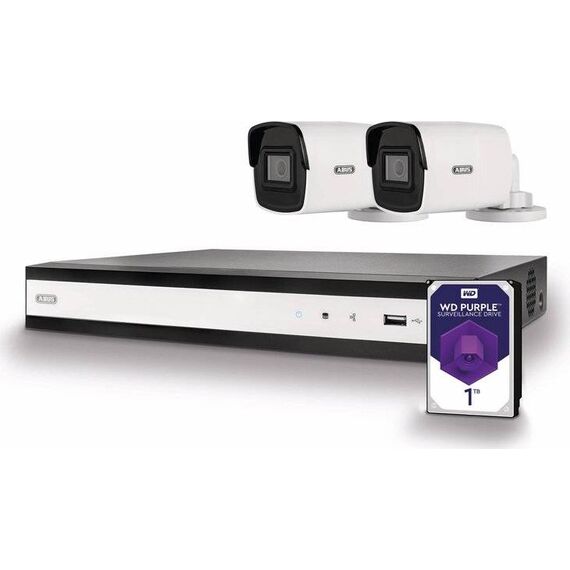

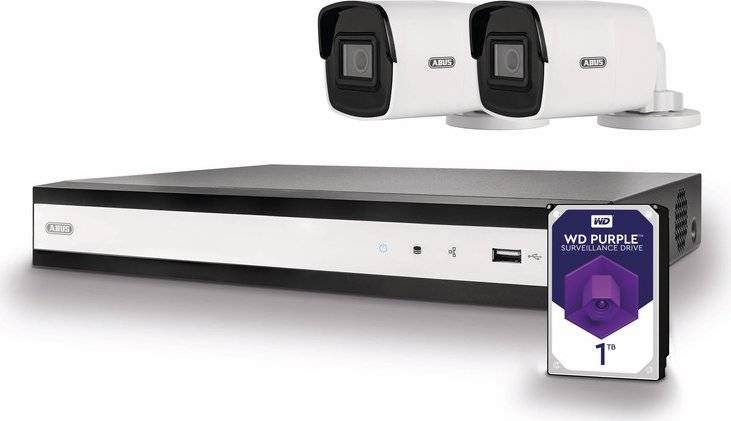

| Package Content | 2 cameras, 3 power adapters, mouse, NVR, mounting kit |
| Cables Included | Network cable - 18 m - 2 pcs. ¦ Network cable - 1 m - 1 pcs. |
| Software Included (Y) | ABUS CMS |
| Compliant Standards | TLS v1.2, TLS v1.1, IEEE 802.3af, IEEE 802.3at, TLS v1.3 |
| Security DVR | Security DVR |
| Video Channels | 4 |
| Frame Rate (Record) | 25 fps, 30 fps |
| Image Resolution | 1600x1200, 1280x720, 1920x1080, 1024x768, 1280x1024, 3840x2160 |
| Compression Format | MJPEG, MPEG-4, H.264, H.265, H.264+, H.265+ |
| Record Events | Alarm, motion detection, scheduled, manual |
| Features | E-mail alarm notifications, intrusion detection, Video Content Analytics (VCA), tripwire detection, metal housing, plastic housing |
| Hard Drive | Hard Drive |
| Quantity Installed | 1 |
| Quantity Supported | 1 |
| Capacity | 1 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 6 TB |

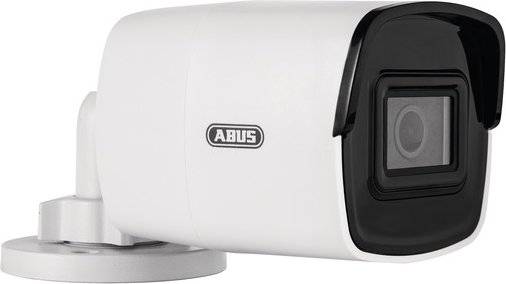

| Cameras | Cameras |
| Quantity | 2 cameras |
| Camera Type | Outdoor |
| Sensor | PS CMOS - 1/2.8" - 1920x1080 |
| Field of View | 111° (H), 59° (V) |
| Sensitivity (lux) | 0.005 |
| Night Vision | Yes |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| White Balance | Auto |
| Focal Length | 2.8 mm |
| Voltage | DC 12 V / PoE |
| Power Consumption | 5 Watt |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Operating Humidity | 0-95% |
| Compliant Standards | IP67 |

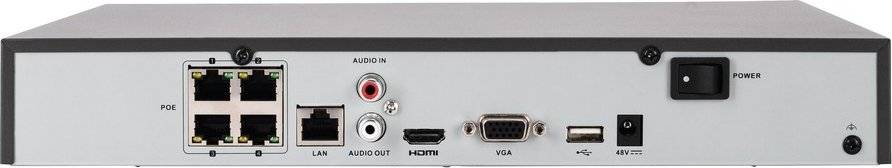

| Connections | Connections |
| Video Input Ports | RJ-45 x 4 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 1 |
| Network Port | 10/100Base-TX |
| Other Ports | USB x 2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 31.5 cm |
| Depth | 24 cm |
| Height | 4.8 cm |
| Weight | 2.1 kg |
| Details | NVR: 31.5 cm x 24 cm x 4.8 cm - 2.1 kg ¦ Camera: 7 cm x 17 cm x 6.9 cm - 350 g |
Features - Abus - TVVR36422T
More Details
Product Code
03:198397
EAN Code
4043158197495
Manufacturer
Abus
