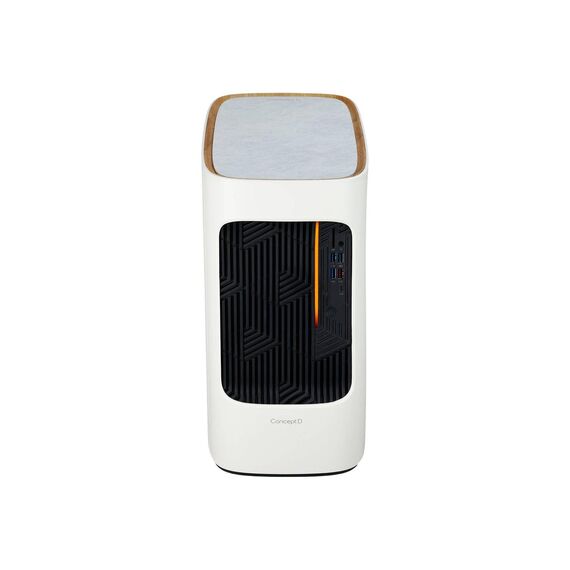

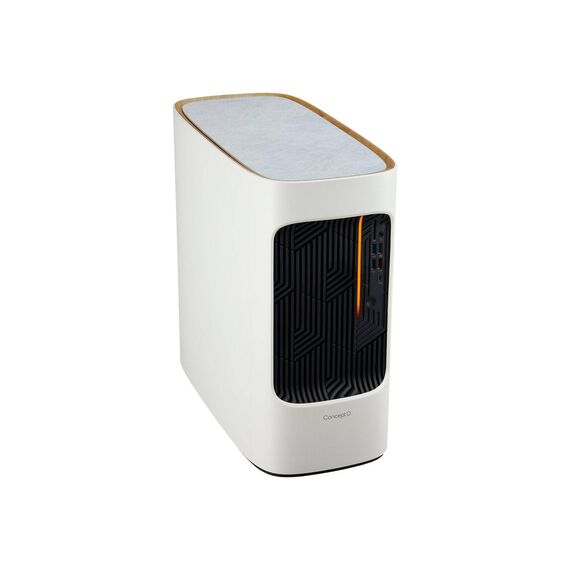

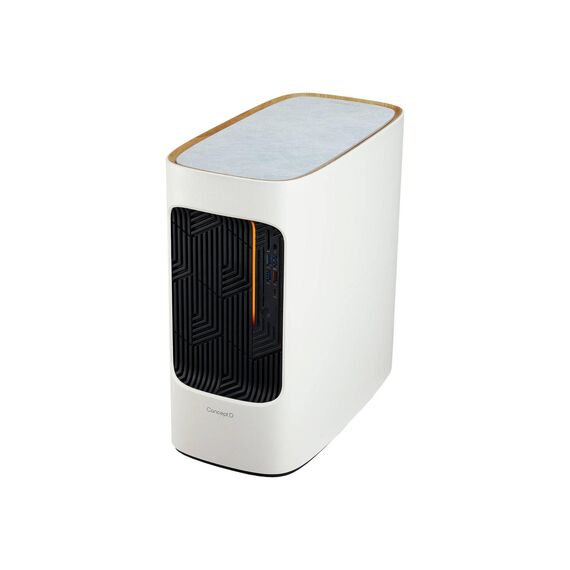

Acer ConceptD 500 CT500-53A / Tower / Core i7 12700F / 2.1 GHz / RAM 32 GB / SSD 1.024 TB, HDD 2 TB / GF RTX 3070 / GigE, 2.5 GigE, (Wi-Fi 6E) / Win 11 Pro / white | DT.C0AEG.001
Product Features
- Elegantly designed
The mid-sized ConceptD 500 workstation creates a modern look and feel with its timeless, nature-inspired aesthetic, warm amber indicator light, and easily-accessed front IO ports. - Create without limits
With the powerful NVIDIA graphics to optimize and improve the stability and performance of your favorite 3D applications. - NVIDIA studio
Creativity demands uncompromised computing power that ConceptD devices with NVIDIA RTX GPUs deliver. Designed and tested specifically for creative workflows, NVIDIA Studio devices help design studios work faster. - Accelerate your process
Powered by an Intel Core processor and DDR4 3200 MHz of memory, this mid-sized workstation delivers unprecedented performance that significantly boosts to your multitasking ability. - Silent focus
A quiet environment is vital when focusing on an essential piece of design. This workstation's front air intake optimizes cooling and reduces noise levels to less than 40 dbA, equal to that of a library. - Sharing made easy
Hook up all your peripherals and accomplish more with a full range of ports. Quickly transfer files with a USB Type-C port, an integrated SD card reader, and a high-speed LAN connection with speeds up to 2.5 Gbps. - More room, more ideas
Enjoy room to store all your creations and more. This workstation comes with large memory of HDD and an additional M.2 Gen 4 SSD storage.
Special Features
- Elegantly designed
- Create without limits
- NVIDIA studio
- Accelerate your process
- Silent focus
- Sharing made easy
- More room, more ideas
Product Specification
Type | Personal computer |
Product Form Factor | Tower |
Embedded Security | Trusted Platform Module (TPM) Security Chip |
Colour | White |
Localisation | Region: Germany |
Processor / Chipset | Processor / Chipset |
CPU | Intel Core i7 (12th Gen) 12700F |
Clock Speed | 2.1 GHz |
Max Turbo Speed | 4.9 GHz |
Number of Cores | 12-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Processor Main Features | Intel Turbo Boost Max 3.0 |
CPU Socket | LGA1700 Socket |
Chipset Type | Intel B660 |
Cache Memory | Cache Memory |
Installed Size | 25 MB |
Cache Per Processor | 25 MB |
RAM | RAM |
Installed Size | 32 GB |
Technology | DDR4 SDRAM |
Effective Memory Speed | 3200 MHz |
Rated Memory Speed | 3200 MHz |
Form Factor | DIMM 288-pin |
Features | Unbuffered |
Configuration Features | 2 x 16 GB |
Hard Drive | Hard Drive |
Type | SSD |
Capacity | 1 x 1.024 TB |
Manufacturer | Western Digital |
Hard Drive (2nd) | Hard Drive (2nd) |
Type | HDD |
Interface Class | Serial ATA |
Capacity | 1 x 2 TB |
Manufacturer | Seagate |
Interface Type | SATA 6Gb/s |
Spindle Speed | 7200 rpm |
Storage Controller | Storage Controller |
Type | 1 x SATA |
Optical Storage | Optical Storage |
Type | No optical drive |
Card Reader | Card Reader |
Type | Card reader |
Supported Flash Memory Cards | SD Memory Card |
Monitor | Monitor |
Monitor Type | None. |
Graphics Controller | Graphics Controller |
Interface Type | PCIe x16 |
Graphics Processor | NVIDIA GeForce RTX 3070 |
Video Memory | 8 GB GDDR6 SDRAM |
Video Interfaces | HDMI, DisplayPort |
Input Device | Input Device |
Type | No keyboard, no mouse |
Networking | Networking |
Ethernet Controller | Intel I225-V |
Wireless LAN Supported | Yes |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) |
Expansion / Connectivity | Expansion / Connectivity |

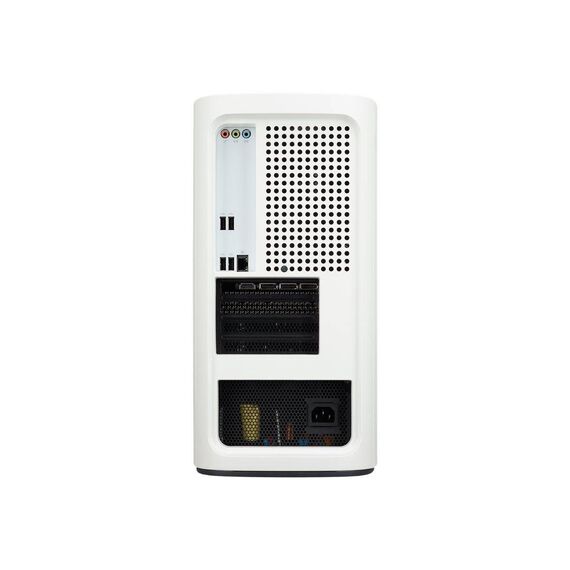

Interfaces | 5 x DisplayPort ¦ 2 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x headphones/microphone (1 in front) ¦ 4 x USB 2.0 - Type A ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 1 x USB 3.2 Gen 2 (1 in front) ¦ 3 x USB 3.2 Gen 1 (3 in front) ¦ 1 x VGA ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x microphone |
Miscellaneous | Miscellaneous |
Included Accessories | 2x wireless aerials, thermal pad, 2 x 9 cm system fans |
Power | Power |
Device Type | Power supply |
Power Device Name | FSP FSP500-10AGA |
Voltage Required | AC 100-127/220-240 V |
Power Provided | 500 Watt |
Efficiency | 87%+ |
Power Factor Correction | Yes (active) |
Operating System / Software | Operating System / Software |
OS Provided | Windows 11 Pro |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years - pick-up and return |
Dimensions & Weight | Dimensions & Weight |
Width | 20 cm |
Depth | 38.9 cm |
Height | 39.36 cm |
Weight | 15 kg |
