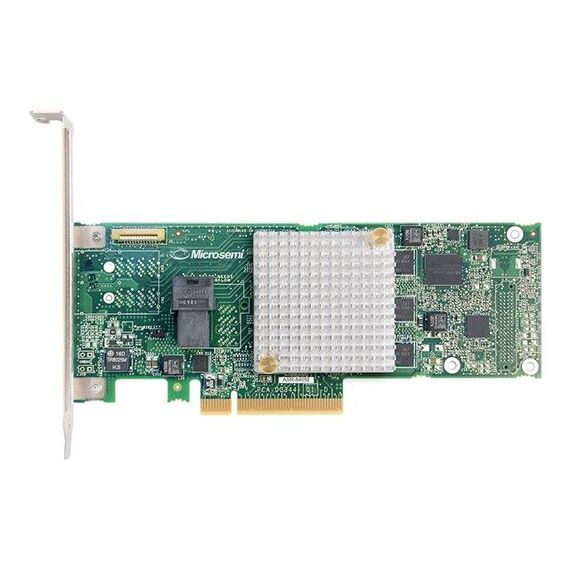

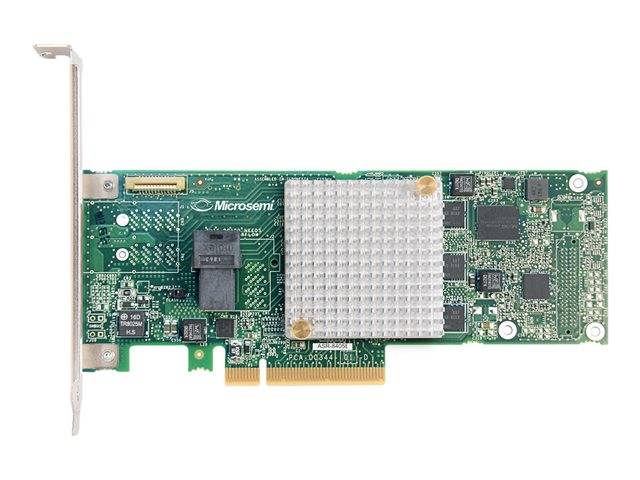

Microchip Adaptec RAID 8405E / Storage controller (RAID) / 4 Channel / SAS 12Gb/s low profile / 1.2 GBps / RAID 0, 1, 10 / PCIe 3.0 x8 | 2293901-R
Microchip Adaptec RAID 8405E / Storage controller (RAID) / 4 Channel / SAS 12Gb/s low profile / 1.2 GBps / RAID 0, 1, 10 / PCIe 3.0 x8 | 2293901-R
Description
The Microsemi Adaptec RAID 8405E entry-level, 12 Gbps SAS/SATA RAID adapter delivers affordable true Hardware RAID with performance acceleration that outperforms software-based HBAs and SATA adapters. With 4 internal ports; support for RAID levels 0, 1, 10; PCIe Gen3 interface; a low profile MD2 form factor; 512MB on-board DRAM; Adaptec RAID Code (ARC), enterprise -class management features and full OS support the 8405E RAID adapter offers the ideal price/performance and connectivity solution for entry-level server platforms, workstations and desktop systems.
Product Specification
Device Type | Storage controller (RAID) - plug-in card - low profile |
Host Bus | PCIe 3.0 x8 |
Interface | SAS 12Gb/s |
Data Transfer Rate | 1.2 GBps |
Buffer Size | 512 MB |
Supported Devices | Hard drive, disk array (RAID) |
Channel Qty | 4 |
RAID Level | RAID 0, RAID 1, RAID 10 |
Interfaces | 1 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
Included Accessories | Low-profile bracket |
MTBF | 2000000 hours |
Compliant Standards | UL, VCCI, C-Tick, FCC, RoHS, KCC |
Software Included | Drivers & Utilities |
OS Required | SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Ubuntu, VMware ESXi, Linux Fedora |
Service & Support | Limited warranty - 3 years |
Depth | 16.7 cm |
Height | 6.4 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 55 °C |
