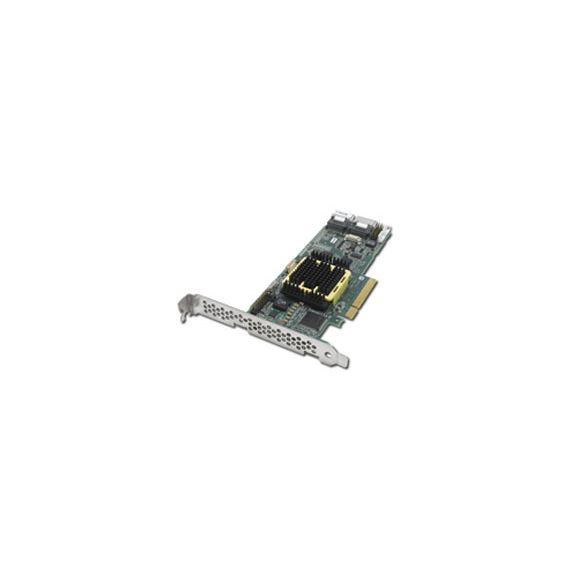

Adaptec RAID 5805 Storage controller (RAID) 8 Channel SATA 3Gb/s / SAS low profile 300MBps RAID 0, 1, 5, 6, 10, 50, JBOD, 1E, 5EE, 60 PCIe x8
2244300-R
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Adaptec 2244300-R Adaptec RAID 5805 Storage controller (RAID) 8 Channel SATA 3Gb/s / SAS low profile 300MBps RAID 0, 1, 5, 6, 10, 50, JBOD, 1E, 5EE, 60 PCIe x8
The Series 5 family of high-performance Adaptec Unified Serial SATA/SAS RAID controllers offers both high I/O transaction and high-bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives.The Adaptec RAID 5805 utilises industry-leading dual core RAID on Chip ROC, 512MB of DDR2 write cache and connectivity with the latest x8 PCI-Express to deliver over 250,000 I/O per second and 1.2GB per second. Using SAS expanders, it can connect up to 256 SATA/SAS devices.
The Adaptec RAID 5805 supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager for centralised management of all Adaptec RAID controllers on the network.
Intelligent Power Management - Reduce Power Use by up to 70%
The power required by disks is a primary ongoing storage cost. Full power is maintained to every disk whether it is actively being used or not, which also increases cooling costs. Adaptec Intelligent Power Management slashes power and cooling costs by spinning down idle disks and providing a lower power mode for active disks.
Feature list
| Host interface: | PCIe |
| RAID levels: | 0, 1, 5, 6, 10, 50, 60, 1E, 5EE, JBOD |
| Processor frequency: | 1200 MHz |
| Certification: | CE, FCC, UL, C-tick, VCCI |
| Operating temperature T-T: | 0 - 55 °C |
| Width: | 167 mm |
| Depth: | 64 mm |
| Ports quantity: | 8 |
| Connectivity technology: | Wired |
| Compatible operating systems: | Windows XP, Server 2003, Server 2008, Vista, Red Hat Enterprise Linux RHEL, SUSE Linux Enterprise Server SLES, SCO OpenServer, UnixWare, Sun Solaris 10 x86, FreeBSD, VMware ESX |
| Internal memory: | 512 MB |
Features - Adaptec - 2244300-R
More Details
Product Code
2961405
EAN Code
0760884154526
Manufacturer
Adaptec
