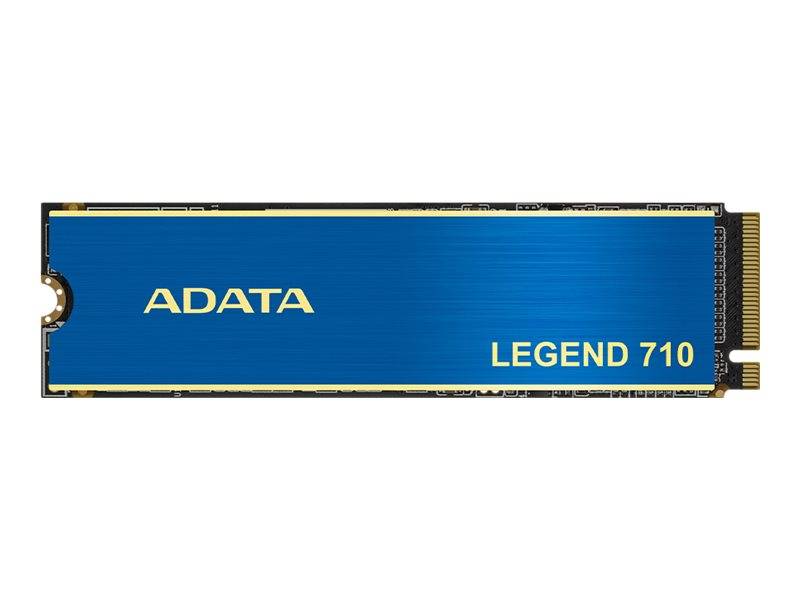

ADATA Legend 710 / SSD / 1 TB / internal / M.2 2280 / PCIe 3.0 x4 (NVMe) / 256-bit AES / integrated heatsink | ALEG-710-1TCS
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Integrated Heatsink | Yes |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | Shock resistant, LDPC error correction, 3D NAND Technology, HMB (Host Memory Buffer) supported, NVM Express (NVMe) 1.4, integrated heatsink, S.M.A.R.T. |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.13 mm |
| Weight | 9 g |
| Performance | Performance |
| SSD Endurance | 260 TB |
| Internal Data Rate | 2400 MBps (read) / 1800 MBps (write) |
| 4KB Random Read | 180000 IOPS |
| 4KB Random Write | 150000 IOPS |
| Reliability | Reliability |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
| Software & System Requirements | Software & System Requirements |
| Software Included | SSD Toolbox, Migration Utility |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, RoHS, KC, EAC, RCM, Morocco, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
Features - ADATA - ALEG-710-1TCS
Form Factor
- 2.5"
- Internal
Capacity
1TB
Interface
- M.2
More Details
Product Code
04:415488
EAN Code
4711085937841
Manufacturer
ADATA
