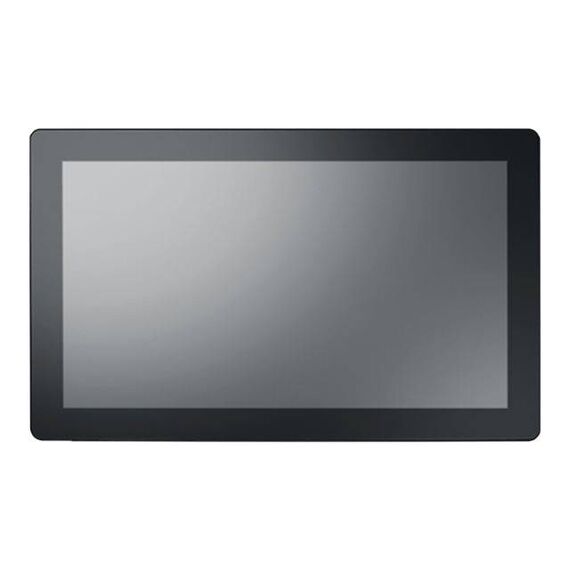

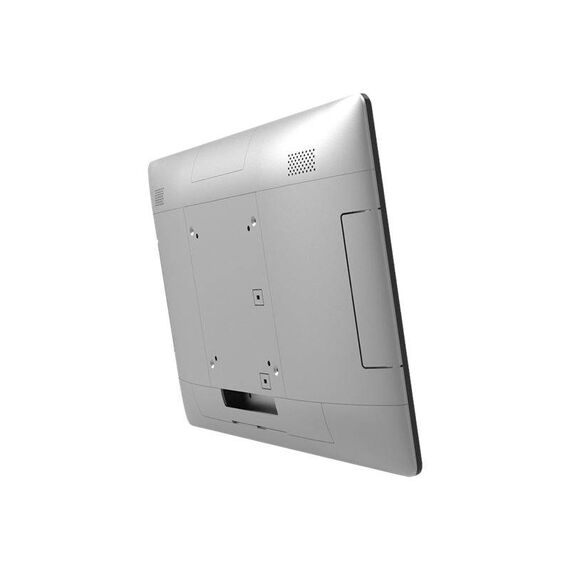

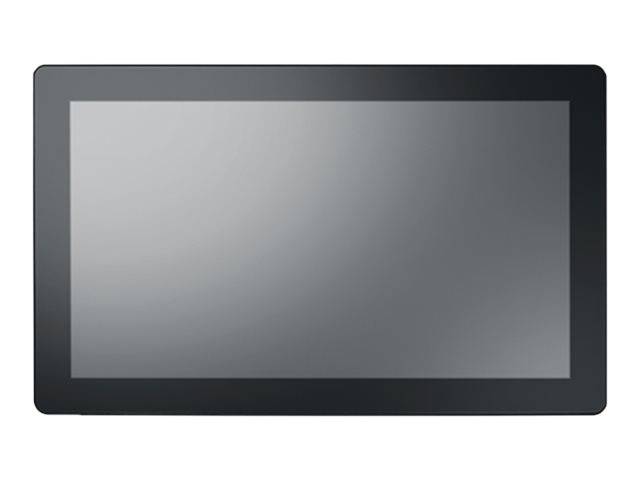

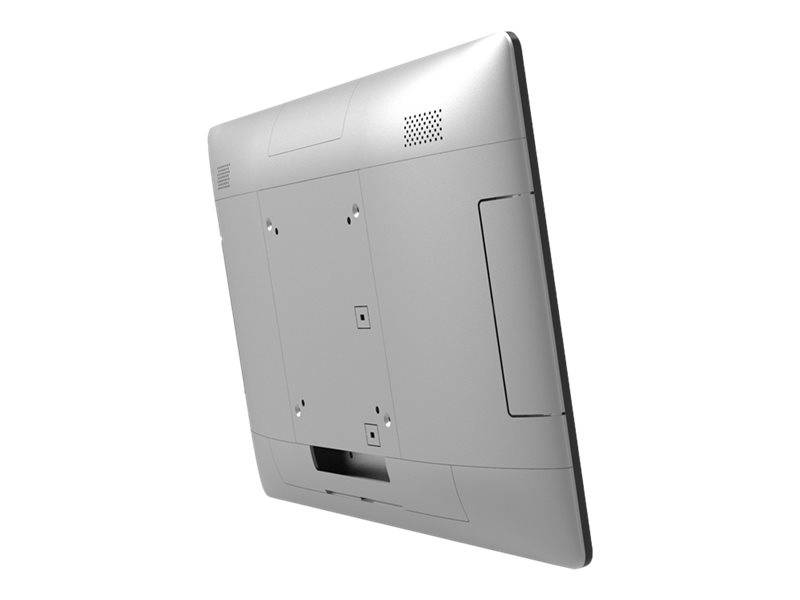

Advantech Ubiquitous UTC-100 Series UTC-115G / All-in-one / Pentium N4200 / 1.1 GHz / RAM 4 GB / SSD 128 GB / HD Graphics 505 / GigE / WLAN: 802.11a/b/g/n/ac / Win 10 IoT Enterprise 64-bit / monitor: LCD 15.6" 1920 x 1080 (Full HD) touc | UTC-115GP-WEU1F
Please sign in so that we can notify you about a reply
Special Features
- Slimmer and lighter design
- Low-power and fanless system design
- Monitor with widescreen display
- IP65 rated front panel for water and dust resistance

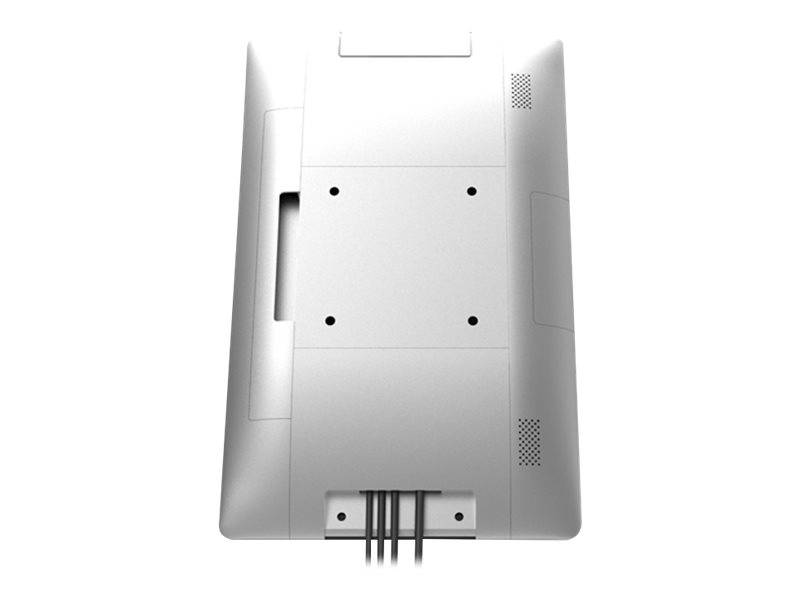

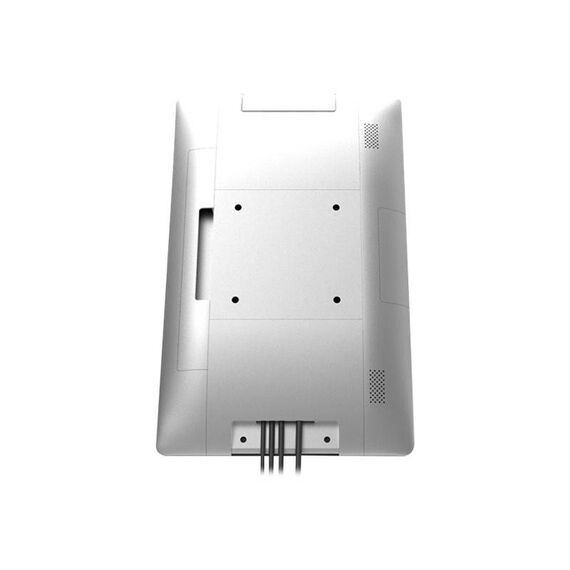

- Clean back cover design with 3-way IO cable routing
- Supports both landscape and portrait screen orientations
- VESA standard mounting holes for varied mounting demands
Product Specification
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Dual 2 W speakers |
| Colour | Silver |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Pentium N4200 |
| Clock Speed | 1.1 GHz |
| Max Turbo Speed | 2.5 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | L2 Cache - 2 MB |
| Cache Per Processor | 2 MB |
| RAM | RAM |
| Installed Size | 4 GB / 8 GB (max) |
| Technology | DDR3L SDRAM |
| Rated Memory Speed | 1600 MHz |
| Form Factor | SO-DIMM 204-pin |
| Slots | 1 (Total) / 0 (empty) |
| Configuration Features | 1 x 4 GB |
| Hard Drive | Hard Drive |
| Type | SSD |
| Capacity | 1 x 128 GB |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | LCD |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 170 |
| Pixel Pitch | 0.179 mm |
| Image Brightness | 300 cd/m² |
| Monitor Features | Projected Capacitive Touch (P-CAP) technology |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel HD Graphics 505 |
| Video Interfaces | HDMI |
| Audio Output | Audio Output |
| Speakers Included | 2 x right / left channel |
| Networking | Networking |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Features | Wake on LAN (WoL), Power-over-Ethernet (POE) |
| Expansion / Connectivity | Expansion / Connectivity |

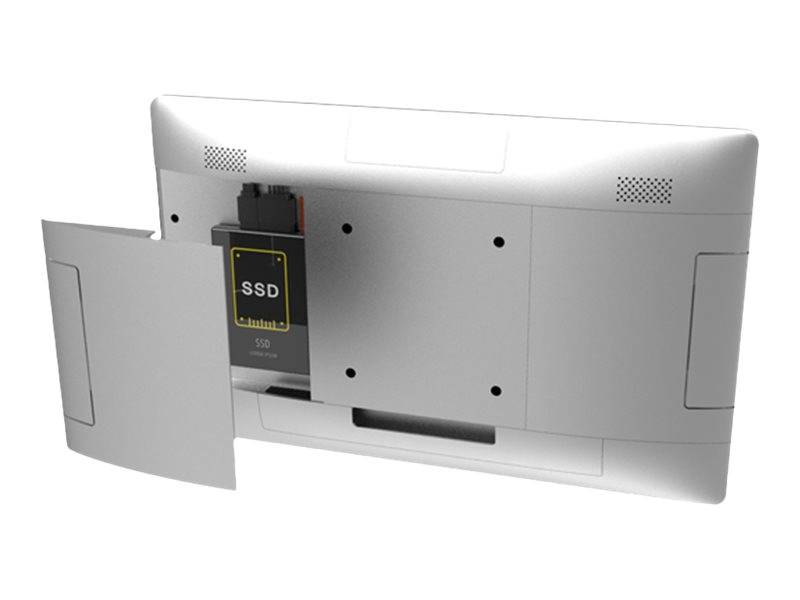

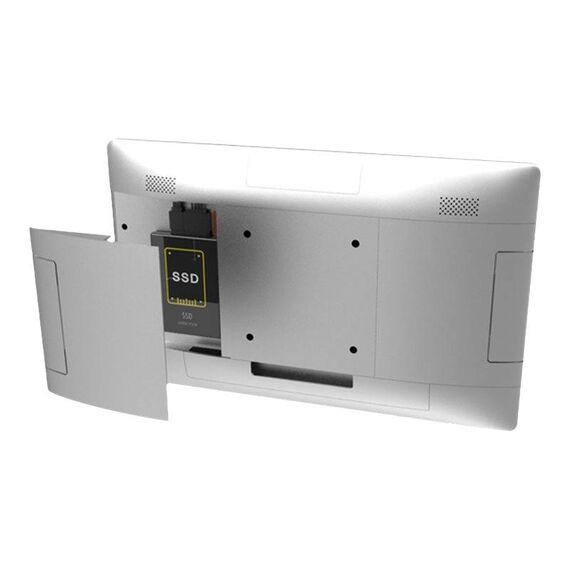

| Bays | 1 internal 2.5" |
| Slots | 1 M.2 Card - 2242 ¦ 1 M.2 Card - 2230 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x serial ¦ 4 x USB 3.0 ¦ 1 x HDMI ¦ 1 x audio line-out ¦ 1 x LAN (Gigabit Ethernet) (PoE) |
| Miscellaneous | Miscellaneous |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | UL, BSMI, CB, CCC, FCC, RoHS, Directive 2002/95/EC, IP65 front |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 60 Watt |
| Power Consumption Operational | 26 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 10 IoT Enterprise 64-bit Edition |
| Dimensions & Weight | Dimensions & Weight |
| Width | 39.88 cm |
| Depth | 2.95 cm |
| Height | 24.82 cm |
| Weight | 2.4 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - ADVANTECH - UTC-115GP-WEU1F
More Details
Product Code
CB56382
EAN Code
-
Manufacturer
ADVANTECH
