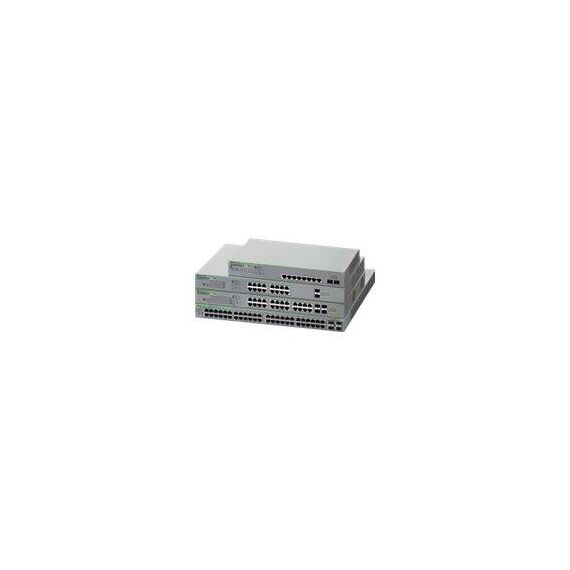

Allied Telesis AT GS950/18PS V2 - Switch - smart - 16 x 10/100/1000 (PoE+) + 2 x 1000Base-X - desktop, rack-mountable, wall-mountable - PoE+ (185 W) | AT-GS950/18PS-V2-50

Allied Telesis AT GS950/18PS V2 - Switch - | AT-GS950/18PS-V2-50

Description
Features
Reviews

Product Features

Ease of management and high performance
These advanced Allied Telesis WebSmart switches combine the simplicity of unmanaged switches with the performance and reliability of managed switches. This provides a cost-effective, secure and reliable solution for integrated management at the network edge. With user-friendly web-based management, the GS950 V2 Series is ideal for integrating simple management and security into your network solution.
Power over Ethernet (PoE)
The GS950/10PS V2, 18PS V2, 28PS V2 and 52PS V2 switches are available in PoE+ (IEEE 802.3at), with the capability of delivering up to 30W per port. PoE allows users to connect and power a device using a single Ethernet cable, thus eliminating the need for additional power outlets and simplifying installation. Furthermore, this system is unaffected by any local variance in AC power, offering a standardized power infrastructure.

Special Fetures

IGMP snooping
LACP support
802.1x authentication
Head-of-line (HOL) Blocking Prevention
Port mirroring
LLDP support
FTP client
DHCP client
Syslog support
SNTP support
Management Information Base (MIB) II
Neighbor Discovery Protocol (NDP)
Energy-Efficient Ethernet (EEE)

Product Specification

Device Type	Switch - 16 ports - smart
Enclosure Type	Desktop, rack-mountable, wall-mountable
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000 (PoE+) + 2 x 1000Base-X
Power Over Ethernet (PoE)	PoE+
PoE Budget	185 W
Performance	Switching capacity: 36 Gbps ¦ Throughput: 26.78 Mpps ¦ Forwarding rate (10Mbps): 14880 packets per second ¦ Forwarding rate (100Mbps): 148800 packets per second ¦ Forwarding rate (1000Mbps): 1488000 packets per second
Capacity	VLAN IDs: 4000 ¦ Virtual interfaces (VLANs): 256 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size	16K entries
Jumbo Frame Support	10KB
Routing Protocol	IGMPv2, IGMP, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, ICMP, DHCP, RSTP, RADIUS
Encryption Algorithm	MD5
Authentication Method	Secure Shell (SSH), RADIUS, TACACS
Features	IGMP snooping, Syslog support, port mirroring, SNTP support, LACP support, LLDP support, DHCP client, Neighbor Discovery Protocol (NDP), 802.1x authentication, FTP client, Management Information Base (MIB) II, Energy-Efficient Ethernet (EEE), Head-of-line (HOL) Blocking Prevention
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM	256 MB
Flash Memory	32 MB
Status Indicators	Status
Expansion / Connectivity
Interfaces	16 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP
Power
Power Device	Internal power supply
Power Consumption Operational	260 Watt
Miscellaneous
Included Accessories	Rubber feet
Rack Mounting Kit	Included
Compliant Standards	CSA, C-Tick, CISPR 22 Class A, cUL, EN55022, EN55024, FCC, RoHS, VCCI Class A, China RoHS, EU RoHS, EN 62368, UL 62368
Localisation	Europe
Dimensions & Weight
Width	44 cm
Depth	25 cm
Height	4.4 cm
Weight	3.7 kg
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-25 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 95% (non-condensing)
