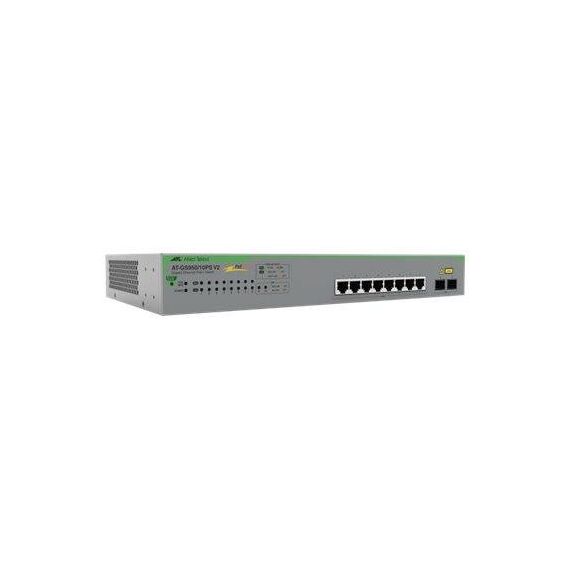

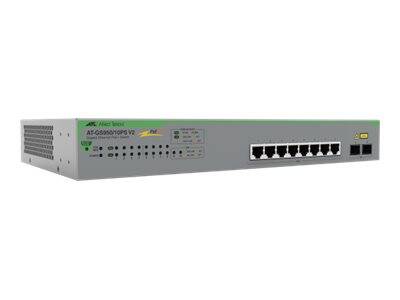

Allied Telesis AT GS950/10PS V2 - Switch - smart - 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X - desktop, rack-mountable, wall-mountable - PoE+ (75 W) | AT-GS950/10PS V2-50
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 75 W |
| Performance | Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Forwarding rate (10Mbps): 14880 packets per second ¦ Forwarding rate (100Mbps): 148800 packets per second ¦ Forwarding rate (1000Mbps): 1488000 packets per second |
| Capacity | VLAN IDs: 4000 ¦ Virtual interfaces (VLANs): 256 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, ICMP, DHCP, RSTP, RADIUS |
| Encryption Algorithm | MD5 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS |
| Features | IGMP snooping, Syslog support, port mirroring, SNTP support, fanless, LACP support, LLDP support, DHCP client, Neighbor Discovery Protocol (NDP), 802.1x authentication, FTP client, Management Information Base (MIB) II, Energy-Efficient Ethernet (EEE), Head-of-line (HOL) Blocking Prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP |
| Power | |
| Power Device | Internal power supply |
| Power Consumption Operational | 100 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | CSA, C-Tick, CISPR 22 Class A, cUL, EN55022, EN55024, FCC, RoHS, VCCI Class A, China RoHS, EU RoHS, EN 62368, UL 62368 |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 33 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Weight | 1.9 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-GS950/10PS V2-50
General
8-Port
More Details
Product Code
CD66017
EAN Code
0767035219158
Manufacturer
Allied Telesis
