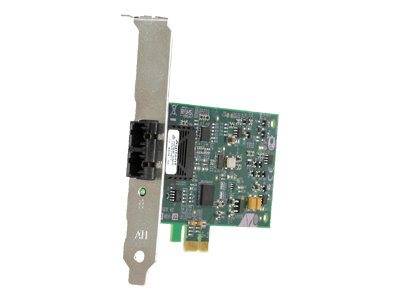

Allied Telesis AT-2711FX/ST / Network adapter / PCIe / 10/100 Ethernet / federal government / TAA Compliant | AT-2711FX/ST-901
Please sign in so that we can notify you about a reply
Special Features
- Driver support for Windows and Linux
- PCI-Express x1 interface
- IEEE 802.1x flow control
- 72KB packet buffer
- IEEE 802.1p-based traffic prioritization
- TCP Checksum RX/TX supported
- PXE 2.0 remote boot support
- Wake-on-LAN (WoL)
- Jumbo packet support
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| Networking | Networking |
| Ports | 10/100 Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 2 km |
| Remote Management Protocol | SNMP |
| Status Indicators | Link OK, link/activity |
| Features | Flow control, ACPI support, wake on LAN (WOL), IPv6 support, half duplex mode, full duplex mode, Quality of Service (QoS), PXE support |
| Compliant Standards | IEEE 802.2, IEEE 802.3u, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ac |
| Processor / Memory | Processor / Memory |
| Processor | 1 x Broadcom BCM5752 |
| RAM | 72 KB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 100Base-FX - ST multi-mode - x 2 |
| Compatible Slots | 1 x PCI Express x1 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoftâs assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC Class B certified, UL, TUV, VCCI, C-Tick, EN55024, EN55022 Class B, RoHS |
| Pricing Type | Federal government |
| TAA Compliant | Yes |
| Software / System Requirements | Software / System Requirements |
| OS Required | Novell NetWare 6.x, Linux 2.4, Microsoft Windows Server 2003, Linux 2.6, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008 |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 12.1 cm |
| Height | 6.9 cm |
| Weight | 50 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - Allied Telesis - AT-2711FX/ST-901
More Details
Product Code
CA05149
EAN Code
0767035181127
Manufacturer
Allied Telesis
