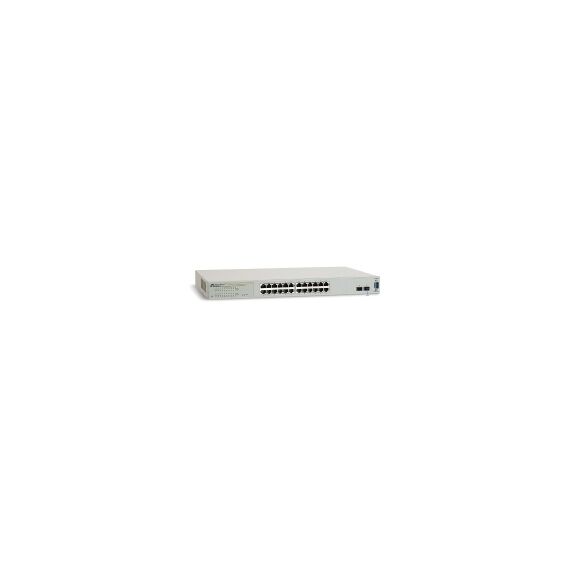

Allied Telesis AT GS950/24 WebSmart Switch Switch Managed 24 x 10/100/1000 + 2 x GBIC
990-003646-50
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Allied Telesis 990-003646-50 Allied Telesis AT GS950/24 WebSmart Switch Switch Managed 24 x 10/100/1000 + 2 x GBIC
The WebSmart AT-GS950/24 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/24 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 24 10/100/1000T ports, and two combo SFP ports for Gigabit connections.Feature list
| Switch type: | Managed |
| Quality of Service QoS support: | Y |
| Web-based management: | Y |
| Basic switching RJ-45 Ethernet ports quantity: | 24 |
| SFP/SFP slots quantity: | 2 |
| Flow control support: | Y |
| Port mirroring: | Y |
| Link aggregation: | Y |
| Maximum data transfer rate: | 1 Gbit/s |
| Certification: | UL 1950FCC/EN55022 Class AVCCI Class AC-TickEN60950 TUVEN55024CE |
| Internal memory: | 8 MB |
| Flash memory: | 2 MB |
| Packet buffer memory: | 0.5 MB |
| Power over Ethernet PoE support: | N |
| Operating temperature T-T: | 0 - 40 °C |
| Storage temperature T-T: | -25 - 70 °C |
| Operating relative humidity H-H: | 5 - 90 % |
| Weight: | 3240 g |
| Dimensions WxDxH: | 440 x 257 x 43.2 mm |
| Power requirements: | 100-240V AC, 50/60H |
| Security features: | 802.1X |
| Non-operating relative humidity non-condensing: | 5 - 95 % |
Features - Allied Telesis - 990-003646-50
More Details
Product Code
4255481
EAN Code
0767035178431
Manufacturer
Allied Telesis
