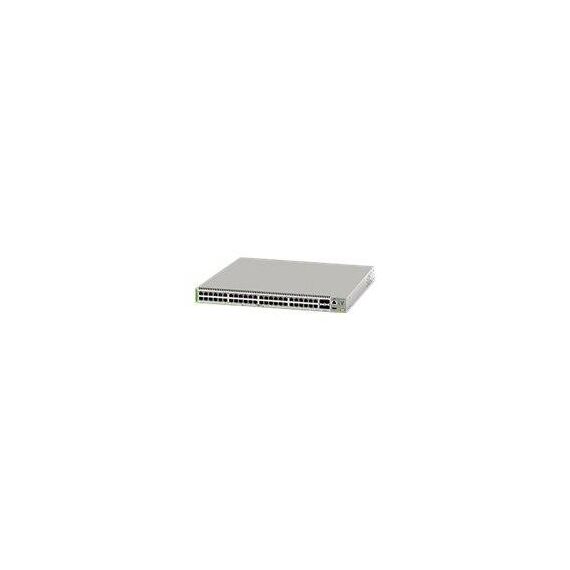

Allied Telesis AT GS980M/52 / Switch / Managed / 48 x 10/100/1000 + 4 x Gigabit SFP / desktop, rack-mountable, wall-mountable | AT-GS980M/52-50
Please sign in so that we can notify you about a reply
Special Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- ACLs manage access and traffic control across the network
- Static and dynamic (RIP) routing for L3 environments
Product Specification
| Device Type | Switch - 52 ports - Managed |
| Enclosure Type | Desktop, rack-mountable, wall-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching capacity: 104 Gbps ¦ Forwarding performance: 77.4 Mpps |
| Capacity | Multicast groups: 2000 ¦ Virtual interfaces (VLANs): 4094 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | RIP, static IP routing, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, DHCP |
| Encryption Algorithm | DES, RSA, MD5, AES, TLS, SHA-1, PEAP, TTLS, DSA, ECDSA, 128-bit AES, 256-bit AES, SHA-2, CCM, 196-bit AES, CMAC, GCM, XTS, DRBG |
| Authentication Method | RADIUS |
| Features | ARP support, OCSP support, VLAN support, DiffServ support, IPv6 support, DHCP snooping, Quality of Service (QoS), SSH support, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, IPv4 support, Remote Switch Port Analyzer (RSPAN), Network Access Control (NAC), loop prevention, SNMP support, 3MB packet buffer, Ethernet Protection Switched Ring (EPSRing), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), Control packet policing (CPP), View-based Access Control Model (VACM) |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.2x |
| RAM | 512 MB DDR SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | Port status, system |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Electric Current Required | 1 A |
| Power Consumption Operational | 47 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, cUL, EN 61000-3-2, EN55024, FCC, UL 60950-1, EN 60950-1, EN 60825-1, HMAC, AS/NZS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, SSL v3, EN 55022 Class A, CAN/CSA C22.2, EU RoHS |
| Localisation | Europe |
| Software / System Requirements | Software / System Requirements |
| Software Included | Alliedware Plus |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.1 cm |
| Depth | 32.3 cm |
| Height | 4.4 cm |
| Weight | 4.5 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 57.5 cm |
| Shipping Depth | 44.5 cm |
| Shipping Height | 15 cm |
| Shipping Weight | 6.4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-GS980M/52-50
General
48-Port
More Details
Product Code
425B223
EAN Code
0767035212388
Manufacturer
Allied Telesis
