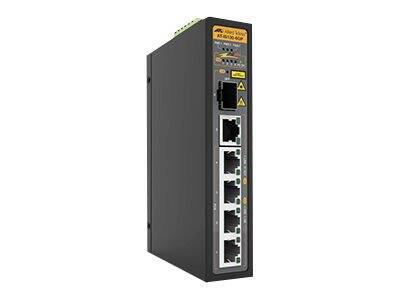

Allied Telesis IS Series AT-IS130-6GP - Switch - 5 x 10/100/1000 (PoE+) + 1 x 100/1000 SFP - DIN rail mountable, wall-mountable - PoE+ (90 W) | AT-IS130-6GP-80

Allied Telesis IS Series AT-IS130-6GP - Switch | AT-IS130-6GP-80

Description
Features
Reviews

Product Features

High performance
These high-performing, cost-effective switches meet the stringent performance requirements of today's industrial networks. Featuring support for up to 2K MAC addresses, the IS130 Series is ideal for edge networking.
Gigabit and Fast Ethernet
The IS130 Series SFP port supports both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). This makes the IS130 Series ideal for environments where Gigabit fiber will be phased-in over time, and allows for uninterrupted connectivity to the legacy 100FX hardware while it is upgraded to Gigabit Ethernet. Support for both SFP speeds allows organizations to stay within budget as they migrate to faster technologies.
Power over Ethernet
The IS130-6GP is a Power over Ethernet Power Sourcing Equipment (PoE PSE) device, which is compliant with IEEE802.3af and IEEE802.3at standards.

Special Fetures

High performance
Gigabit and Fast Ethernet
Power over Ethernet

Product Specification

Device Type	Switch - 6 ports
Enclosure Type	DIN rail mountable, wall-mountable
Ports	5 x 10/100/1000 (PoE+) + 1 x 100/1000 SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	90 W
Performance	Switching fabric speed: 12 Gbps ¦ Forwarding rate: 8.93 Mpps
MAC Address Table Size	2K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Encryption Algorithm	DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 2.0, PEAP, TTLS, CRL
Authentication Method	Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards	IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Expansion / Connectivity
Interfaces	5 x 10/100/1000 Base-T RJ-45 4 ports (PoE+) - 30 W ¦ 2 x Gigabit LAN SFP ¦ 1 x console RJ-45 ¦ 1 x alarm terminal block
Power
Power Device	External power adapter
Miscellaneous
Included Accessories	DIN-rail mounting kit, wall mounting kit
Compliant Standards	TUV, VCCI, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-6-2, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, EN 50121-4, IP30, VCCI Class A, MIL-STD 810G 516.6, NEMA TS-2, China RoHS, RCM, EN 50022, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, EN 55032 Class A, UL 61010-2-201, CSA C22.2 No. 61010-2:2014, EN 61000-6-4 Class A, IEC 60068-2-31 Class T2.3, MIL-STD-810G 516.6 Procedure 1, EN 60715
Dimensions & Weight
Width	14 cm
Depth	9.5 cm
Height	3 cm
Weight	500 g
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	75 °C
Humidity Range Operating	10 - 95% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	85 °C
Humidity Range Storage	10 - 95% (non-condensing)
