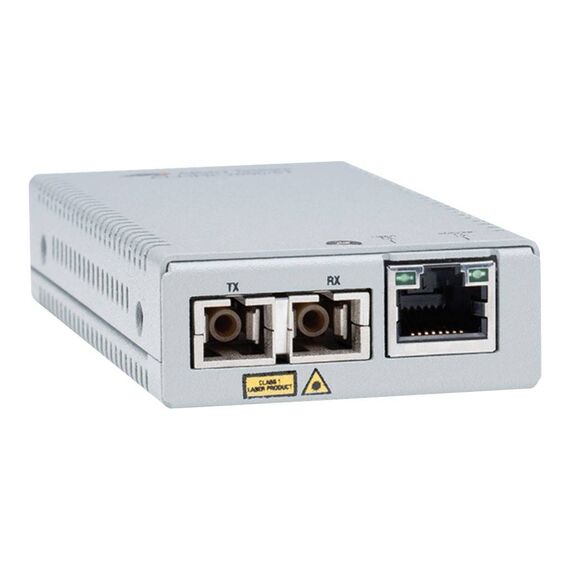

Allied Telesis AT MMC200/SC / Fibre media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / SC multi-mode / up to 2 km / 1310 nm / TAA Compliant | AT-MMC200/SC-960
Please sign in so that we can notify you about a reply
Product Features
- Extend networks
The MMC200 series mini media converters are the ideal solution for upgrading a traditional 10 Mbps Ethernet network or extending a 100 Mbps Fast Ethernet network. The MMC200 series is designed to extend the distance of a network by converting Fast Ethernet data between twisted pair and fiber-optic cabling. The MMC200 features a 100FX fiber port and a 100TX twisted-pair port. - VLAN support
Many backbone switch products the IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC200 switches are fully compatible with these long packets, enabling them to be used in modern networks. - Small and flexible
The smaller size and external power supply of the MMC200 series allows these media converters to be used almost anywhere. - Smart MissingLink (SML)
The SML feature allows the ports on the media converter to pass the Link status of their connections to each other. When the media converter detects a problem with a port - such as the loss of connection to a node - it shuts down the connection to the other port, thereby notifying the node that the connection has been lost. The Smart MissingLink (SML) allows network managers to quickly identify the source and location of failed segments and minimize downtime. - Link Restoration feature
Link Restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart / reset them.
Special Features
- Convert speed as well as media type
- 2K MAC address tables
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Auto Negotiation and Auto MDI / MDIX on 10/100 copper port
- Far End Fault on 100 Mb fiber
- 10K byte Jumbo packets
- Link / activity LED per port
- Smart MissingLink
- Fixed SC / ST optics
- Wall-mountable
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 2 km |
| Status Indicators | Power, link/activity |
| Features | Full duplex capability, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), store and forward, wall mountable, Jumbo Frames support, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.1Q |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 100Base-FX - SC multi-mode female x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950-1, EN 60950-1, EN 55022 Class A |
| TAA Compliant | Yes |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 1.7 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.6 cm |
| Depth | 10.16 cm |
| Height | 2.18 cm |
| Weight | 170 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-MMC200/SC-960
More Details
Product Code
CA05824
EAN Code
0767035218649
Manufacturer
Allied Telesis
