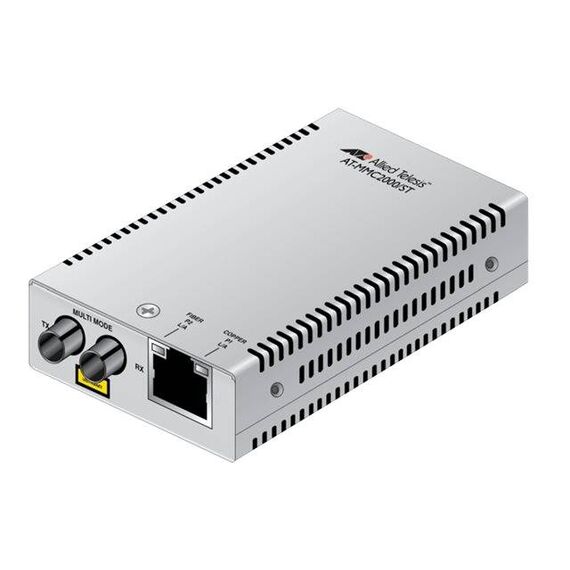

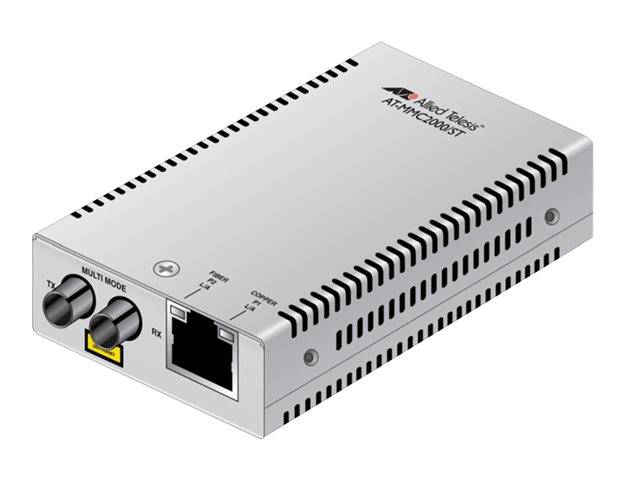

Allied Telesis AT MMC2000/ST / Fibre media converter / GigE / 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T / RJ-45 / ST multi-mode / up to 550 m / 850 nm / TAA Compliant | AT-MMC2000/ST-960
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Localisation | Australia, United Kingdom, United States, Europe |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 550 m |
| Status Indicators | Power, system, link/activity |
| Features | Full duplex capability, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), store and forward, wall mountable, Jumbo Frames support, Energy Efficient Ethernet, Automatic Link Restoration |
| Compliant Standards | IEEE 802.1Q |
| Interfaces | 1 x Ethernet 1000Base-SX - ST multi-mode female x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female |
| Compliant Standards | FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, UL 60950-1, EN 60950-1, EN 55022 Class A |
| TAA Compliant | Yes |
| Power Device | External power adapter |
| Width | 5.49 cm |
| Depth | 10.16 cm |
| Height | 2.18 cm |
| Weight | 170 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-MMC2000/ST-960
Length
>50m
More Details
Product Code
CA04285
EAN Code
0767035218625
Manufacturer
Allied Telesis
