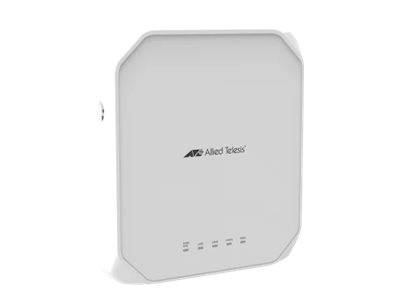

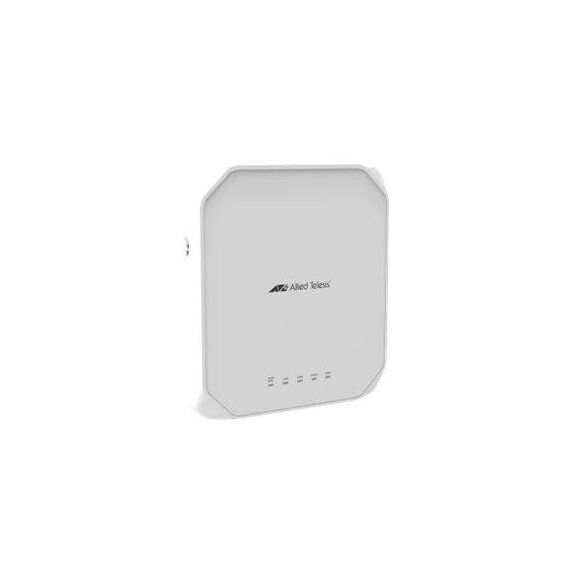

Allied Telesis AT TQ6602 GEN2 / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / desktop / wall / ceiling mountable | AT-TQ6602 GEN2-00
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Width | 20 cm |
| Depth | 24 cm |
| Height | 4.5 cm |
| Weight | 1.2 kg |
| Localisation | Worldwide (excluding United States, Canada and Taiwan) |
| Networking | Networking |
| Form Factor | Desktop / wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.55 Gbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA, DSSS |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Network / Transport Protocol | NTP, DHCP, CSMA/CA |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1147 Mbps ¦ Maximum data rate (2.4 GHz): 2402 Mbps |
| Capacity | Spatial streams: up to 8 ¦ Static MAC address filtering: 1024 |
| Status Indicators | Power, LAN, 5 GHz, 2.4 GHz |
| Features | Load balancing, VLAN support, Syslog support, Wireless Distribution System (WDS) support, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, DHCP client, 802.1x authentication, Virtual Access Points (VAP), beamforming technology, Link Aggregation, band steering, NTP client, Fast Roaming, seamless roaming, 4x4 MU-MIMO technology, client isolation, security slot (Kensington security lock compatible), Multi-Channel Zero-Wait DFS, Neighbor AP detection, Request to Send (RTS) support, Clear to Send (CTS) support, configuration backup/update/restore default via Web, Multi-Dimensional Exchange (MDX), Autonomous Wave Control (AWC), AWC-Channel Blanket (AWC-CB), AWC-Smart Connect (AWC-SC) |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA-Enterprise, WPA2-Enterprise, CCMP, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal, CNSA |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.1AX, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 100M/1G/2.5/5 Gigabit Ethernet (PoE+) - RJ-45 ¦ 1 x console - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, BSMI, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, IC, MIC, EN 61000-4-5, UL 2043, FCC, EN 61000-4-11, RoHS, EN 61000-4-8, AS/NZS 4268, EN 60601-1-2, FCC CFR47 Part 15 C, WPC, VCCI Class B, SRRC, RCM, EN 300 328, EN 61000-3-2 Class A, EN 301 489-1, EN 55032 Class B, SIRIM, EN 62368-1, EN 301 893, FCC CFR47 Part 15 E, UL 62368-1, EN 55035, EN 301 489-17, NBTC, OFCA |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - Allied Telesis - AT-TQ6602 GEN2-00
More Details
Product Code
CE18996
EAN Code
0767035224619
Manufacturer
Allied Telesis
