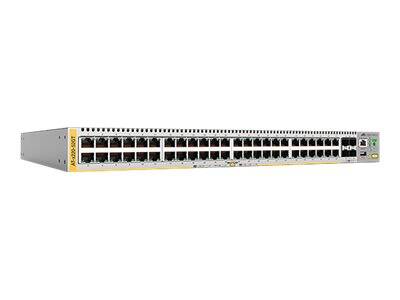

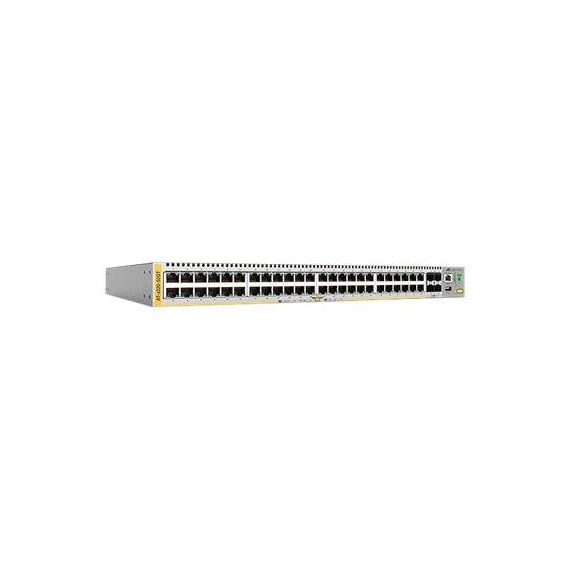

Allied Telesis AT x220-52GT - Switch - L3 - Managed - 48 x 10/100/1000 + 4 x 10/100 - rack-mountable | AT-X220-52GT-50
Please sign in so that we can notify you about a reply
Special Fetures
- Allied Telesis Autonomous Management Framework (AMF)
- Active Fiber Monitoring
- AlliedWare Plus operating system
- EPSR and G.8032 high-speed ring connectivity
- Management stacking
- Static routing and RIP
- DHCP snooping
- IEEE 802.1x/MAC/Web authentication support
Product Specification
| Device Type | Switch - 52 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10/100 |
| Performance | Switching fabric speed: 104 Gbps ¦ Forwarding rate: 77.4 Mpps |
| Capacity | Configurable VLANs: 4094 ¦ Priority queues: 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, RIPng, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, SNMP 6, SSH 6, NTP |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, AES, SSL, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, SHA-2, TLS 1.2, RNG, CRL, CCM, CMAC, GCM, XTS, DRBG |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | Flow control, DHCP support, ARP support, OCSP support, DiffServ support, IPv6 support, full duplex mode, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, LLDP support, Remote Switch Port Analyzer (RSPAN), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), loop prevention, 802.1x authentication, 3MB packet buffer, administrator's password, Ethernet Protection Switched Ring (EPSRing), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Control Plane Prioritisation (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Digital Diagnostics Monitoring (DDM), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), storm protection, Rapid Reconfiguration of Spanning Tree (RSTP) |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| RAM | 512 MB DDR SDRAM |
| Flash Memory | 128 MB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Electric Current Required | 1 A |
| Power Consumption Operational | 47 Watt |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A, EU RoHS |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 32.3 cm |
| Height | 4.4 cm |
| Weight | 4.5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 57.5 cm |
| Shipping Depth | 44.5 cm |
| Shipping Height | 15 cm |
| Shipping Weight | 6.4 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-X220-52GT-50
General
48-Port
More Details
Product Code
425B236
EAN Code
0767035212340
Manufacturer
Allied Telesis
