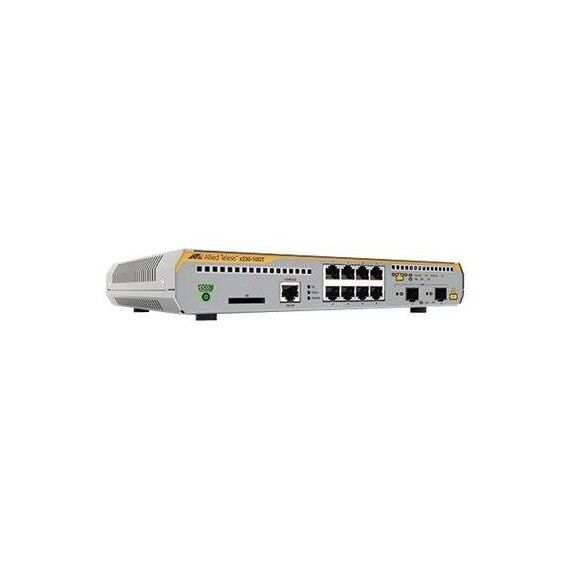

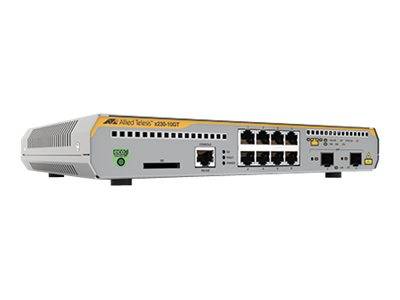

Allied Telesis AT x230-10GT / Switch / L2+ / Managed / 8 x 10/100/1000 + 2 x Gigabit SFP / desktop, rack-mountable | AT-X230-10GT-50
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 10 ports - L2+ - Managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding performance: 14.9 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, SHA-1, TLS 1.0, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, full duplex capability, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, SNMP trap, DHCP client, Energy Efficient Ethernet, Network Access Control (NAC), Strict Priority Queuing (SPQ), loop prevention, enviromental monitoring, packet storm protection, tagged VLAN, 1.5MB packet buffer, Storm Control |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| RAM | 256 MB DDR SDRAM |
| Flash Memory | 64 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management ¦ 2 x 1000Base-X SFP uplink |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 16 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x console cable - 2 m |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18 cm |
| Depth | 26.5 cm |
| Height | 4.25 cm |
| Weight | 1.5 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime ¦ Limited warranty - power supply and fans - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-X230-10GT-50
General
8-Port
More Details
Product Code
425A813
EAN Code
0767035209630
Manufacturer
Allied Telesis
