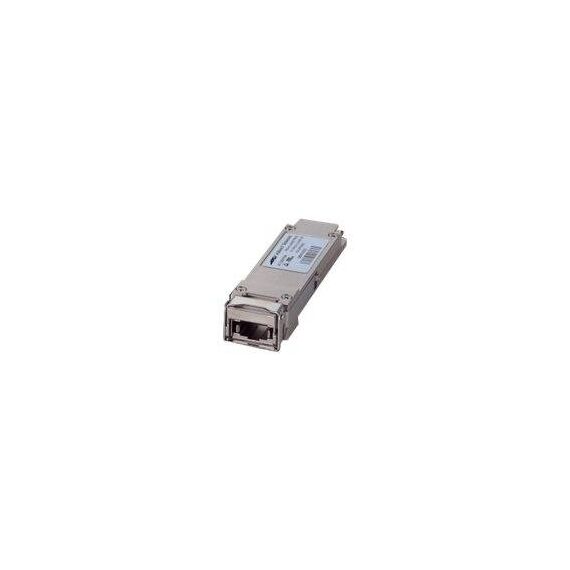

Allied Telesis AT-QSFPLR4 / QSFP+ transceiver module / 40 Gigabit LAN / 40GBase-LR4 / 1271 nm / 1291 nm / 1311 nm / 1331 nm | AT-QSFPLR4
Please sign in so that we can notify you about a reply
Special Features
- Compact size
- Flexible architecture
- High port density
- Hot-swappable
- Supports digital diagnostics monitoring
Product Specification
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-LR4 |
| Data Link Protocol | 40 Gigabit LAN |
| Data Transfer Rate | 11.2 Gbps |
| Optical Wave Length | 1271 nm / 1291 nm / 1311 nm / 1331 nm |
| Features | Digital Diagnostics, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3ba |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 40GBase-LR4 - SC single-mode |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, MSA, MSA SFF-8436 |
| Power | Power |
| Power Consumption Operational | 3.5 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 85% (non-condensing) |
Features - Allied Telesis - AT-QSFPLR4
More Details
Product Code
425A766
EAN Code
0767035206172
Manufacturer
Allied Telesis
