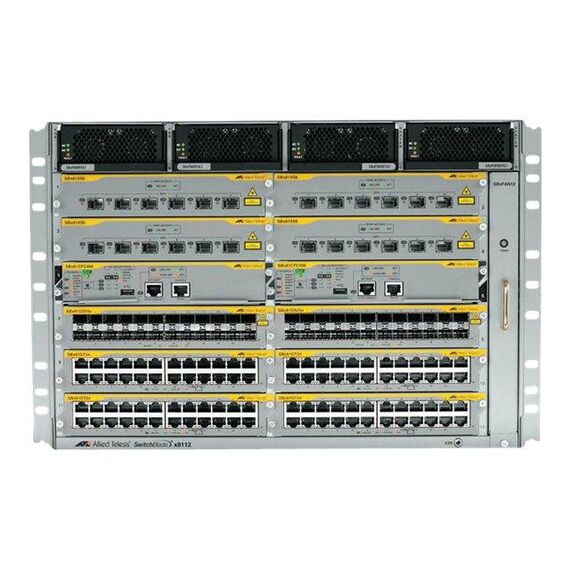

Allied Telesis SwitchBlade AT SBx8112 / Switch / rack-mountable | AT-SBX8112
Allied Telesis SwitchBlade AT SBx8112 / Switch / rack-mountable | AT-SBX8112
Description
The Allied Telesis SwitchBlade x8112 is a 12-slot Advanced Layer 3+ chassis switch designed to deliver high availability, wirespeed performance, and a high port count. Allied Telesis advanced features make it the ideal solution for the modern enterprise network where resiliency, reliability and high performance are the key requirements.The SwitchBlade x8112 is a high-performing scalable solution, providing an extensive range of connectivity options. Dual control cards are partnered with ten line card slots. Gigabit and 10 Gigabit line card options ensure a system capable of meeting the requirements of today's networks, and the flexibility to expand when required. Active-active switching fabric utilizes all available system bandwidth all of the time, and fast failover is provided with the second control card in hot-standby. The SwitchBlade's highly resilient design includes dual controllers, dual PSUs and dual redundant passive backplane paths. The ability to hot-swap additional control cards, line cards and system or PoE power supplies guarantees maximum system uptime. The SwitchBlade x8112 is incredibly eco-friendly, utilizing high-efficiency power supplies and low-power chip sets. Easily the most power efficient chassis in its class, the SwitchBlade x8112 features lower cost of ownership - and is better for the planet, too.
Allied Telesis SwitchBlade AT SBx8112 / Switch | AT-SBX8112
Special Features
- Dual controller fabric slots and 10 line card slots
- High port density in a compact form factor
- High reliability with dual redundant load-sharing PSUs
- Maximum uptime with all hardware hot-swappable
- Active-active switch fabric
- Most eco-friendly chassis in its class
- Power over Ethernet Plus (PoE+)
- AlliedWare Plus feature-rich operating system
- Industry-standard CLI
- Industry-leading Quality of Service (QoS)
- Ethernet Protected Switched Ring (EPSRing)
Product Specification
| Device Type | Switch |
| Enclosure Type | Rack-mountable |
| Features | Modular design |
| Expansion Slots | 12 (total) / 12 (free) x Expansion Slot |
| Installed Modules Qty (Max) | 0 (installed) / 12 (max) |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Yes |
| MTBF | 260,000 hours |
| Compliant Standards | FCC Class A certified, UL, TUV, cUL, VCCI Class A ITE, EN55024, EN55022 Class A, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03 |
| Width | 48.03 cm |
| Depth | 38.79 cm |
| Height | 31.01 cm |
| Weight | 17.77 kg |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
