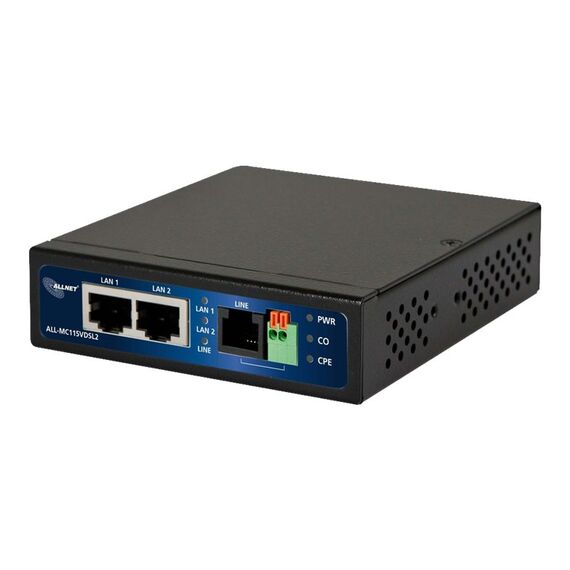

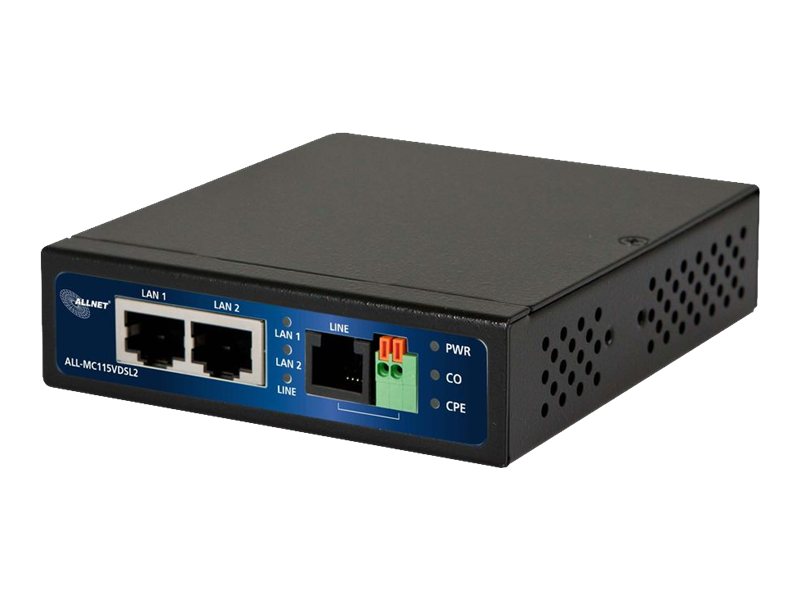

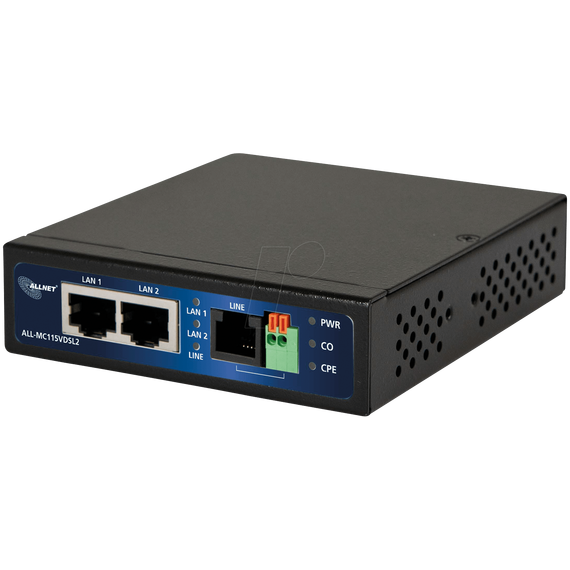

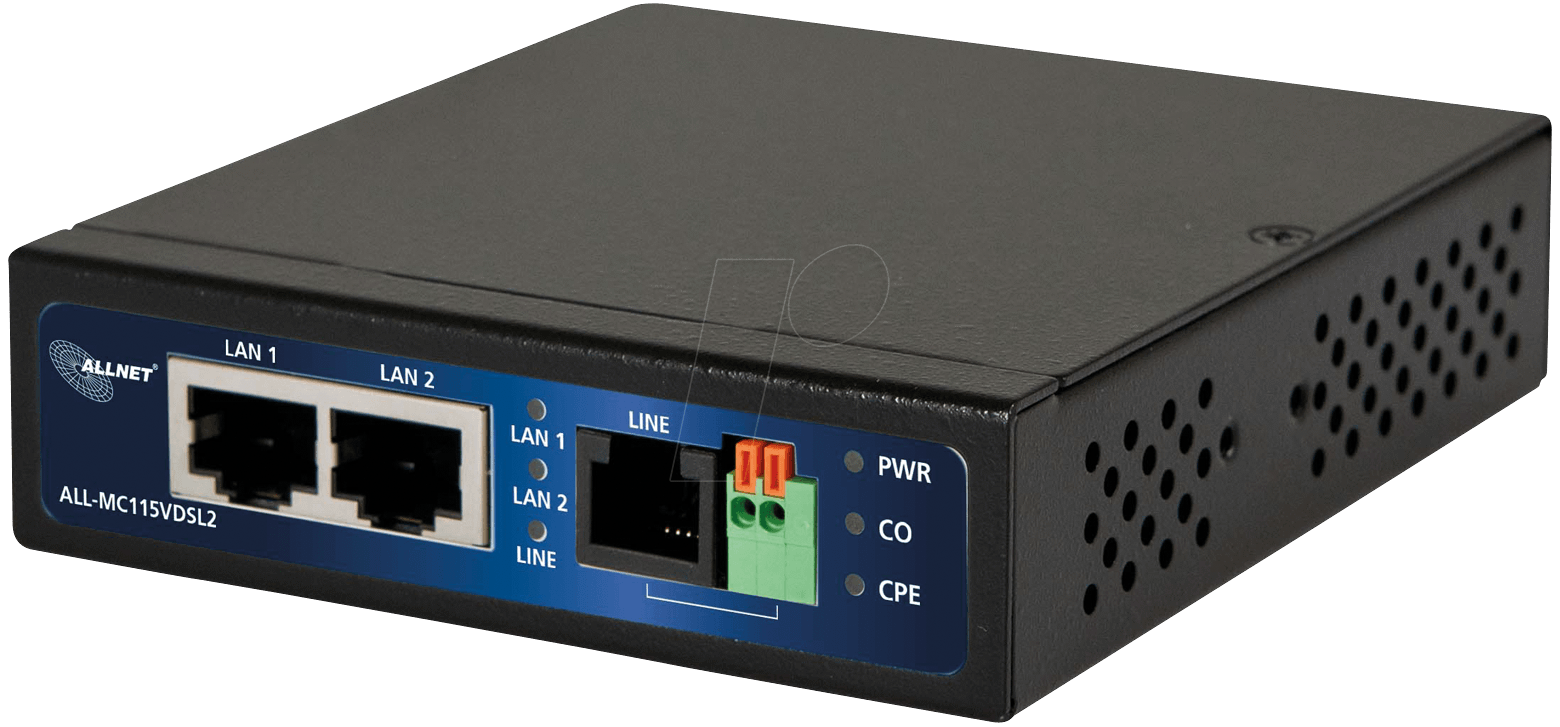

ALLNET ALL-MC115VDSL2 Master/Slave / Bridge / DSL modem | ALL-MC115VDSL2
ALL-MC115VDSL2
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Bridge |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Features | Auto-negotiation, surge protection, wall mountable, built-in DIP switch |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, FCC Class B certified |
| Status Indicators | Port status, power, link/activity |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | VDSL2 |
| Protocols & Specifications | ITU G.993.2 |
| Max Transfer Rate | 100 Mbps |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 2 x 10Base-T/100Base-TX - RJ-45 WAN: 1 x VDSL2 - RJ-11 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 12 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11 cm |
| Depth | 2.7 cm |
| Height | 9.5 cm |
| Weight | 465 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - ALLNET - ALL-MC115VDSL2
More Details
Product Code
07:481033
EAN Code
4038816102393
Manufacturer
ALLNET
