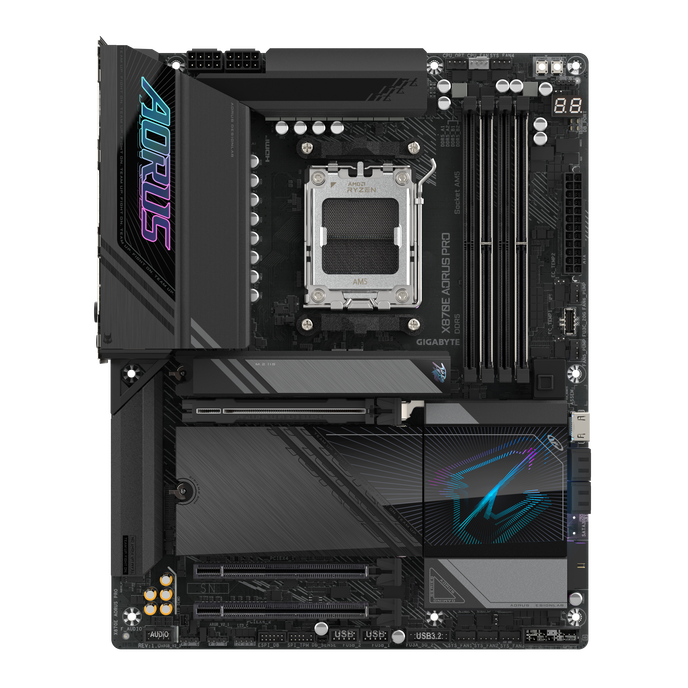

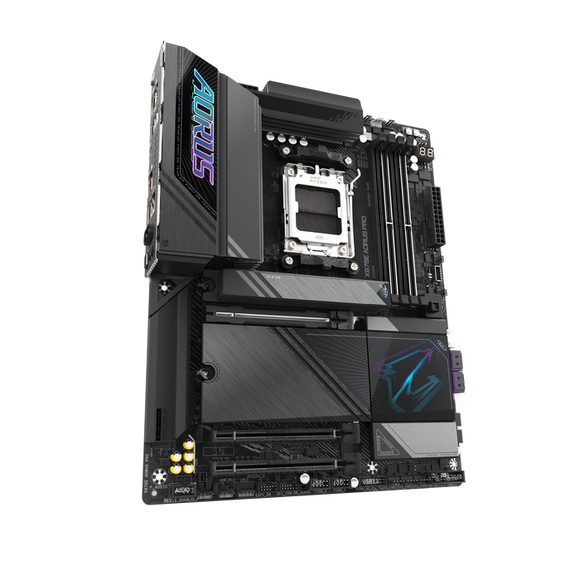

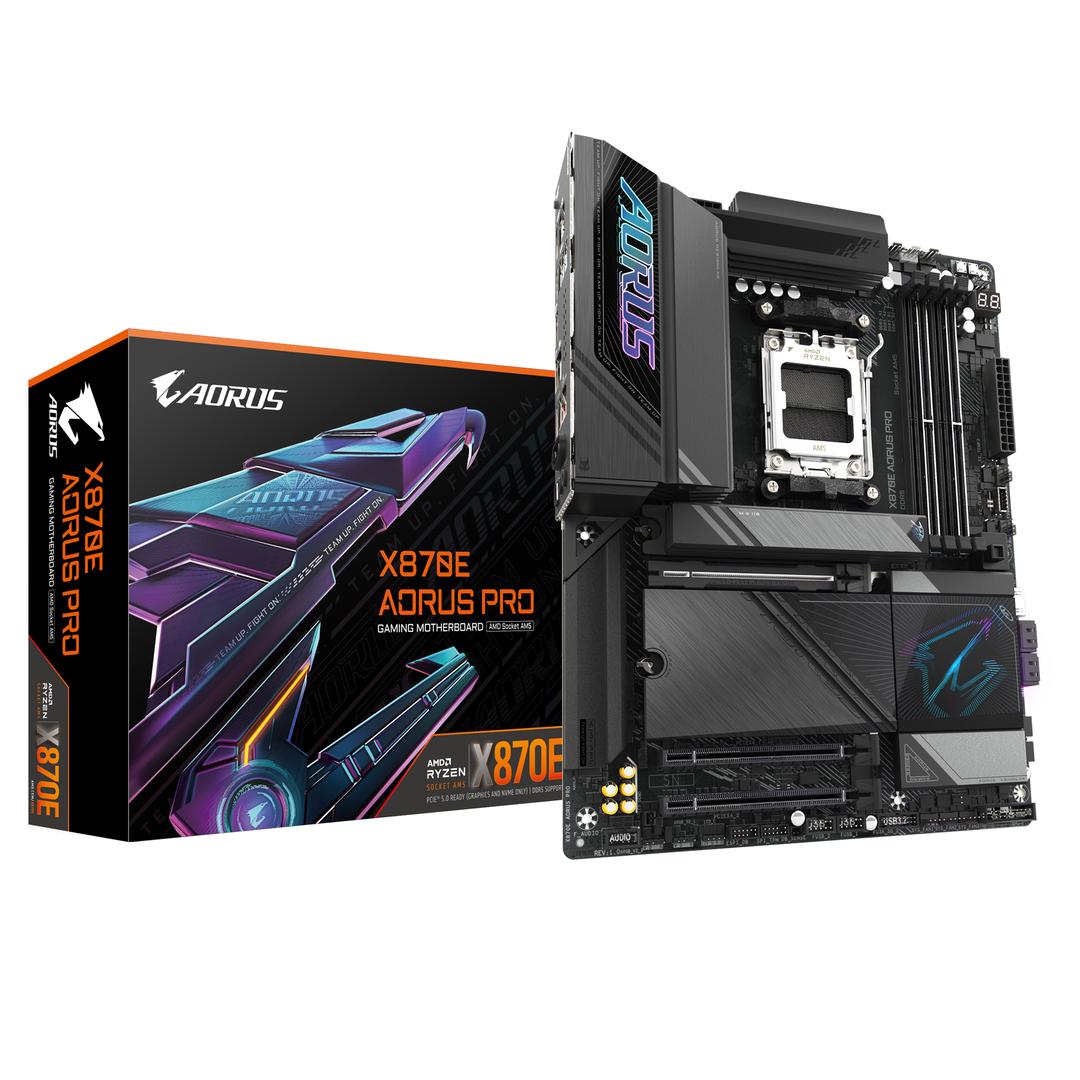

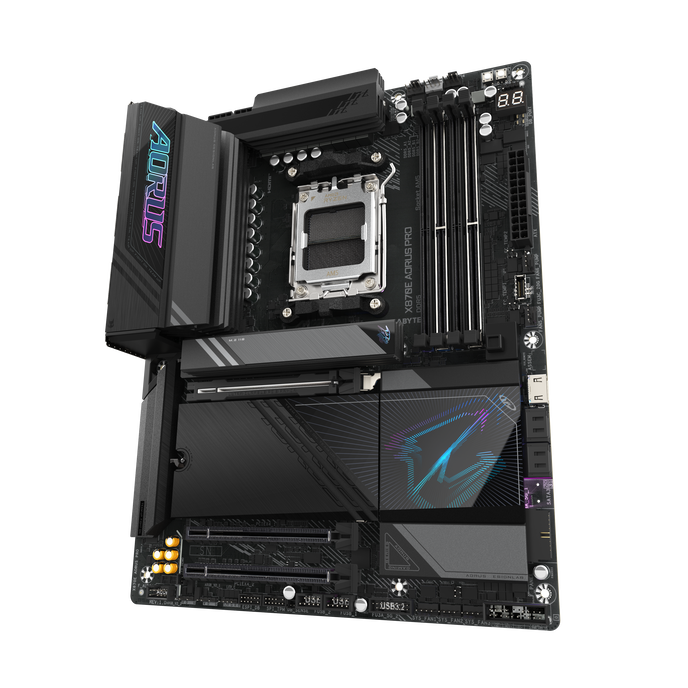

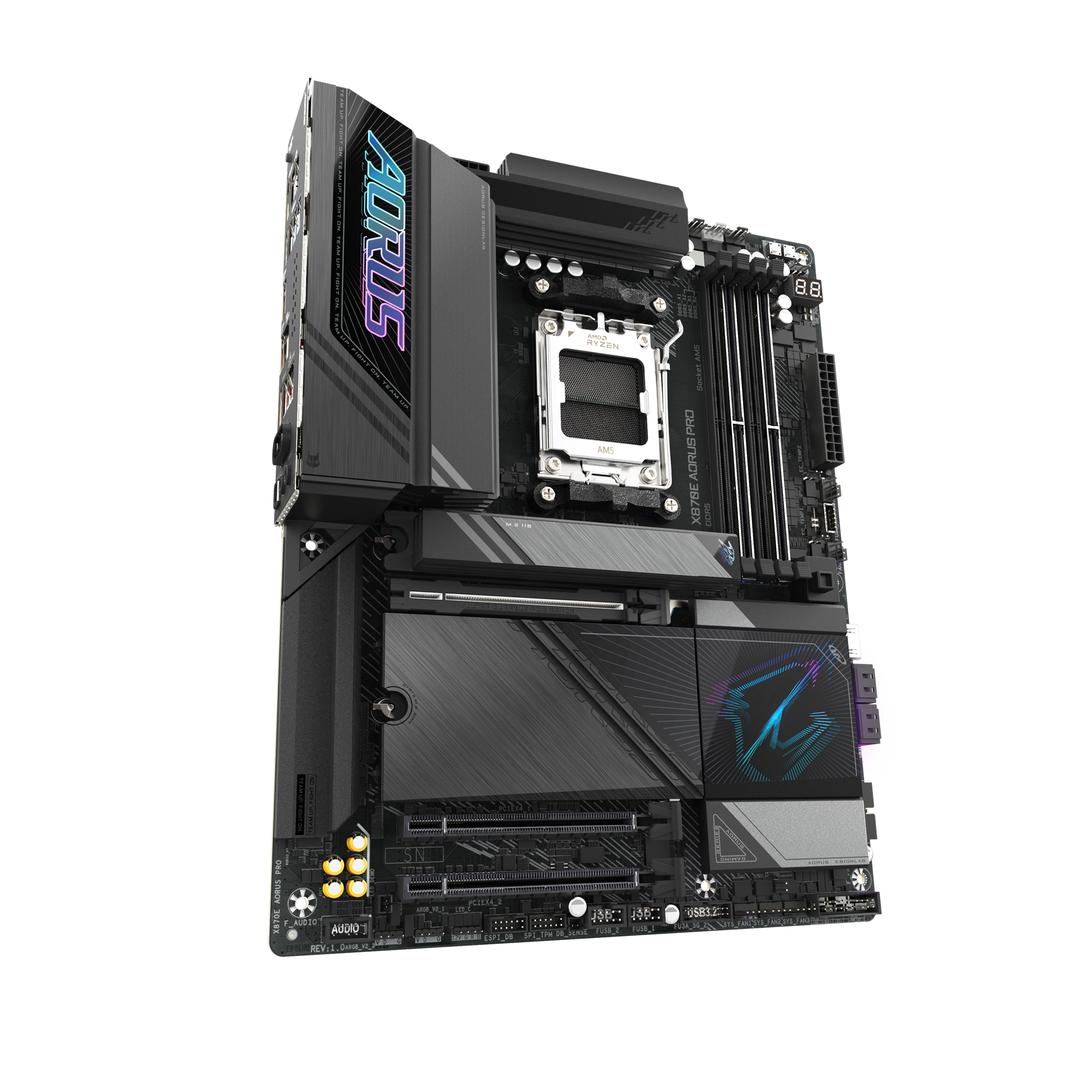

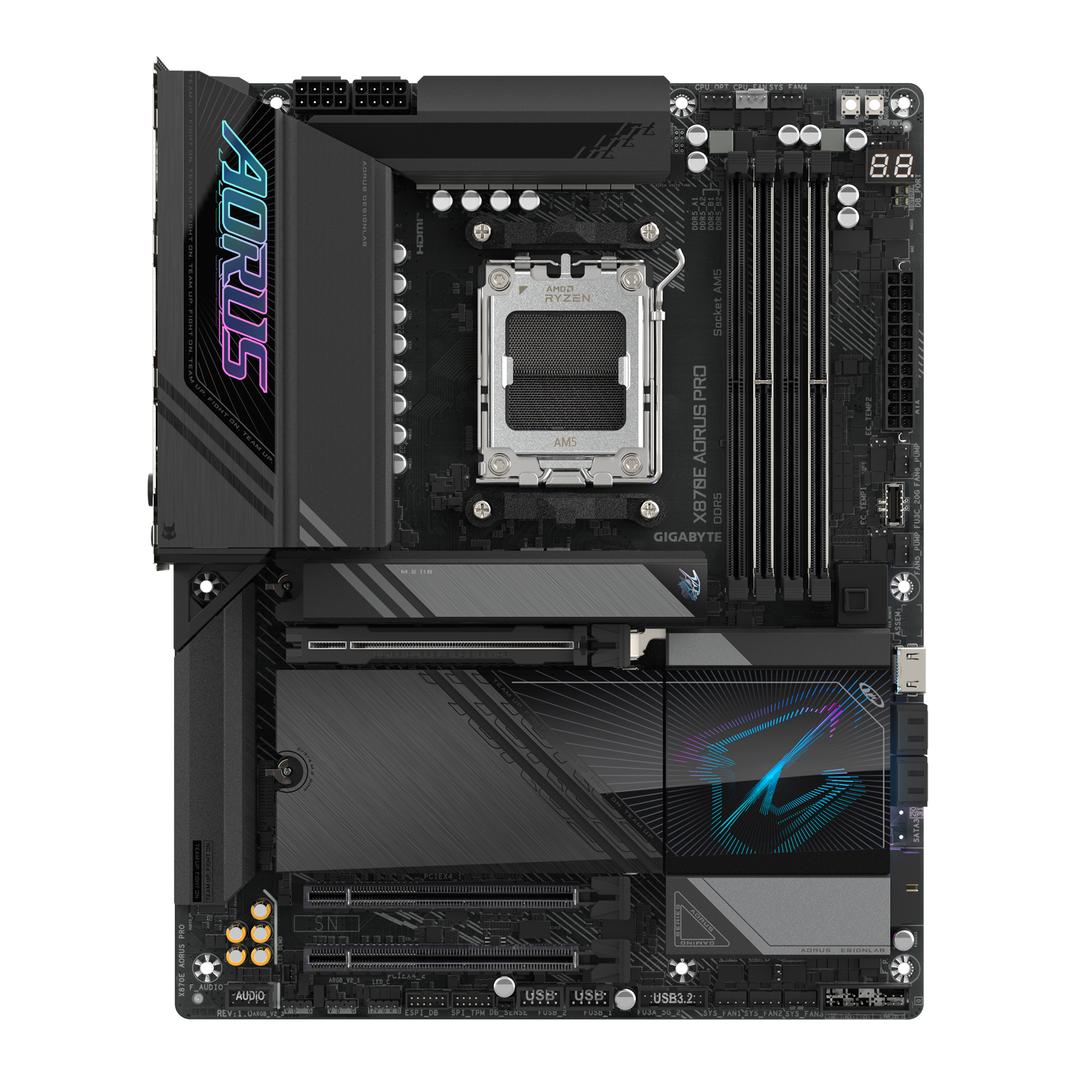

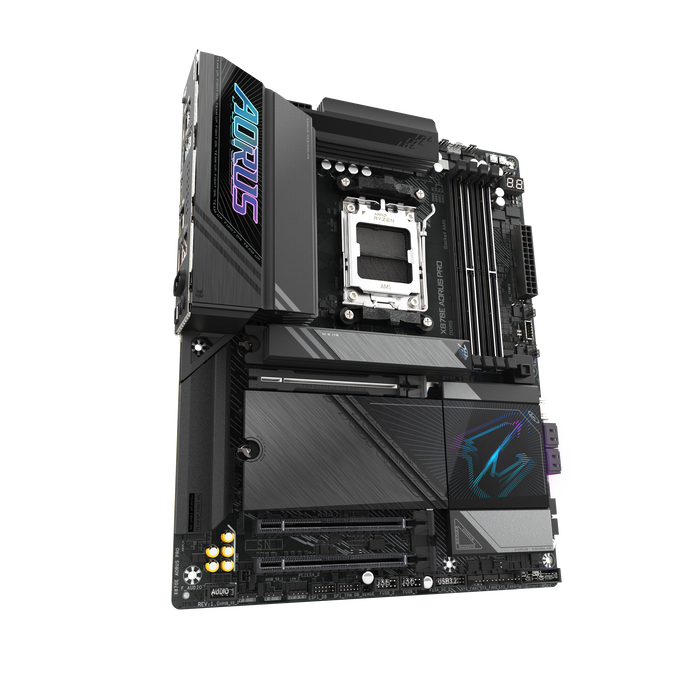

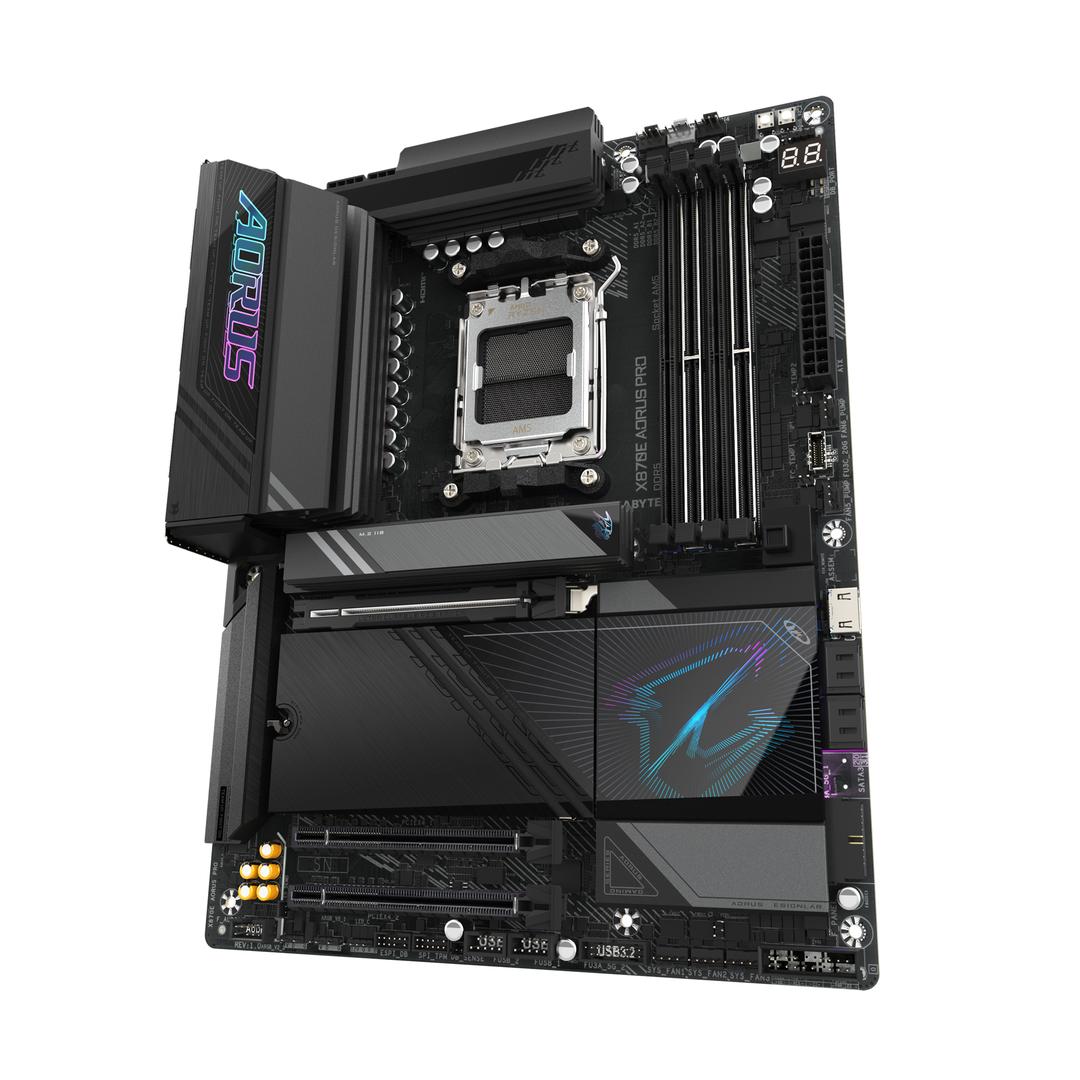

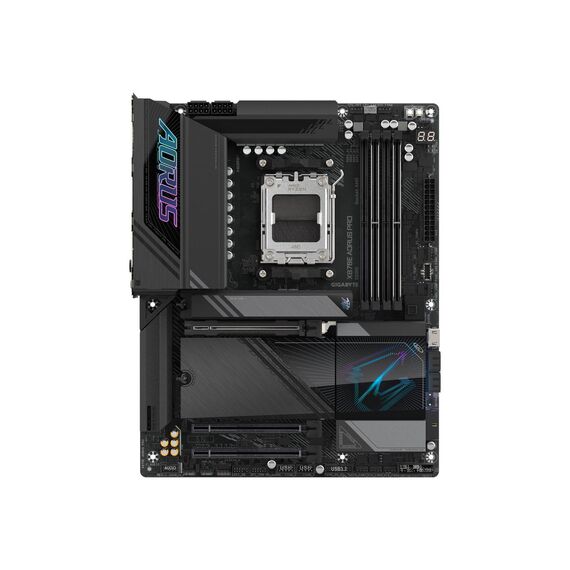

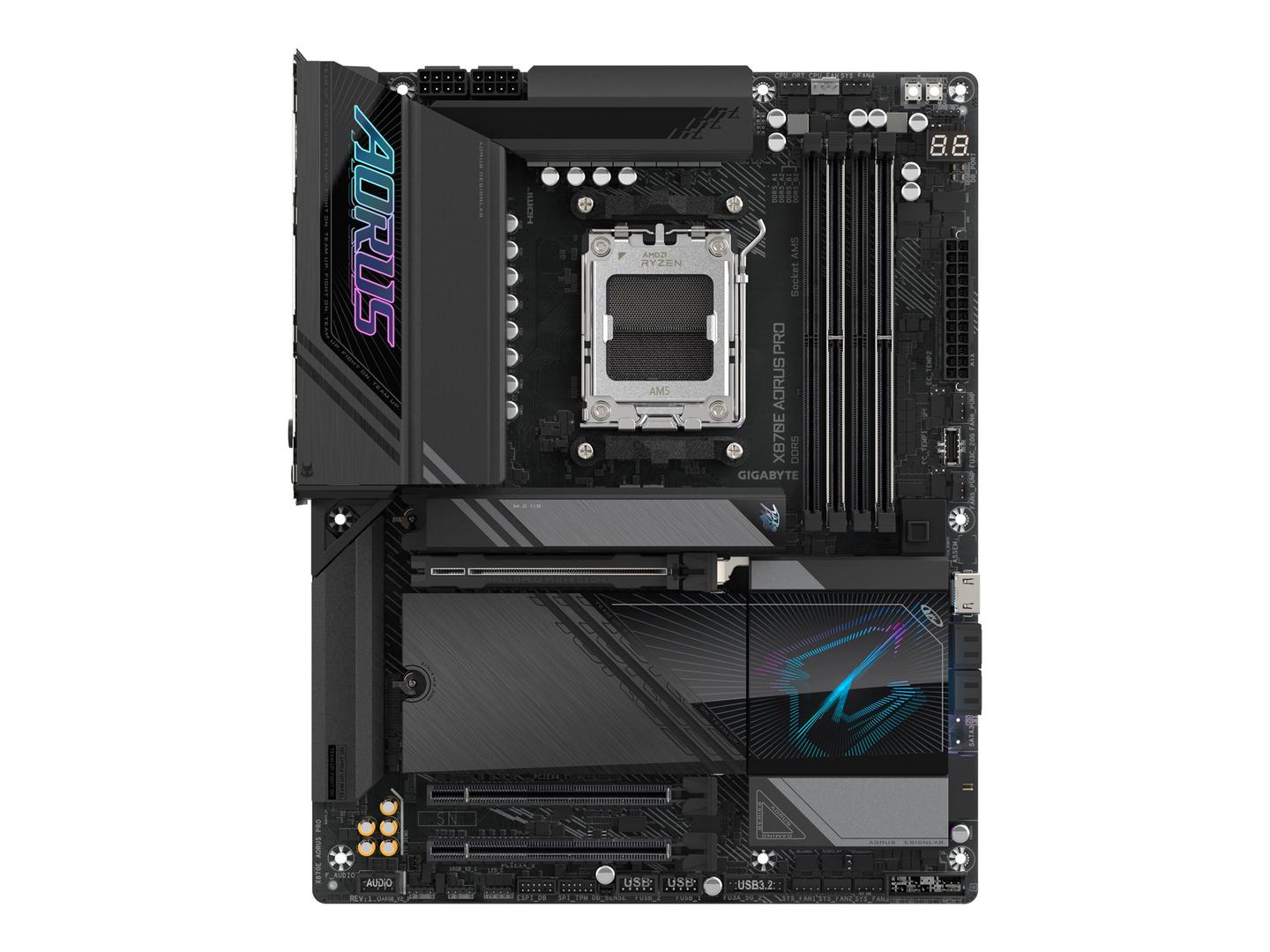

ATX - Socket AM5 - AMD X870E Chipset - USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel) | X870E AORUS PRO
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Qualcomm QCNCM865 |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 5.0 x16 <br /> 1 x PCIe 4.0 x16 (x4 mode) <br /> 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA <br /> PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 <br /> PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

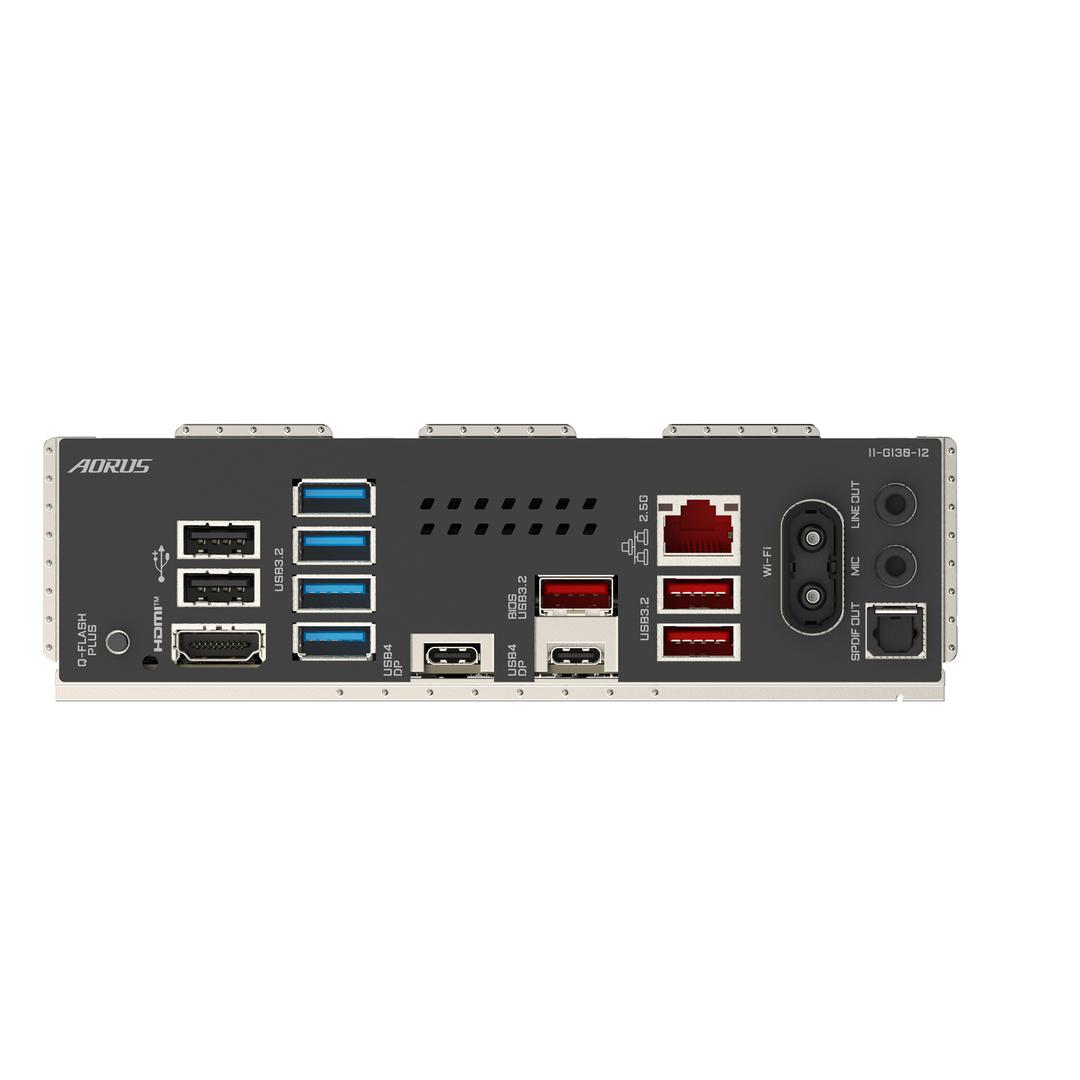

| Interfaces | LAN (2.5Gigabit Ethernet) <br /> 1 x audio line-in - mini-jack <br /> 1 x audio line-out - mini-jack <br /> 1 x SPDIF out <br /> 2 x aerial <br /> 4 x USB 3.2 Gen 1 <br /> 3 x USB 3.2 Gen 2 <br /> 2 x USB4/DisplayPort <br /> 1 x HDMI <br /> 2 x USB 2.0 |
| Internal Interfaces | 4 x USB 2.0 - header <br /> 4 x USB 3.2 Gen 1 - header <br /> 1 x USB-C 3.2 Gen 2x2 - header <br /> 1 x audio - header <br /> 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | 16+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, VRM Thermal Armor Advanced, pre-mounted I/O shield, M.2 Thermal Guard L, M.2 Thermal Guard Ext., RGB FUSION 2.0, EZ Plug, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, Ultra Durable PCIe Armor, 80A Smart Power Stage |
| Miscellaneous | |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Compliant Standards | HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Details | Box |
Features - GigaByte - X870E AORUS PRO
CPU Socket
- Socket AM5
More Details
Product Code
04:495265
EAN Code
4719331864866
Manufacturer
GigaByte
