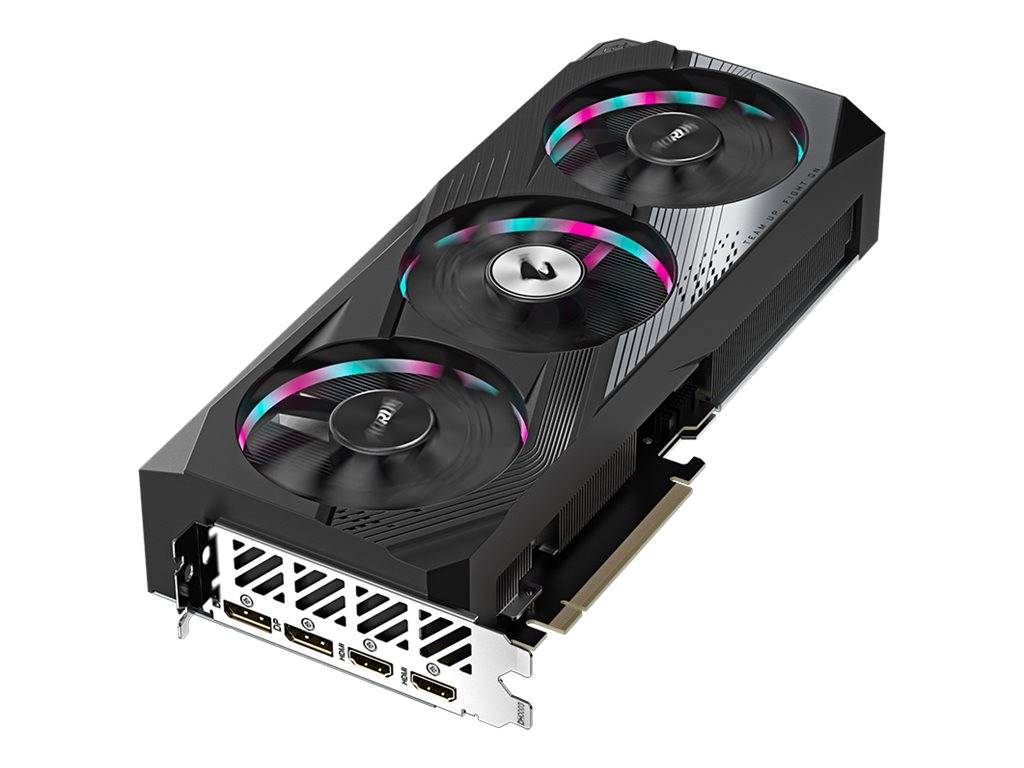

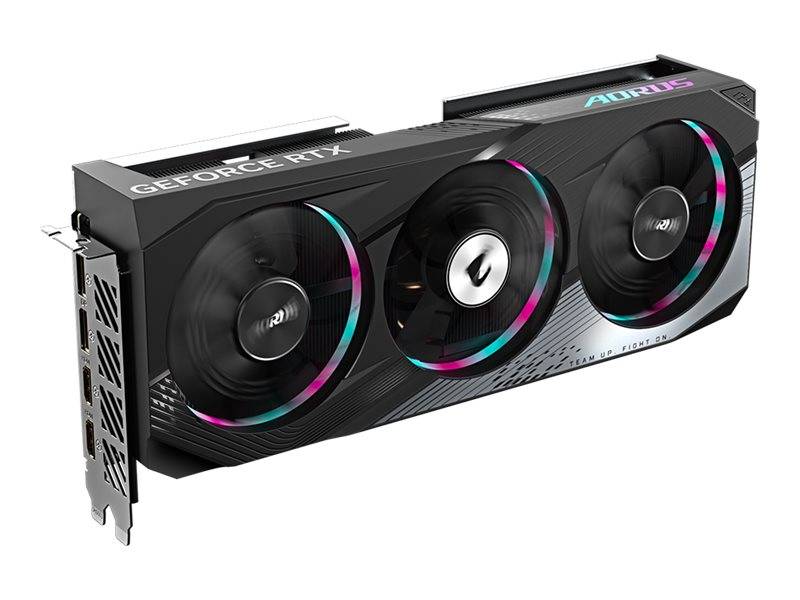

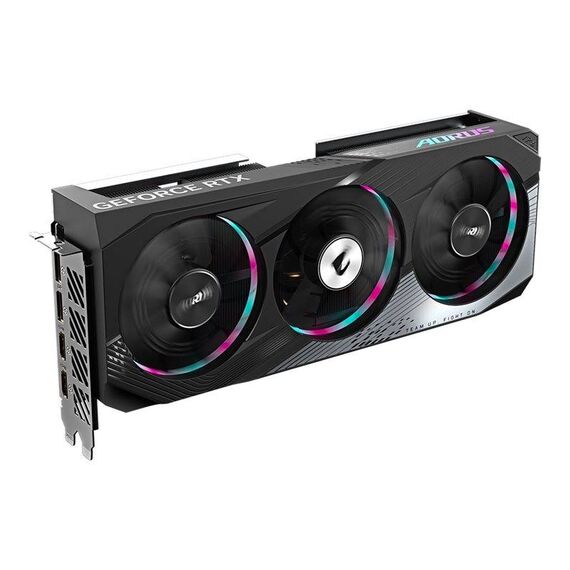

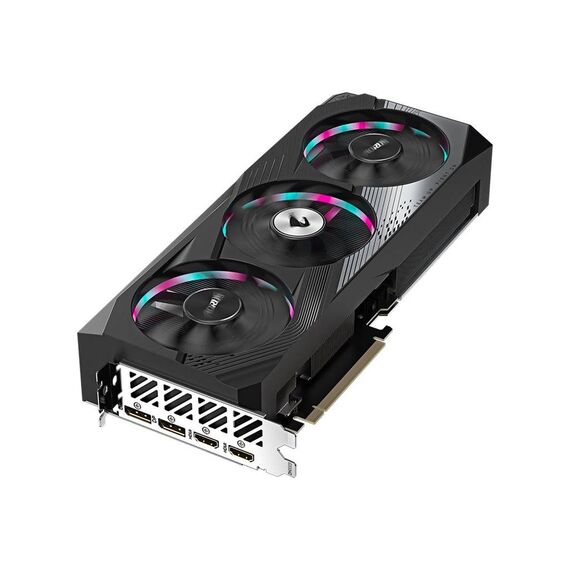

AORUS GeForce RTX 4060 Ti ELITE 8G / Graphics card / GeForce RTX 4060 Ti / 8 GB GDDR6 / PCIe 4.0 / 2 x HDMI, 2 x DisplayPort | GV-N406TAORUS E-8GD
Product Features
- RGB Fusion
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in Gigabyte control center. - Dual BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. - Protection metal back plate

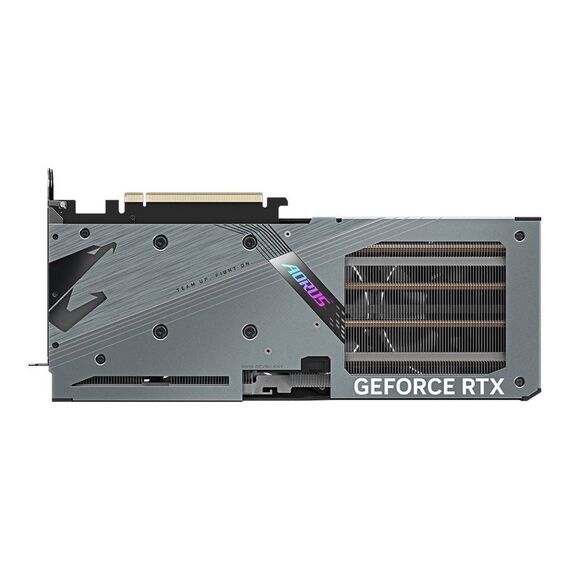

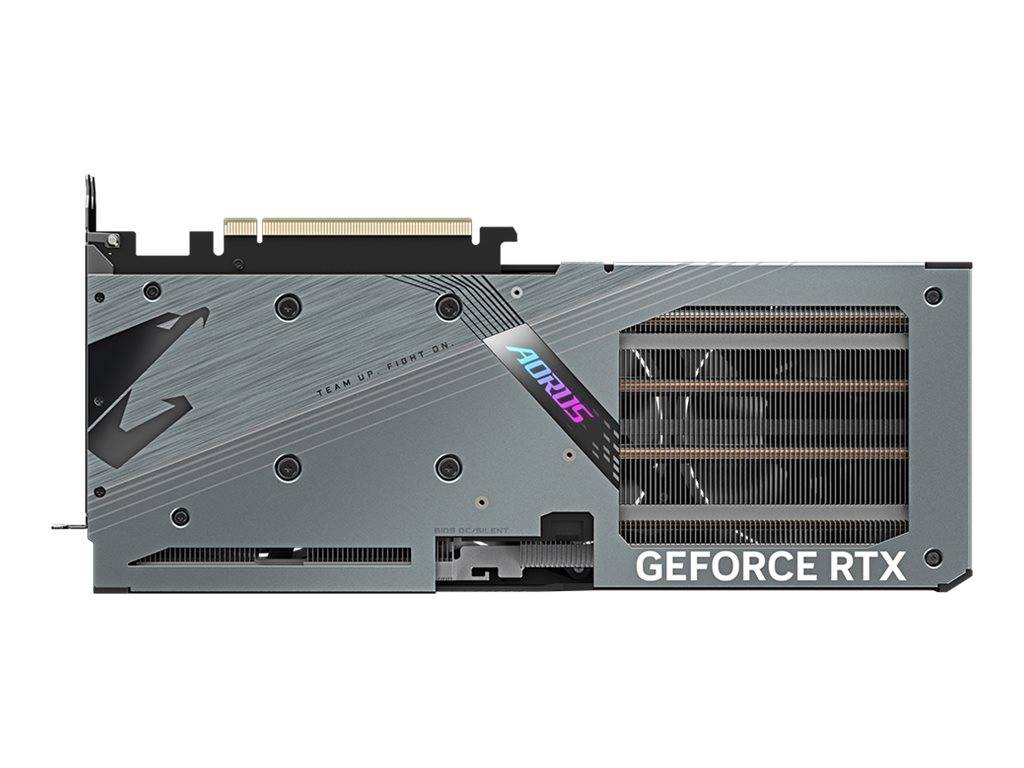

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. - Power indicator
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light. - PCB Coating
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion. Moisture resistant - prevents unwanted conduction paths and board damage. Corrosion resistant - protects from salt spray, humidity, and corrosion. - Extreme overclocking
The graphics card features excellent power phase design to allow the MOSFETS to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card. - Ultra Durable
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS (on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. - Friendly PCB design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Special Features
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing
- 4th Generation Tensor cores - up to 4x performance with DLSS 3
- 3rd Generation RT cores - up to 2x ray tracing performance
- Powered by GeForce RTX 4060 Ti
- Integrated with 8 GB GDDR6 128-bit memory interface
- WindForce cooling system, RGB Fusion, dual BIOS, protection metal back plate
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 4.0 |
Graphics Engine | NVIDIA GeForce RTX 4060 Ti |
Core Clock | 2655 MHz |
CUDA Cores | 4352 |
Max Resolution | 7680 x 4320 |
Max Monitors Supported | 4 |

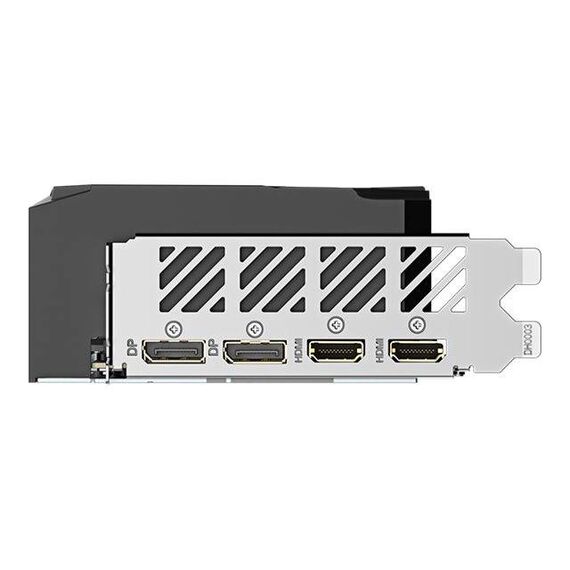

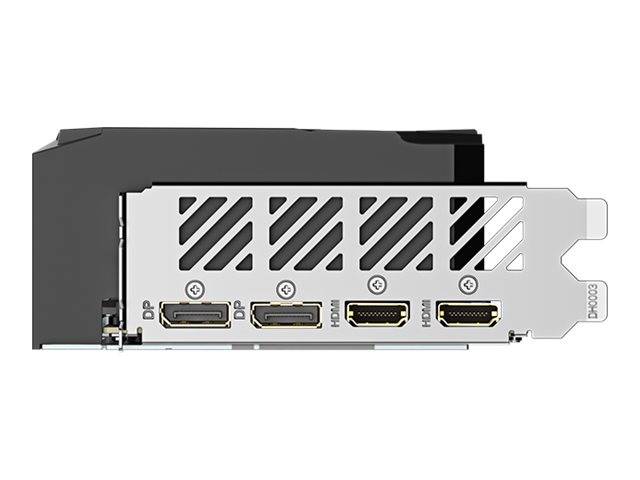

Interfaces | 2 x DisplayPort ¦ 2 x HDMI |
API Supported | OpenGL 4.6, DirectX 12 Ultimate |
Features | Dual Bios, GIGABYTE WINDFORCE cooling design, Heat Pipe Direct Touch technology, RGB fusion, Gigabyte Alternate Spinning, Nvidia Studio, 3D Active Fan, NVIDIA Reflex, Nvidia Broadcast, metal backplate, NVIDIA Ada Lovelace GPU technology, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, NVIDIA DLSS 3, screen cooling |
Memory | Memory |
Size | 8 GB |
Technology | GDDR6 SDRAM |
Memory Speed | 18 Gbps |
Bus Width | 128-bit |
System Requirements | System Requirements |
Required Power Supply | 500 W |
Additional Requirements | 8 pin PCI Express power connector |
Miscellaneous | Miscellaneous |
Software Included | Gigabyte Control Center |
Compliant Standards | DisplayPort 1.4a |
Width | 5.6 cm |
Depth | 30.1 cm |
Height | 12.8 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 4 Years |
