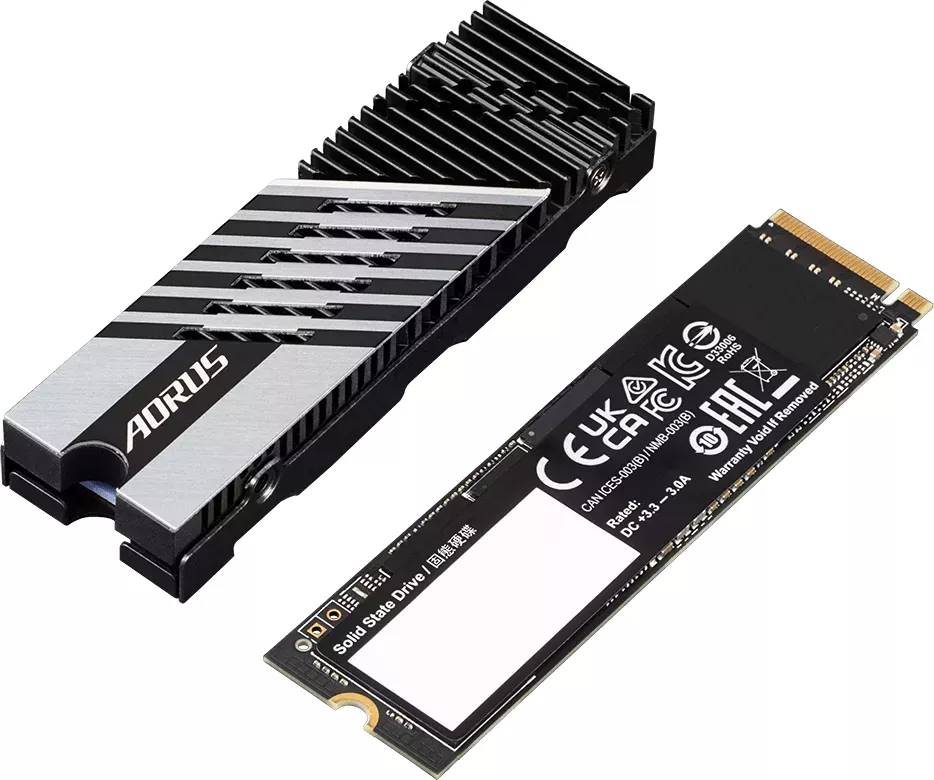

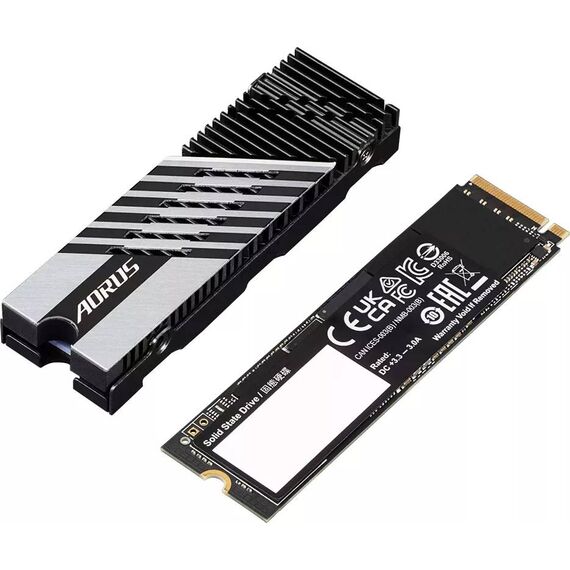

AORUS Gen4 7300 / SSD / encrypted / 2 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / 256-bit AES | AG4732TB

AORUS Gen4 7300 SSD encrypted 2 TB AG4732TB

Description
Features

Product Features

Extremely fast PCIe 4.0 throughput
AORUS Gen4 7300 SSD delivers sequential read up to 7.3 GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
Xtreme storage performance
By adopting Phison E18 controller and 3D TLC NAND, AORUS Gen4 7300 SSD delivers blazing speeds: up to 7,300 MB/s for sequential read, and up to 6,000 MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
Optimized aluminum heat spreaders with nanocarbon coating for 20% cooler
Challenged passive cooling to maximize surface area for heat dissipation with advanced thermal technology Nanocarbon coating. Applied with dual side high conductivity thermal pad ensures the heat transferring to the heatsink. The 7 mm height heatsink is compatible with all the M.2 slots including the one under graphic card.
Efficient heat spreader design
Compared with regular heat spreader, the high efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS Gen4 7300 SSD running 5 times longer at 7.3 GB/s. Enjoy the smoother and upgraded storage performance.
AORUS Gen4 7300 SSD meets SSD expansion requirements of PS5
AORUS Gen4 7300 SSD with Aluminum Heat Spreaders meets the required performance and dimensions of PS5 M.2 SSD. Adopting by Aluminum Heat Spreaders with Nanocarbon Coating, AORUS Gen4 7300 SSD improves thermal dissipation and helps to prevent throttling. AORUS Gen4 7300 SSD is fully reach ps5 requirement and give the best gaming experience. Looking for the best partner for your PS5? Enjoy the thrilling gaming experience by applied AORUS Gen4 7300 SSD to your PS5 to expand more capacities.

Special Features

Extremely fast PCIe 4.0 throughput
Xtreme storage performance
Optimized aluminum heat spreaders with nanocarbon coating for 20% cooler
Efficient heat spreader design
AORUS Gen4 7300 SSD meets SSD expansion requirements of PS5

Product Specification

Device Type	Solid state drive - internal
Capacity	2 TB
Hardware Encryption	Yes
Encryption Algorithm	256-bit AES
NAND Flash Memory Type	3D triple-level cell (TLC)
Form Factor	M.2 2280
Interface	PCIe 4.0 x4 (NVMe)
Features	TRIM support, Wear Leveling Support, NVM Express (NVMe) 1.4, DDR4 DRAM Cache, Phison E18 controller, over-provision, 8-channel controller, PlayStation compatible, S.M.A.R.T.
Width	22 mm
Depth	80 mm
Height	2.3 mm
Performance	Performance
SSD Endurance	14000 TB
Internal Data Rate	7300 MBps (read) / 6850 MBps (write)
Reliability	Reliability
MTBF	1,600,000 hours
Expansion & Connectivity	Expansion & Connectivity
Interfaces	1 x PCI Express 4.0 x4 (NVMe) - M.2 Card
Compatible Bay	M.2 2280
Power	Power
Power Consumption	8.1 Watt (read) Â¦ 7.4 Watt (write) Â¦ 30 mW (idle)
Miscellaneous	Miscellaneous
Compliant Standards	C-Tick, FCC, RoHS, WEEE, EAC, UKCA
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 5 years / 1400 TBW
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	70 Â°C
Min Storage Temperature	-40 Â°C
Max Storage Temperature	85 Â°C
