AORUS X870E MASTER / Motherboard / ATX / Socket AM5 / AMD X870E Chipset / USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 / 5 Gigabit Ethernet, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio (8-channel) | X870E AORUS MASTER
AORUS X870E MASTER / Motherboard / ATX / Socket AM5 / AMD X870E Chipset / USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 / 5 Gigabit Ethernet, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio (8-channel) | X870E AORUS MASTER
€693.78 inc. VAT
X870E AORUS MASTER
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity options
The motherboard is equipped with a wide range of ports, including HDMI, multiple USB 3.2 Gen 2 and USB4 options, and 5 Gigabit Ethernet, ensuring compatibility with various devices and high-speed Internet access. - Efficient thermal management
Featuring M.2 Thermal Guard and extra cooling technology, this motherboard helps prevent thermal throttling, ensuring that your components operate within optimal temperature ranges even under heavy loads. - Advanced audio capabilities
Utilizing the Realtek ALC1220 codec, the high definition audio output delivers an immersive experience with 8-channel support, ideal for gamers and multimedia enthusiasts. - Robust power design
The motherboard features a 16+2+2 phase power design which enhances stability and allows for better overclocking performance, catering to high-demand processing needs. - Durable construction
Engineering includes an 8 Layer PCB and durable features that ensure reliability and longevity of the motherboard, even under rigorous conditions.
Special Features
- Supports Ryzen 7000/8000/9000 Series processors
- 4 DIMM slots for DDR5 RAM with speeds up to 4000 MHz
- Multiple expansion slots including PCIe 5.0
- High definition audio support with ALC1220 codec
- Networking options with 5 Gigabit Ethernet and Wi-Fi 7
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

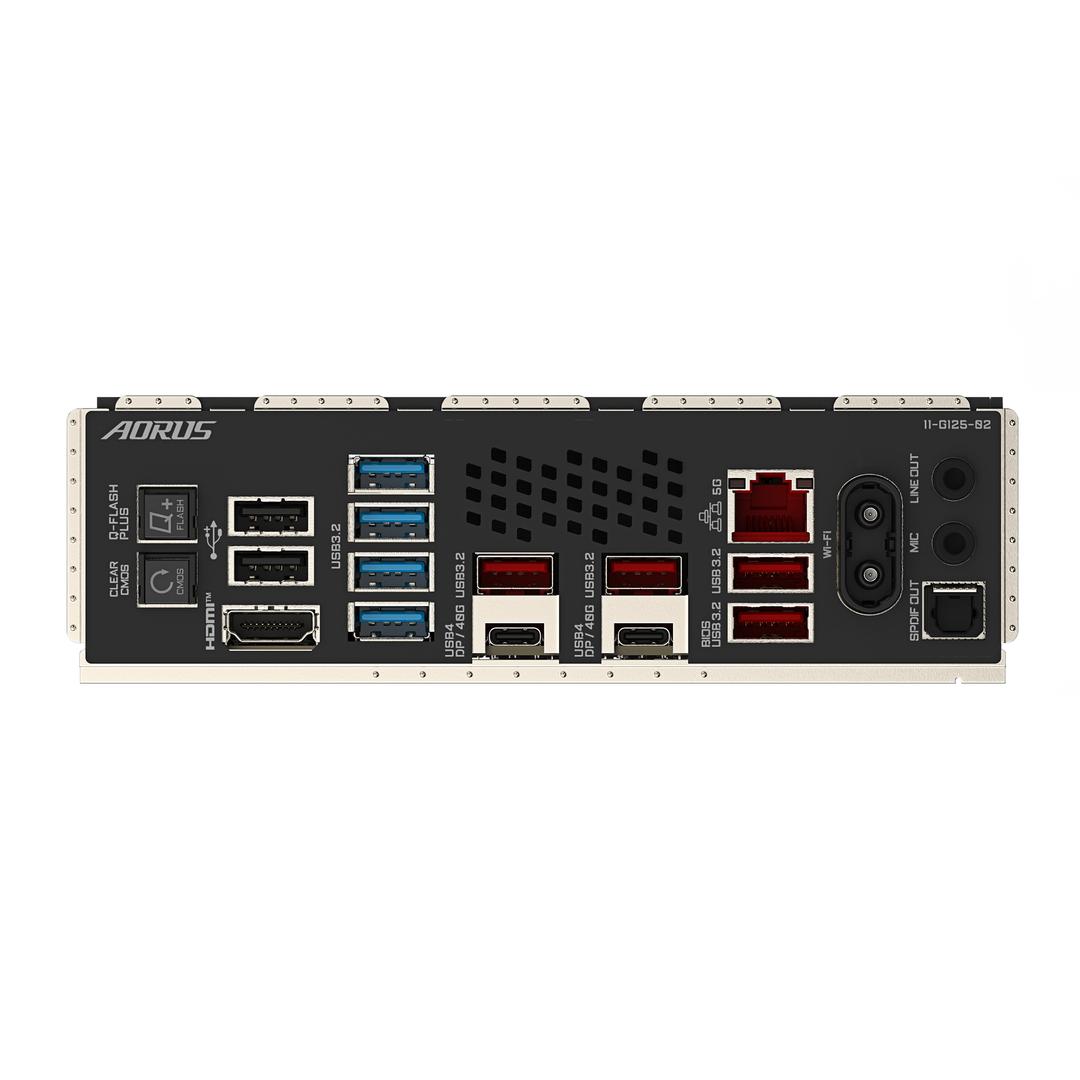

| Interfaces | 1 x LAN (5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out 2 x aerial 4 x USB 3.2 Gen 1 4 x USB 3.2 Gen 2 2 x USB4/DisplayPort 1 x HDMI 2 x USB 2.0 |
| Internal Interfaces | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | 16+2+2 Phase Power Design, 2x Copper PCB, 8 Layer PCB, VRM Thermal Armor Advanced, I/O Zone AORUS lighting, M.2 Thermal Guard XL, M.2 Thermal Guard Ext., GIGABYTE Smart Fan 6, RGB FUSION 2.0, Q-Flash Plus, EZ Plug, EZ Debug LED, MultiKey, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, M.2 EZ Match, Ultra Durable |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Compliant Standards | HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Details | Box |
Features - GigaByte - X870E AORUS MASTER
More Details
Product Code
04:495266
EAN Code
4719331864354
Manufacturer
GigaByte
No posts found
