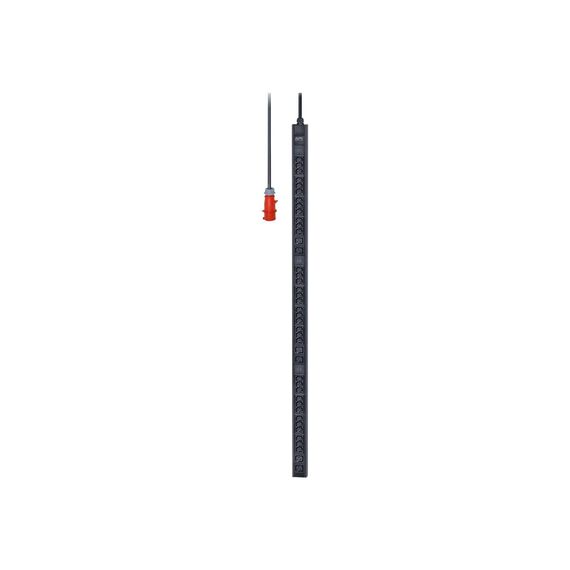

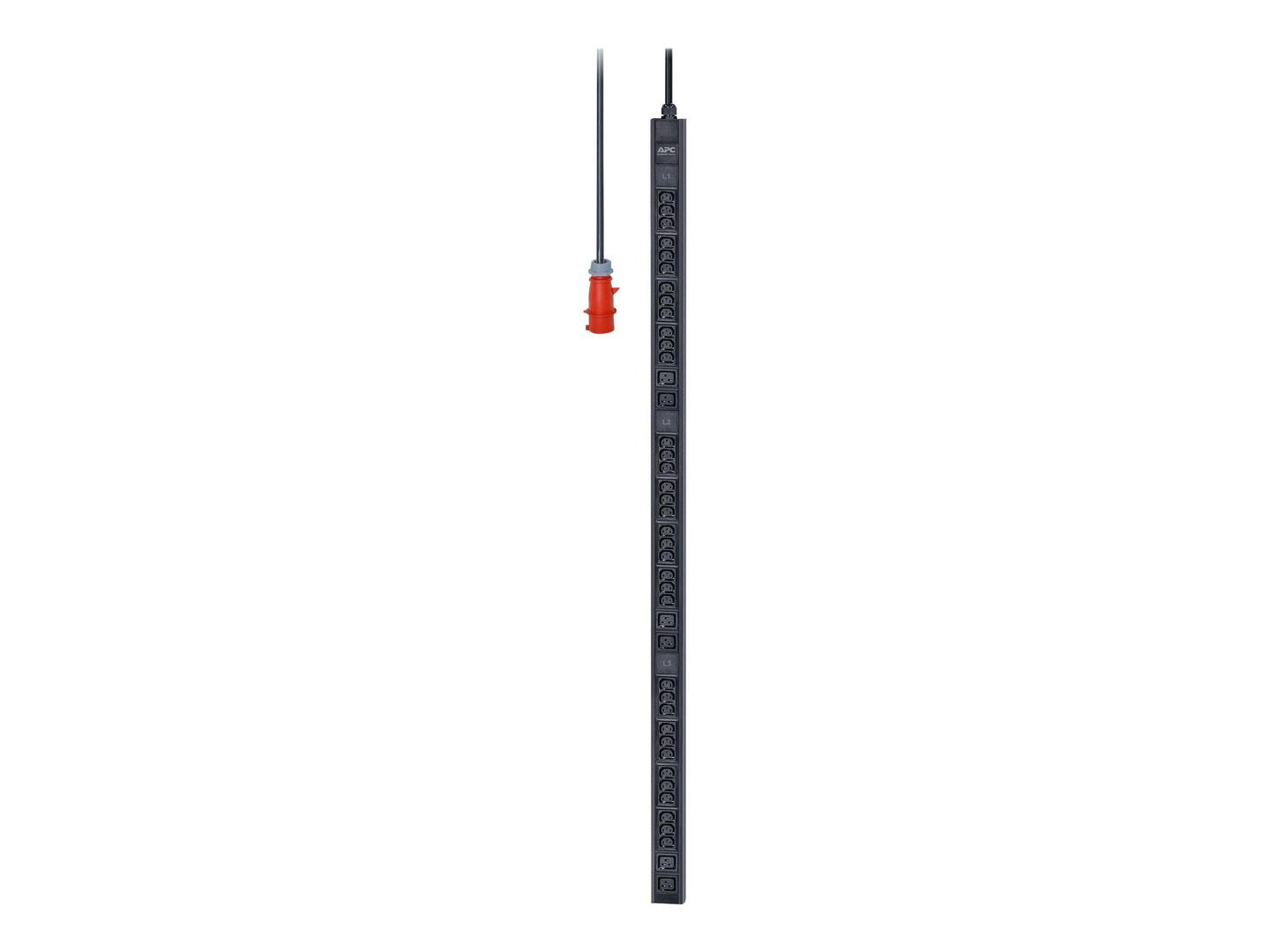

APC Easy Basic Rack PDU EPDU1216B / Power distribution unit (rack-mountable) / AC 400 V / 11 kW / 11000 VA / 3-phase / input: IEC 60309 3P+N+PE / output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13) / 0U / 2.5 m cord / black / for P/ | EPDU1216B
Please sign in so that we can notify you about a reply
Special Features
- Provides a number of outlets to bring power to rack equipment
- Puts power where it is needed most - in the racks near the equipment
- Saves time and money during installation by using one branch whip and standard connections
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 2.5 m |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 400 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+PE |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Max Electric Current | 16 A |
| Power Capacity | 11 kW / 11000 VA |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket |
| Cables Included | Power cable 2.5 m |
| Features | Vertical mount |
| Compliant Standards | TUV |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.2 cm |
| Depth | 4.44 cm |
| Height | 150.6 cm |
| Weight | 3.08 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 16 cm |
| Shipping Depth | 11 cm |
| Shipping Height | 166 cm |
| Shipping Weight | 4.28 kg |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: ACCS1001, ACDC1015, ACDC1019, AP5017, AP5607, AP7852, AP7864, AP7911, AP7951, AP7953, AP9290, AP9553, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR8160ABLK, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SC450RM1U, SMC1000, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I-2UC, SMC1500IC, SMT1000RM2U, SMT2200RM2U, SMT2200RM2UC, SMT3000RM2U, SMT3000RM2UC, SMX1000, SMX1000I, SMX1500RM2U, SMX1500RMI2U, SMX3000HVNC, SMX3000RMHV2UNC, SMX750I, SU2200R3X167, SUA1000RM1U, SUA1500R2X93, SUA2200R2X106, SUA2200RMI2U, SUA3000R2X180, SUA3000RMXLI3U, SUA5000RMT5U, SUA750RM1U, SUA750RM2U, SUM1500RMXL2U, SURT10000RMXLT, SURT3000RMXLT-1TF5 |
Features - APC - EPDU1216B
More Details
Product Code
CA05973
EAN Code
0731304405054
Manufacturer
APC
