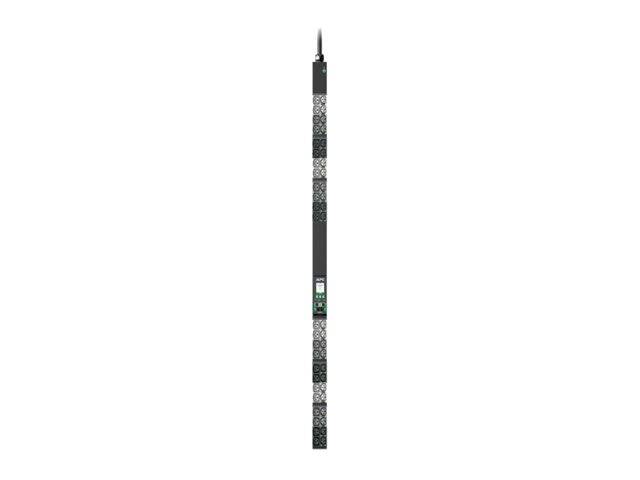

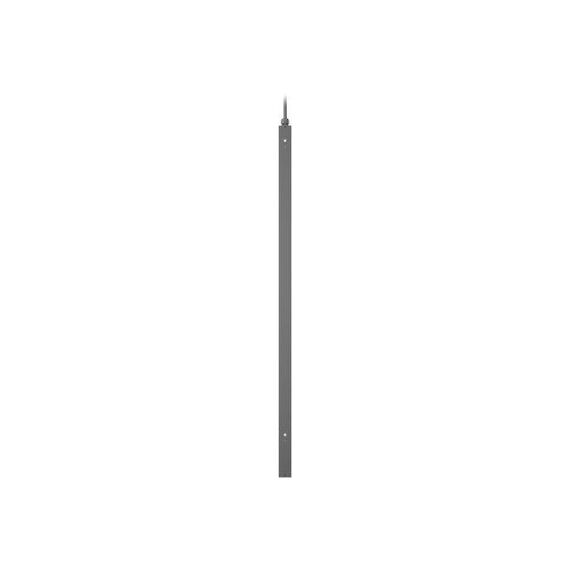

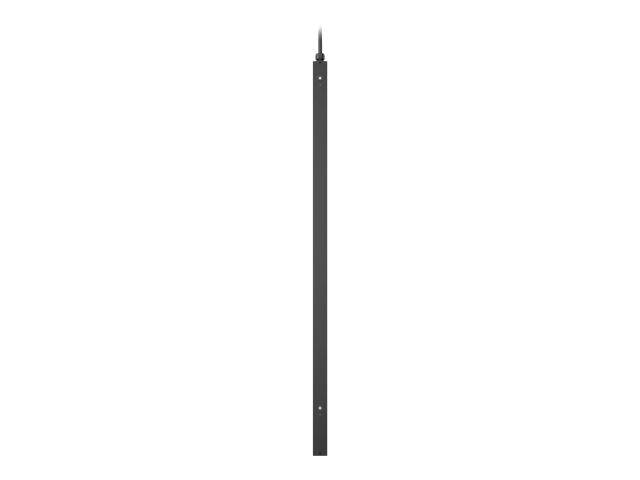

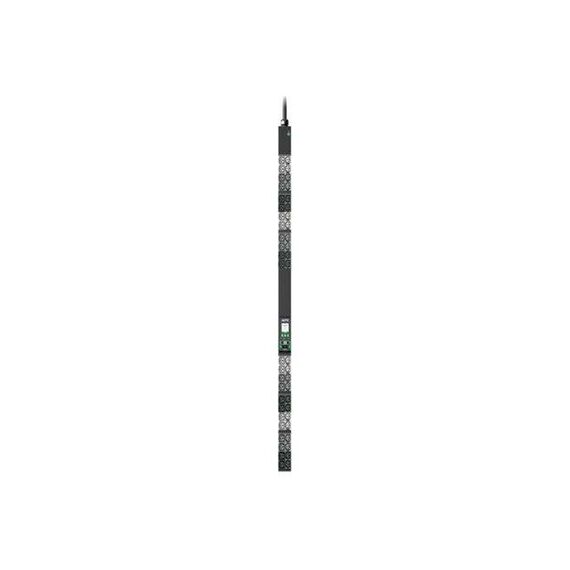

APC NetShelter Rack PDU Advanced / Power distribution unit (rack-mountable) / switched metered outlet / AC 400/415 V / 11.5 kW / 11500 VA / 3-phase / Ethernet 10/100/1000 / input: IEC 60309 520P6 / output connectors: 48 (24 x IEC 60320 C13/ | APDU10250SM
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 1.8 m |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 400/415 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 520P6 |

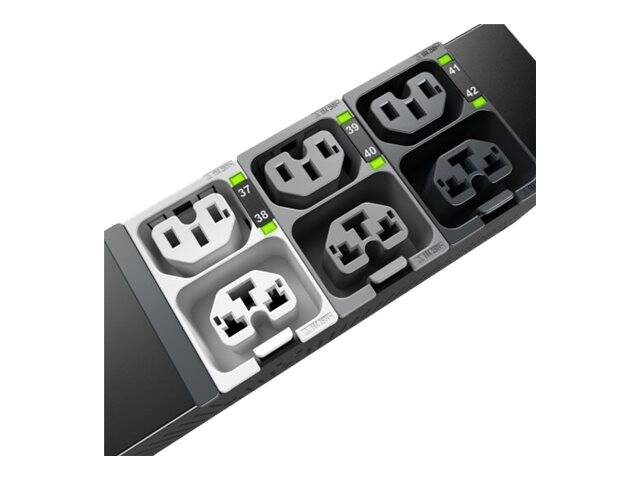

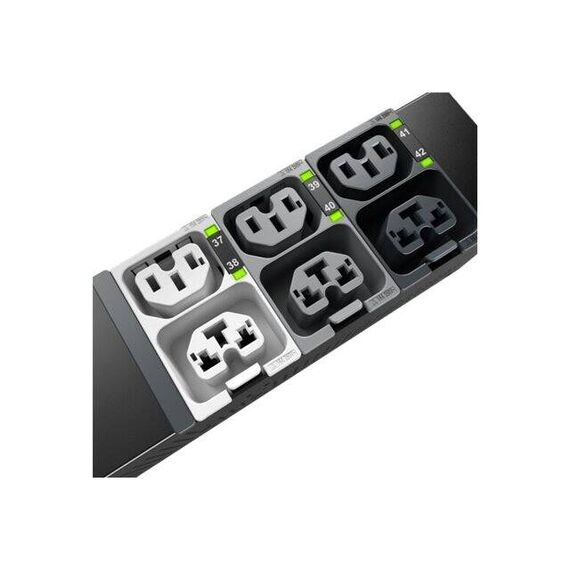

| Power Output Connectors Details | 24 x power IEC 60320 C13/C15/C19/C21 ¦ 24 x power IEC 60320 C13/C15 |
| Output Voltage | AC 240 V |
| Max Electric Current | 20 A |
| Power Capacity | 11.5 kW / 11500 VA |
| Networking | Networking |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | Management (Gigabit Ethernet) - RJ-45 ¦ Cascading - RJ-45 |
| Miscellaneous | Miscellaneous |
| Cables Included | Power cable 1.8 m |

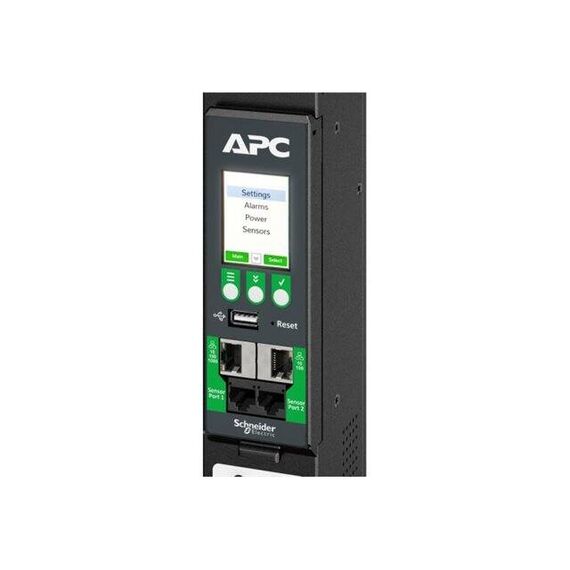

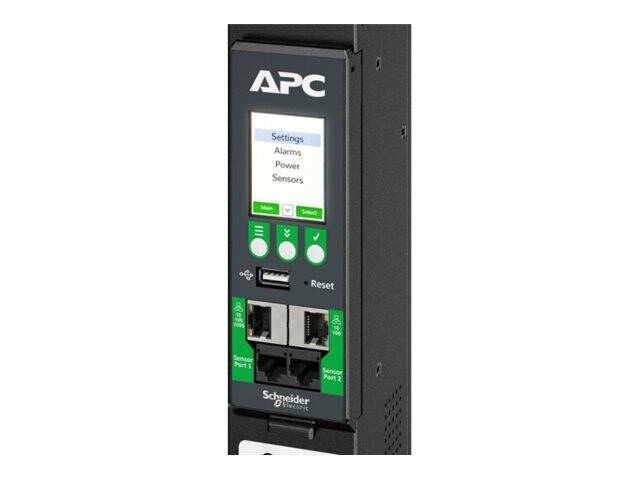

| Features | Vertical orientation, LCD display, overload protection |
| Compliant Standards | EN 62368-1, UL 62368-1, UKCA, FCC Part 15 Subpart B, CSA C22.2 No. 62368-1 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replace or repair - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.6 cm |
| Depth | 7.5 cm |
| Height | 149 cm |
| Weight | 7.7 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 20.8 cm |
| Shipping Depth | 11.6 cm |
| Shipping Height | 172 cm |
| Shipping Weight | 9.7 kg |
Features - APC - APDU10250SM
More Details
Product Code
CF77943
EAN Code
0731304439707
Manufacturer
APC
