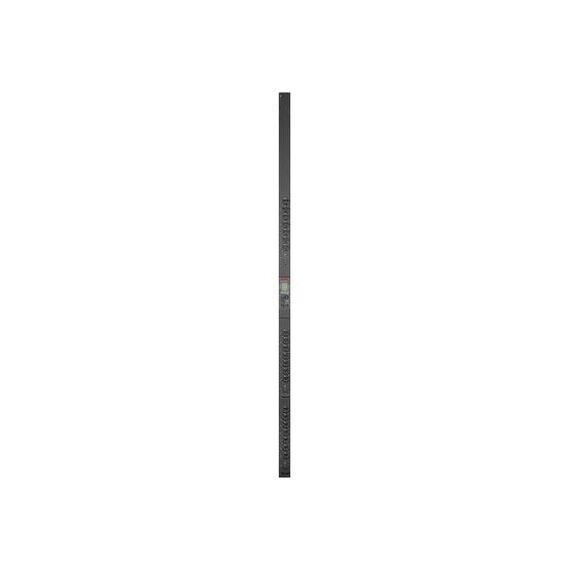

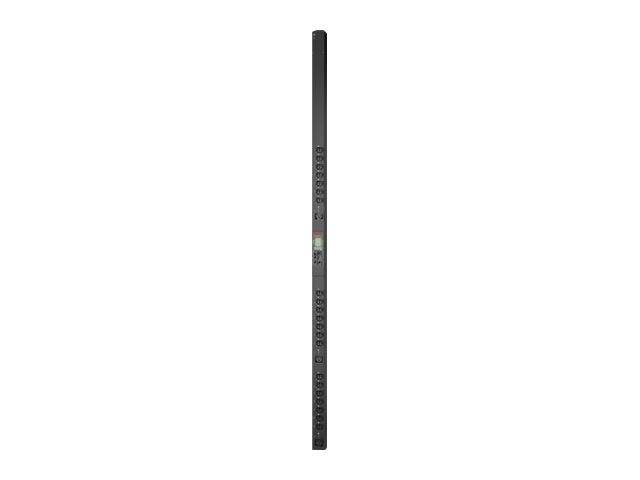

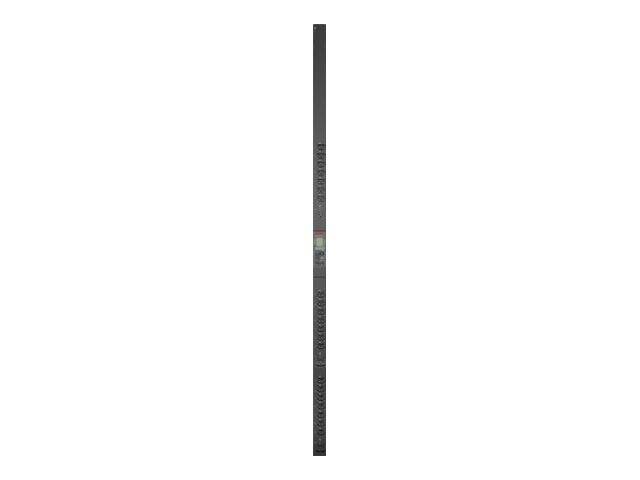

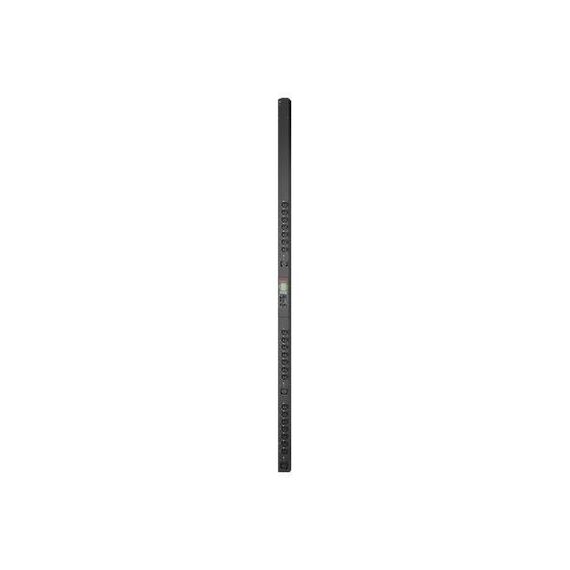

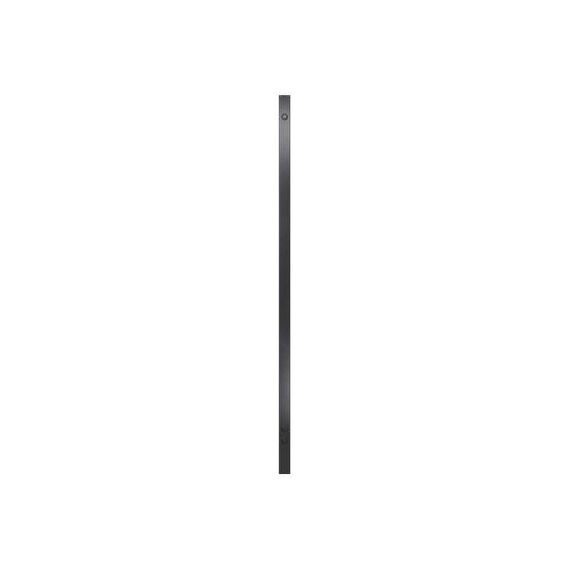

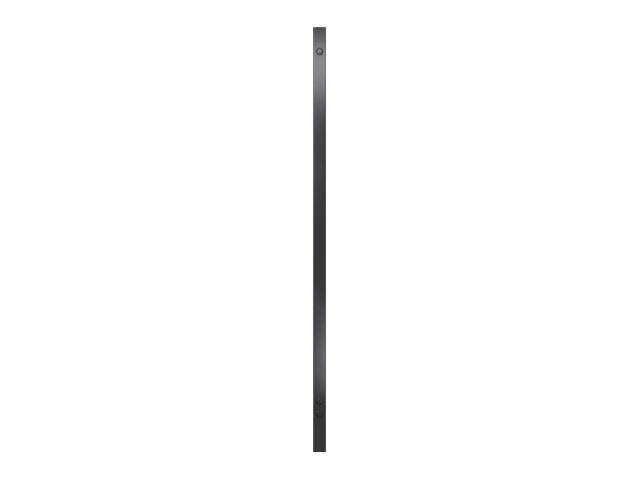

APC Rack PDU 9000 Switched APDU9959NA3 - Power distribution unit (rack-mountable) - AC 200/208 V - 3.3 kW - 3300 VA - Ethernet 10/100/1000 - input: NEMA L6-20 - output connectors: 24 (21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21) - 0U - 3 m cord - black
APDU9959NA3
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 3 m |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 200/208 V |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20 |
| Power Output Connectors Details | 21 x power IEC 60320 C13/C15 ¦ 3 x power IEC 60320 C19/C21 |
| Output Voltage | AC 200/208 V 50/60 Hz |
| Max Electric Current | 20 A |
| Power Capacity | 3.3 kW / 3300 VA |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Features | Switched |
| Compliant Standards | cUL, FCC Part 15 A, PSE Mark, IEC 62368-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 5.5 cm |
| Depth | 4.6 cm |
| Height | 179.7 cm |
| Weight | 5.61 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.5 cm |
| Shipping Depth | 11.4 cm |
| Shipping Height | 200.2 cm |
| Shipping Weight | 7.86 kg |
| Compatibility Information | |
| Designed For | P/N: SMC1000, SMC1500, SMT1500RM2U, SMT3000RM2U, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMUS, SMX750C, SMX750CNC, SRT1000RMXLA, SRT10KRMXLT-IEC, SRT10KXLI, SRT10KXLT-IEC, SRT1500RMXLA-NC, SRT3000RMXLW-IEC, SRT3000XLW-IEC, SRT5KRMXLIM, SRT5KRMXLT-IEC, SRT6KRMXLIM, SRT6KXLT-IEC, SRT8KRMXLT-IEC, SRT8KXLT-IEC, SURT1000XLIM, SURT20KRMXLT, SURT20KRMXLT-TF5, SURTD2200XLIM, SURTD3000XLIM, SURTD6000RMXLP3U, SYA8K16RMP, SYH2K6RMT-P1, SYH2K6RMT-TF3, SYH6K6RMT, SYH6K6RMT-TF3 |
Features - APC - APDU9959NA3
More Details
Product Code
CA81518
EAN Code
0731304356301
Manufacturer
APC
