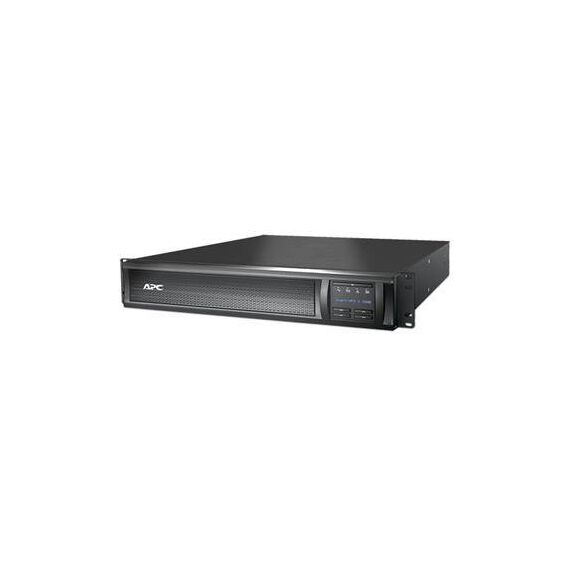

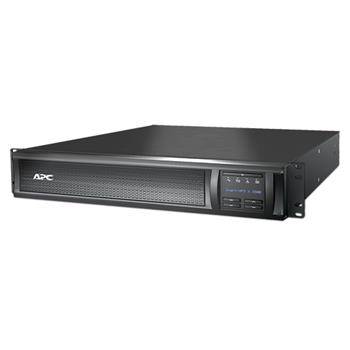

APC Smart-UPS X 1500 Rack/Tower LCD / UPS (rack-mountable) / AC 230 V / 1200 Watt / 1500 VA / RS-232, USB / output connectors: 8 / 2U / black | SMX1500RMI2U
APC Smart-UPS X 1500 Rack/Tower LCD / UPS (rack-mountable) / AC 230 V / 1200 Watt / 1500 VA / RS-232, USB / output connectors: 8 / 2U / black | SMX1500RMI2U
Description Patent-pending operating mode that by passes unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. Special Features
Product features
|
Product Specification
Device Type | UPS - rack-mountable |
Battery Enclosure Type | Plug-in module |
Height (Rack Units) | 2U |
Colour | Black |
UPS Technology | Line interactive |
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 - 285 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Frequency Provided | 47 - 63 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | Power IEC 60320 C14 |

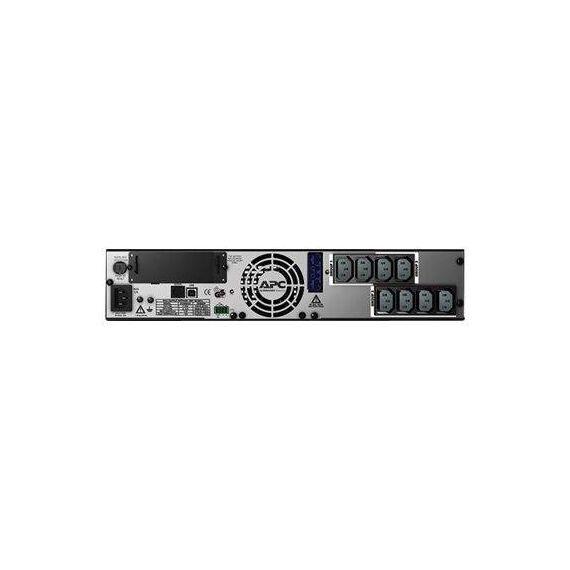

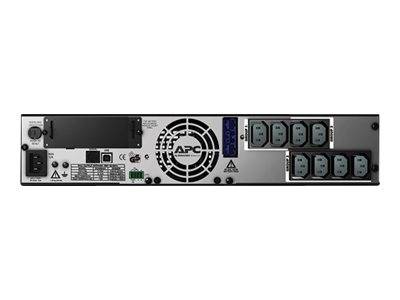

Power Output Connectors Details | 8 x power IEC 60320 C13 |
Output Voltage | AC 230 V 47 - 63 Hz |
Power Capacity | 1200 Watt / 1500 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 645 Joules |
Quantity | 1 |
Technology | Lead Acid |
Run Time (Up To) | 5.8 min at full load ¦ 17.2 min at half load |
Recharge Time | 3 hours |
Remote Management Interface | RS-232, USB |
Interfaces | 1 x management (RS-232) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off) |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Cables Included | 1 x serial cable - external ¦ 1 x USB cable - external ¦ 1 x power cable - integrated - 1.8 m |
Rack Mounting Kit | Included |
Features | Audible alarm, emergency power off, LCD display |
Compliant Standards | C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1 |
Software Included | Drivers & Utilities |
Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 0 - 95% |
Sound Emission | 40 dBA |
Width | 8.9 cm |
Depth | 49 cm |
Height | 43.2 cm |
Weight | 24.8 kg |
Shipping Width | 24.6 cm |
Shipping Depth | 62 cm |
Shipping Height | 58.9 cm |
Shipping Weight | 30 kg |
