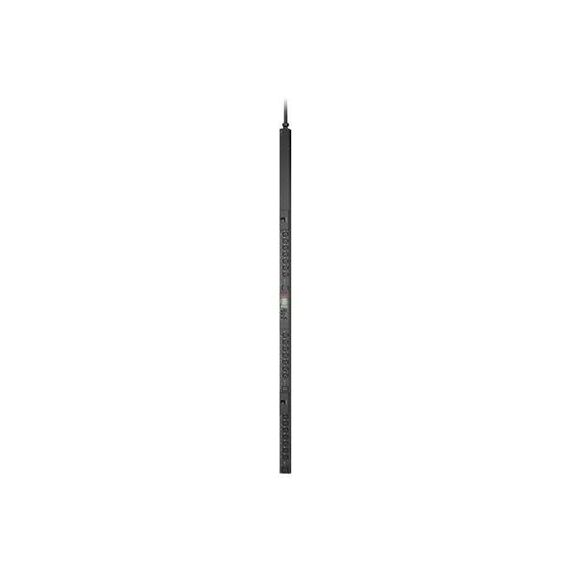

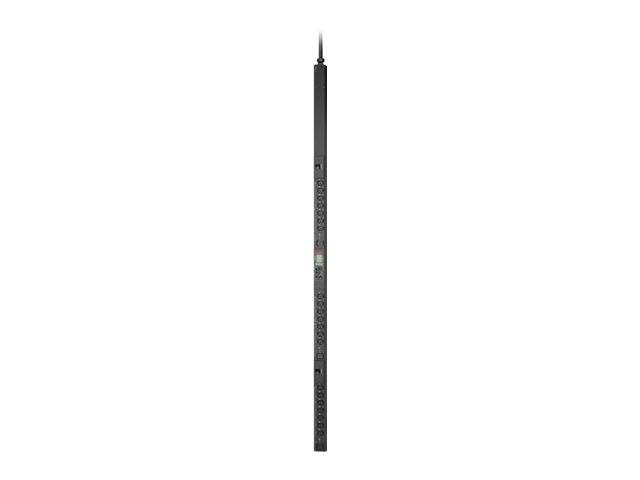

APC Rack PDU 9000 Switched APDU9953 / Power distribution unit (rack-mountable) / AC 230 V / 7400 VA / Ethernet 10/100/1000 / input: IEC 60309 32A / output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13) / 0U / 3.05 m cord / black | APDU9953
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 3.05 m |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 220 - 240 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 32A |
| Power Output Connectors Details | 21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19 |
| Output Voltage | AC 230 V 50/60 Hz |
| Max Electric Current | 32 A |
| Power Capacity | 7400 VA |
| Networking | Networking |
| Remote Management Interface | Ethernet 10/100/1000 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Cables Included | Power cable 3.05 m |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, switched |
| Compliant Standards | EN 61000-3-2, VDE, EN 61000-3-3, EAC, RCM, EN 55022 Class A |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.6 cm |
| Depth | 4.6 cm |
| Height | 182.9 cm |
| Weight | 7.34 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 16.5 cm |
| Shipping Depth | 12.4 cm |
| Shipping Height | 204 cm |
| Shipping Weight | 9.95 kg |
Features - APC - APDU9953
More Details
Product Code
CA81515
EAN Code
0731304356271
Manufacturer
APC
