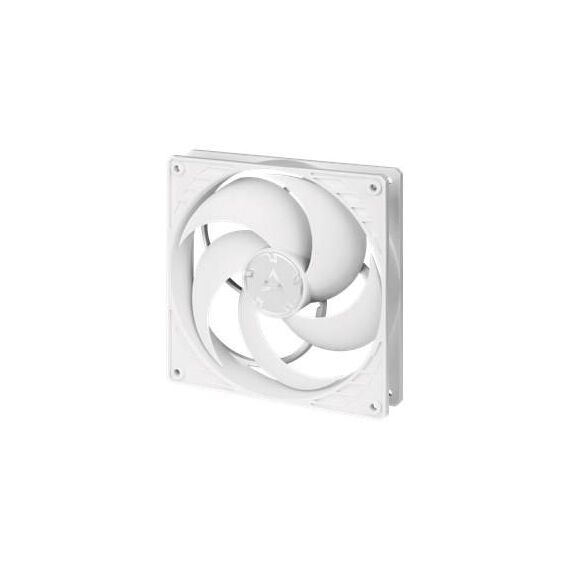

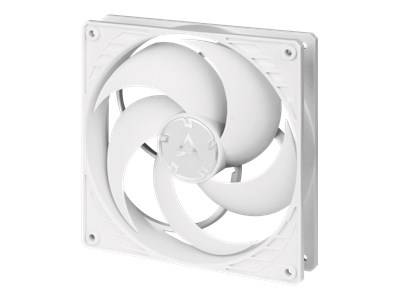

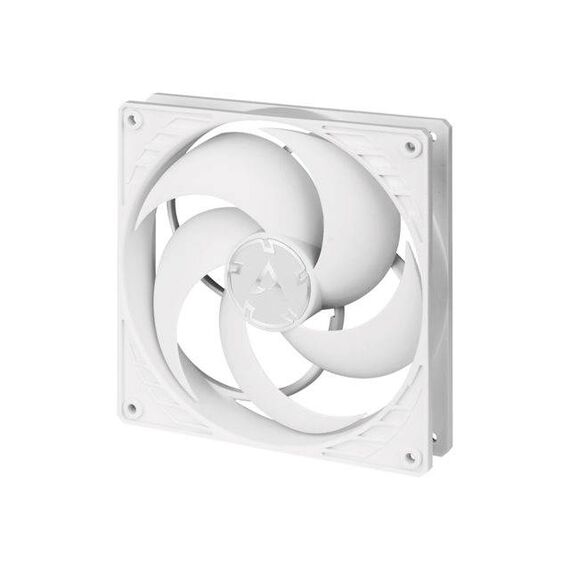

ARCTIC P14 PWM / Case fan / 140 mm / white | ACFAN00222A
ARCTIC P14 PWM / Case fan / 140 mm / white | ACFAN00222A
Description
During the development of the P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.
ARCTIC P14 PWM / Case fan / 140 mm / white
Special Features
- More efficient technology
- Maximum quietness, minimum vibration
- 0 dB mode
- High quality bearing
Product features
- More efficient technology
The motor is powered by a neodym-iron-boron-magnet ring, which allows the P14 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance. - Maximum quietness, minimum vibration
Even at low speeds the operating sound of the ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor. - 0 dB mode
The P14 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its innovative motor. This allows working at your PC in complete silence without any unwanted noise. - High quality bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Product Specification
Product Type | Case fan |
Width | 14 cm |
Depth | 14 cm |
Height | 2.7 cm |
Weight | 194 g |
Shipping Dimensions (WxDxH) / Weight | 14.3 cm x 14.3 cm x 2.9 cm / 233 g |
Colour | White |
Fan Diameter | 140 mm |
Fan Height | 27 mm |
Fan Bearing | Fluid dynamic bearing |
Rotation Speed | 200-1700 rpm |
Air Flow | 72.8 cfm |
Noise Level | 0.3 Sone |
Power Connector | 4-pin fan connector |
Start Voltage | 3.9 V |
Rated Current | 0.12 A |
Cable Length | 40 cm |
Features | Pulse-width modulation (PWM) support |
Service & Support | Limited warranty - 10 years |
