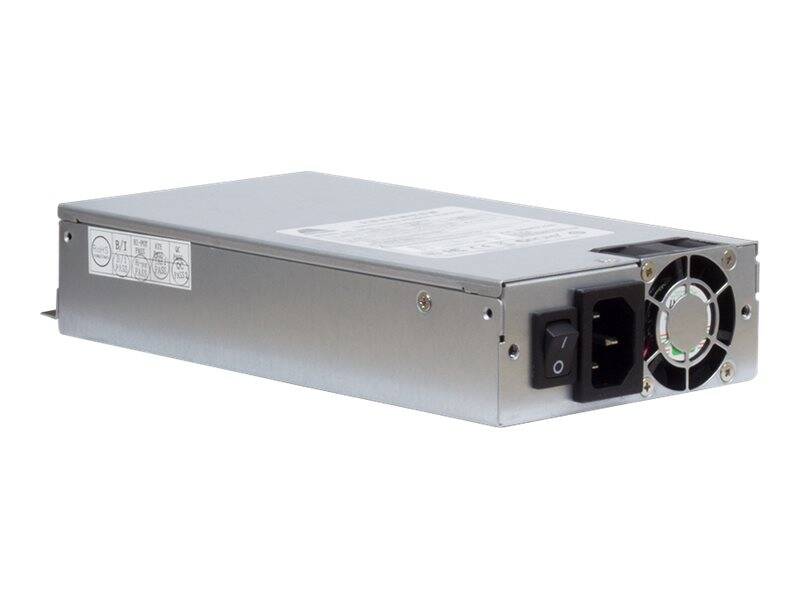

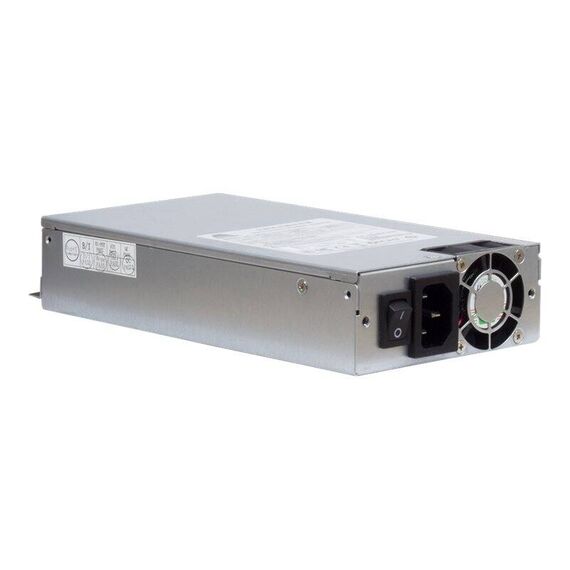

ASPOWER U1A-C20500-D - Power supply (internal) - AC 100-240 V - 500 Watt - PFC | 88887226
Please sign in so that we can notify you about a reply
Special Fetures
- Powerful 500 watts
- Up to 92% efficiency
- Full range input
Product Specification
| Device Type | Power supply - Power Factor Correction (PFC) - internal |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 2 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 24 pin ATX ¦ 1 x power 8 pin +12V with detachable 4 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 40 A ¦ -12V - 1 A ¦ +5VSB - 3 A |
| Miscellaneous | |
| Cables Included | Power cable |
| MTBF | 100,000 hours |
| Cooling System | 40mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overload protection, short-circuit protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 10 cm |
| Depth | 20.5 cm |
| Height | 4 cm |
| Weight | 1.33 kg |
Features - Inter-Tech - 88887226
More Details
Product Code
04:247559
EAN Code
4260455642255
Manufacturer
Inter-Tech
